Berner Architectural Recessed 16 Series Electric Heated In-Ceiling Air Curtain, 144-Inch, 3-Motor, 3-Phase, 14 kW

High-voltage, three-phase model for openings up to 16 ft.

A flush-mounted heated air curtain that helps preserve indoor comfort at large entrances while keeping the ceiling line clean and unobtrusive.

  • Designed for mounting heights up to 16 feet for environmental separation.
  • 144-inch, high-voltage, three-phase configuration with three 1 HP two-speed motors.
  • Factory-installed Intelliswitch touchscreen controller with Berner AIR BASIC smart control.
  • Hinged white aluminum access panel and washable filter support easier service.
  • White aluminum is standard, with stainless steel and custom-color cabinet finish options available.
  • Made in USA and cULus listed, with a 2-year limited warranty on heated models.

Overall Dimensions:

144.0"W x 26.0"D x 15.0"H

Product Weight:

423.0 lb

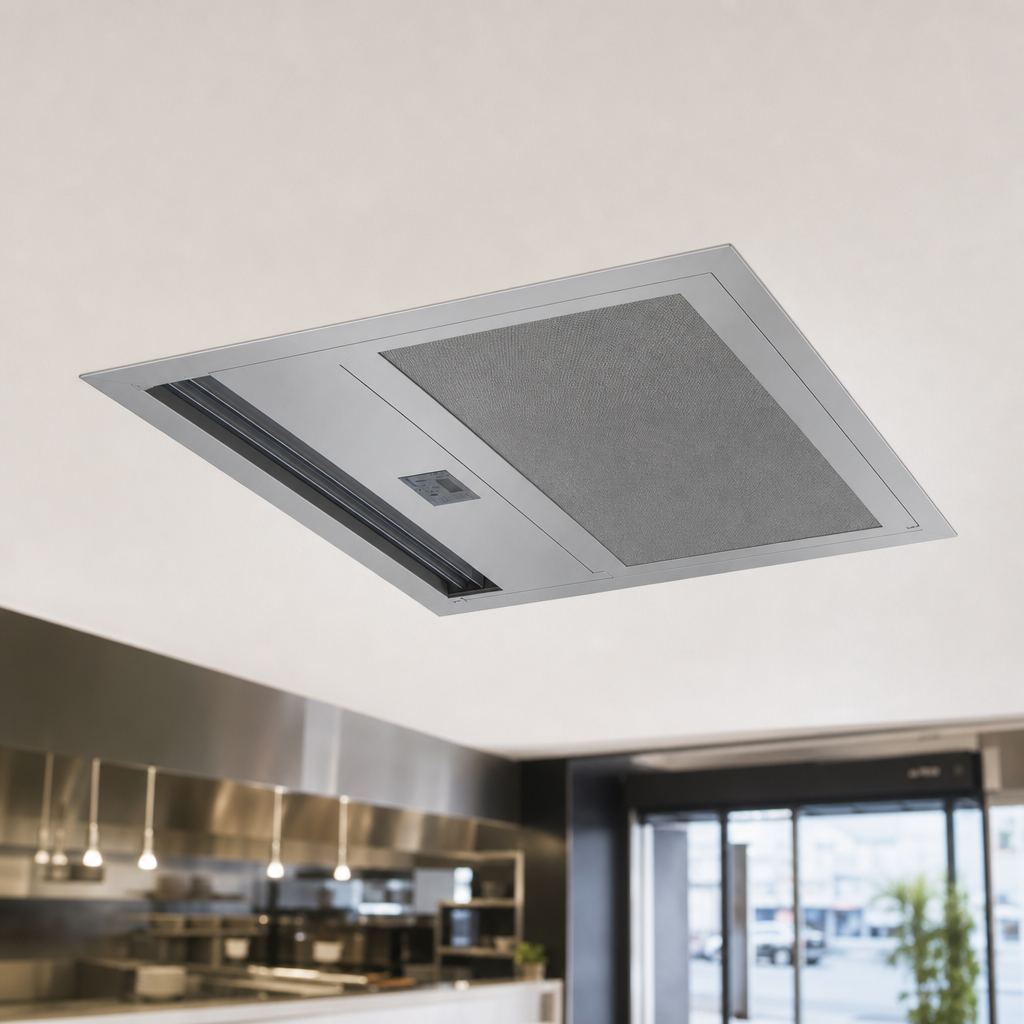

Recessed In-Ceiling Installation

Mounts flush with the ceiling for a clean architectural appearance.

Recessed In-Ceiling Installation

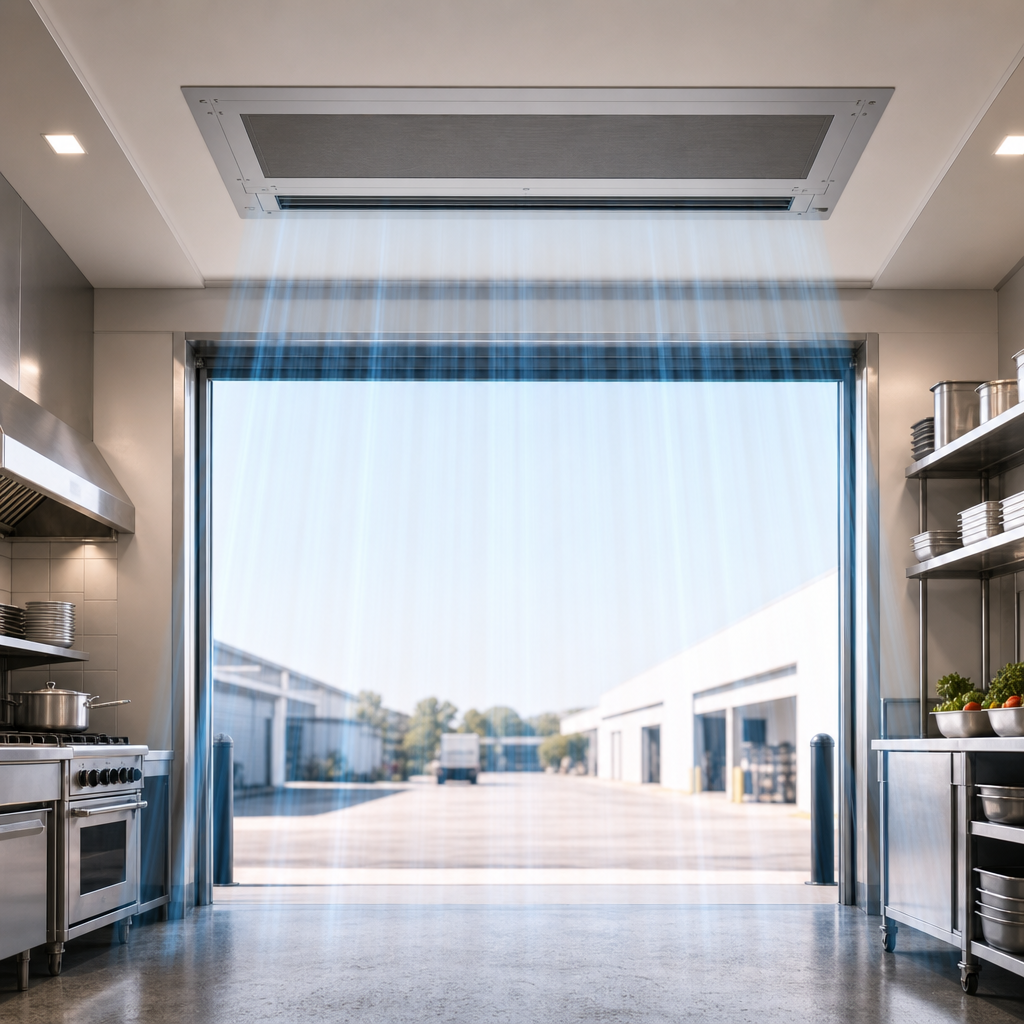

Designed for 16-Foot Openings

Recommended for environmental separation at mounting heights up to 16 feet.

Designed for 16-Foot Openings

Three 1 HP Motors

Three two-speed motors provide the airflow for the 144-inch unit.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface and smart-control functionality.

White Aluminum Bottom Access Panel

Hinged, removable access panel simplifies service access to internal components.

Washable Polyester Filter

Recleanable filter supports routine maintenance.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design helps deliver more uniform air discharge.

Top Mounting Only

Designed for top mounting with flexible electrical connections.

Type Heated Air Curtain
Style Recessed
Installation Type Built-In
Watts 14 kW
Phase 3-Phase
Motors 3
Horsepower Per Motor 1 HP
Controls Digital Touchscreen
Max Mounting Height 16 Feet
Material Aluminum
Finish White
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 144 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 423 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Fcb kw sheet PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface.
This configuration uses three 1 HP, two-speed motors.
The unit has a hinged bottom access panel and a washable polyester filter for easier maintenance.
Heated models carry a 2-year limited warranty from the original date of shipment.
White aluminum is standard, and stainless steel or custom color finishes are available as options.
