Berner

Berner Architectural Recessed 16 Series 144-Inch Electric Heated Air Curtain, 3-Motor, 3-Phase

SKU: ARE16-3144E-2-3
$9,116.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Series 144-Inch Electric Heated Air Curtain, 3-Motor, 3-Phase

Flush-Ceiling Built-In Mount, White Aluminum Panel, Intelliswitch Controller

This recessed electric heated air curtain delivers a clean architectural look and dependable environmental separation for openings up to 16 feet.

  • Flush-mounts with the ceiling for a clean architectural installation.
  • Electric heated, 3-phase unit with three 1 HP two-speed motors.
  • Factory-installed Intelliswitch digital controller with touchscreen interface and Berner AIR BASIC smart control.
  • Hinged white aluminum bottom access panel and washable filter simplify service access.
  • Top-mount only design; documentation notes 15 inches of clearance above the ceiling.
  • Made in USA, cULus listed, and covered by a 2-year limited warranty on heated models.

Overall Dimensions:

144.0"W x 26.0"D x 15.0"H

Product Weight:

423.0 lb

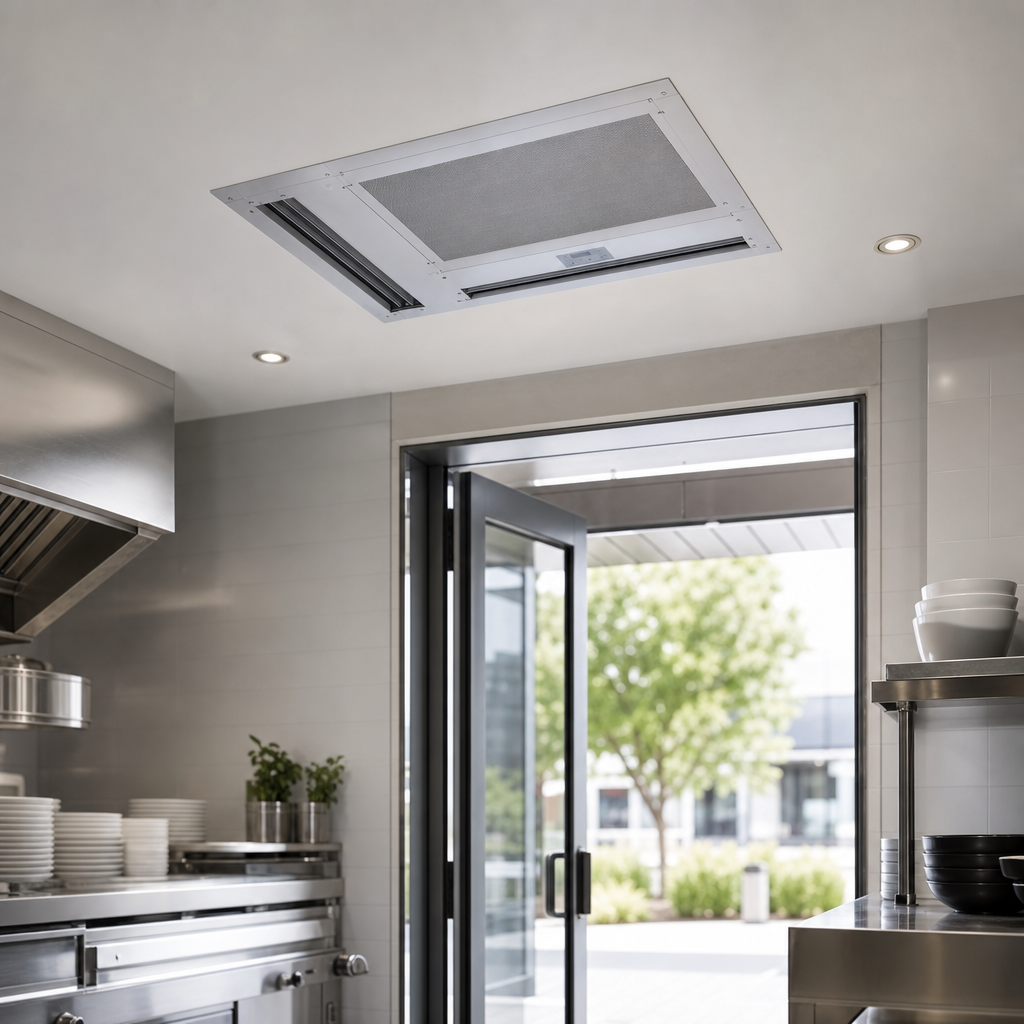

Recessed Ceiling Mount

Flush-ceiling installation preserves architectural aesthetics and keeps the unit discreet.

Recessed Ceiling Mount

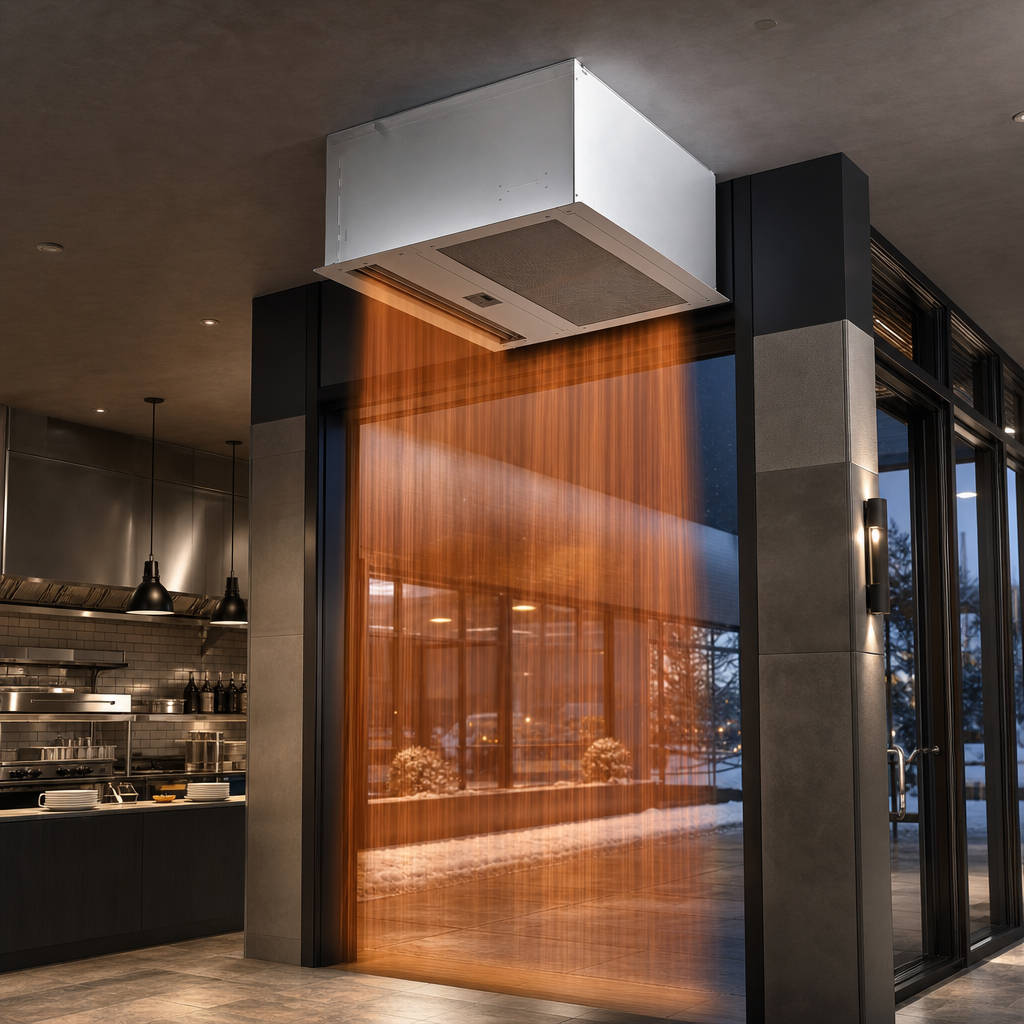

Electric Heated Operation

Designed to provide environmental separation for entrances up to 16 feet tall.

Electric Heated Operation

Three 1 HP Two-Speed Motors

Three-motor layout supports wide openings and steady air delivery.

Intelliswitch Digital Controller

Factory-installed touchscreen controller includes Berner AIR BASIC smart control.

Hinged White Aluminum Access Panel

Bottom access panel lifts for maintenance and helps provide a clean finished appearance.

Pro-V Nozzle and Washable Filter

High-efficiency low-noise nozzle paired with a recleanable polyester filter.

Top Mounting Only

Installs from the top and requires at least 15 inches of ceiling clearance.

cULus Listed / Made in USA

Listed for indoor use and manufactured in the United States.

Type Air Curtain
Style Heated Recessed
Installation Type Built-In
Controls Intelliswitch Digital Controller
Phase 3-Phase
Watts 14 kW
Number Of Motors 3
Motor Horsepower 1 HP Each
Motor Speeds Two Speed
Maximum Mounting Height 16 Feet
Material Aluminum
Color White
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Fcb kw sheet PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
It includes a factory-installed Intelliswitch digital controller with touchscreen interface and Berner AIR BASIC smart control.
This model is electric heated.
It has a hinged white aluminum bottom access panel for service access.
Heated models are covered by a 2-year limited warranty from the original shipment date.
Yes. Standard construction uses a white aluminum exterior panel, and custom color or stainless steel finishes are also available.
