Berner Architectural Recessed 16 Ambient Air Curtain, 144 Inch, 3-Motor, 1 HP, 3-Phase

Flush-Mount, Unheated In-Ceiling Design for Openings Up to 16 Feet

This recessed ambient air curtain delivers quiet, energy-saving separation for wide entrances while keeping the equipment discreetly hidden in the ceiling.

  • Ambient, unheated design helps separate indoor and outdoor air without adding heat.
  • Recessed architectural cabinet mounts flush with the ceiling for a clean look.
  • Three 1 HP motors provide the airflow needed for large openings.
  • Factory-installed Intelliswitch digital controller includes a touchscreen interface.
  • Recommended for mounting heights up to 16 feet for environmental separation.
  • Hinged access panel and washable filter simplify service and maintenance.
  • cULus listed and made in the USA.

Overall Dimensions:

144.0"W x 26.0"D x 15.0"H

Product Weight:

411.0 lb

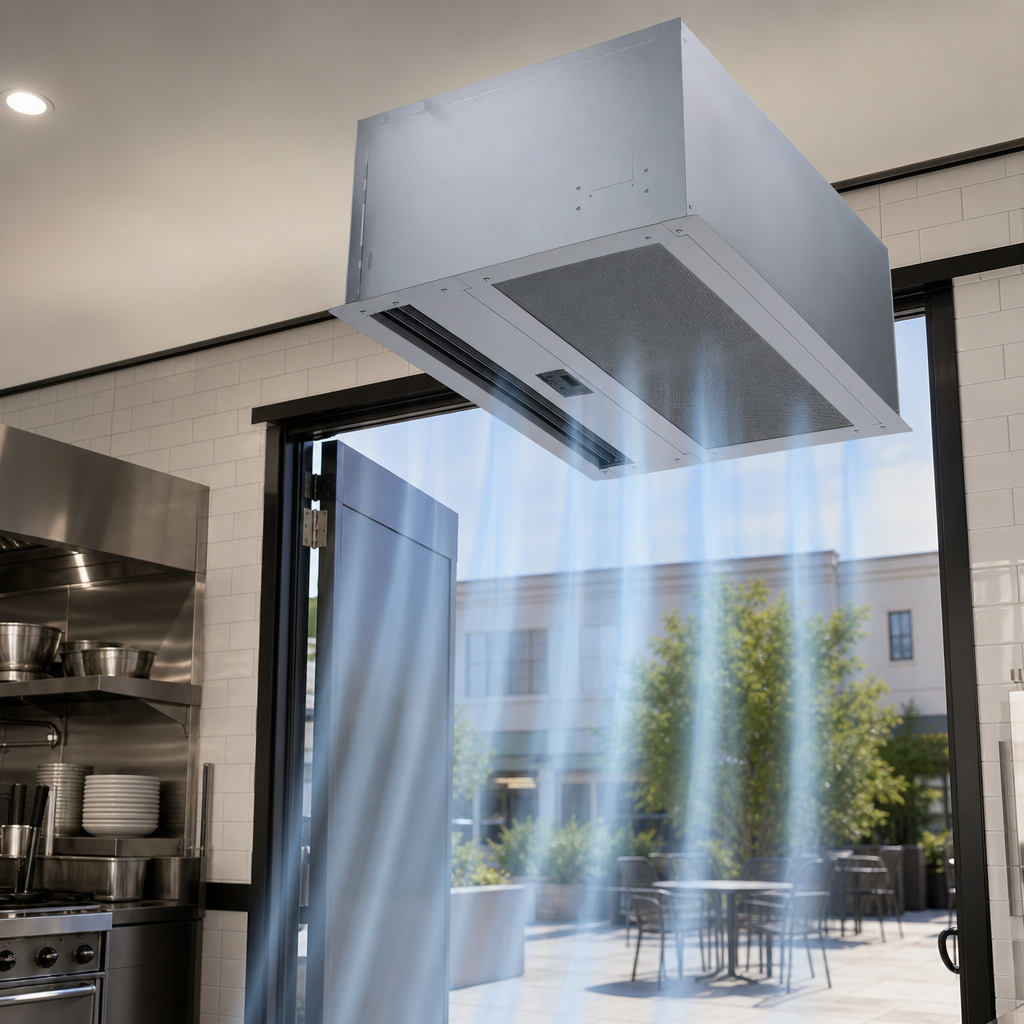

Ambient Unheated Operation

Provides air separation without electric, steam, or hot water heating.

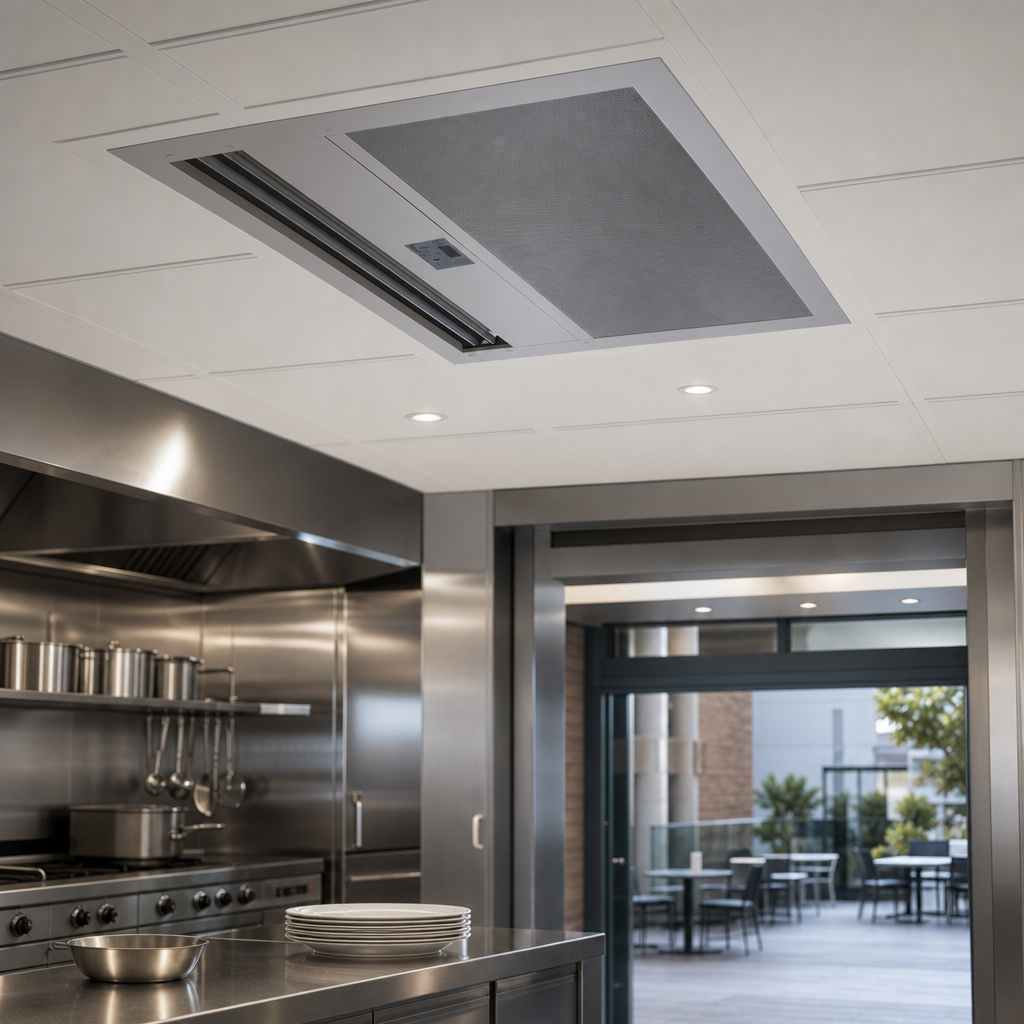

Architectural Recessed Design

Installs in the ceiling for a flush, low-profile appearance over the opening.

Three 1 HP Motors

Uses three two-speed motors to support performance across wide openings.

Intelliswitch Touchscreen Control

Factory-installed digital controller with touchscreen interface for convenient operation.

Washable Filter And Access Panel

Hinged access panel and recleanable polyester filter make routine maintenance easier.

Pro-V Nozzle

High-efficiency, low-noise nozzle design helps deliver smooth airflow.

Made In USA, cULus Listed

Built in the USA and listed for code compliance.

Type Air Curtain
Style Architectural Recessed 16
Installation Type Built-In
Phase 3-Phase
Controls Digital Touchscreen
Material Aluminum
Color White
Motor Count 3
Horsepower Per Motor 1 HP
Motor Speeds Two Speed
Mounting Height Up to 16 Feet
Air Volume 7,053 CFM
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on ambient models.

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. This is an ambient, unheated model.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface.
It has a hinged removable access panel and a recleanable polyester filter for easier maintenance.
Ambient models include a 5-year limited warranty.
Yes. A Wi-Fi controller is offered as an optional accessory and works with the Berner App.
