Berner Architectural Recessed 16 Ambient Unheated Recessed In-Ceiling Air Curtain, 12-Foot, 3 x 1 HP, Two-Speed

SKU: ARE16-3144A-1
$6,919.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Ambient Unheated Recessed In-Ceiling Air Curtain, 12-Foot, 3 x 1 HP, Two-Speed

Single-Phase, Flush-Mount, White Aluminum Bottom Panel

Built to disappear into the ceiling, this ambient air curtain helps protect open entrances without disrupting the architecture of the space.

  • Recessed, flush-ceiling design preserves a clean architectural look.
  • Ambient, unheated airflow provides environmental separation without added heat.
  • Three 1 HP, two-speed motors deliver strong performance for wide openings.
  • Factory-installed Intelliswitch touchscreen controller simplifies operation.
  • White aluminum access panel, washable filter, and hinged service access support maintenance.
  • Recommended for mounting heights up to 16 ft; top mounting only.
  • Made in USA and cULus listed for indoor use.

Overall Dimensions:

144.0"W x 26.0"D x 15.0"H

Product Weight:

411.0 lb

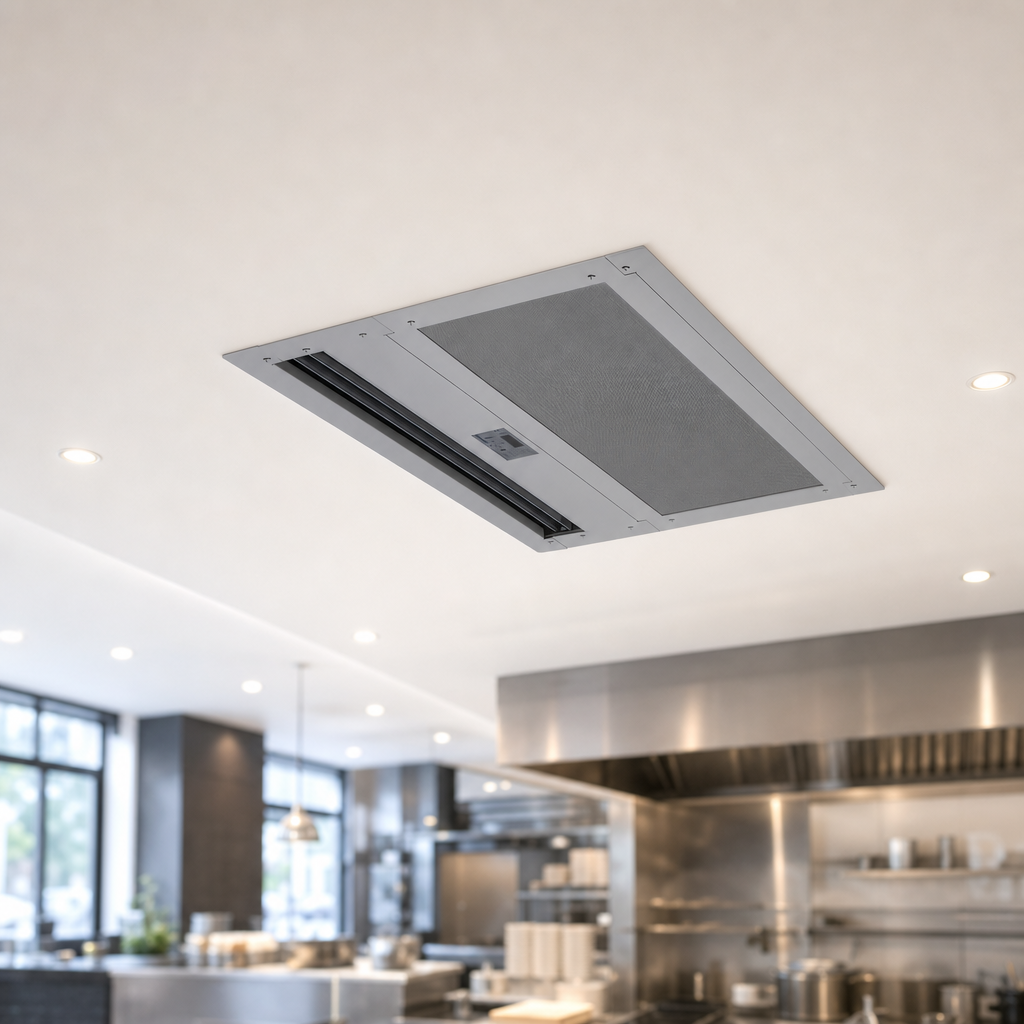

Recessed In-Ceiling Mount

Installs flush with the ceiling to keep the air curtain visually discreet in premium spaces.

Recessed In-Ceiling Mount

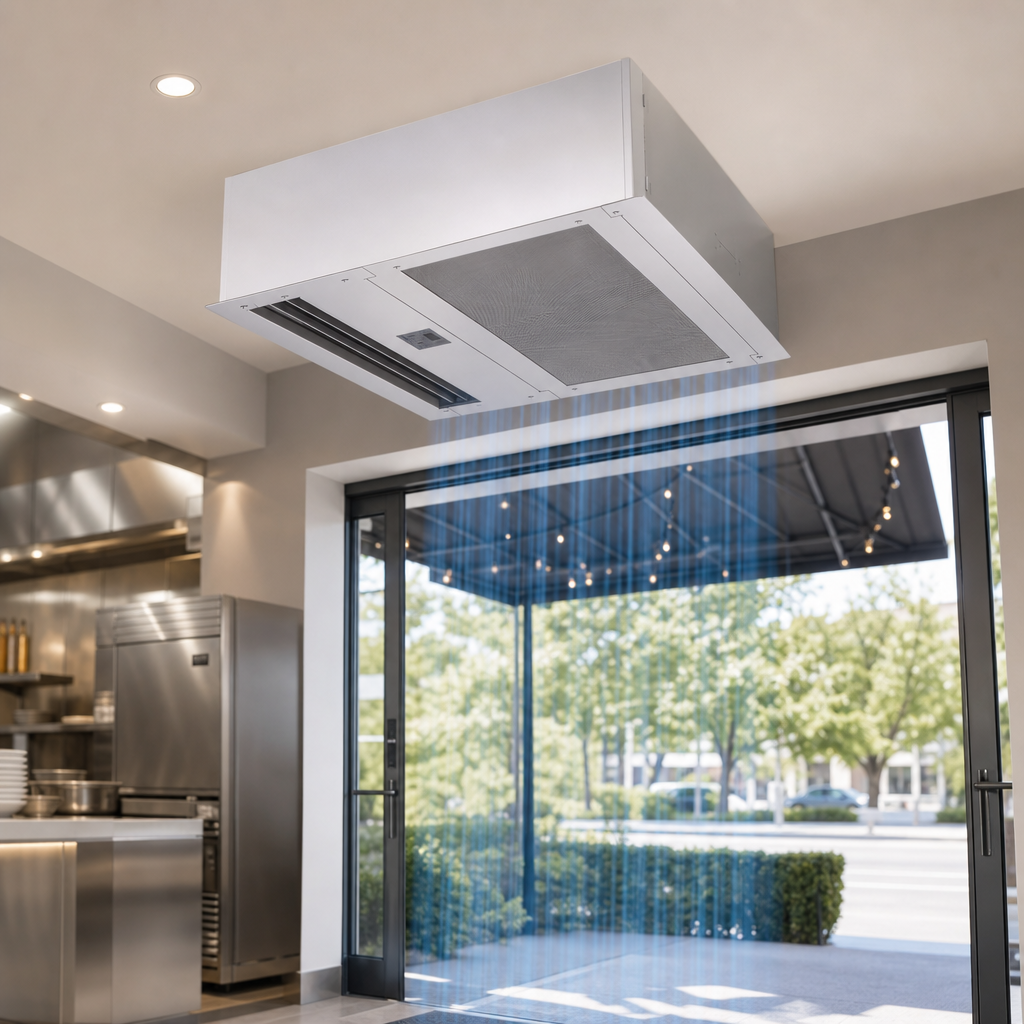

Ambient, Unheated Operation

Provides air separation at entrances without adding heat to the air stream.

Ambient, Unheated Operation

3 x 1 HP Motor Package

Three motors with 1 HP per motor provide strong airflow coverage for large openings.

Two-Speed Operation

Allows the unit to run at two motor speeds for application flexibility.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface and Berner AIR BASIC smart control.

Pro-V Nozzle and Washable Filter

High-efficiency, low-noise nozzle design pairs with a washable filter for easier upkeep.

Hinged White Aluminum Access Panel

Bottom access panel is hinged for easier service access.

Made in USA / cULus Listed

Built in the USA and listed for indoor use.

Type Air Curtain
Style Ambient
Installation Type Built-In
Controls Intelliswitch Touchscreen
Phase 1-Phase
Motor Count 3
Horsepower Per Motor 1 HP
Motor Speed Two-Speed
Finish White Aluminum
Maximum Mounting Height 16 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 ft for environmental separation and 14 ft for insect control.
No. This is an ambient, unheated air curtain.
It comes with a factory-installed Intelliswitch digital controller with touchscreen interface and Berner AIR BASIC smart control.
The documentation calls for a minimum of 15 inches of clearance above the ceiling.
Unheated models include a 5-year limited warranty from the original shipment date.
Yes. Optional stainless steel or custom color finishes are available.
