Berner

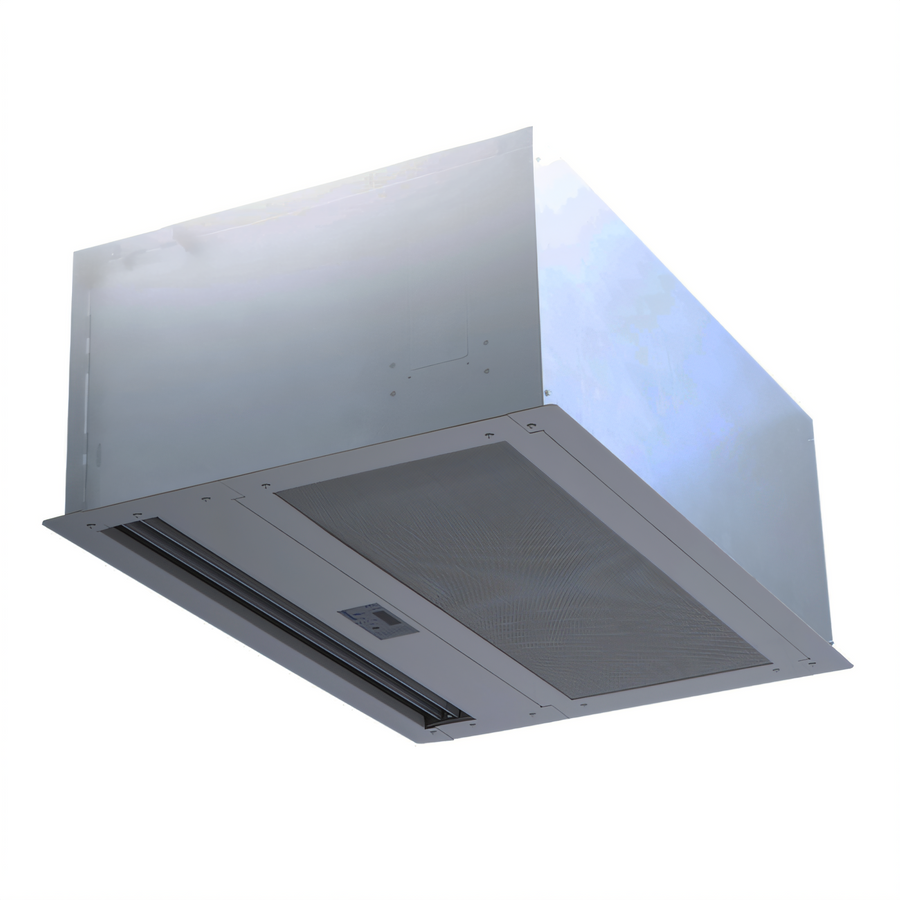

Berner Architectural Recessed 16 Ambient Unheated In-Ceiling Air Curtain, 132 Inch Wide, 3-Motor, 1 HP Each, Single Phase

SKU: ARE16-3132A-1
$6,863.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Ambient Unheated In-Ceiling Air Curtain, 132 Inch Wide, 3-Motor, 1 HP Each, Single Phase

Flush ceiling mount with factory-installed Intelliswitch touchscreen control

Protect conditioned air with a discreet flush-mounted air curtain built for wide 16-foot openings.

  • Ambient, unheated air curtain for environmental separation at entrances.
  • Recessed in-ceiling design preserves the look of the space with a low-profile installation.
  • Three 1 HP, two-speed motors are sized for 132-inch openings.
  • Factory-installed Intelliswitch digital controller includes touchscreen operation.
  • Hinged access panel and washable filter help simplify routine maintenance.
  • Designed for mounting heights up to 16 feet and recommended for insect control up to 14 feet.

Overall Dimensions:

132.0"W x 26.0"D x 15.0"H

Product Weight:

400.0 lb

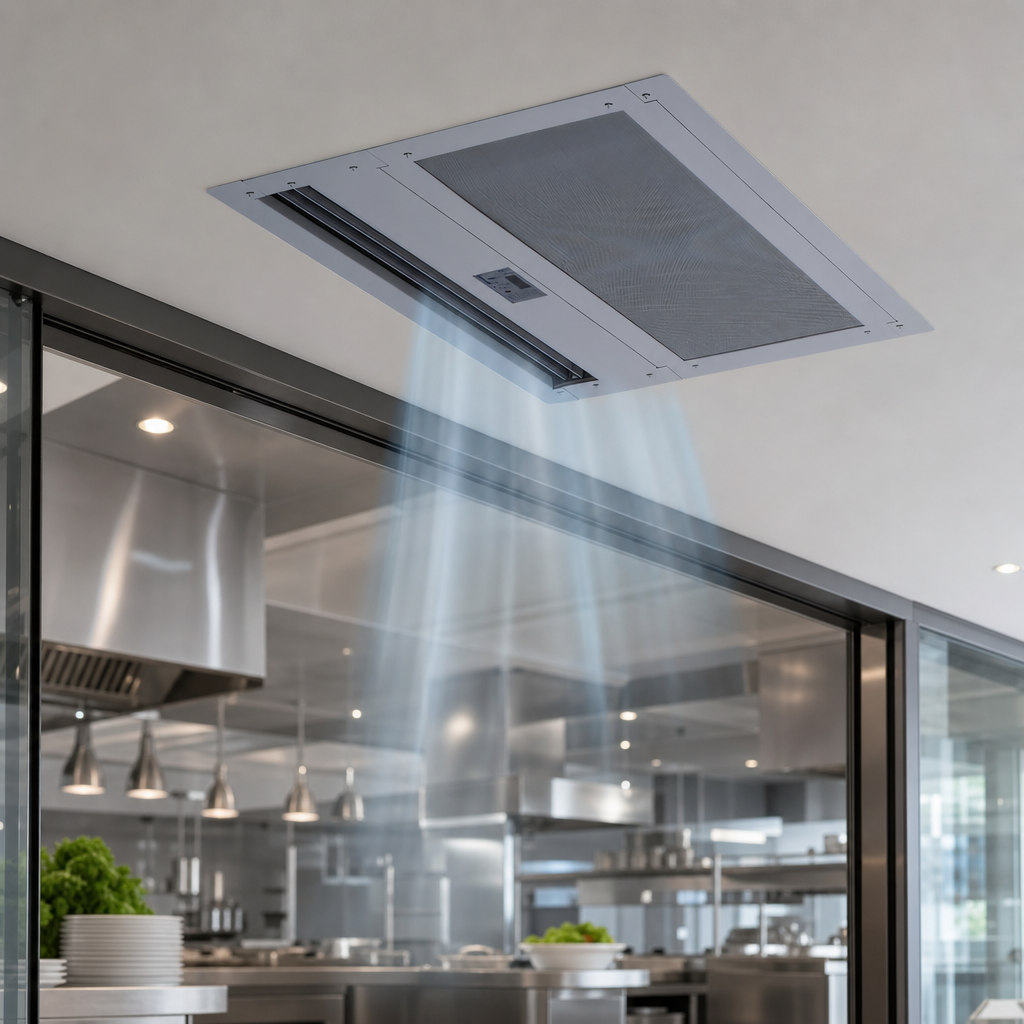

Ambient Unheated Operation

Delivers an air barrier without heat, making it ideal for energy-saving environmental separation.

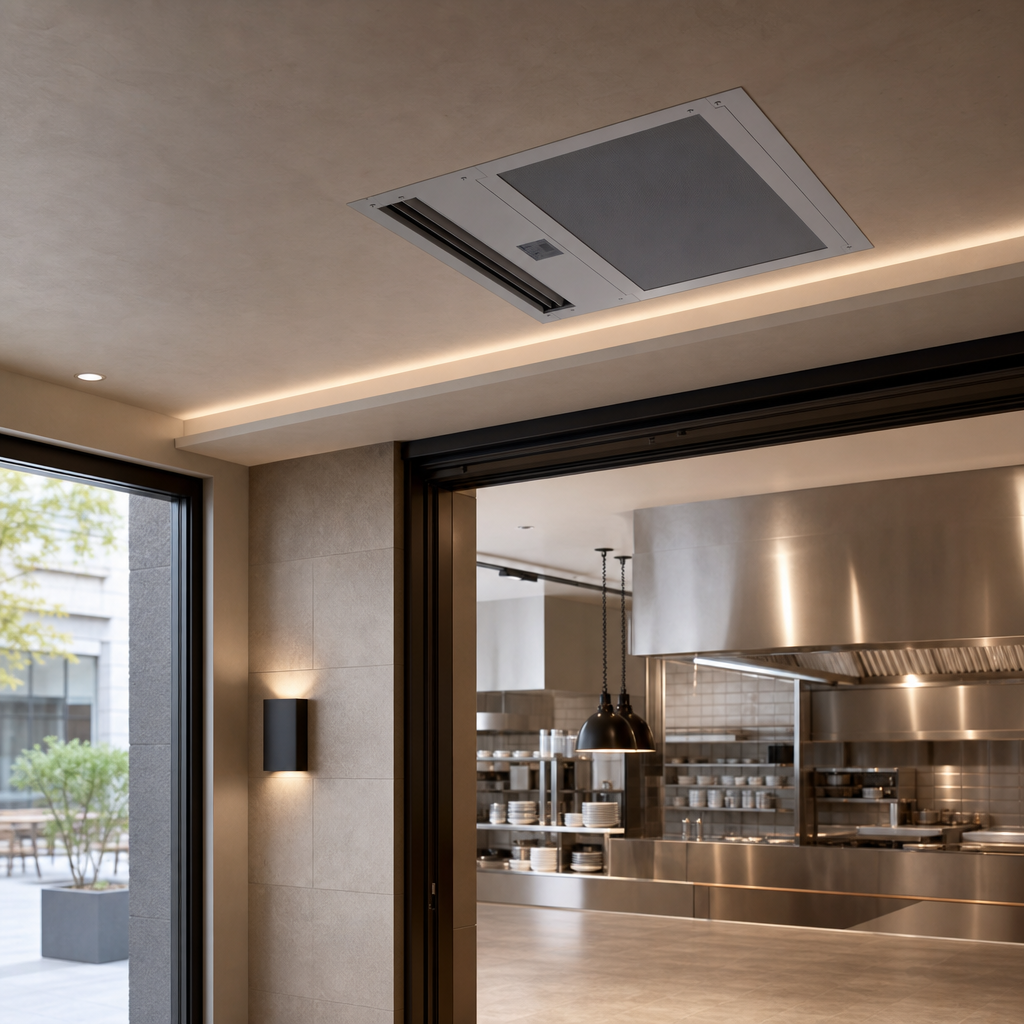

Recessed Architectural Design

Installs flush with the ceiling for a clean, integrated appearance.

Three 1 HP Motors

Three motors provide the airflow needed for large entrance openings.

Two-Speed Motor Operation

Two-speed operation helps match performance to conditions.

Intelliswitch Touchscreen Control

Factory-installed digital controller provides easy on-unit operation through a touchscreen interface.

Washable Filter And Hinged Access Panel

A hinged removable access panel and recleanable polyester filter make service easier.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design helps project and shape the air stream efficiently, with adjustable vanes.

Top Mounting Only

Designed for top-mount recessed installation in the ceiling cavity.

White Aluminum Bottom Panel

Standard white aluminum panel supports a clean architectural finish.

Type Ambient Air Curtain
Style Architectural Recessed 16
Installation Type Built-In
Controls Digital Touchscreen
Maximum Opening Height 16 Feet
Motor Count 3
Horsepower Per Motor 1 HP
Phase 1-Phase
Air Volume 6,859 CFM
Outlet Velocity Uniformity 77%
Power Rating 3.01 kW
Sound Level 67/70 dBA at 10 Feet
Shipping Width 132 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 400 Pounds
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

No. This model is ambient and unheated.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
The documentation calls for a minimum of 15 inches of clearance above the ceiling.
A factory-installed Intelliswitch digital controller with touchscreen is included standard.
The unit includes a hinged removable access panel and a washable polyester filter for easier service.
Unheated models carry a 5-year limited warranty; heated models are covered for 2 years.
