Berner Architectural Recessed 16 Electric Heated Air Curtain, 120-Inch Wide, 3-Motor, 3-Phase, 14 kW

Flush-ceiling recessed design for openings up to 16 feet high with Intelliswitch touchscreen control.

A clean, recessed air curtain that preserves the ceiling line while delivering heated environmental separation for large door openings.

  • Flush-mounts in the ceiling for a low-profile architectural appearance.
  • Designed for mounting heights up to 16 feet for environmental separation.
  • Three 1 HP, two-speed motors help deliver strong air performance.
  • Factory-installed Intelliswitch digital controller includes a touchscreen interface.
  • Standard white aluminum construction includes a hinged access panel and washable filter.
  • Electric heated, 3-phase unit built for commercial indoor entrance applications.

Overall Dimensions:

120.0"W x 26.0"D x 15.0"H

Product Weight:

367.0 lb

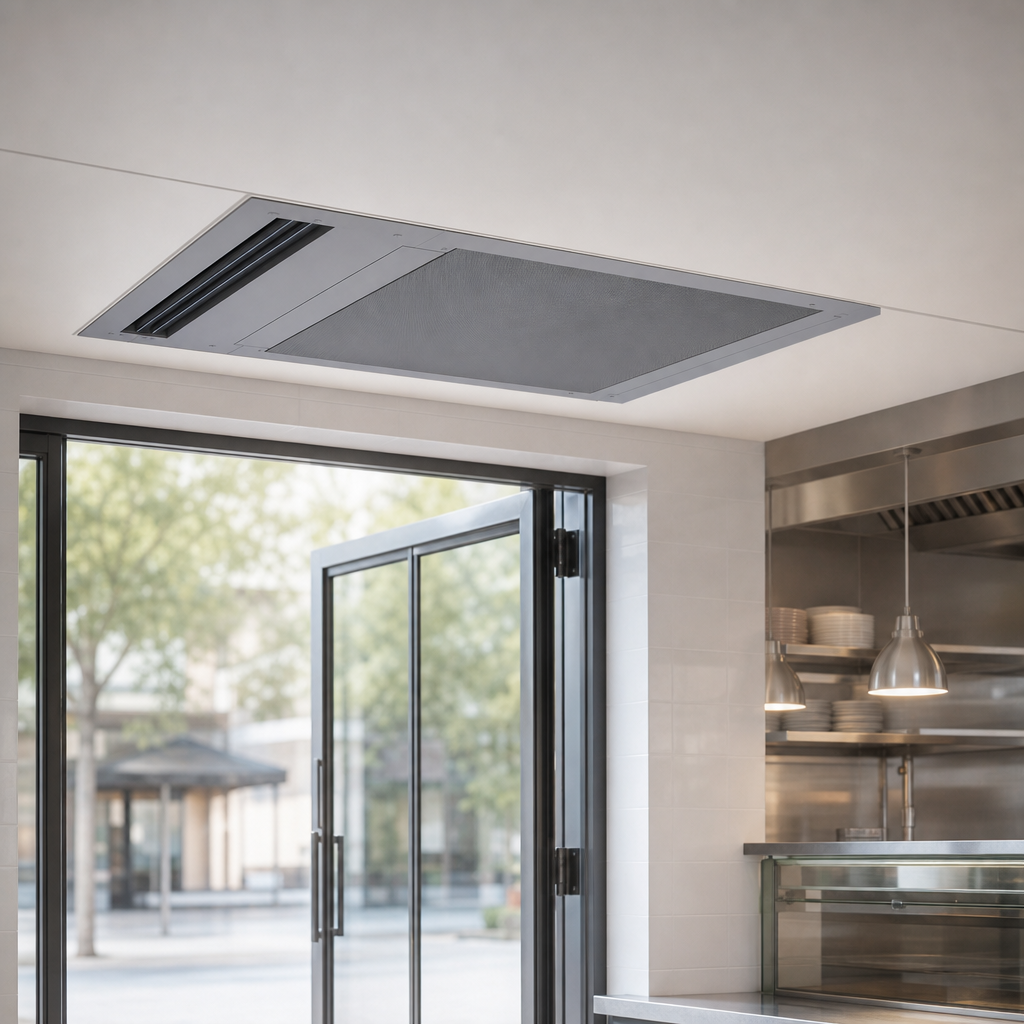

Recessed In-Ceiling Mount

Installs flush with the ceiling for a clean appearance; top mounting only.

Recessed In-Ceiling Mount

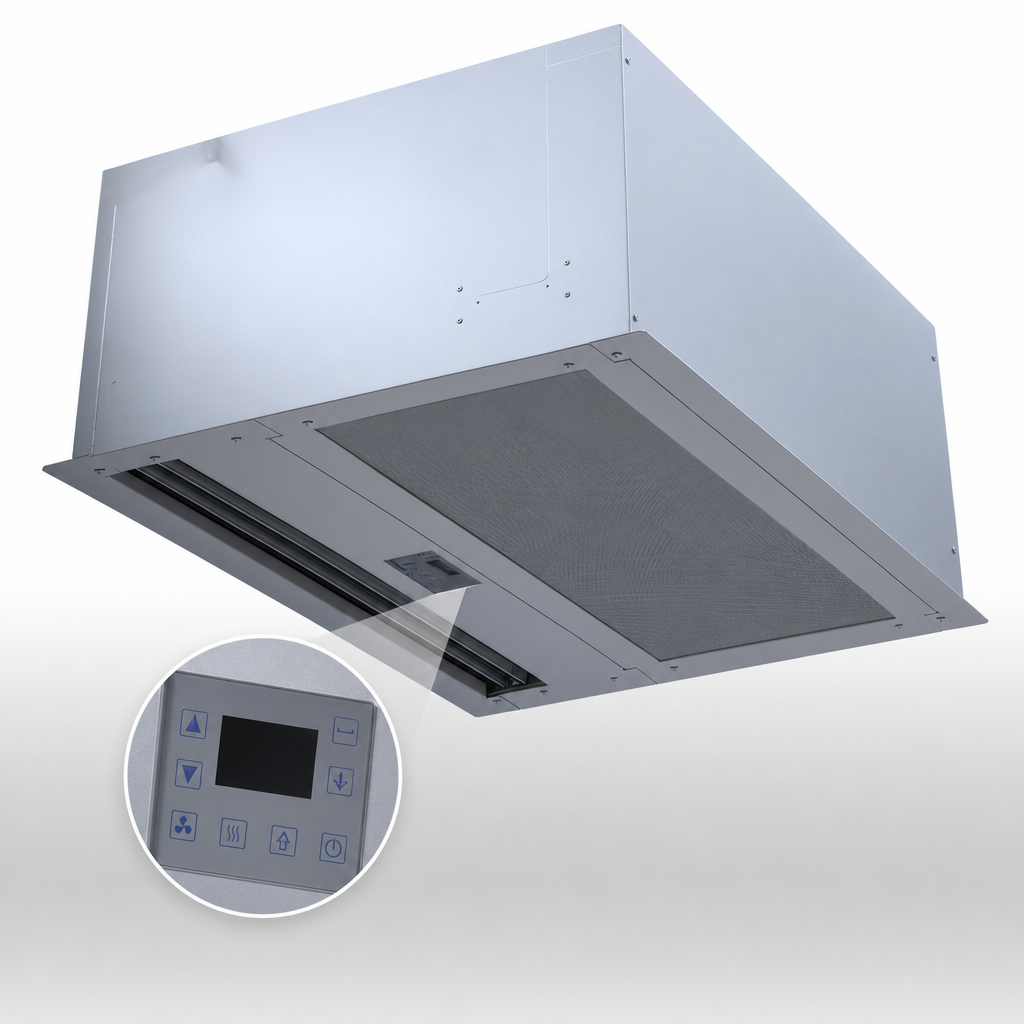

Factory-Installed Intelliswitch Controller

Includes a built-in digital touchscreen controller for straightforward operation.

Factory-Installed Intelliswitch Controller

Three 1 HP Two-Speed Motors

Uses three AC motors with two-speed operation for adjustable air delivery.

Electric Heated Design

Provides heated air separation for comfort and environmental control at the opening.

Pro-V Nozzle

High-efficiency, low-noise nozzle design helps deliver smooth air discharge.

Hinged Access Panel With Filter

Hinged, removable access panel and recleanable washable polyester filter simplify maintenance.

Standard White Aluminum Finish

Ships with a white aluminum bottom access panel; stainless steel or custom color finishes are optional.

Designed For Up To 16-Foot Mounting Heights

Recommended for entrance openings with mounting heights up to 16 feet.

Type Heated Air Curtain
Style Architectural Recessed
Installation Type Built-In
Controls Digital Touchscreen
Motors 3
Horsepower Per Motor 1 HP
Phase 3-Phase
Watts 14 kW
Maximum Opening Height 16 Feet
Material Aluminum
Color White
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Fcb kw sheet PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
Yes. It includes a factory-installed Intelliswitch digital controller with touchscreen interface.
The unit uses three 1 HP motors with two-speed operation.
The standard finish is white aluminum. Stainless steel and custom color finishes are also available as options.
Heated models carry a 2-year limited warranty from the original date of shipment.
Yes, the documentation identifies it as Made in USA.
