Berner

Berner Architectural Recessed 16 Electric Heated Air Curtain, 120-Inch Wide, 3-Motor, 3-Phase

SKU: ARE16-3120E-2-3
$8,751.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Electric Heated Air Curtain, 120-Inch Wide, 3-Motor, 3-Phase

Flush Ceiling Mount, Intelliswitch Digital Controller, White Aluminum Access Panel

A clean, recessed air curtain that delivers heated environmental separation for wide entrances while preserving the architectural look of the space.

  • Flush, recessed in-ceiling design keeps the unit nearly invisible above the entrance.
  • 120-inch-wide coverage with 3 x 1 HP two-speed motors for broad doorway protection.
  • Electric heated system with 3-phase power and 14 kW heat output.
  • Factory-installed Intelliswitch digital controller with touchscreen operation.
  • Hinged white aluminum bottom access panel and washable filter simplify maintenance.
  • Recommended for mounting heights up to 16 feet; cULus listed and made in USA.

Overall Dimensions:

120.0"W x 26.0"D x 15.0"H

Product Weight:

367.0 lb

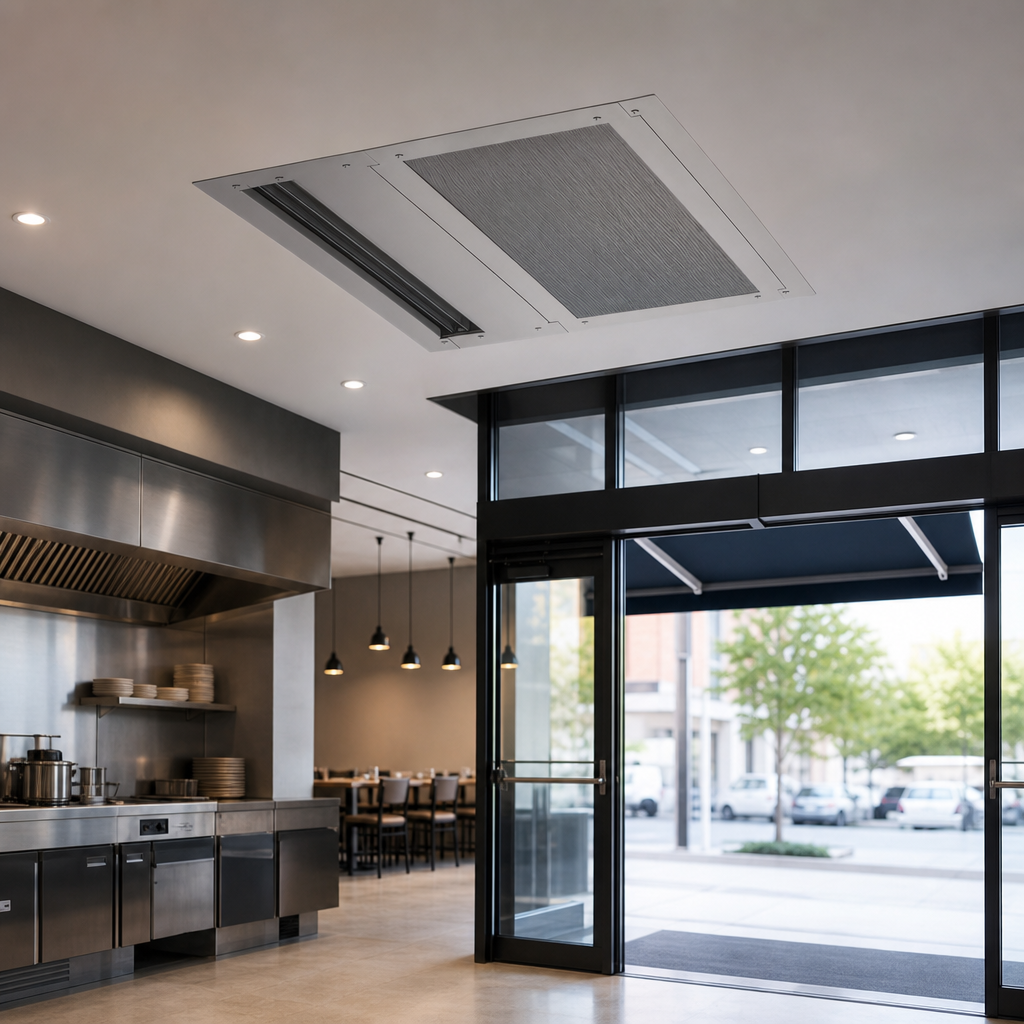

Recessed In-Ceiling Mount

Flush mounts above the opening for a clean architectural appearance.

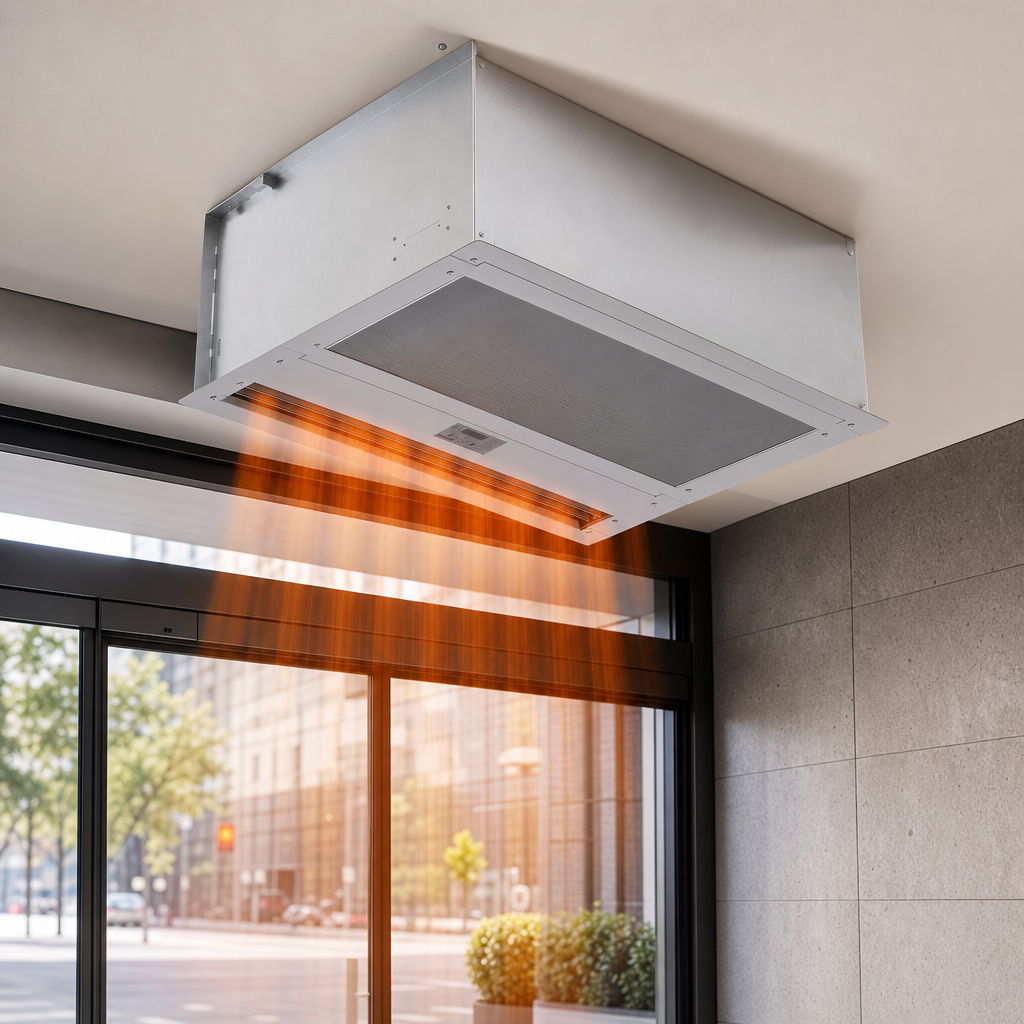

Electric Heated Air Curtain

Provides heated environmental separation for entrances and lobbies.

Three 1 HP Two-Speed Motors

Uses three motors to deliver airflow with two operating speeds.

Factory-Installed Intelliswitch Controller

Includes a touchscreen digital controller with Berner AIR BASIC smart control.

Hinged White Aluminum Access Panel

Bottom access panel opens for service and includes a washable recleanable polyester filter.

Pro-V Nozzle And Venturi Heating Element

High-efficiency, low-noise nozzle design with patented venturi open helical element.

Recommended For Up To 16-Foot Mounting Heights

Sized for environmental separation at taller entrances.

Made In USA / cULus

Built in the USA and listed for commercial indoor use.

Type Heated Air Curtain
Style Recessed
Installation Type Built-In
Heat Type Electric
Phase 3-Phase
Controls Intelliswitch Digital
Motors 3
Motor Horsepower 1 HP
Motor Speed Two Speed
Watts 14 kW
Material Aluminum
Color White
Recommended Mounting Height Up to 16 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 120 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 367 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Fcb kw sheet PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
This model is electric heated.
It includes a factory-installed Intelliswitch digital controller with touchscreen operation.
The unit uses 3 motors, each rated at 1 HP, and they operate at two speeds.
It has a hinged white aluminum bottom access panel and a washable recleanable polyester filter.
