Berner

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 120-Inch, 3-Motor, 3-Phase

SKU: ARE16-3120A-3
$7,232.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 120-Inch, 3-Motor, 3-Phase

Flush-ceiling mount with factory-installed Intelliswitch touchscreen control

A flush-mounted ambient air curtain that helps seal a 120-inch opening while preserving a clean architectural look.

  • Recessed in-ceiling design creates a flush, low-profile appearance.
  • Ambient, unheated operation provides air separation without added heat.
  • Three 1 HP motors with two-speed operation support strong airflow performance.
  • Factory-installed Intelliswitch digital controller uses a touchscreen interface.
  • Recommended for mounting heights up to 16 feet.
  • Hinged white aluminum access panel and washable filter simplify maintenance.
  • High-efficiency Pro-V nozzle helps keep operation quiet.

Overall Dimensions:

120.0"W x 26.0"D x 15.0"H

Product Weight:

355.0 lb

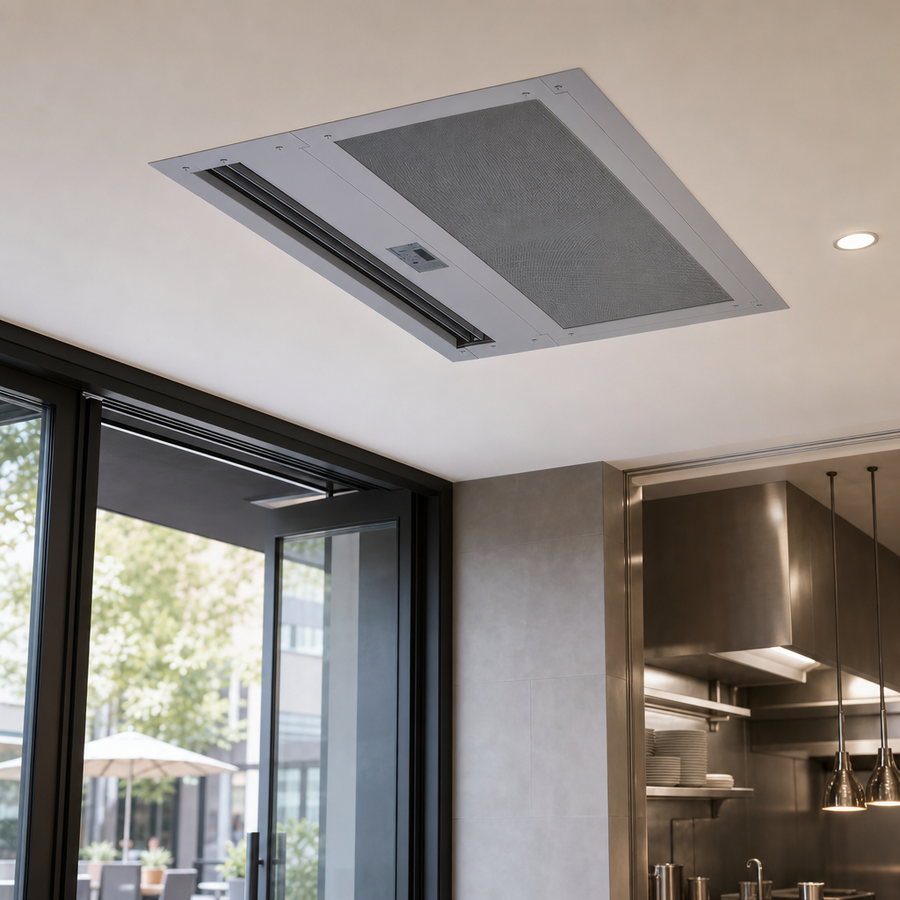

Recessed In-Ceiling Installation

Flush-mounts in the ceiling for a clean architectural appearance at the entrance.

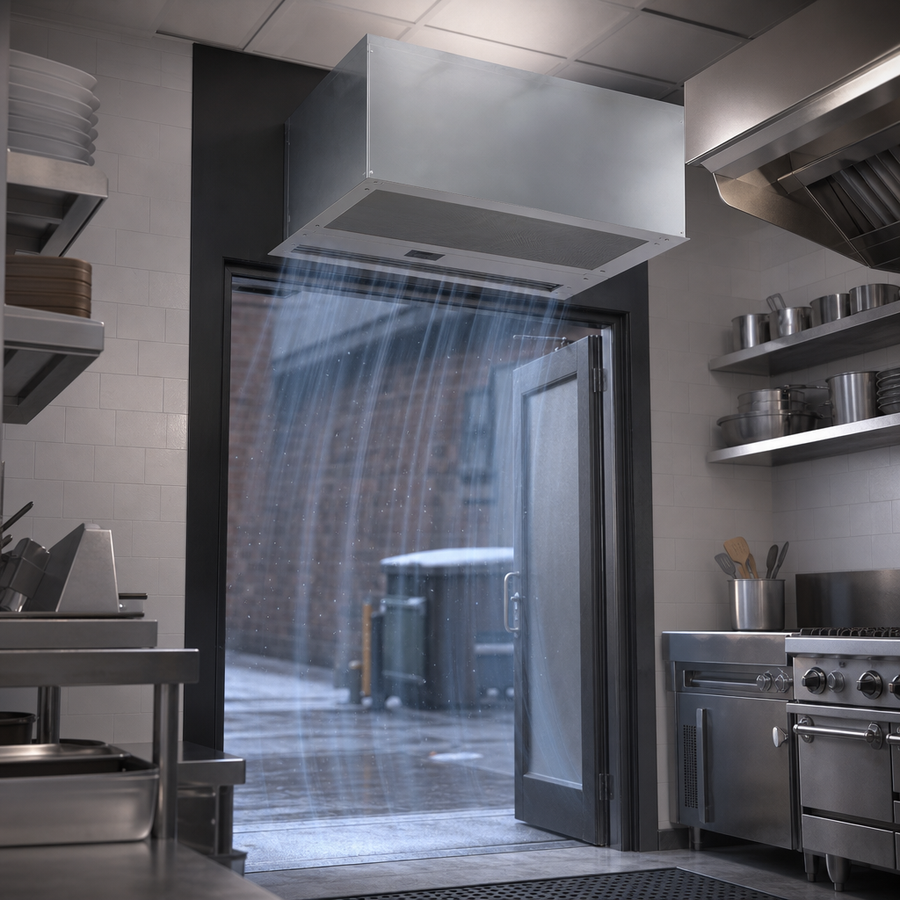

Ambient, Unheated Operation

Provides environmental separation without adding heat to the doorway.

Three 1 HP Motors

Uses three 1 HP motors with two-speed operation for strong airflow across the opening.

Intelliswitch Digital Touchscreen

Includes a factory-installed digital controller with touchscreen control.

Pro-V Nozzle

High-efficiency, low-noise nozzle helps improve airflow performance while reducing sound.

Washable Filter

Recleanable filter design supports easier routine maintenance.

Hinged White Aluminum Access Panel

Bottom access panel hinges open for service access and is finished in white aluminum.

Up To 16-Foot Mounting Height

Recommended for environmental separation at mounting heights up to 16 feet.

Type Ambient Air Curtain
Style Recessed
Installation Type Built-In
Material Aluminum
Finish White Aluminum
Motor Count 3
Horsepower Per Motor 1 HP
Motor Speed Two Speed
Controls Digital Touchscreen
Maximum Mounting Height 16 Feet
Air Volume 6,580 CFM
Power Rating 2.83 kW
Phase 3-Phase
Selling Unit Each
Units Per Case 1
Country of Origin USA
Shipping Width 120 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 355 lb.

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

No. This is an ambient, unheated model.
It is recommended for mounting heights up to 16 feet for environmental separation and up to 14 feet for insect control.
It is designed for recessed in-ceiling installation with top mounting only.
It comes with a factory-installed Intelliswitch digital controller with touchscreen interface.
It includes a hinged white aluminum bottom access panel and a washable filter for easier maintenance.
Yes. Optional Wi-Fi controller, BERNER AIR BMS package, and magnetic reed door switch accessories are sold separately.
