Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 120-Inch Wide, 3 x 1 HP, Single Phase

SKU: ARE16-3120A-1
$6,633.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 120-Inch Wide, 3 x 1 HP, Single Phase

Flush-Mount In-Ceiling Design with Intelliswitch Touchscreen Control

A flush-mount air curtain that preserves the look of the entrance while delivering unheated environmental separation up to 16 feet.

  • Recessed in-ceiling design keeps the air curtain visually discreet above the entrance.
  • Ambient, unheated operation helps separate indoor and outdoor air without adding heat.
  • Three 1 HP, two-speed motors provide strong airflow for wide openings.
  • Factory-installed Intelliswitch digital touchscreen controller simplifies operation.
  • Hinged white aluminum access panel and washable filter make maintenance easier.
  • Designed for mounting heights up to 16 feet for environmental separation.

Overall Dimensions:

120.0"W x 26.0"D x 15.0"H

Product Weight:

355.0 lb

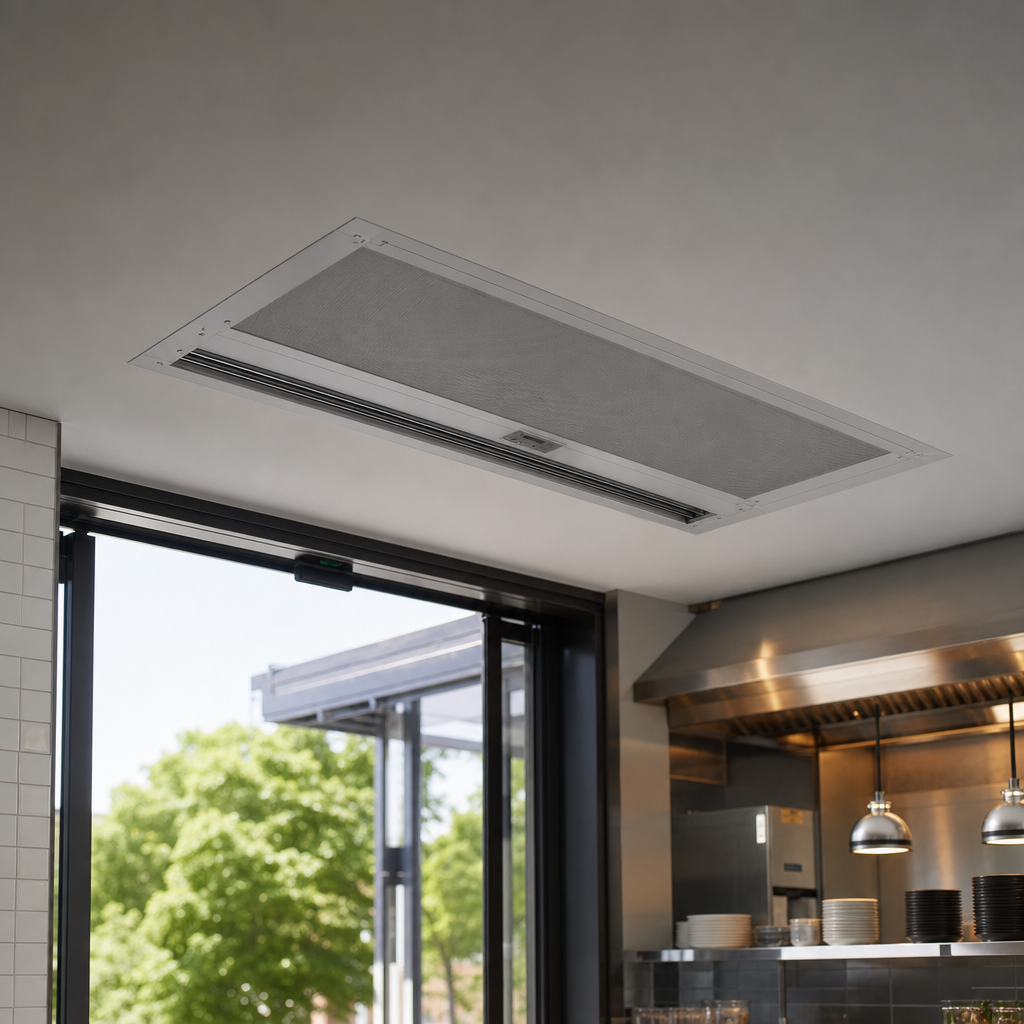

Recessed In-Ceiling Design

Mounts flush with the ceiling for a clean architectural appearance and discreet installation.

Recessed In-Ceiling Design

Ambient Unheated Operation

Provides environmental separation without heating the air stream, making it ideal for entrances where heat is not required.

Ambient Unheated Operation

Three 1 HP Two-Speed Motors

Uses three 1 horsepower motors with two-speed operation to deliver the airflow needed for large openings.

Intelliswitch Digital Touchscreen Controller

Factory-installed touchscreen control includes Berner AIR BASIC smart control for easy operation.

White Aluminum Bottom Access Panel

Hinged, removable bottom access panel provides service access while maintaining a clean exterior finish.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design with adjustable vanes helps direct airflow efficiently across the opening.

Washable Filter

Recleanable filter helps maintain performance and simplifies routine maintenance.

Rated for Up to 16-Foot Mounting Heights

Recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.

Type Air Curtain
Style Ambient
Installation Type Built-In
Motor Count 3
Horsepower Per Motor 1 HP
Motor Speed Two-Speed
Controls Intelliswitch Digital Touchscreen
Voltage 120 Volts
Amps 37.8 Amps
Breaker Size 45 Amps
Phase 1-Phase
Hertz 60 Hz
Watts 2.83 kW
Material Aluminum
Finish White Aluminum
Maximum Mounting Height 16 Feet
Air Volume 6,580 CFM
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 120 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 355 lb.

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

No. This model is ambient and unheated.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
This model uses 120 Volts, 1-Phase, 60 Hz power.
It includes a factory-installed Intelliswitch digital touchscreen controller.
Yes. It includes a hinged removable access panel and a washable filter for easier service.
Yes. Optional Wi-Fi control, remote display, handheld remote, and BMS integration package are available separately.
