Architectural Recessed 16 Electric Heated Air Curtain, 108 In., 3-Motor, 3-Phase

SKU: ARE16-3108E-2-3
$8,480.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Architectural Recessed 16 Electric Heated Air Curtain, 108 In., 3-Motor, 3-Phase

Factory-Installed Intelliswitch, Hinged White Aluminum Access Panel, Up to 16 Ft Mounting Height

This recessed air curtain delivers heated environmental separation for large entrances while preserving a clean, ceiling-flush architectural look.

  • Flush ceiling-mounted design preserves the architectural look of the opening.
  • Electric heated air curtain for environmental separation at mounting heights up to 16 ft.
  • Three 1 HP motors with two-speed operation support larger entrances.
  • Factory-installed Intelliswitch digital controller simplifies operation.
  • Hinged white aluminum bottom access panel and washable filter make service easier.
  • High-efficiency Pro-V nozzle is designed for low-noise performance.
  • Made in USA and backed by a 2-year limited warranty on heated models.

Overall Dimensions:

108.0"W x 26.0"D x 15.0"H

Product Weight:

355.0 lb

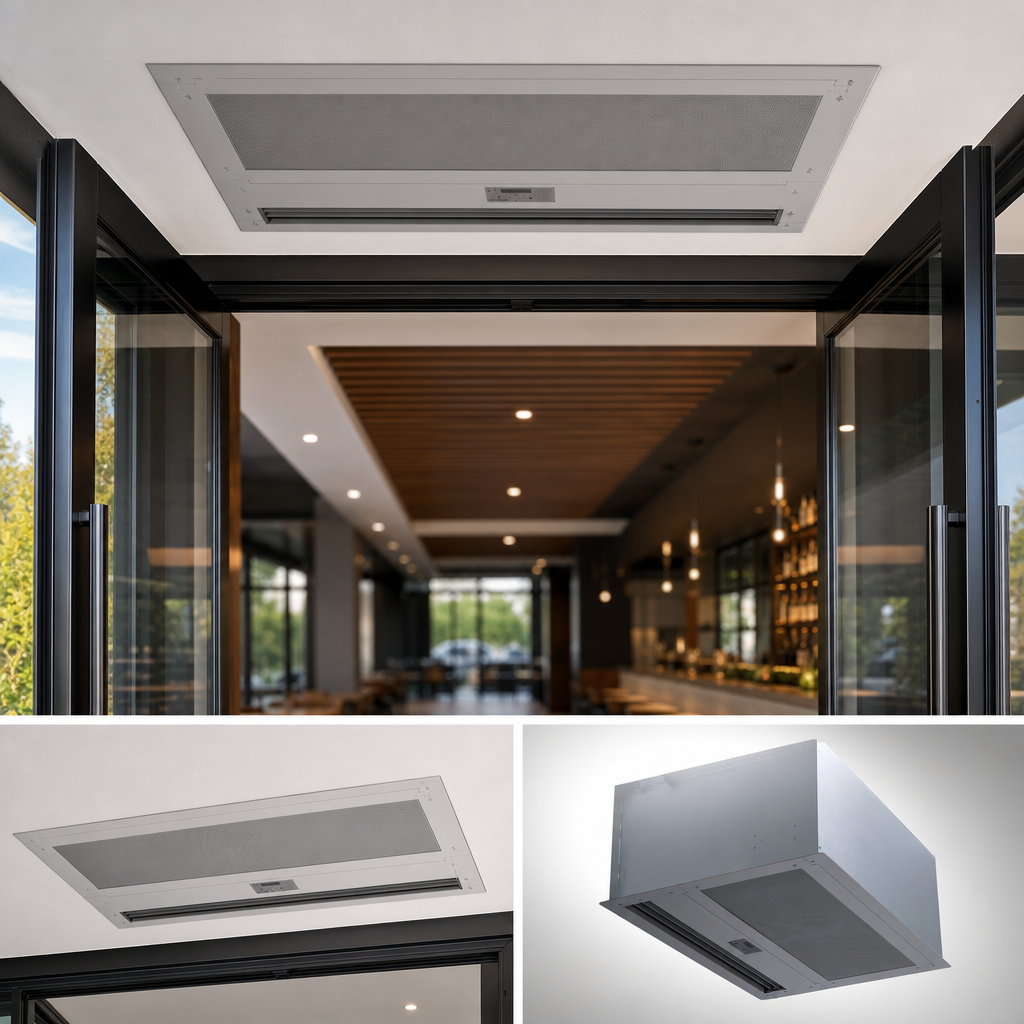

Recessed In-Ceiling Mount

Flush ceiling installation keeps the air curtain visually unobtrusive in architectural entrances.

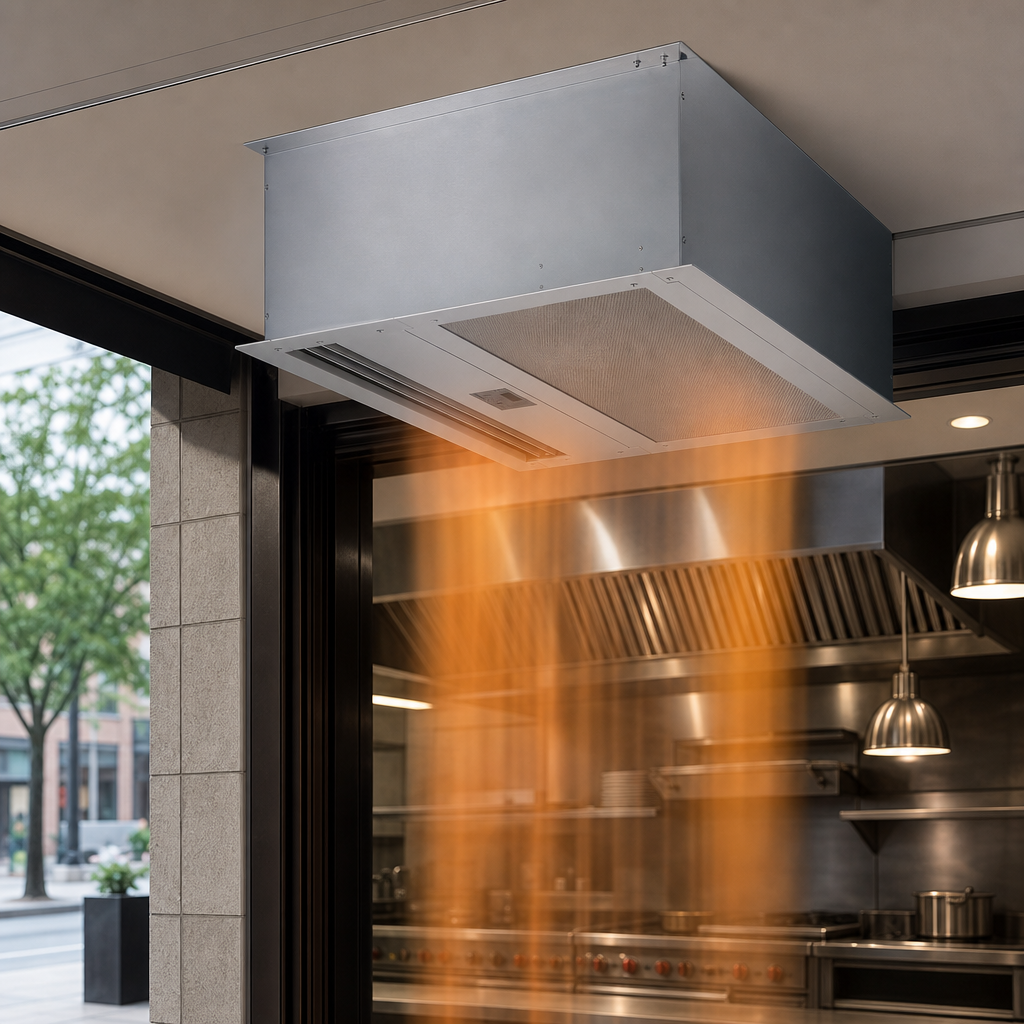

Electric Heated Operation

Heated air curtain design helps maintain comfort and environmental separation at open doorways.

Three 1 HP Motors

Three motors provide the airflow needed for larger openings.

Two-Speed Operation

Two motor speeds allow the unit to be matched to operating conditions.

Intelliswitch Digital Controller

Factory-installed touchscreen controller provides simple, digital control.

Hinged White Aluminum Bottom Access Panel

Bottom panel opens for access to internal components and routine maintenance.

Pro-V Nozzle

High-efficiency, low-noise nozzle helps deliver a uniform air stream.

Washable Filter

Re-cleanable polyester filter supports easier routine maintenance.

Top Mounting Only

Designed for top mounting installation.

Recommended for 16 Ft Mounting Heights

Suitable for environmental separation at mounting heights up to 16 feet.

Type Heated
Style Architectural Recessed
Installation Type Built-In
Heat Type Electric
Motor Count 3
Horsepower Per Motor 1 HP
Motor Speeds 2
Controls Intelliswitch Digital
Phase 3-Phase
Watts 14 kW
Maximum Mounting Height 16 Feet
Finish White Aluminum
Shipping Width 108 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 355 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Fcb kw sheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet.
It includes a factory-installed Intelliswitch digital controller.
This model uses three 1 HP motors with two-speed operation.
It is designed for top mounting and recessed in-ceiling installation.
It includes a hinged white aluminum bottom access panel and a washable filter for easier maintenance.
Heated models carry a 2-year limited warranty from the original shipment date.
