Berner

Berner Architectural Recessed 16 Unheated Air Curtain, 108-Inch Wide, 3-Motor, 3-Phase

SKU: ARE16-3108A-3
$6,988.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

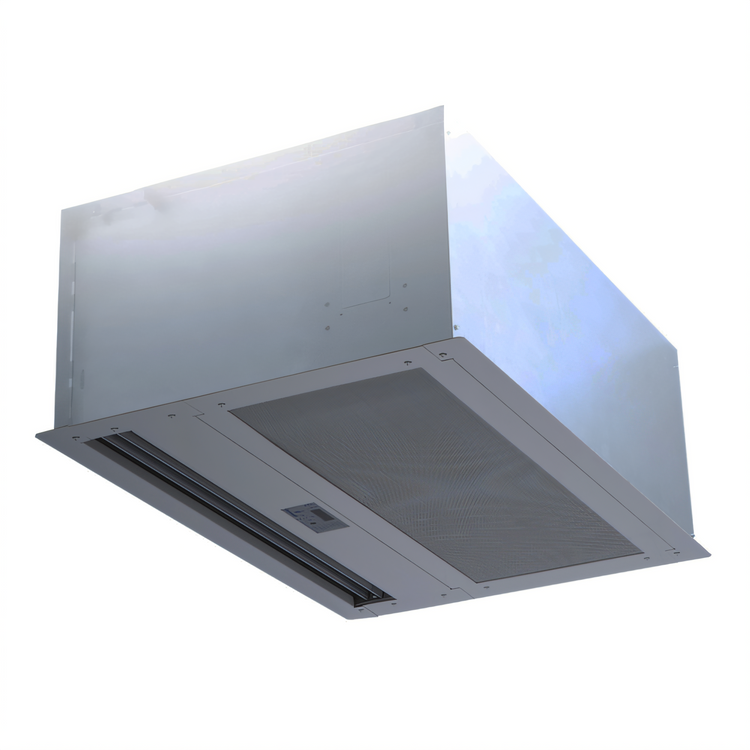

Berner Architectural Recessed 16 Unheated Air Curtain, 108-Inch Wide, 3-Motor, 3-Phase

Built-In (In-Ceiling) Mount, Factory-Installed Intelliswitch Touchscreen Controller

A recessed, unheated air curtain that delivers a strong 108-inch air barrier while keeping the ceiling line clean and architectural.

  • Ambient, unheated air curtain for environmental separation without added heat.
  • Recessed in-ceiling design preserves a clean architectural appearance.
  • Three 1 HP motors with two-speed operation support openings up to 16 feet high.
  • Factory-installed Intelliswitch touchscreen controller simplifies operation.
  • Hinged bottom access panel and washable filter make maintenance easier.
  • Standard white aluminum construction with optional stainless steel or custom color finish.

Overall Dimensions:

108.0"W x 26.0"D x 15.0"H

Product Weight:

343.0 lb

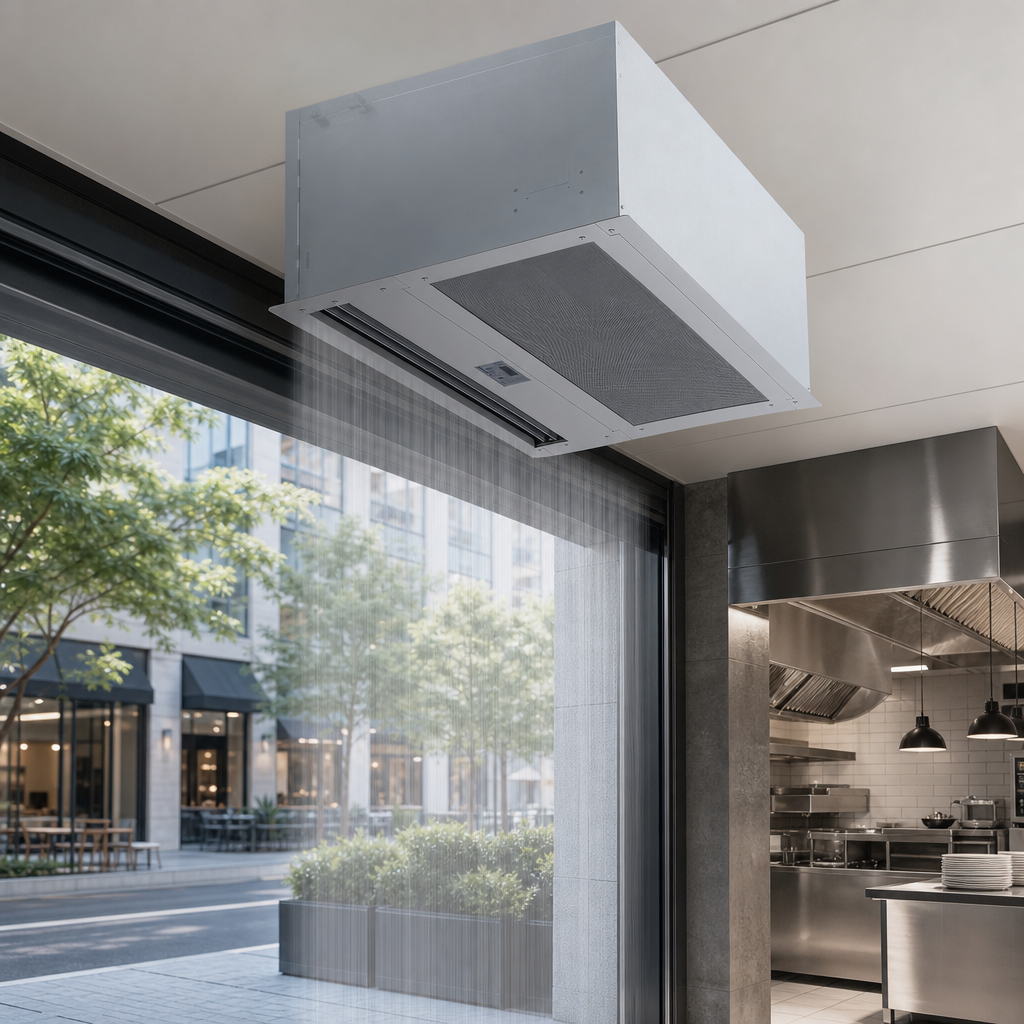

Ambient Unheated Operation

Provides air separation without heat, making it suitable for environmental separation applications.

Ambient Unheated Operation

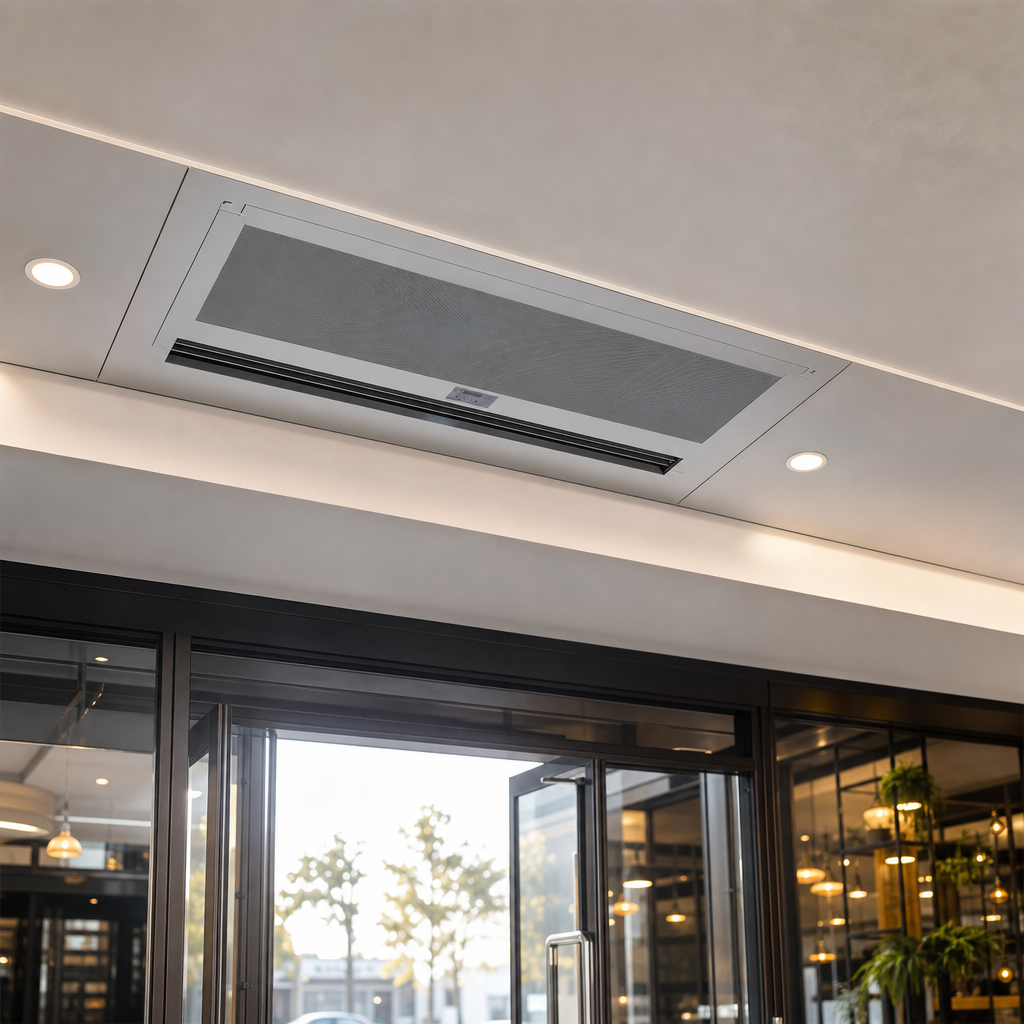

Recessed In-Ceiling Design

Mounts flush with the ceiling for a discreet architectural look above the entrance.

Recessed In-Ceiling Design

Three 1 HP Two-Speed Motors

Uses three motors to deliver strong airflow performance with two-speed operation.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface for easy operation.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design with adjustable vanes helps direct and manage airflow.

Hinged Access Panel and Washable Filter

Removable bottom access panel and washable polyester filter simplify service and cleaning.

Top-Mount Installation

Designed for top mounting only, supporting recessed in-ceiling installation.

White Aluminum Exterior Panel

Standard white aluminum finish; optional stainless steel or custom color finishes are available.

Type Air Curtain
Style Architectural Recessed 16
Installation Type Built-In (In-Ceiling)
Phase 3-Phase
Controls Digital Touchscreen
Speeds Two-Speed
Motors 3
Horsepower Per Motor 1 HP
Max Opening Height 16 Feet
Air Volume 6,216 CFM
Max Outlet Velocity 6,250 FPM
Outlet Velocity Uniformity 90%
Power Rating 2.73 kW
Nozzle Type Pro-V
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 108 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 343 lb.

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation and up to 14 feet for insect control.
No. This model is an ambient, unheated air curtain.
It comes with a factory-installed Intelliswitch digital controller with touchscreen.
It includes a hinged bottom access panel and a washable filter for easier maintenance.
The standard finish is a white aluminum exterior panel, with optional stainless steel or custom color finishes available.
