Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 96-Inch Wide, 3 x 1 HP Motors
Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 96-Inch Wide, 3 x 1 HP Motors
Factory-installed Intelliswitch touchscreen; recommended for openings up to 16 ft.
A recessed, flush-ceiling air curtain that creates an energy-saving air barrier while preserving a clean architectural appearance.
- Ambient, unheated air curtain for environmental separation.
- Recessed in-ceiling design mounts flush with the ceiling.
- 96-inch-wide unit with three 1 HP, two-speed motors.
- Factory-installed Intelliswitch touchscreen controller with Berner AIR BASIC smart control.
- Recommended for mounting heights up to 16 ft, or 14 ft for insect control.
- Hinged white aluminum access panel and washable filter simplify service.
- cULus listed and made in the USA.
Overall Dimensions:
96.0"W x 26.0"D x 15.0"HProduct Weight:

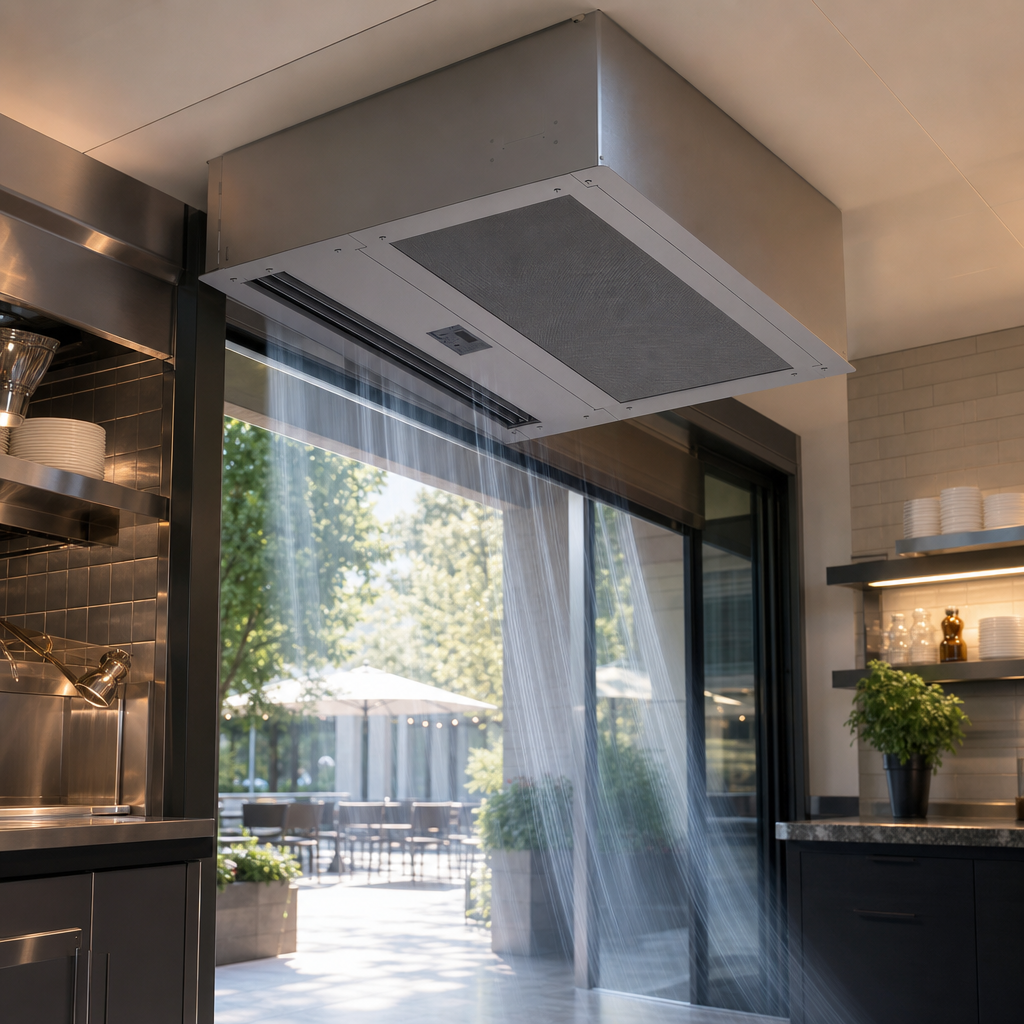

315.0 lbAmbient / Unheated Operation
Provides an air barrier without adding heat, making it ideal for energy-saving environmental separation.

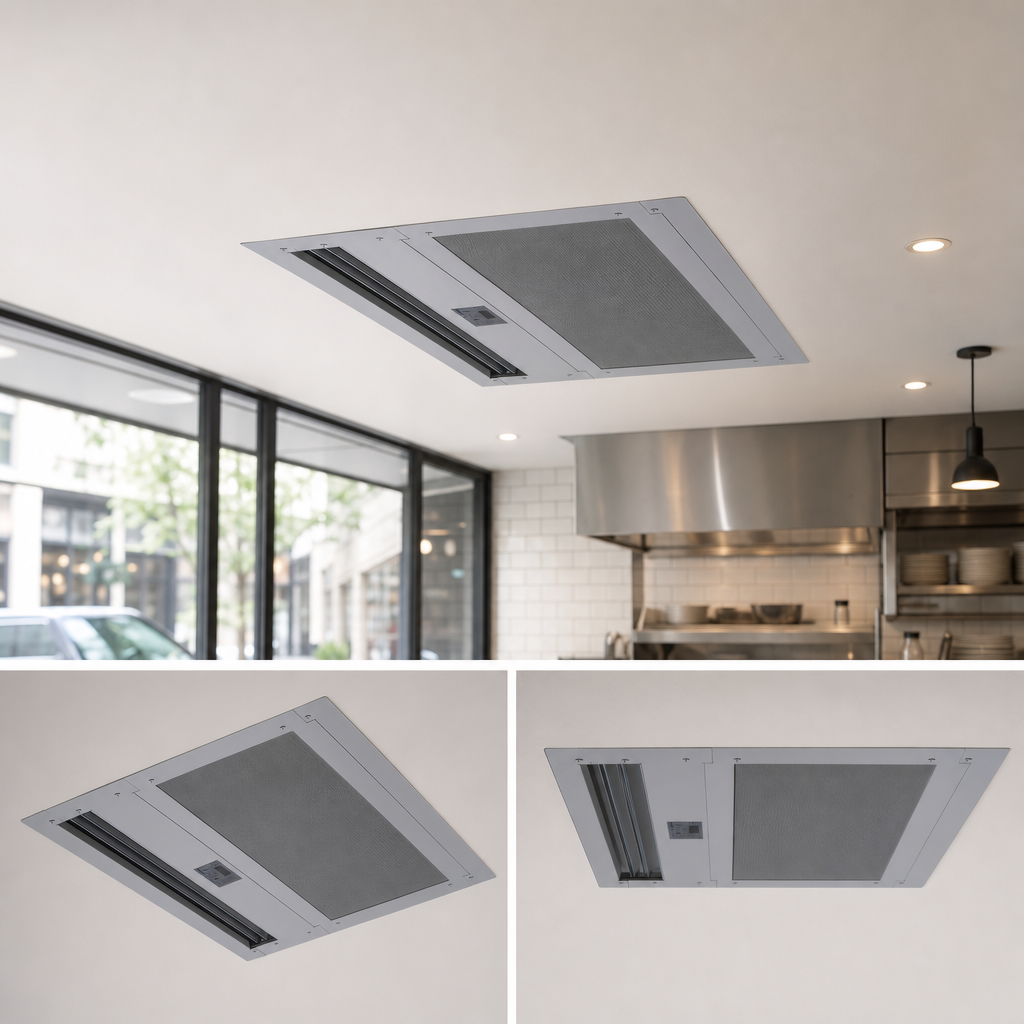

Recessed In-Ceiling Design
Mounts flush with the ceiling for a clean, architectural look.
Three 1 HP Motors
Three motors deliver air movement for the wider 96-inch configuration.
Two-Speed Motor Operation
Allows low and high speed operation for better application flexibility.
Intelliswitch Touchscreen Controller
Factory-installed digital controller with touchscreen interface and Berner AIR BASIC smart control.
White Aluminum Bottom Access Panel
Hinged, removable access panel provides service access while matching the unit’s clean finish.
Pro-V Nozzle and Washable Filter
High-efficiency, low-noise nozzle design with a washable/recleanable filter for easier maintenance.
Mounting Height Recommendation
Recommended for mounting heights up to 16 ft for environmental separation and 14 ft for insect control.
Compliance and Origin
cULus listed and made in the USA.
Certifications & Compliance
Warranty & Protection
5-year limited warranty
