Berner

Berner Architectural Recessed 16 Electric Heated Air Curtain, 96 Inch, 2-Motor, 28 kW, 3-Phase, for 16-Foot Mounting Heights

SKU: ARE16-2096E-2-3
$6,902.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Electric Heated Air Curtain, 96 Inch, 2-Motor, 28 kW, 3-Phase, for 16-Foot Mounting Heights

Flush-ceiling installation with factory-installed Intelliswitch digital control and white aluminum access panel.

A flush-mount electric air curtain built for large openings, with dual 1 HP motors and Intelliswitch control to help maintain comfort up to 16 feet high.

  • Electric heated architectural air curtain designed for recessed, in-ceiling installation.
  • Recommended for mounting heights up to 16 feet for environmental separation.
  • Two 1 HP, two-speed motors support performance for larger openings.
  • Factory-installed Intelliswitch digital controller simplifies operation.
  • Hinged white aluminum bottom access panel and washable filter support maintenance.
  • Made in USA and cULus listed for indoor commercial use.

Overall Dimensions:

96.0"W x 26.0"D x 15.0"H

Product Weight:

281.0 lb

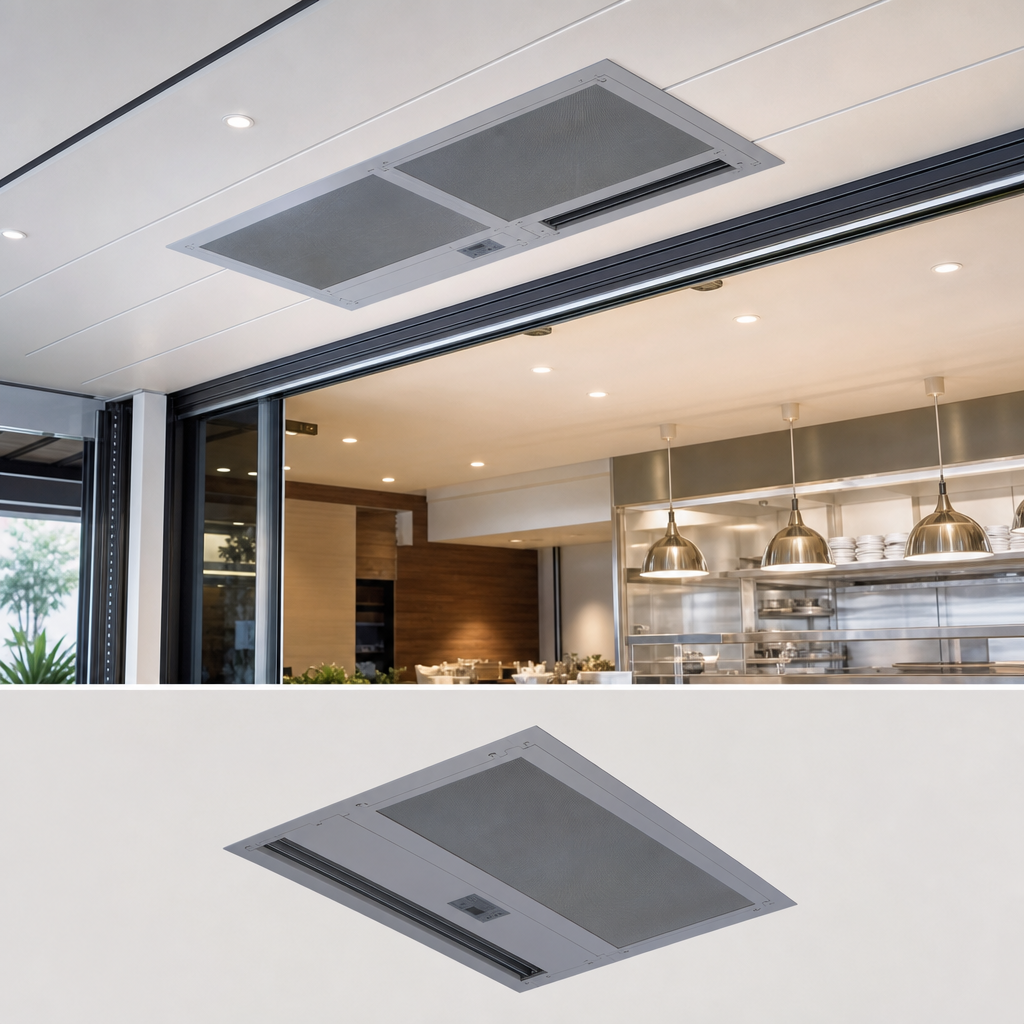

Recessed In-Ceiling Design

Mounts flush with the ceiling for a clean architectural appearance.

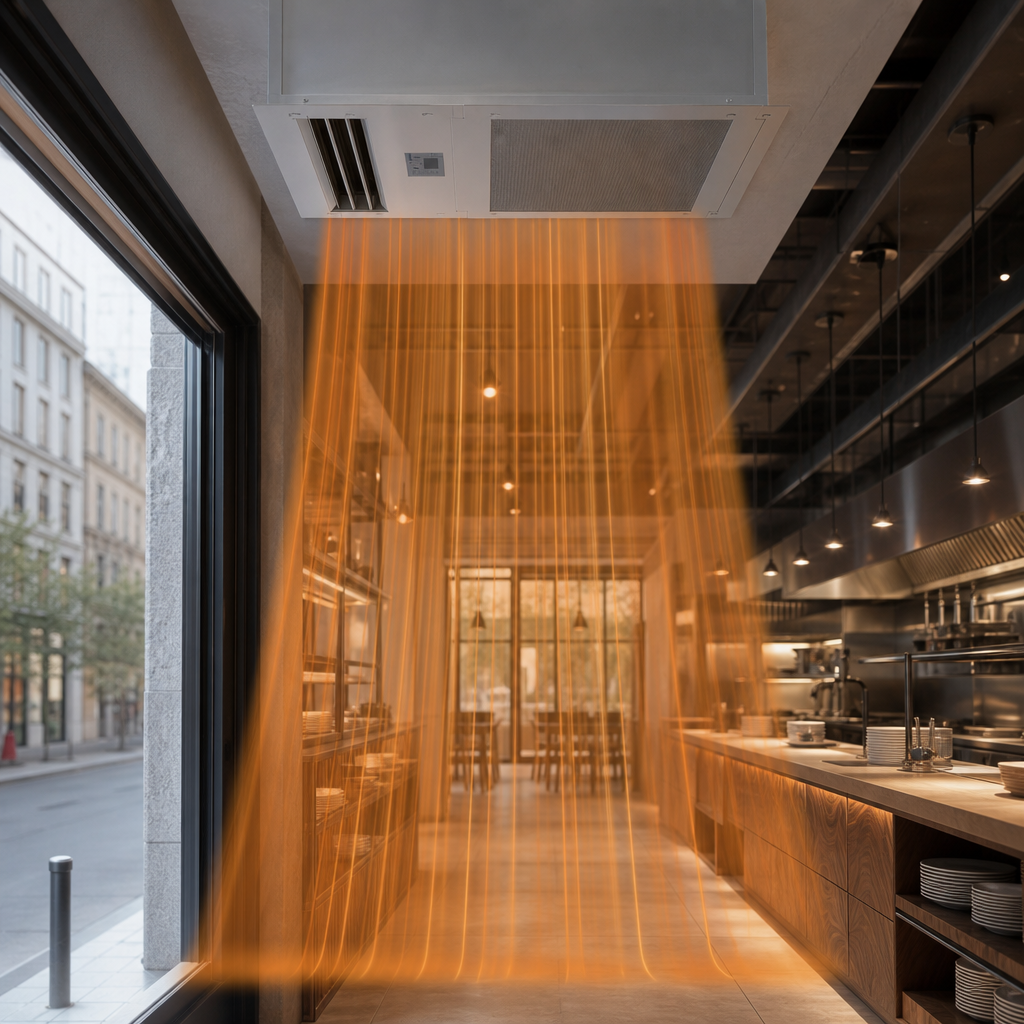

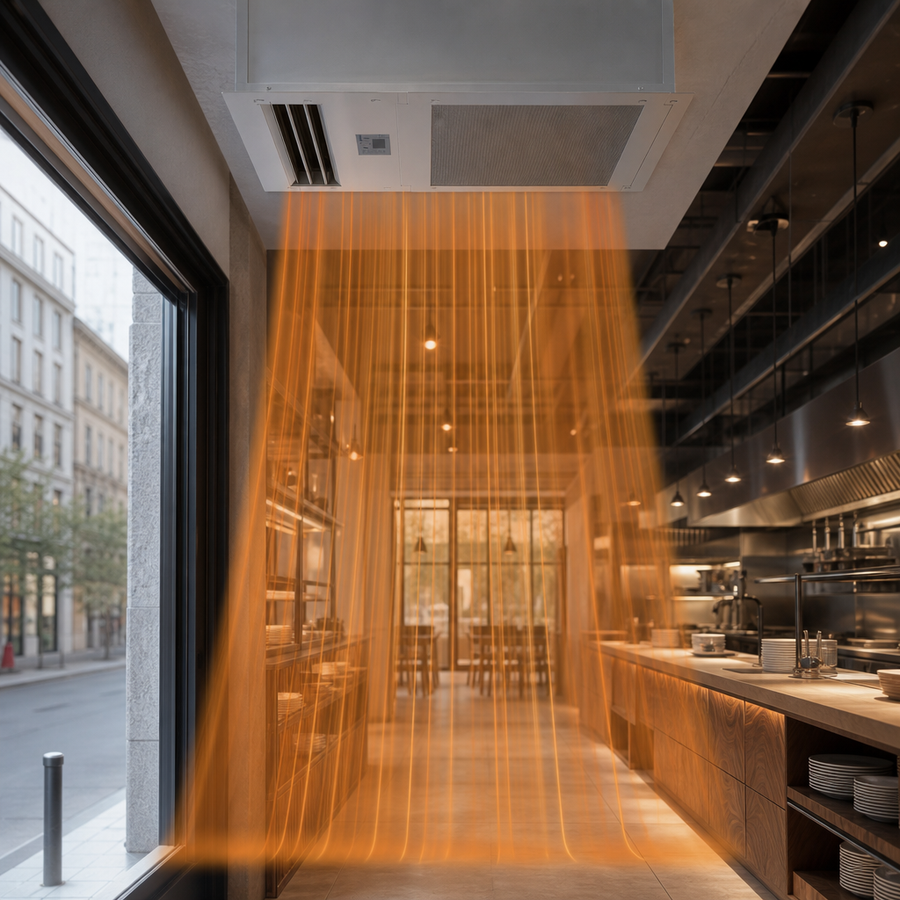

Electric Heated Air Curtain

Creates a heated air barrier to help maintain interior comfort at open entrances.

Dual 1 HP Motors

Uses two two-speed motors to support airflow across wide openings.

Factory-Installed Intelliswitch Controller

Includes a built-in touchscreen digital controller for straightforward operation.

White Aluminum Access Panel

Hinged bottom access panel provides service access and matches the architectural finish.

Washable Filter

Recleanable polyester filter helps simplify maintenance.

Pro-V Nozzle System

High-efficiency, low-noise nozzle design with venturi heating technology.

Made in USA / cULus Listed

Built in the USA and listed for indoor commercial use.

Type Electric Heated Air Curtain
Style Recessed
Installation Type Built-In
Phase 3-Phase
Watts 28 kW
BTU 95,600 BTU/HR
Controls Digital
Motors 2
Horsepower Per Motor 1 HP
Max Mounting Height 16 Feet
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Fcb kw sheet PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
It comes with a factory-installed Intelliswitch digital controller with touchscreen interface.
This unit uses two 1 HP, two-speed motors.
Yes. The unit includes a washable, recleanable polyester filter.
Yes. The documentation identifies it as an indoor-use unit.
