Berner Architectural Recessed 16 96-Inch Electric Heated Air Curtain, 2-Motor, 1-Phase, Intelliswitch Touchscreen

Flush Ceiling Mount, Up to 16 Ft Opening Height, White Aluminum Access Panel

A flush-mounted electric air curtain that preserves the ceiling line while helping maintain environmental separation at openings up to 16 feet high.

  • Recessed, top-mount design keeps the unit flush with the ceiling for a clean architectural look.
  • Recommended for mounting heights up to 16 feet for environmental separation.
  • Two 1 HP, two-speed motors provide the airflow needed for large openings.
  • Factory-installed Intelliswitch digital controller includes a touchscreen interface.
  • Hinged white aluminum access panel and washable filter simplify service.
  • Heated unit is backed by a 2-year limited warranty.

Overall Dimensions:

96.0"W x 26.0"D x 15.0"H

Product Weight:

281.0 lb

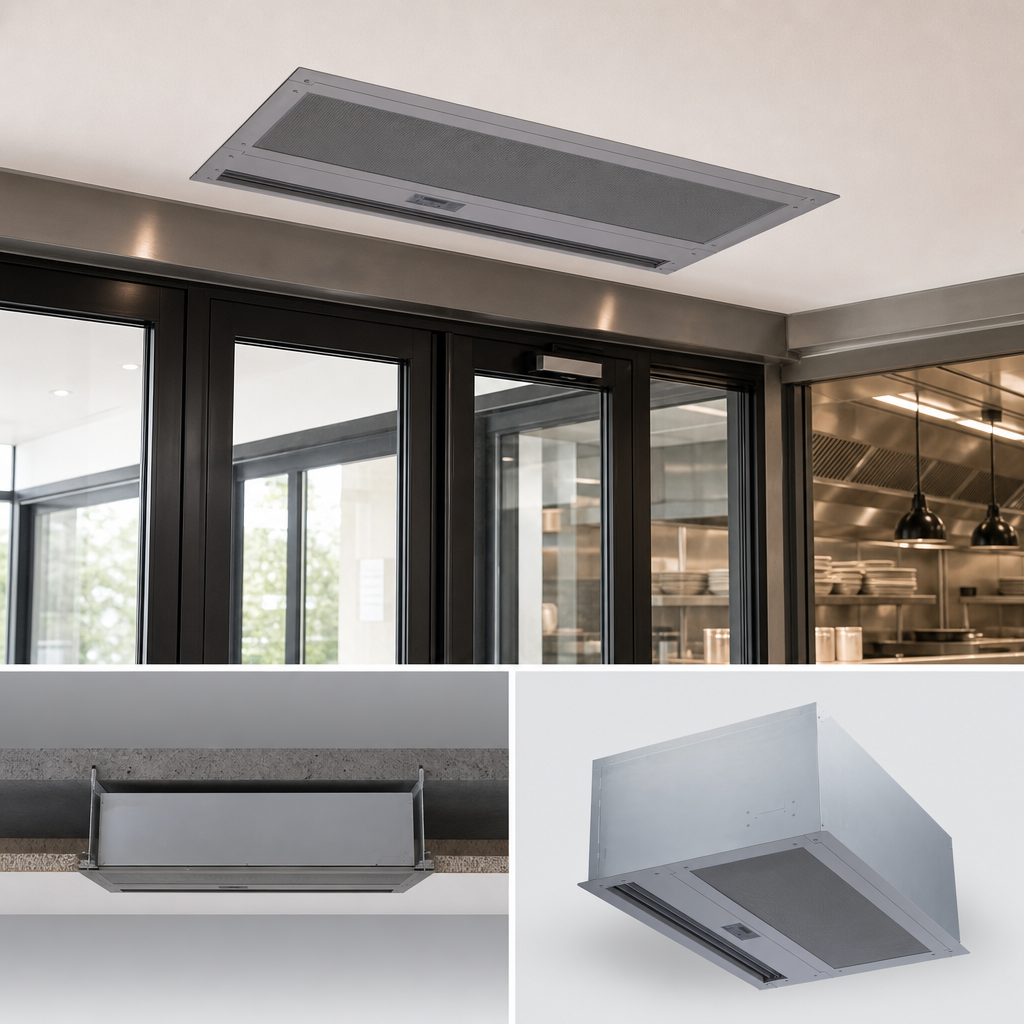

Recessed Ceiling Mount

Flush, top-mount design installs above the ceiling line to preserve the appearance of the entrance.

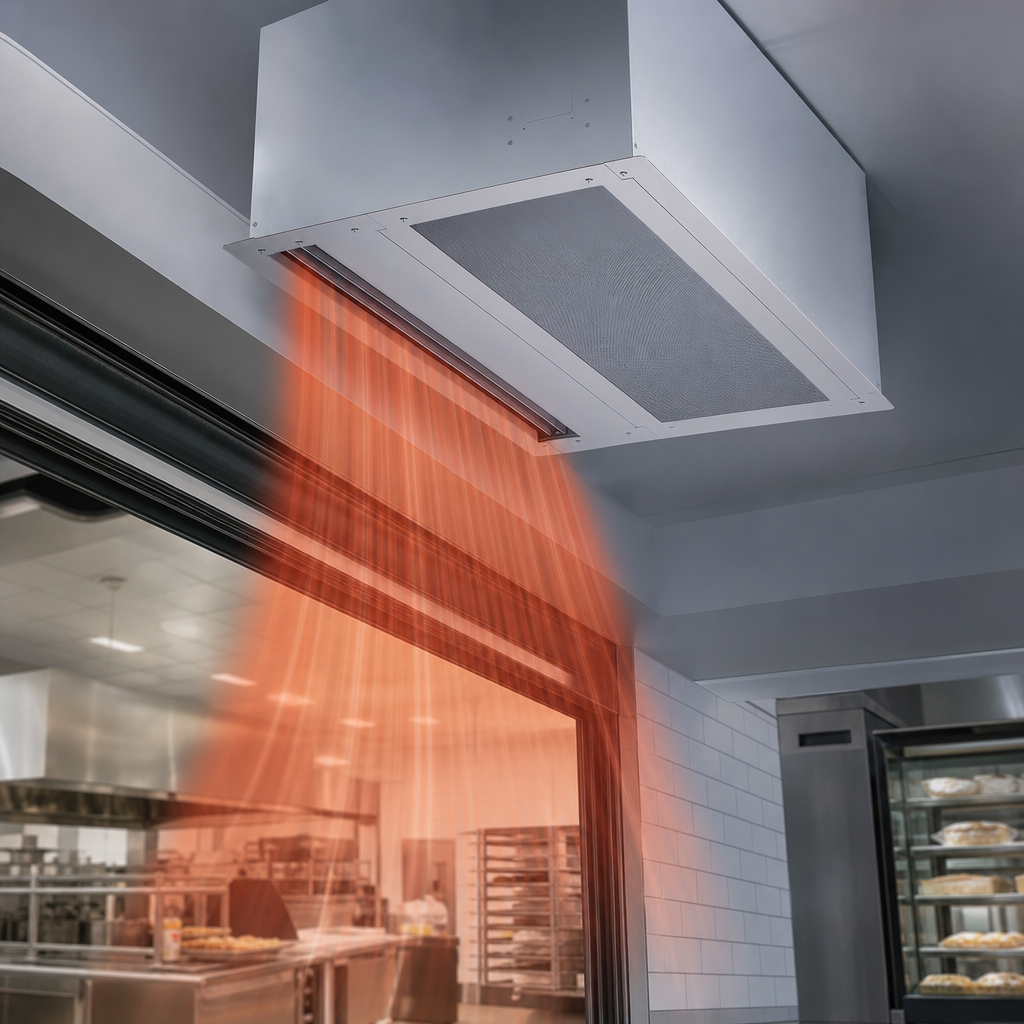

Electric Heated Coverage

Designed for environmental separation at mounting heights up to 16 feet.

Dual 1 HP Two-Speed Motors

Two motors provide the airflow output, with two-speed operation for flexible performance.

Intelliswitch Digital Touchscreen Controller

Factory-installed controller with touchscreen operation and smart control functionality.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design helps deliver an even air stream across the opening.

Hinged White Aluminum Access Panel

Provides access to internal components while maintaining a clean finished appearance.

Washable Polyester Filter

Recleanable filter helps simplify ongoing maintenance.

Single-Point Power Connection

Single point power connection design; consult factory for electrical requirements.

Type Heated Air Curtain
Style Architectural Recessed 16
Installation Type Built-In
Controls Intelliswitch Digital Touchscreen
Phase 1-Phase
Watts 11 kW
Motors 2
Motor Horsepower 1 HP Each
Motor Speeds 2-Speed
Max Mounting Height 16 Feet
Finish White Aluminum
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface and Berner AIR BASIC smart control functionality.
This unit uses 2 motors at 1 HP each, and the motors operate at two speeds.
Yes. It has a hinged access panel and a washable polyester filter for easier maintenance.
Yes. The documentation lists it for indoor use.
Heated units are covered by a 2-year limited warranty.
