Berner Architectural Recessed 16 84-Inch Electric Heated Air Curtain, 2 x 1 HP, 1-Phase, 11 kW

Flush Ceiling Mount with Intelliswitch Touchscreen Controller

A clean, recessed electric air curtain built for openings up to 16 feet, combining strong two-motor performance with touchscreen control and a service-friendly concealed design.

  • 84-inch electric heated air curtain designed for mounting heights up to 16 feet.
  • Two 1 HP, two-speed motors help provide consistent airflow performance.
  • Factory-installed Intelliswitch digital controller with touchscreen simplifies operation.
  • Hinged white aluminum bottom access panel and washable filter support easy maintenance.
  • Top-mount, recessed ceiling installation preserves the architectural look of the opening.
  • Made in the USA and covered by a 2-year limited warranty.

Overall Dimensions:

84.0"W x 26.0"D x 15.0"H

Product Weight:

238.0 lb

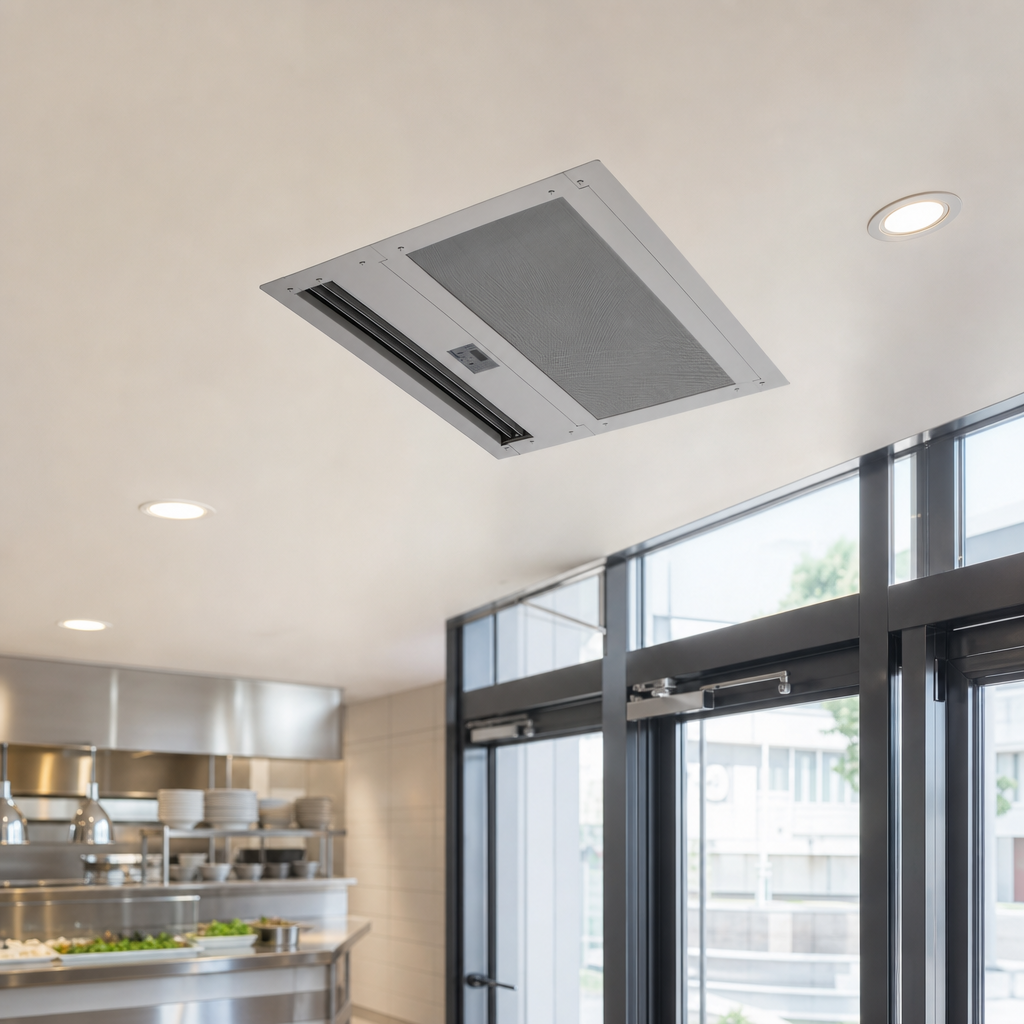

Recessed In-Ceiling Design

Mounts flush with the ceiling for a clean architectural appearance.

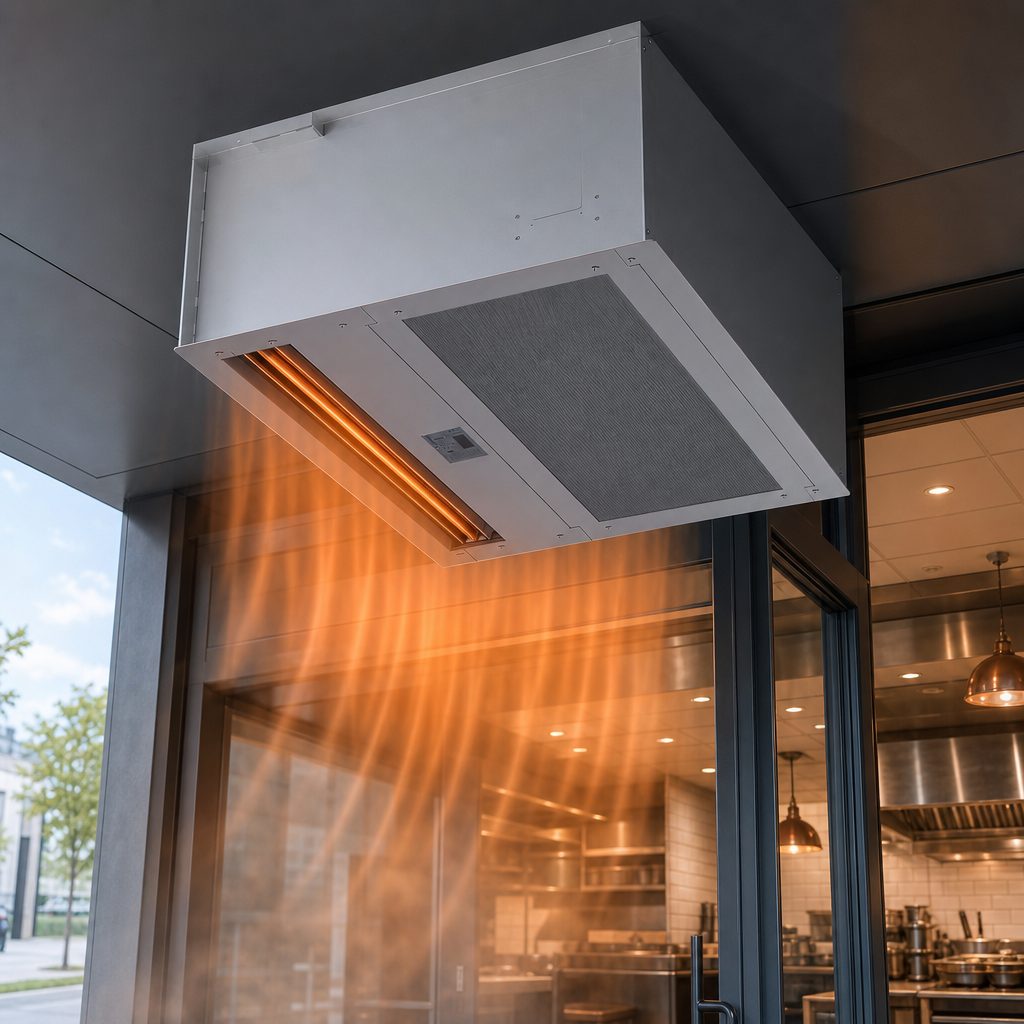

Electric Heated Operation

Provides heated air curtain performance for environmental separation at the entrance.

Two 1 HP Two-Speed Motors

Uses two motors to deliver air movement with two-speed operation.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touch screen interface.

Hinged Bottom Access Panel

White aluminum bottom panel is hinged for easier access to internal components.

Washable Polyester Filter

Recleanable filter helps simplify routine maintenance.

Top Mounting Only

Designed for top mounting in recessed ceiling applications.

Made in USA

Manufactured in the United States.

Type Heated Air Curtain
Style Recessed
Installation Type Built-In
Maximum Mounting Height 16 Feet
Phase 1-Phase
Watts 11 kW
Motor Count 2
Motor Horsepower 1 HP Each
Controls Intelliswitch Touchscreen Digital Controller
Material Aluminum
Color White
Air Volume 4,508 CFM
Shipping Width 84 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 238 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
It comes with a factory-installed Intelliswitch digital controller with a touchscreen interface.
This model uses two 1 HP motors and operates at two speeds.
Yes. It includes a hinged white aluminum bottom access panel and a washable polyester filter.
Yes, the product is made in the USA.
