Berner

Berner Architectural Recessed 16 In-Ceiling Ambient Unheated Air Curtain, 84-Inch Wide, 2-Motor, 3-Phase

SKU: ARE16-2084A-3
$5,523.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 In-Ceiling Ambient Unheated Air Curtain, 84-Inch Wide, 2-Motor, 3-Phase

Flush-mount recessed design with Intelliswitch touchscreen controller and white aluminum access panel

A clean, flush-ceiling air curtain that delivers powerful environmental separation for large entryways without disrupting the architectural look.

  • Recessed in-ceiling design preserves the look of the entryway while protecting the opening.
  • Ambient, unheated airflow is recommended for environmental separation up to 16 feet high.
  • Two 1 HP motors with two-speed operation provide strong air delivery.
  • Factory-installed Intelliswitch digital controller includes a touchscreen interface for easy operation.
  • Hinged access panel and washable filter help simplify maintenance.
  • High-efficiency Pro-V nozzle with adjustable vanes helps optimize airflow coverage.

Overall Dimensions:

84.0"W x 26.0"D x 15.0"H

Product Weight:

230.0 lb

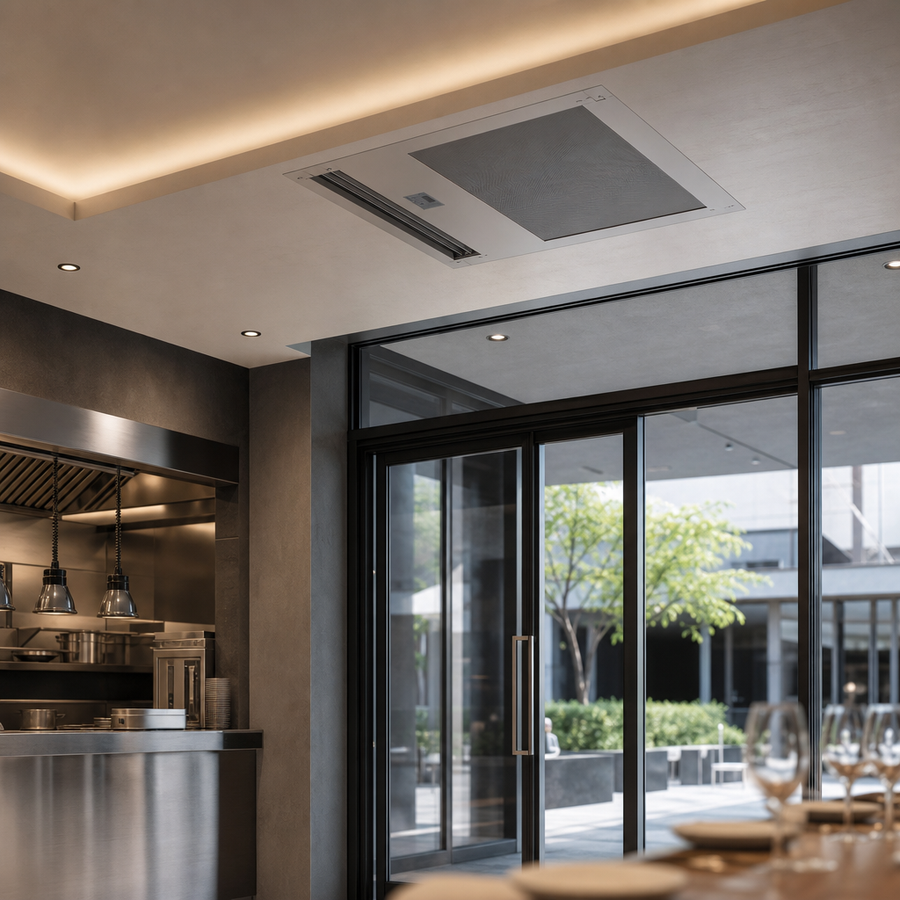

Recessed Architectural Design

Flush-ceiling installation keeps the unit visually discreet in front-of-house applications.

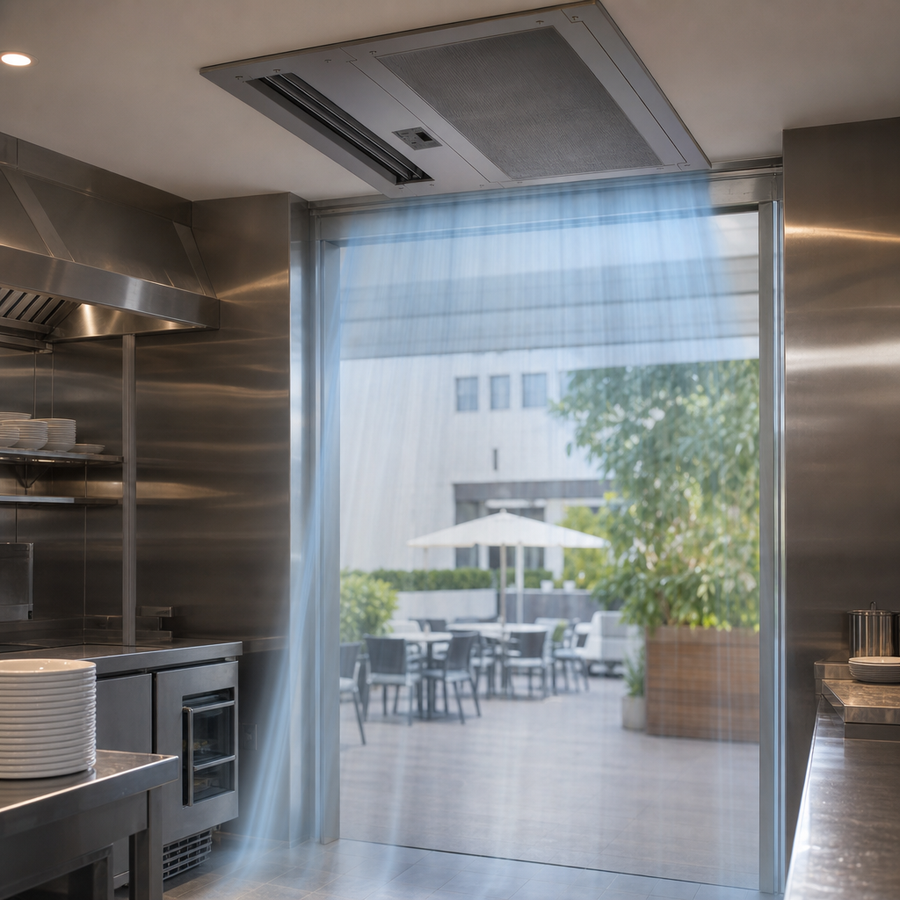

Ambient, Unheated Operation

Provides an air barrier without adding heat, ideal for general environmental separation.

Two 1 HP Motors

Dual-motor configuration supports high airflow for wider openings.

Two-Speed Motor Operation

Allows the unit to run at two blower speeds for application flexibility.

Intelliswitch Touchscreen Controller

Factory-installed digital control with touchscreen interface for convenient setup and operation.

Pro-V Nozzle

High-efficiency, low-noise nozzle design with adjustable vanes to shape the air stream.

Hinged Access Panel and Washable Filter

Hinged bottom access panel with a recleanable polyester filter makes service and upkeep easier.

Top Mounting Only

Designed for ceiling mounting with threaded inserts and a recessed architectural installation.

Type Ambient Air Curtain
Style Recessed
Installation Type Built-In
Phase 3-Phase
Horsepower Per Motor 1 HP
Number Of Motors 2
Motor Speed Two-Speed
Maximum Mounting Height 16 Feet
Controls Intelliswitch Digital Touchscreen
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface and Berner AIR BASIC smart control.
The standard finish is a white aluminum exterior/bottom access panel, with stainless steel or custom color available as options.
Yes. The unit includes a washable, recleanable polyester filter.
Unheated models carry a 5-year limited warranty from the original shipment date.
