Berner Architectural Recessed 16 Series 72-Inch Electric Heated 3-Phase Air Curtain

Up to 16-Foot Mounting Height, 28 kW, Two 1 HP Motors

This recessed electric air curtain pairs a clean architectural install with powerful 28 kW heat and dual 1 HP motors for openings up to 16 feet.

  • Flush-mounted recessed design preserves a clean architectural look above the opening.
  • Electric heated, 3-phase model delivers 28 kW of heat for environmental separation.
  • Two 1 HP, two-speed motors help maintain strong air coverage across the 72-inch opening.
  • Factory-installed Intelliswitch touchscreen controller simplifies setup and daily use.
  • Hinged white aluminum access panel and washable filter support easier maintenance.
  • Designed for mounting heights up to 16 feet; made in USA and cULus listed.

Overall Dimensions:

72.0"W x 26.0"D x 15.0"H

Product Weight:

225.0 lb

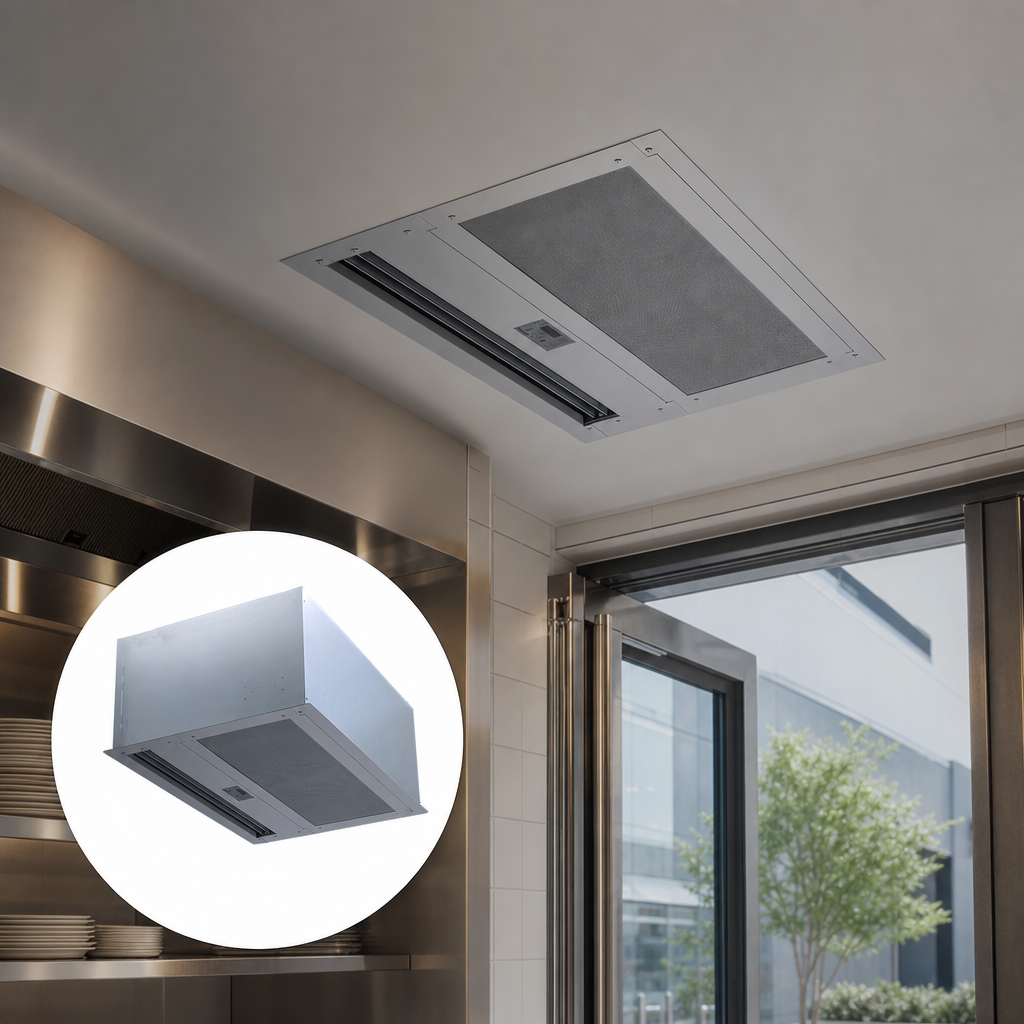

Architectural Recessed Housing

In-ceiling recessed design mounts flush with the ceiling for a clean, low-profile appearance.

Architectural Recessed Housing

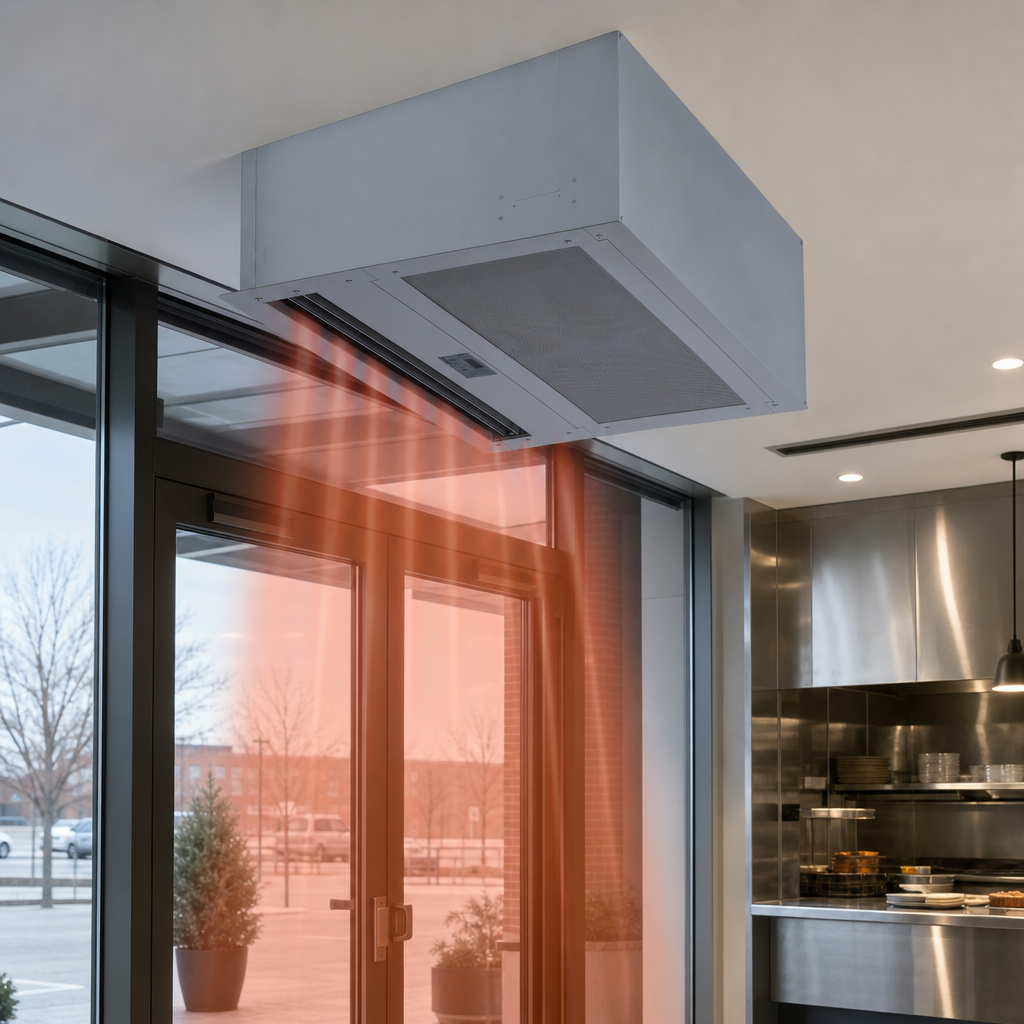

Electric Heated Performance

Electric heat helps provide environmental separation for commercial entrances.

Electric Heated Performance

Dual 1 HP Two-Speed Motors

Two motors deliver dependable airflow and allow two-speed operation.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface for straightforward operation.

White Aluminum Access Panel

Hinged bottom access panel provides service access and matches the standard white aluminum finish.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design helps distribute air evenly across the opening.

Washable Recleanable Filter

Recleanable polyester filter supports routine maintenance and reuse.

Top Mounting Only

Designed for top mounting and recommended for mounting heights up to 16 feet.

Type Air Curtain
Style Architectural Recessed
Installation Type Built-In
Heat Type Electric
Phase 3-Phase
Watts 28 kW
BTU 95,600 BTU/HR
Controls Intelliswitch Touchscreen
Motor Count 2
Motor Speed Two-Speed
Horsepower Per Motor 1 HP
Air Volume 4,144 CFM
Maximum Mounting Height 16 Feet
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Fcb kw sheet PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for openings up to 16 feet high.
This model uses electric heat.
It has two 1 HP motors.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface.
Yes. It includes a hinged bottom access panel and a washable/recleanable filter for maintenance access.
