Berner

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 72 Inch, 2 x 1 HP Motors, 1-Phase

SKU: ARE16-2072A-1
$4,308.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 72 Inch, 2 x 1 HP Motors, 1-Phase

Factory-Installed Intelliswitch Touchscreen, White Aluminum Panel

A discreet recessed air curtain that preserves a clean ceiling line while delivering unheated environmental separation for wide openings up to 16 feet.

  • Flush-ceiling design keeps the air curtain visually discreet in architectural spaces.
  • Ambient, unheated operation helps separate indoor and outdoor air without added heat.
  • Two 1 HP, two-speed motors provide strong airflow for wider entrances.
  • Factory-installed Intelliswitch touchscreen control simplifies operation.
  • Hinged access panel and washable filter make routine maintenance easier.
  • Made in USA and backed by a 5-year limited warranty on unheated models.

Overall Dimensions:

72.0"W x 26.0"D x 15.0"H

Product Weight:

217.0 lb

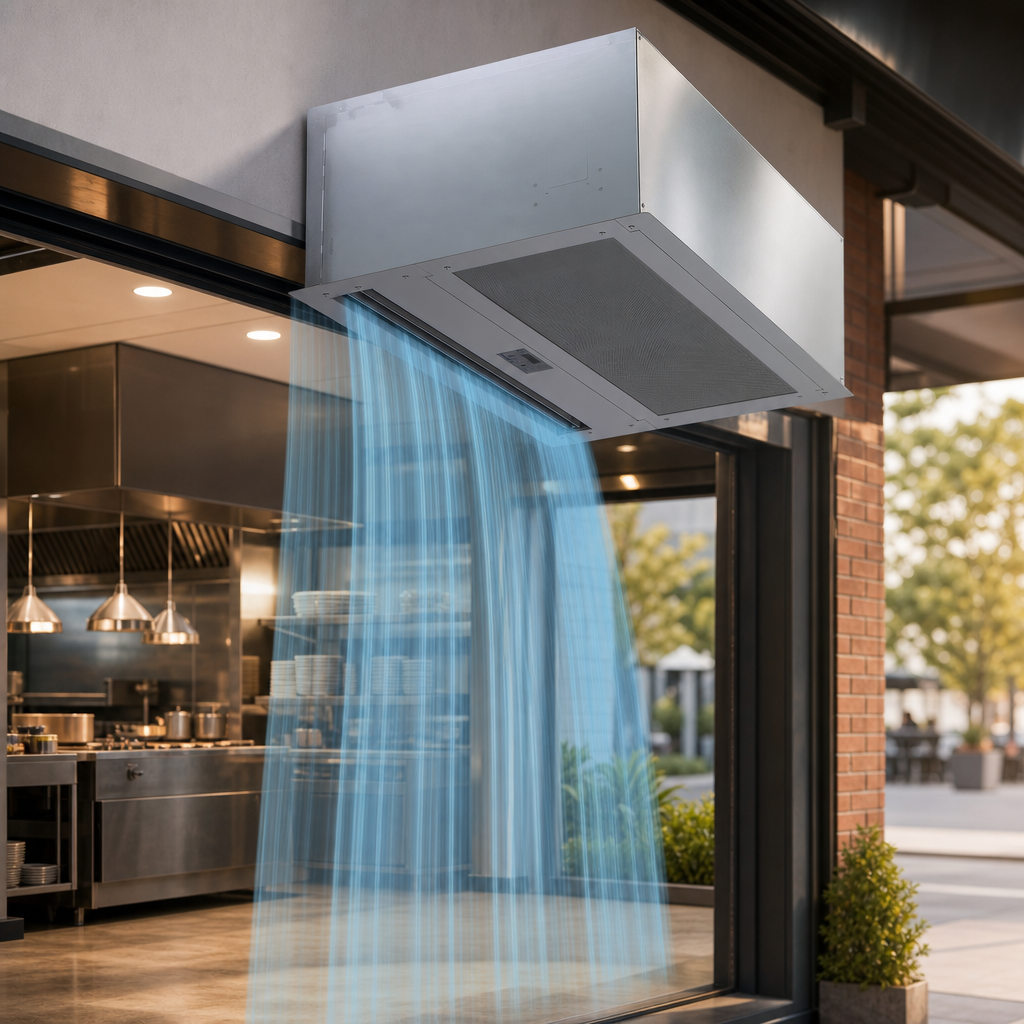

Ambient, Unheated Operation

Designed for environmental separation without heat; recommended for mounting heights up to 16 feet and insect control up to 14 feet.

Ambient, Unheated Operation

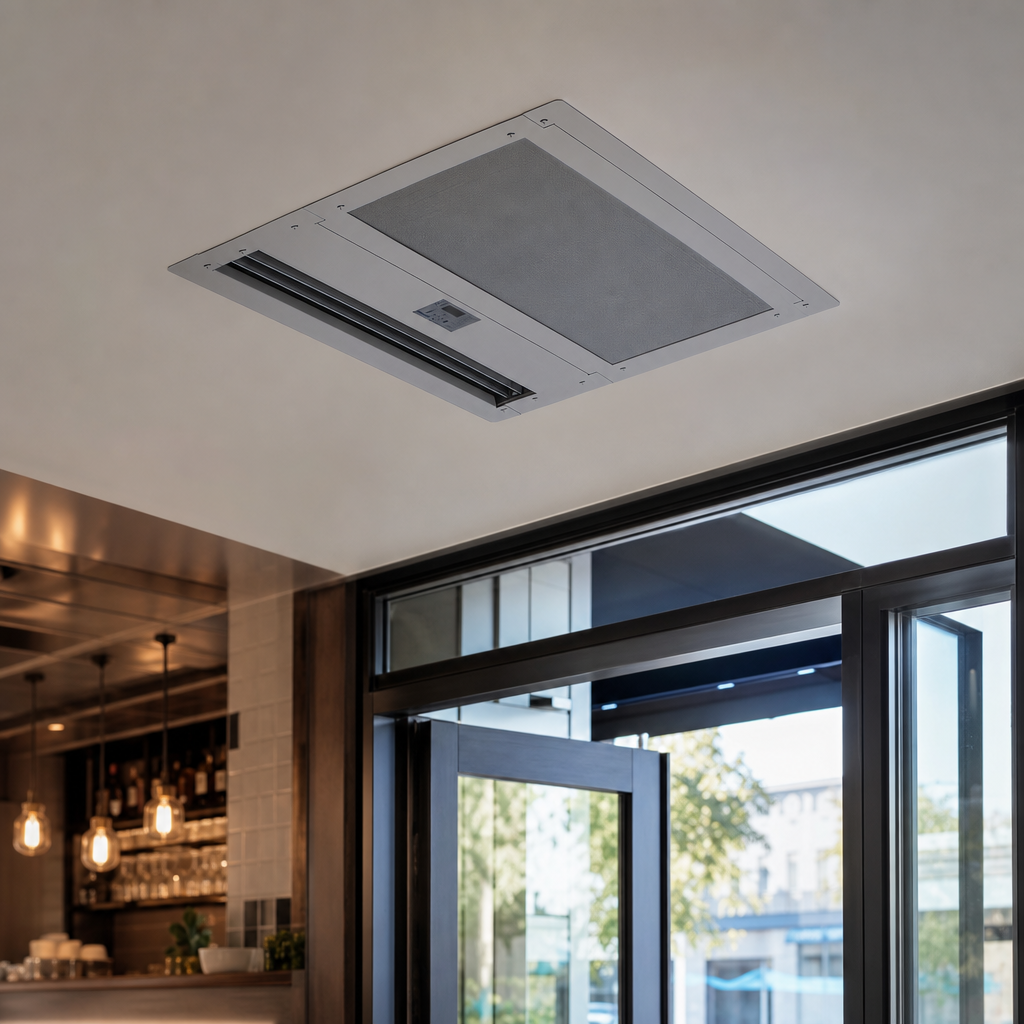

Recessed In-Ceiling Mount

Top-mount, flush-ceiling construction keeps the unit tucked into the architecture for a clean appearance.

Recessed In-Ceiling Mount

Dual 1 HP Motors

Two two-speed AC motors deliver dependable airflow across wider openings.

Intelliswitch Touchscreen Control

Factory-installed digital controller with touchscreen interface for straightforward operation.

Pro-V Nozzle and Washable Filter

High-efficiency, low-noise nozzle design pairs with a washable/recleanable filter for practical daily use.

Hinged White Aluminum Access Panel

The hinged bottom access panel simplifies service access while matching the standard white aluminum exterior.

Made in USA / cULus Listed

Built in the USA and listed for commercial indoor use.

Type Air Curtain
Style Ambient
Installation Type Built-In
Controls Intelliswitch Touchscreen
Horsepower Per Motor 1 HP
Motors 2
Recommended Mounting Height Up to 16 Feet
Air Volume 4,144 CFM
Material Aluminum
Color White
Phase 1-Phase
Country of Origin USA
Shipping Width 72 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 217 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation and up to 14 feet for insect control.
No. This is an ambient, unheated air curtain.
It includes a factory-installed Intelliswitch digital controller with touchscreen.
It has a hinged bottom access panel and a washable/recleanable filter for easier maintenance.
Yes. A Wi-Fi Controller, BMS package, handheld remote control, and magnetic door switch are listed as optional or sold separately.
Unheated models carry a 5-year limited warranty from the original shipment date.
