Berner

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 60-Inch, 2 x 1 HP Motors, 3-Phase

SKU: ARE16-2060A-3
$4,624.10
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 60-Inch, 2 x 1 HP Motors, 3-Phase

Flush-mount in-ceiling design with Intelliswitch touchscreen control and white aluminum access panel

A recessed air curtain that blends into the ceiling while delivering strong, low-noise ambient separation for large openings.

  • Ambient, unheated air curtain designed for environmental separation up to 16 feet and insect control up to 14 feet.
  • Recessed in-ceiling design keeps the unit flush with the ceiling for a clean architectural appearance.
  • Two 1 HP, two-speed motors provide powerful airflow.
  • Factory-installed Intelliswitch digital controller includes a touchscreen interface and Berner AIR BASIC smart control.
  • Washable filter and hinged access panel simplify maintenance.
  • White aluminum finish is standard, with stainless steel or custom color options available.

Overall Dimensions:

60.0"W x 26.0"D x 15.0"H

Product Weight:

207.0 lb

Ambient, Unheated Operation

Delivers air separation without added heat for entrances and openings.

Ambient, Unheated Operation

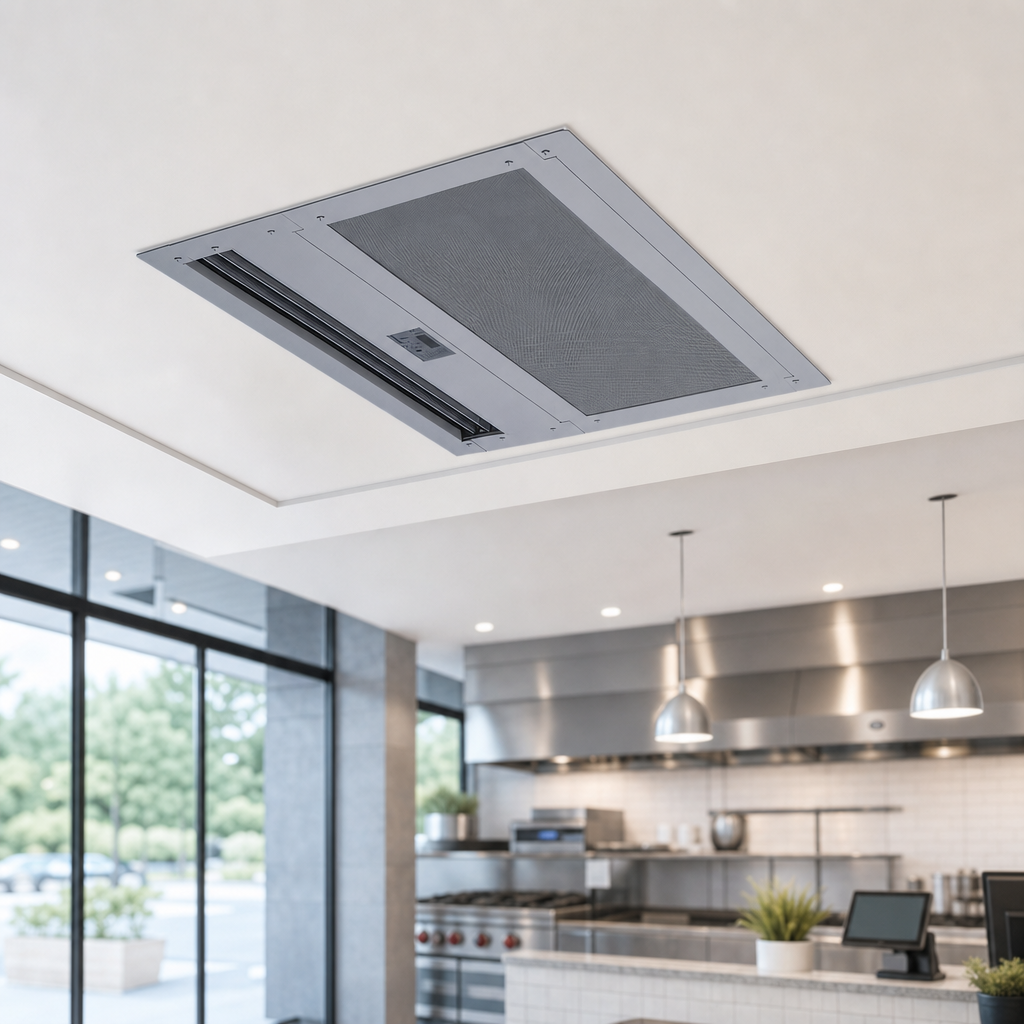

Recessed In-Ceiling Mount

Top-mount-only design installs flush with the ceiling for a discreet look.

Recessed In-Ceiling Mount

Two 1 HP Motors

Dual-motor construction provides strong airflow for larger openings.

Two-Speed Motor Operation

Offers two operating speeds for application flexibility.

Intelliswitch Touchscreen Controller

Factory-installed digital control with touchscreen interface and Berner AIR BASIC smart control.

Pro-V Nozzle

High-efficiency, low-noise nozzle design with adjustable vanes.

Washable Filter And Hinged Access Panel

Recleanable filter and hinged bottom access panel make service easier.

Optional Upgrades

Wi-Fi control, BMS integration, remote display, tablet control, and alternate cabinet finishes are available on the series.

Type Ambient Air Curtain
Style Recessed
Installation Type Built-In
Controls Digital Touchscreen
Phase 3-Phase
Maximum Opening Height 16 Feet
Horsepower Per Motor 1 HP
Motor Count 2
Motor Speeds 2
Air Volume 3,924 CFM
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

No. This model is an ambient, unheated air curtain.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with touchscreen interface and Berner AIR BASIC smart control.
The unit includes a washable filter and a hinged bottom access panel for easier service.
Yes. Optional Wi-Fi control, BMS integration, remote display, and tablet control are available on the series.
Ambient models carry a 5-year limited warranty.
