Berner architectural recessed 16 electric heated in-ceiling air curtain, 60 inch, 1 hp, 14 kw, single-phase

SKU: ARE16-1060E-1
$3,866.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air doors Berner Best sellers Kitchen ventilation & climate control New arrivals Restaurant equipment

Berner Architectural Recessed 16 Electric Heated In-Ceiling Air Curtain, 60 Inch, 1 HP, 14 kW, Single-Phase

Flush-mount, 60-inch design for mounting heights up to 16 feet.

A recessed electric air curtain that keeps entrances protected while maintaining a clean, flush ceiling appearance.

  • Flush-mount recessed design preserves the architectural look of the entrance.
  • Electric heated air curtain is recommended for mounting heights up to 16 feet.
  • Single 1 HP, two-speed motor supports reliable air movement.
  • Factory-installed Intelliswitch touchscreen controller includes Berner AIR BASIC smart control.
  • Hinged white aluminum access panel and washable filter simplify maintenance.
  • cULus listed and made in the USA.

Overall Dimensions:

60.0"W x 26.0"D x 15.0"H

Product Weight:

171.0 lb

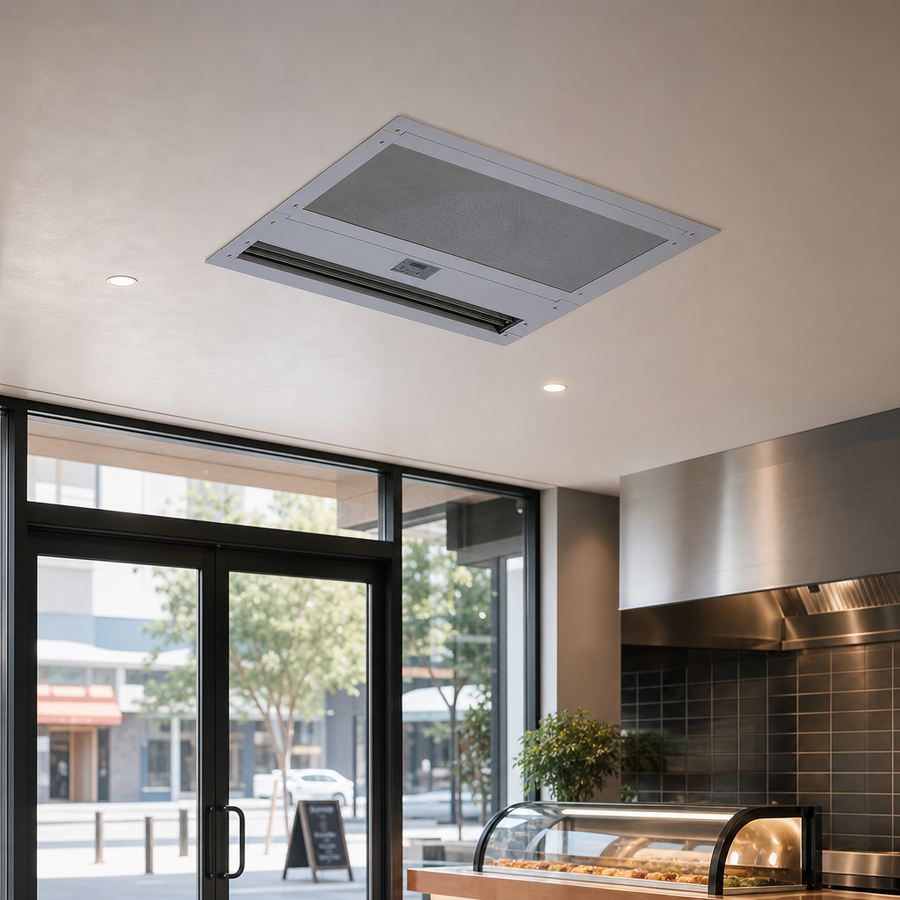

Recessed In-Ceiling Mount

Installs flush with the ceiling for a clean architectural appearance.

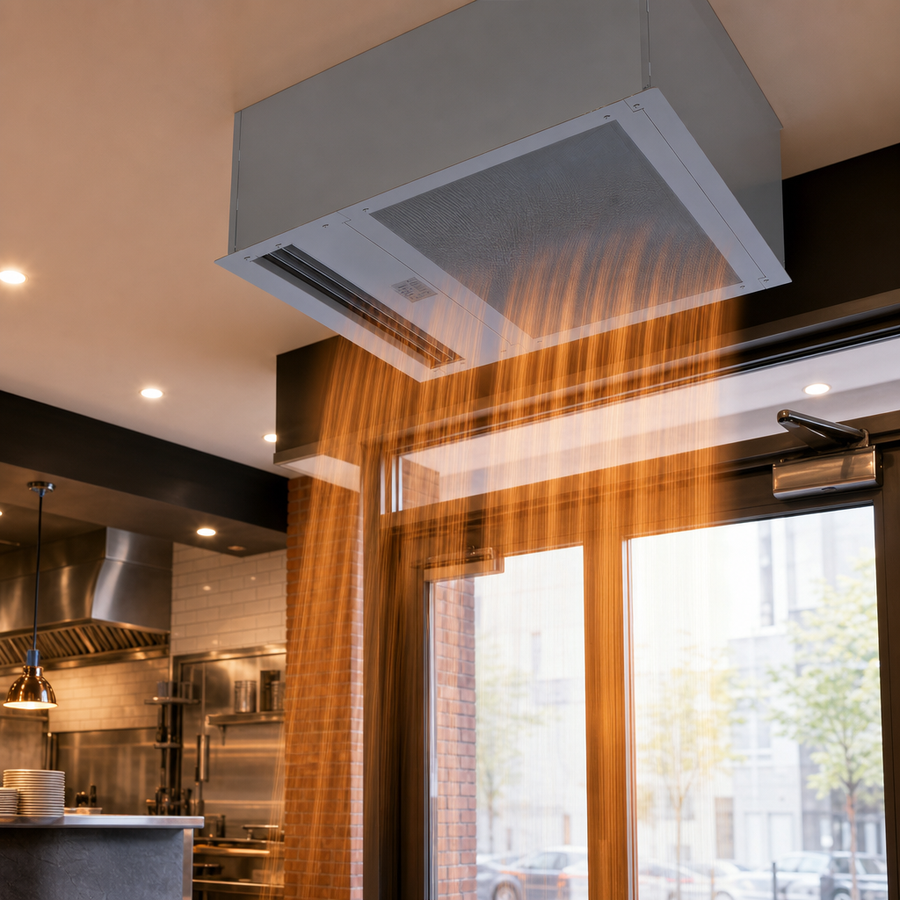

Electric Heated Air Curtain

Provides heated environmental separation for open doorways and main entrances.

Recommended for 16-Foot Mounting Heights

Designed for environmental separation at openings up to 16 feet high.

1 HP, Two-Speed Motor

Single motor configuration delivers two operating speeds for airflow control.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touch screen interface.

Berner AIR Basic Smart Control

Integrated smart control platform included standard with the unit.

White Aluminum Bottom Access Panel

Standard hinged access panel provides service access; stainless steel and custom color finishes are available.

Washable Filter

Recleanable polyester filter supports easier routine maintenance.

Pro-V Nozzle

High-efficiency, low-noise nozzle design helps distribute airflow evenly.

Single-Point Power Connection

Consult factory for electrical connection and total load requirements.

Type Electric Heated Air Curtain
Style Recessed
Installation Type In-Ceiling
Mounting Height Up to 16 Feet
Phase 1-Phase
Horsepower 1 HP
Motors 1
Speed Two-Speed
Watts 14 kW
BTU 47,782 BTU/HR
Controls Intelliswitch Touchscreen
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Fcb kw sheet PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet.
The unit includes a factory-installed Intelliswitch digital controller with a touch screen and Berner AIR BASIC smart control.
It uses a hinged bottom access panel and a washable polyester filter for easier service.
White aluminum is standard, with stainless steel or custom color finishes available.
Heated models carry a 2-year limited warranty from the original date of shipment when properly installed and operated.
