Berner Architectural Recessed 16 60-Inch Wide Unheated Air Curtain, 1 HP, 3-Phase, In-Ceiling Mount
Berner Architectural Recessed 16 60-Inch Wide Unheated Air Curtain, 1 HP, 3-Phase, In-Ceiling Mount
Flush-ceiling installation with touchscreen control for openings up to 16 ft.
A discreet recessed air curtain that helps maintain environmental separation without heat while preserving the look of the entryway.
- Flush ceiling-mounted design keeps the unit integrated into the architecture.
- Unheated air curtain helps reduce energy loss without adding heat.
- One 1 HP, two-speed motor provides airflow for door openings up to 16 ft.
- Factory-installed digital touchscreen controller simplifies operation.
- White aluminum access panel and washable filter support easy service.
- Optional Wi-Fi, remote display, and BMS connectivity are available.
Overall Dimensions:
60.0"W x 26.0"D x 15.0"HProduct Weight:

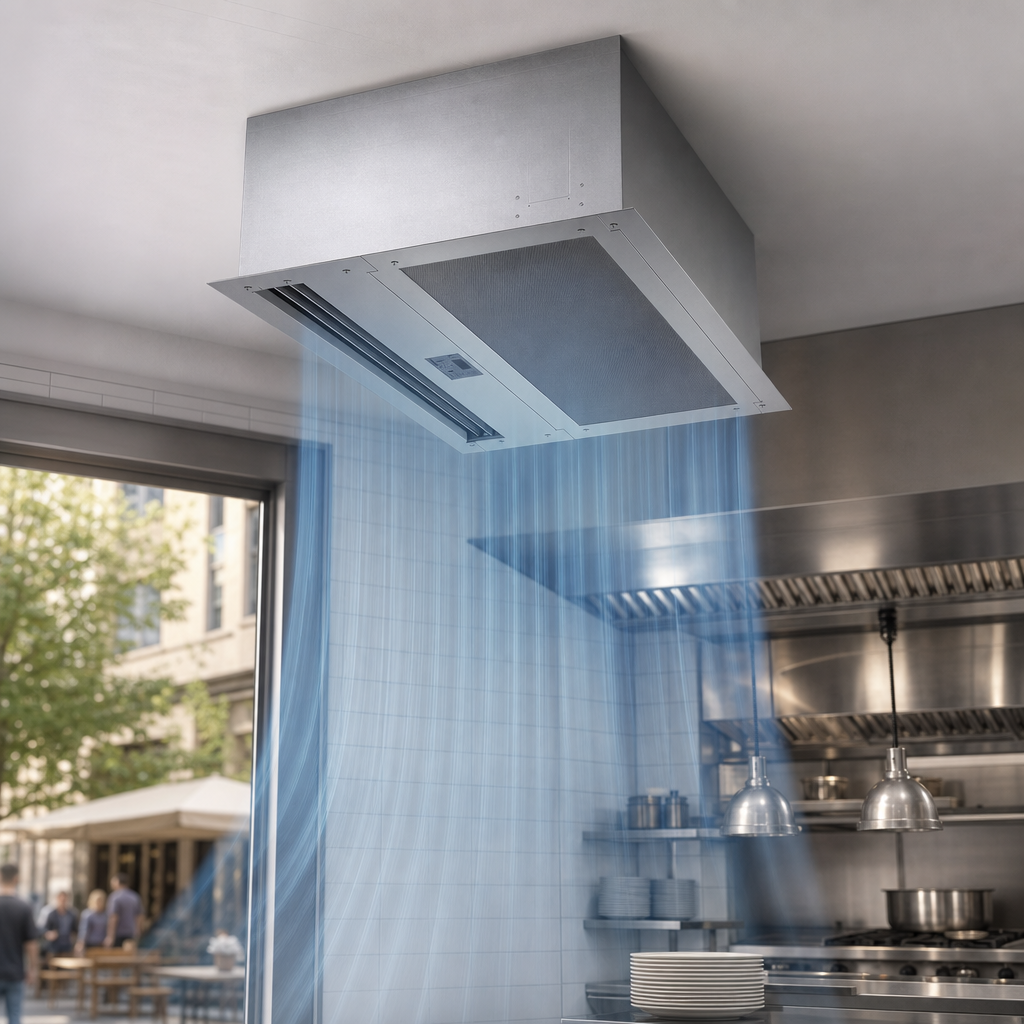

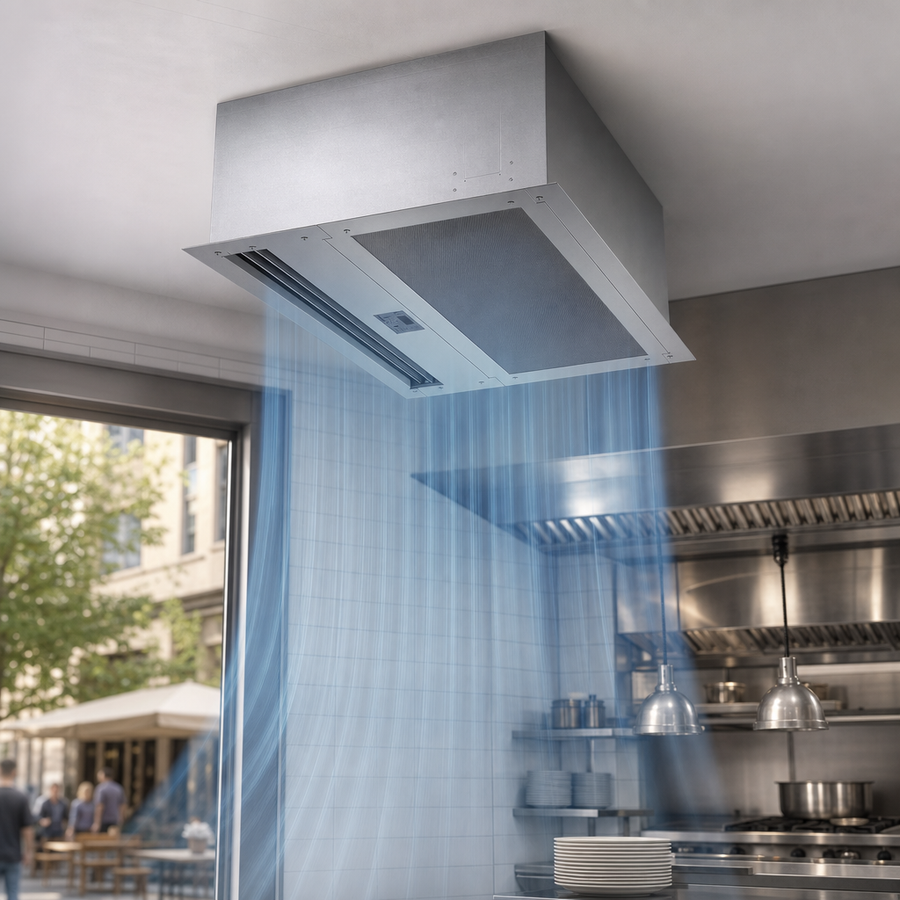

167.0 lbAmbient / Unheated Operation
Provides air separation without a heating section.

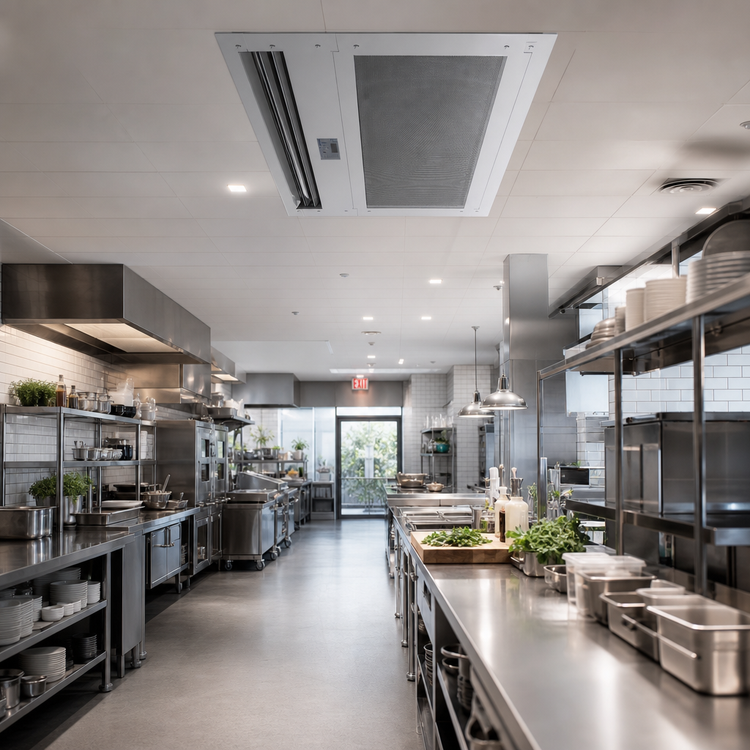

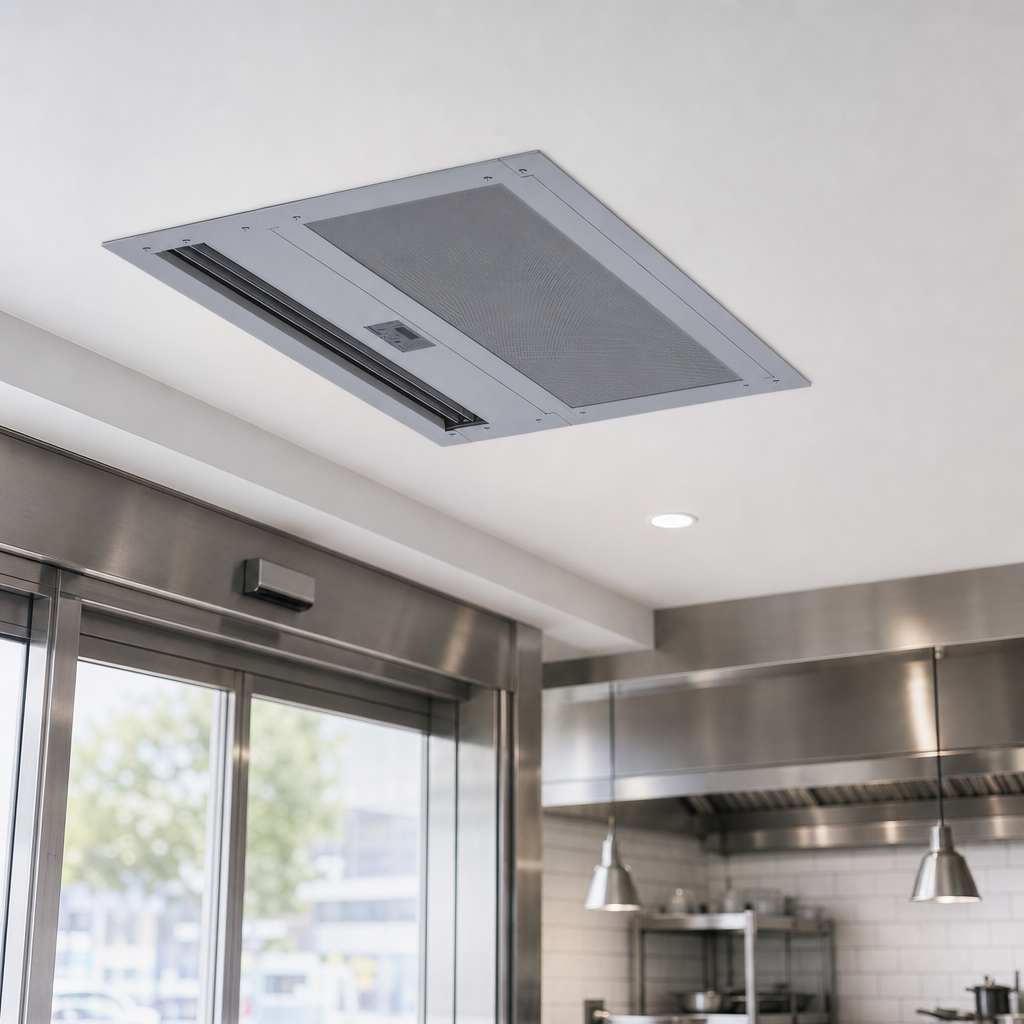

Recessed In-Ceiling Design
Mounts flush with the ceiling for a clean architectural appearance.
Factory-Installed Digital Touchscreen Controller
Built-in controller with touchscreen interface for simple setup and adjustment.
1 HP Two-Speed Motor
Single-motor design for reliable airflow performance.
Recommended for Up to 16-Foot Mounting Heights
Sized for environmental separation at entrances and up to 14 ft for insect control.
High-Efficiency Pro-V Nozzle
Low-noise nozzle design helps distribute airflow evenly.
Hinged Bottom Access Panel
White aluminum access panel provides service access and includes a washable filter.
Top Mounting Only
Designed for top-mount installation.
Optional Wi-Fi Controller / Berner App
Available add-on for app-based control.
Optional BMS Integration
Can be configured with building management system connectivity.
Certifications & Compliance
Warranty & Protection
5-year limited warranty on unheated models.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
