Berner

Berner Architectural Recessed 16 Electric Heated Air Curtain, 48-Inch, 1 HP, 3-Phase, 14 kW

SKU: ARE16-1048E-3
$4,104.10
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 16 Electric Heated Air Curtain, 48-Inch, 1 HP, 3-Phase, 14 kW

Recommended for Mounting Heights Up to 16 Feet

A flush-mounted electric air curtain that helps preserve comfort and separation at 48-inch openings up to 16 feet high.

  • Recessed, in-ceiling design mounts flush with the ceiling for a clean architectural look.
  • Electric heated 14 kW model is recommended for mounting heights up to 16 feet.
  • Factory-installed Intelliswitch touchscreen controller includes Berner AIR BASIC smart control.
  • Single 1 HP, two-speed motor and high-efficiency Pro-V nozzle support low-noise airflow.
  • Hinged access panel and recleanable filter simplify routine service.
  • Standard white aluminum construction with optional stainless steel or custom color finishes.

Overall Dimensions:

48.0"W x 26.0"D x 15.0"H

Product Weight:

151.0 lb

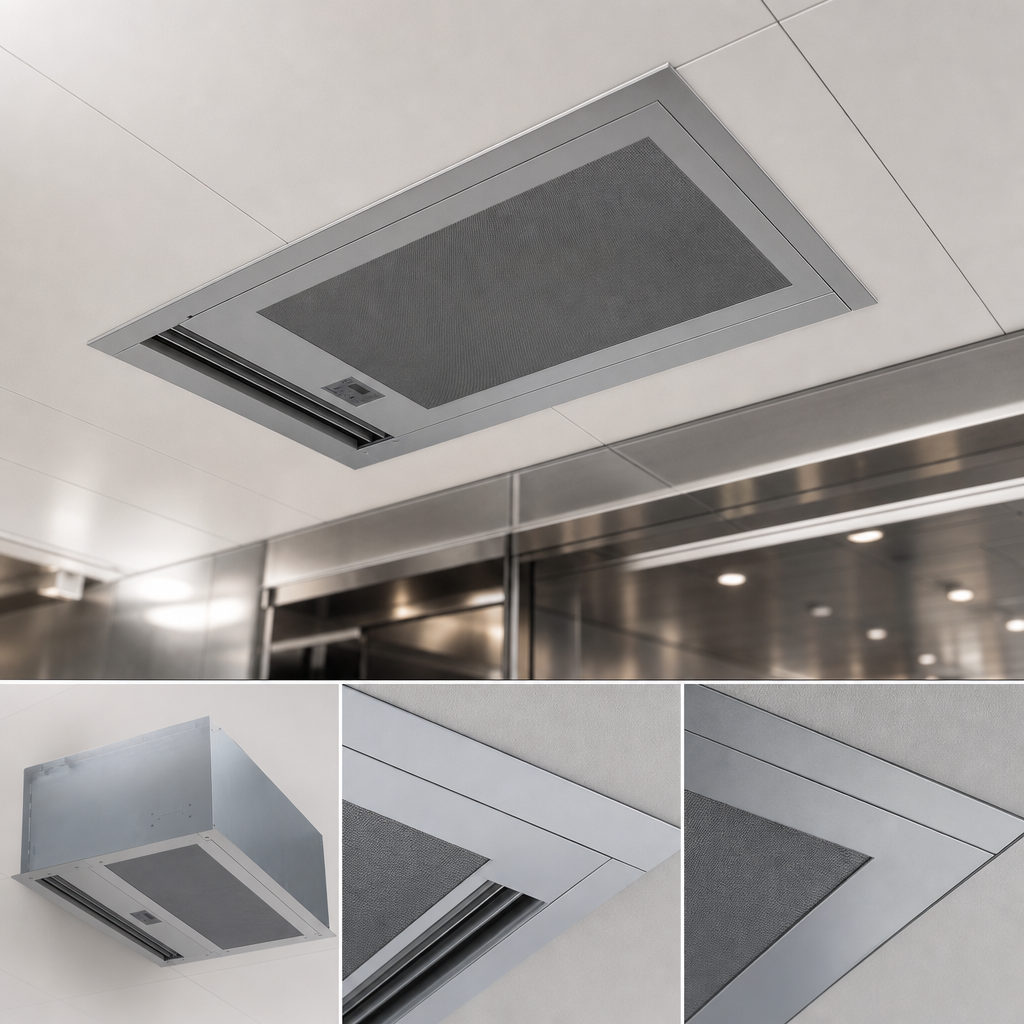

Flush-Mount Recessed Cabinet

Designed to mount flush with the ceiling using top mounting only, helping maintain a clean architectural appearance.

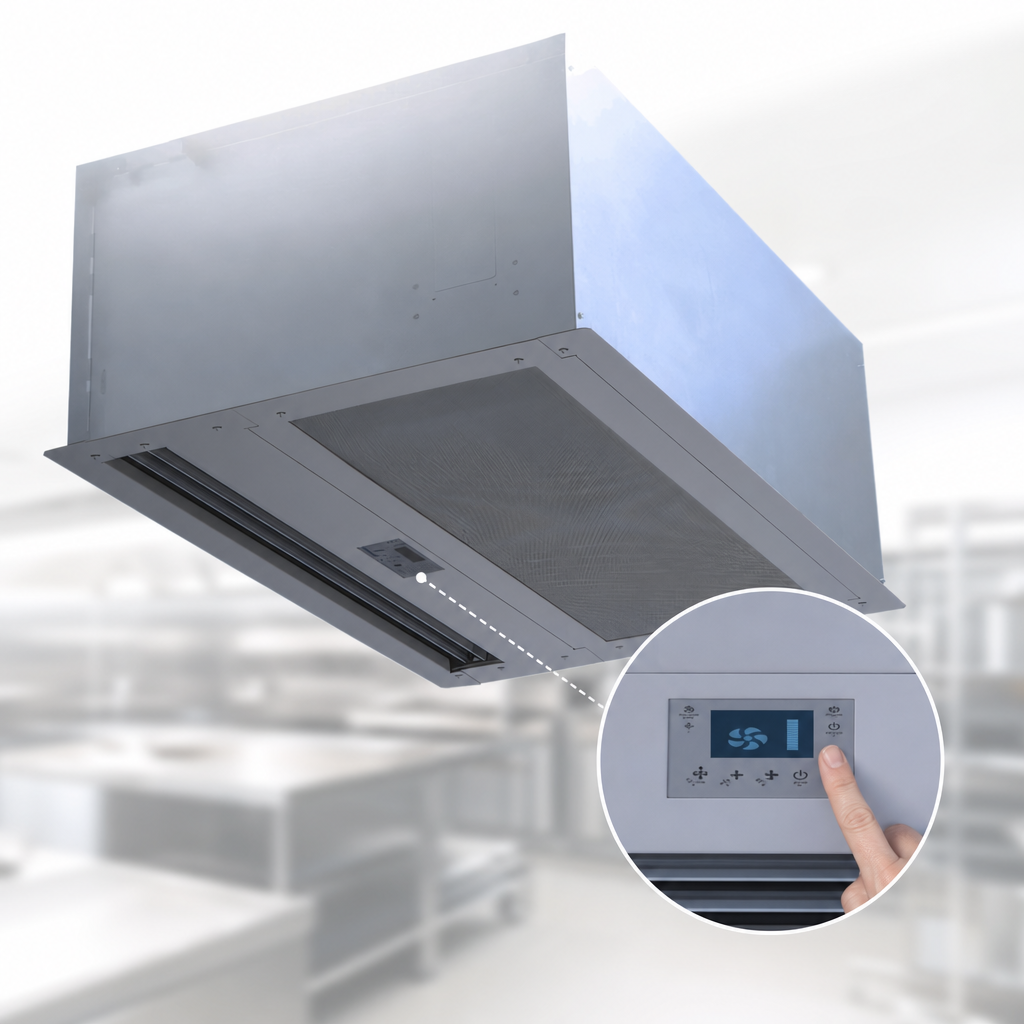

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface and Berner AIR BASIC smart control.

Electric Heated Output

14 kW electric heating for environmental separation at openings up to 16 feet high.

1 HP Two-Speed Motor

Single motor design provides dependable airflow with two-speed operation.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design with adjustable vanes for uniform air discharge.

Service-Friendly Access Panel

Hinged, removable bottom access panel with recleanable polyester filter simplifies maintenance.

Standard White Aluminum Finish

Supplied with a white aluminum exterior/bottom panel; stainless steel or custom color finishes are available.

Made in USA

Built in the USA; cULus listed for indoor use.

Type Electric Heated Air Curtain
Style Recessed
Installation Type Built-In
Watts 14 kW
Phase 3-Phase
Motors 1
Horsepower Per Motor 1 HP
Maximum Mounting Height 16 Feet
Controls Intelliswitch Touchscreen
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models

Documents

PDF Cutsheet PDF Download PDF Fcb kw sheet PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet.
It includes a factory-installed Intelliswitch digital controller with touchscreen interface.
It is an electric heated air curtain with 14 kW heating and three-phase power.
Yes. It includes a hinged, removable access panel and a recleanable polyester filter.
Heated models include a 2-year limited warranty from the original shipment date.
White aluminum is standard, with stainless steel or custom color available.
