Berner

Berner architectural recessed 16 48-inch electric heated air curtain, 1 hp, 2-speed, intelliswitch touchscreen

SKU: ARE16-1048E-1
$3,761.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air doors Berner Best sellers Kitchen ventilation & climate control New arrivals Restaurant equipment

Berner Architectural Recessed 16 48-Inch Electric Heated Air Curtain, 1 HP, 2-Speed, Intelliswitch Touchscreen

Single-Phase, 14 kW, Flush-Ceiling Mount for Up to 16 Ft Openings

Discreetly recessed into the ceiling, this 48-inch electric air curtain delivers heated environmental separation for entrances up to 16 feet high.

  • Flush-in-ceiling architectural design creates a clean, low-profile appearance.
  • Recommended for mounting heights up to 16 feet for environmental separation.
  • 48-inch electric heated unit with 14 kW maximum electric capacity.
  • One 1 HP AC motor with two-speed operation for dependable airflow.
  • Factory-installed Intelliswitch digital controller with touchscreen and Berner AIR BASIC smart control.
  • Hinged white aluminum access panel and washable filter simplify maintenance.
  • High-efficiency Pro-V nozzle supports quiet, effective air delivery.

Overall Dimensions:

48.0"W x 26.0"D x 15.0"H

Product Weight:

151.0 lb

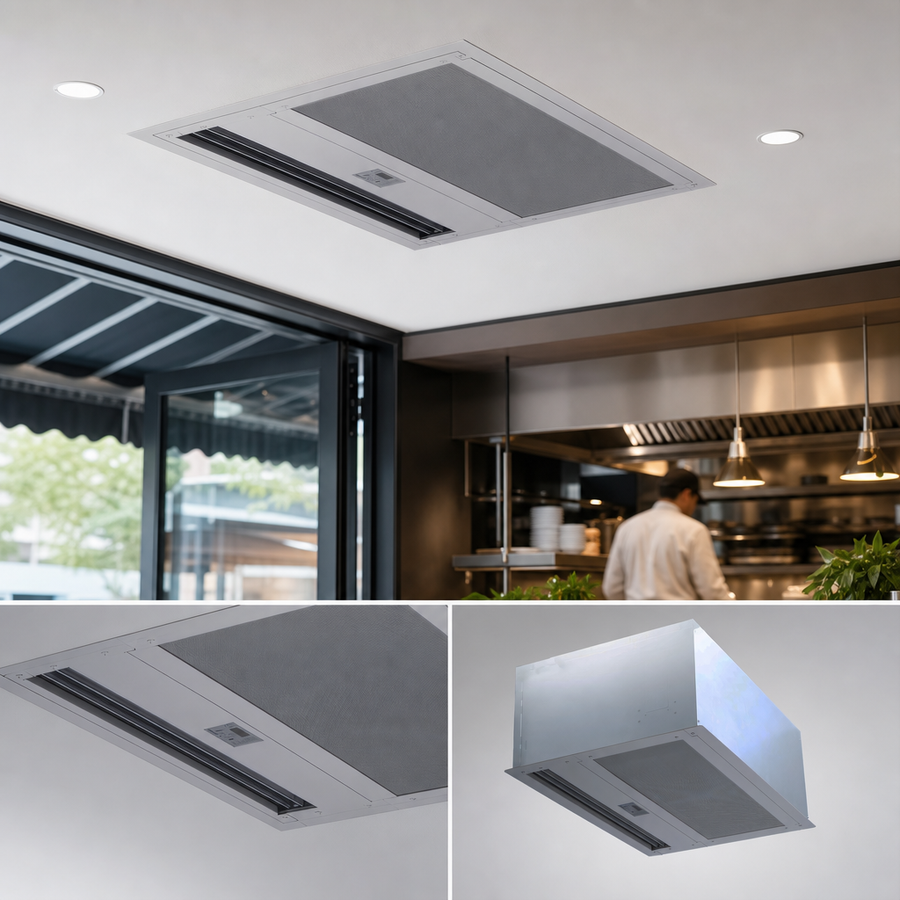

Recessed In-Ceiling Design

Mounts flush with the ceiling for a discreet architectural installation.

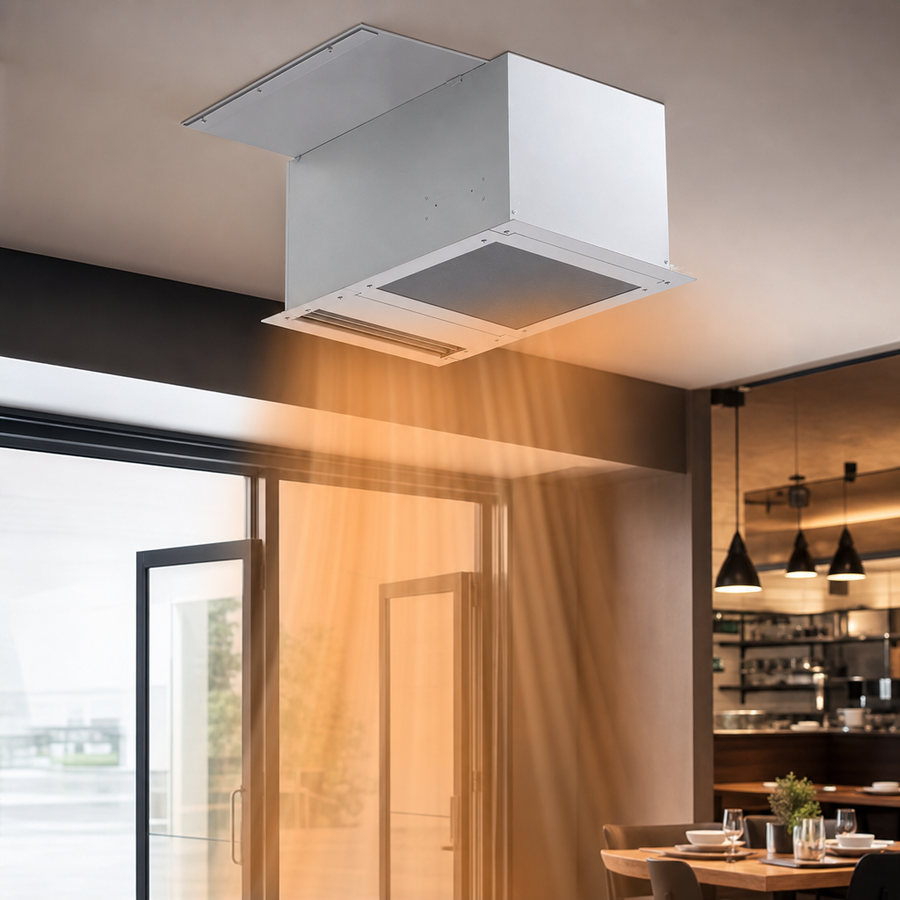

Electric Heated Output

Provides heated air separation for entrances and interior climate control.

1 HP Two-Speed Motor

Uses a single 1 HP AC motor with two operating speeds.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface and smart control features.

Hinged Bottom Access Panel

White aluminum bottom panel opens for easier access to internal components.

Washable Polyester Filter

Recleanable filter helps simplify routine maintenance.

Pro-V Nozzle

High-efficiency, low-noise nozzle design supports smooth air discharge.

Top Mounting Only

Designed for top-mount installation above the ceiling line.

Type Air Curtain
Style Recessed
Installation Type Built-In
Heat Type Electric
Motor Count 1
Motor Horsepower 1 HP
Speeds 2-Speed
Controls Intelliswitch Digital Touchscreen
Phase 1-Phase
Watts 14 kW
Maximum Mounting Height 16 Feet
Air Volume 2,351 CFM
Temperature Rise 19°F
Color White
Material Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Fcb kw sheet PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
This model is electric heated and has a 14 kW maximum electric capacity.
It uses one 1 HP AC motor with two-speed operation.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface and Berner AIR BASIC smart control.
The unit has a hinged bottom access panel and a washable polyester filter for easier service access.
Optional upgrades mentioned in the documentation include a Wi-Fi controller, remote-mounted Intelliswitch touchscreen display, Berner AIR BMS control, and alternate cabinet finishes.
