Berner Architectural Recessed 16 48-Inch Ambient Unheated Air Curtain, 1 HP, 3-Phase
Berner Architectural Recessed 16 48-Inch Ambient Unheated Air Curtain, 1 HP, 3-Phase
Flush-Mount In-Ceiling Installation with Intelliswitch Touchscreen Control
A discreet recessed air curtain that helps maintain comfort and energy efficiency across a 48-inch entrance while preserving the look of the space.
- Recessed, in-ceiling ambient air curtain designed to mount flush with the ceiling.
- 48-inch opening coverage with one 1 HP, two-speed motor and 3-phase power.
- Recommended for mounting heights up to 16 feet for environmental separation.
- Factory-installed Intelliswitch digital controller with touchscreen and Berner AIR BASIC smart control.
- Washable filter, adjustable nozzle vanes, and low-noise Pro-V nozzle support easier service and quiet operation.
- cULus listed, Made in USA, and backed by a 5-year limited warranty on ambient models.
Overall Dimensions:
48.0"W x 26.0"D x 15.0"HProduct Weight:

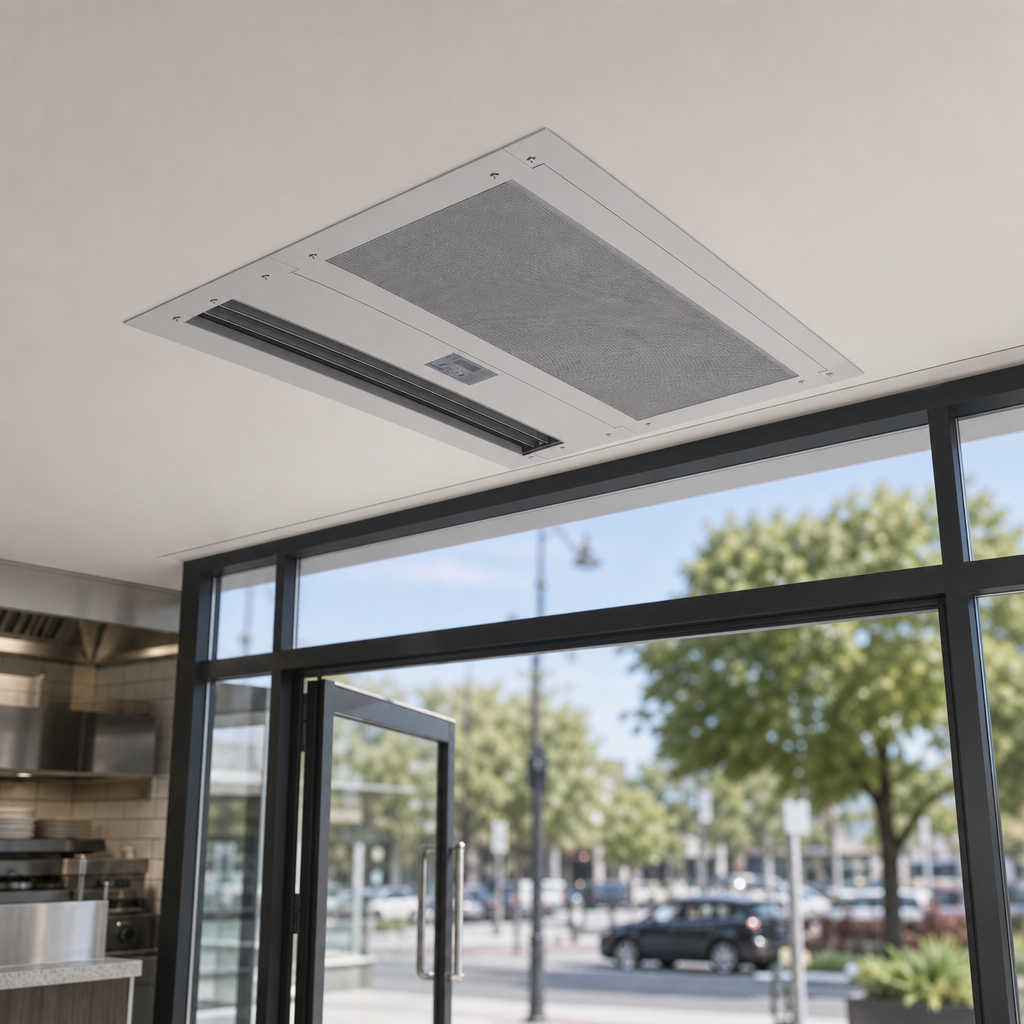

147.0 lbRecessed In-Ceiling Design
Mounts flush with the ceiling to preserve the architectural look of the entrance.

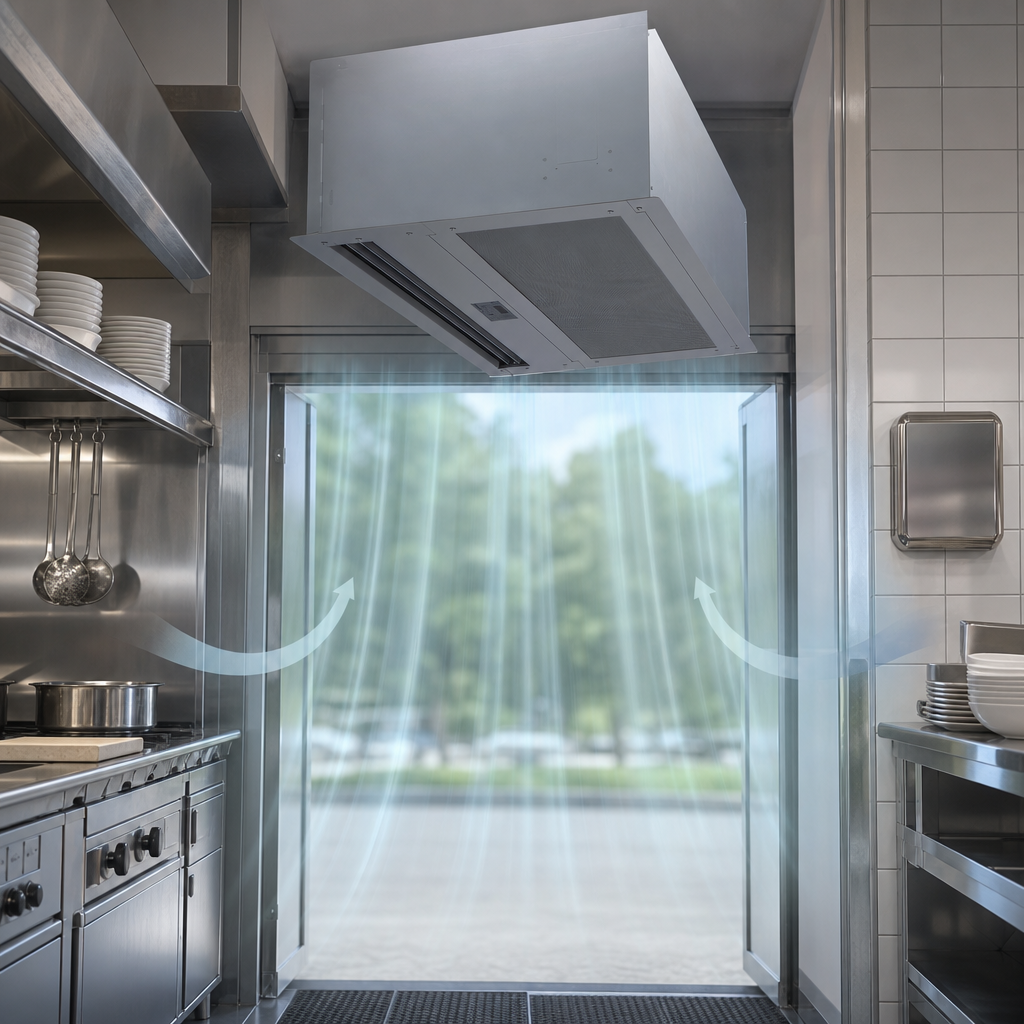

Ambient / Unheated Operation
Provides air separation without supplemental heat.
16-Foot Mounting Height
Recommended for environmental separation up to 16 feet and insect control up to 14 feet.
1 HP Two-Speed Motor
Single-motor design with two-speed operation.
Intelliswitch Touchscreen Controller
Factory-installed digital controller with touchscreen interface and Berner AIR BASIC smart control.
Washable Filter
Recleanable filter helps simplify maintenance.
Adjustable Pro-V Nozzle
High-efficiency, low-noise nozzle with adjustable vanes.
Hinged Bottom Access Panel
Hinged, removable panel provides access to internal components.
Top Mounting Only
Designed for recessed top-mount installation.
Minimum Ceiling Clearance
Requires at least 15 inches of clearance above the ceiling for installation.
Optional Wi-Fi Control
Wi-Fi Controller option works with the Berner App.
Optional BMS Integration
Berner AIR BMS is available with BACnet and Modbus capabilities.
White Aluminum Exterior Panel
Standard exterior panel finish; stainless steel and custom color options are also available.
cULus Listed and Made in USA
Built for indoor commercial use and manufactured in the USA.
Certifications & Compliance
Warranty & Protection
5-year limited warranty on ambient models.
