Berner Architectural Recessed 16 Ambient (Unheated) In-Ceiling Air Curtain, 48 Inch, 1 HP, Single Phase

Flush ceiling mount with one 1 HP motor and touch-screen control.

A sleek recessed air curtain that helps preserve comfort and reduce energy loss at entrances up to 16 feet high.

  • Ambient, unheated air curtain for environmental separation at openings up to 16 feet.
  • 48-inch recessed, in-ceiling design with one 1 HP, two-speed motor.
  • Factory-installed Intelliswitch digital controller with touchscreen interface.
  • Washable filter, adjustable Pro-V nozzle vanes, and hinged access panel simplify maintenance.
  • White aluminum construction with cULus listing and Made in USA quality.
  • Backed by a 5-year limited warranty on ambient models.

Overall Dimensions:

48.0"W x 26.0"D x 15.0"H

Product Weight:

147.0 lb

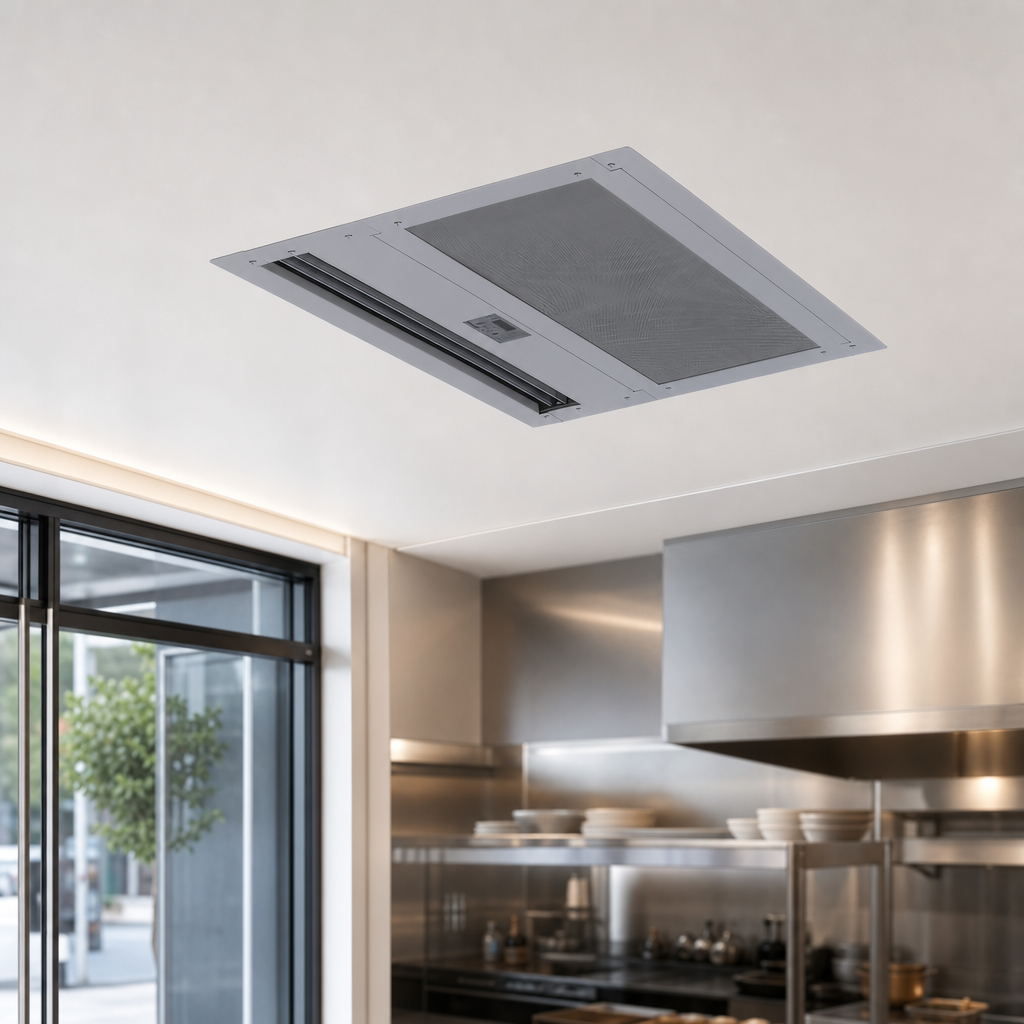

Recessed In-Ceiling Design

Flush-mount, top-mounted construction keeps the unit out of sight for a clean architectural look.

Recessed In-Ceiling Design

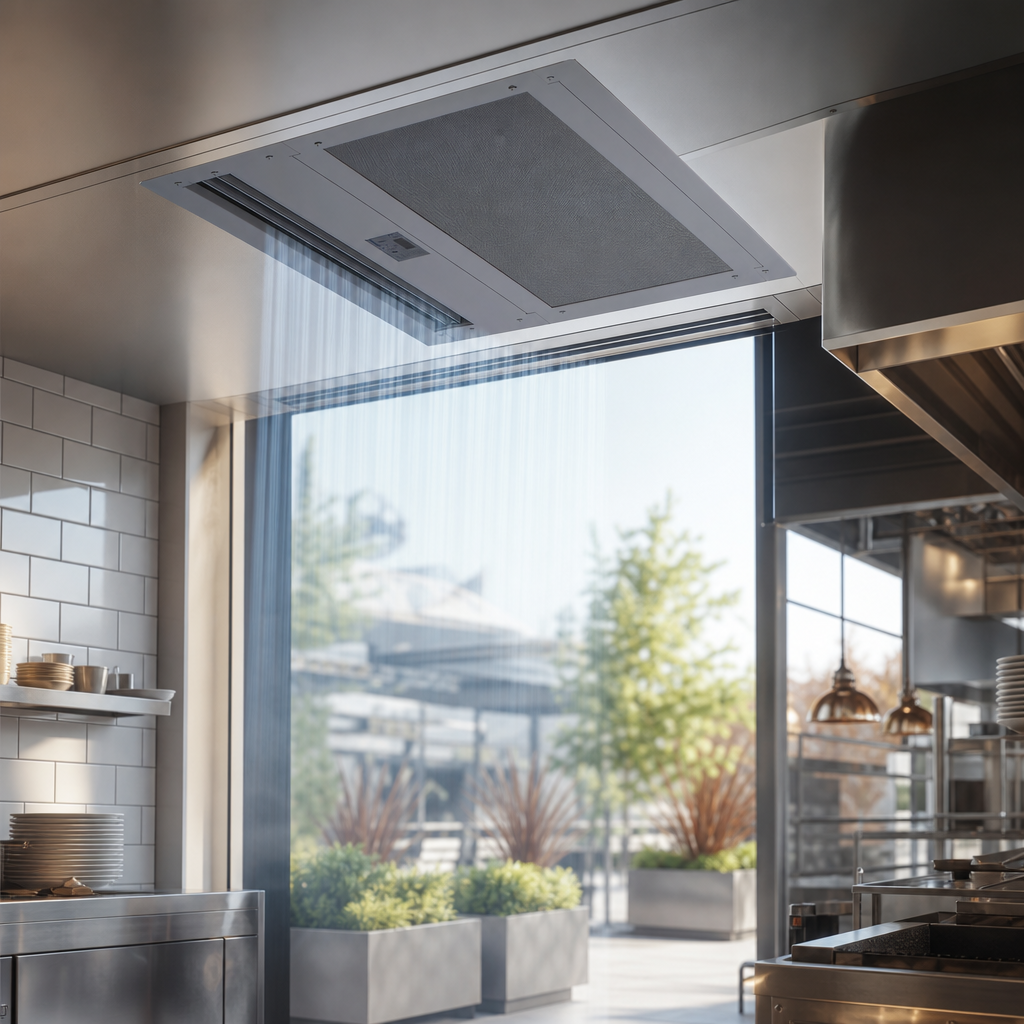

Ambient, Unheated Operation

Provides an air barrier for environmental separation without adding heat.

Ambient, Unheated Operation

One 1 HP Two-Speed Motor

Single-motor configuration is designed for reliable airflow in the 48-inch unit.

Factory-Installed Intelliswitch Control

Built-in digital controller with touchscreen operation for easy adjustment.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design with adjustable vanes helps direct airflow effectively.

Washable Filter

Recleanable filter supports easier routine maintenance.

Hinged White Aluminum Access Panel

Removable bottom access panel provides service access to internal components.

Rated for Mounting Heights Up To 16 Feet

Recommended for environmental separation up to 16 feet and insect control up to 14 feet.

Type Ambient Air Curtain
Style Architectural Recessed 16
Installation Type Built-In
Phase 1-Phase
Controls Digital Touchscreen
Material Aluminum
Color White
Country of Origin USA
Selling Unit Each
Units Per Case 1
Motor Count 1
Horsepower Per Motor 1 HP
Motor Speed Two Speed
Maximum Mounting Height 16 Feet
Air Volume 2,351 CFM
Watts 1.09 kW

Certifications & Compliance

Warranty & Protection

5-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is an ambient, unheated air curtain.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with touchscreen interface and Berner AIR BASIC smart control.
The standard construction includes a white aluminum exterior/bottom access panel.
Ambient models carry a 5-year limited warranty from the original date of shipment.
Yes. Optional accessories include a Wi-Fi controller, handheld remote control, magnetic reed door switch, and Berner AIR BMS package.
