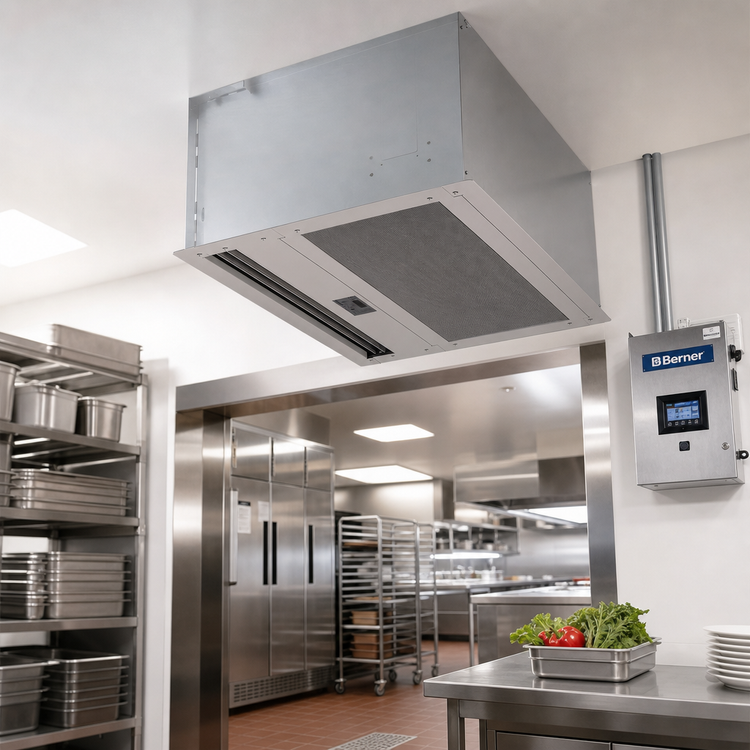

Berner Architectural Recessed 16 42-Inch Electric Heated Air Curtain, 1 HP, 3-Phase, 14 kW

Flush-Mount In-Ceiling Design, High Voltage, Up to 16-Foot Mounting Height

Flush-mounts into the ceiling to help protect the opening with heated air while keeping the installation clean and architectural.

  • Recessed in-ceiling air curtain designed for an architectural look and top-mount-only installation.
  • 42-inch electric heated model with one 1 HP, two-speed motor and 14 kW max electric capacity.
  • Factory-installed Intelliswitch digital controller with touchscreen interface and Berner AIR BASIC smart control.
  • Hinged white aluminum access panel and washable polyester filter help simplify service and maintenance.
  • Recommended for mounting heights up to 16 feet; made in the USA and cULus listed.

Overall Dimensions:

42.0"W x 26.0"D x 15.0"H

Product Weight:

145.0 lb

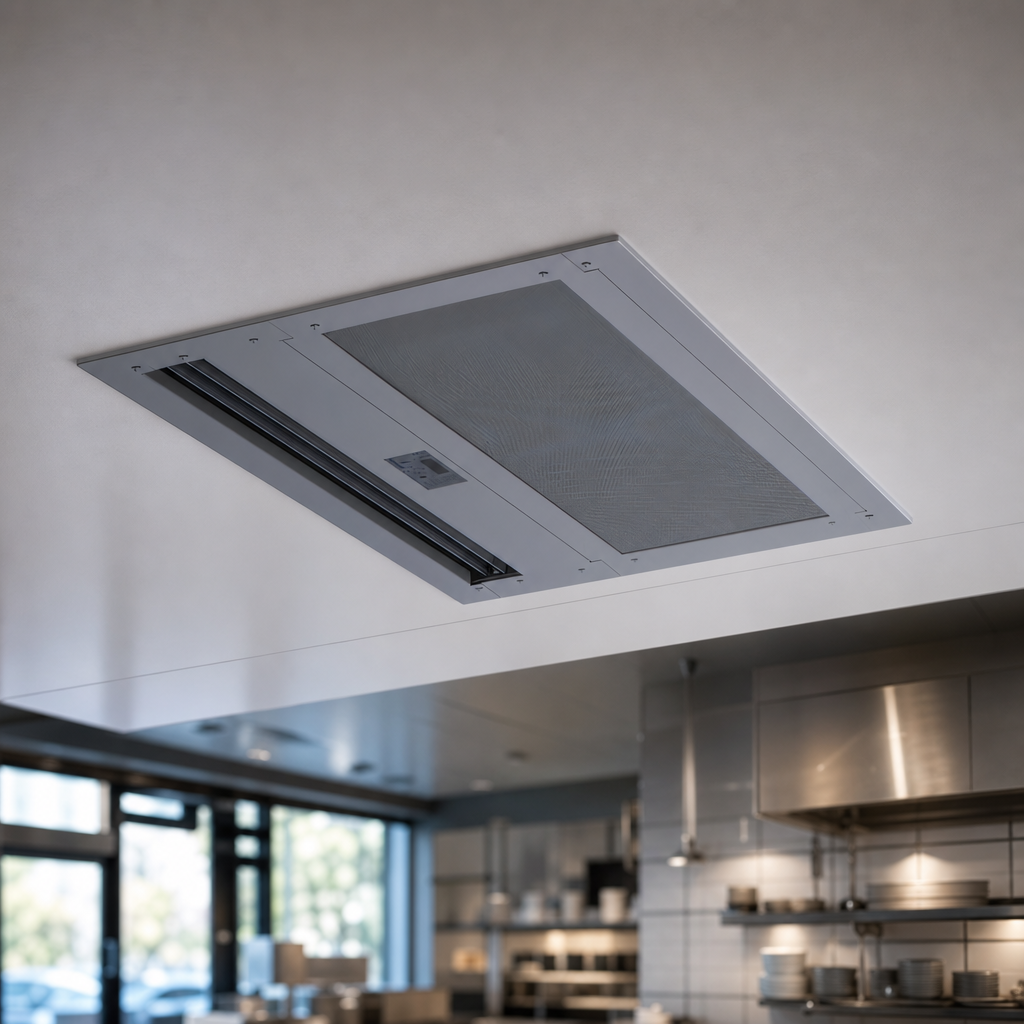

Recessed In-Ceiling Design

Mounts flush with the ceiling for a clean architectural appearance.

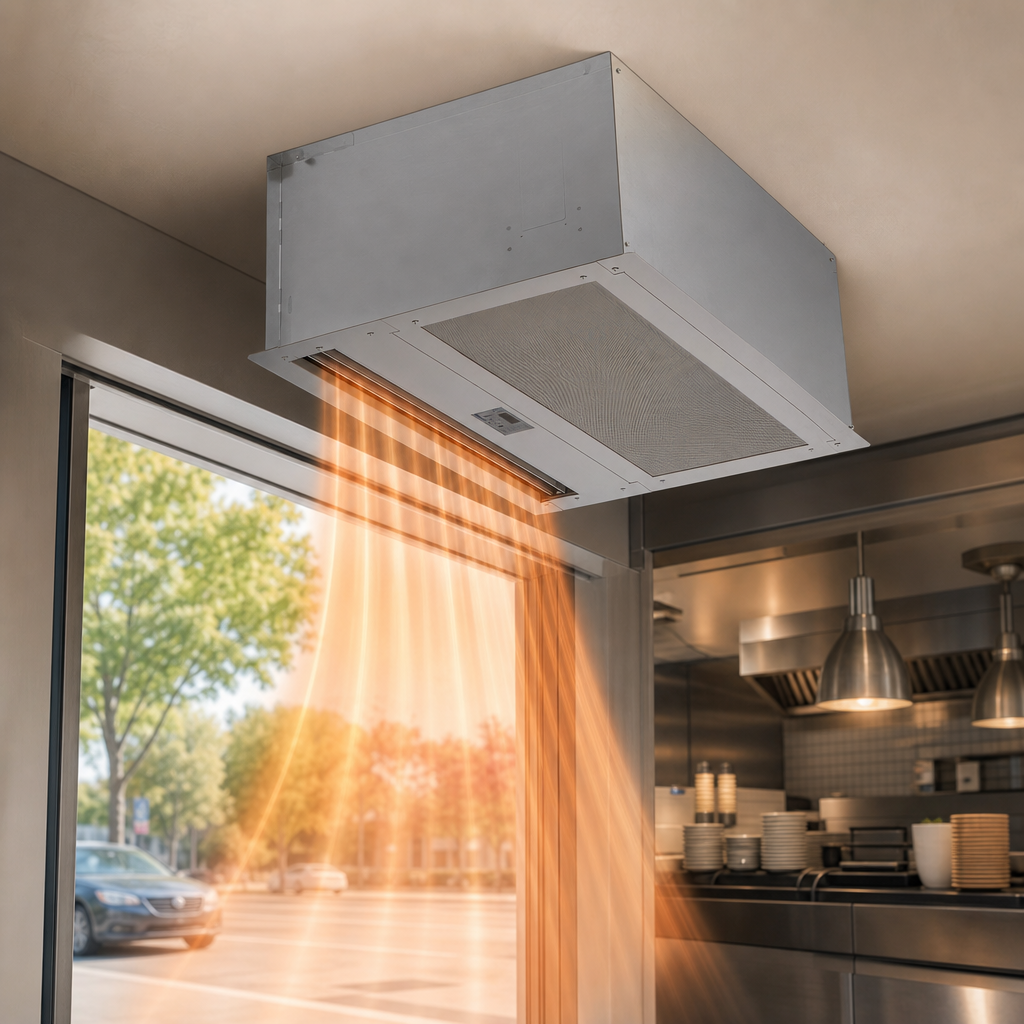

Electric Heated Performance

Provides heated air separation for environmental comfort when the opening is in use.

42-Inch Width / 16-Foot Coverage

Sized for the 42-inch model and recommended for mounting heights up to 16 feet.

1 HP Two-Speed Motor

Uses a single 1 horsepower motor with two operating speeds.

Intelliswitch Digital Touchscreen Controller

Factory-installed controller includes a touchscreen interface for easy operation.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design helps deliver efficient air movement.

Hinged White Aluminum Access Panel

Bottom access panel is hinged and removable for easier service access.

Washable Polyester Filter

Recleanable filter supports routine maintenance and long-term performance.

Top Mounting Only

Designed specifically for top-mount or in-ceiling installation.

Made in USA / cULus Listed

Documentation notes U.S. manufacture and cULus listing.

Type Air Curtain
Style Recessed
Installation Type Built-In
Heat Type Electric
Controls Intelliswitch Digital Touchscreen
Phase 3-Phase
Watts 14 kW
Horsepower Per Motor 1 HP
Motors 1 Motor
Maximum Mounting Height 16 Feet
Color White
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Fcb kw sheet PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 16 feet for environmental separation.
Yes. It comes with a factory-installed Intelliswitch digital controller with a touchscreen interface.
This model uses one 1 HP motor with two-speed operation.
It is a recessed, in-ceiling unit with top mounting only.
The flyer notes a minimum of 15 inches of clearance above the ceiling.
It includes a hinged, removable access panel and a recleanable polyester filter for maintenance.
