Berner

Berner Architectural Recessed 16 Ambient Air Curtain, 42-Inch, 1 HP, 3-Phase

SKU: ARE16-1042A-3
$3,240.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

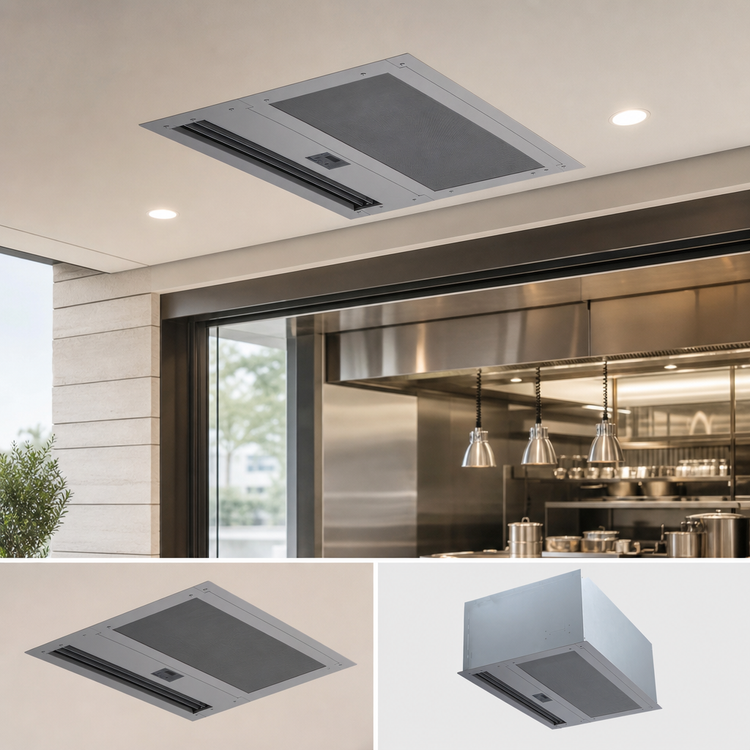

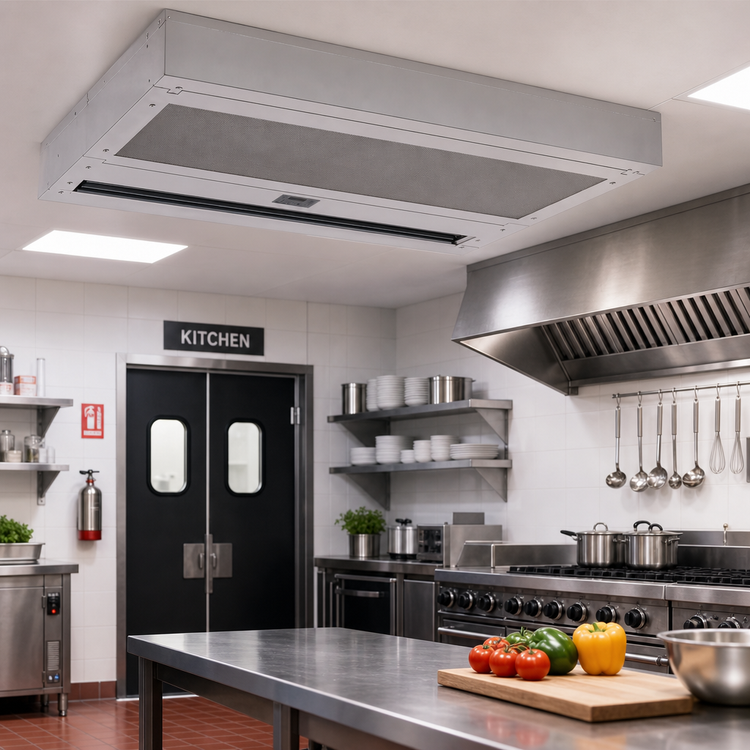

Berner Architectural Recessed 16 Ambient Air Curtain, 42-Inch, 1 HP, 3-Phase

Unheated, Flush-Mount Ceiling Installation with Intelliswitch Touchscreen Control

A flush-mounted 42-inch air curtain that creates a clean, unheated barrier for entrances up to 16 feet high.

  • Ambient, unheated air curtain designed for environmental separation without added heat.
  • Recessed in-ceiling design mounts flush for a low-profile architectural look.
  • Sized for mounting heights up to 16 feet, or 14 feet for insect control.
  • Factory-installed Intelliswitch digital controller with touchscreen interface.
  • 1 HP, two-speed motor and high-efficiency Pro-V nozzle for quiet airflow.
  • Hinged white aluminum bottom access panel and washable filter simplify maintenance.

Overall Dimensions:

42.0"W x 26.0"D x 15.0"H

Product Weight:

141.0 lb

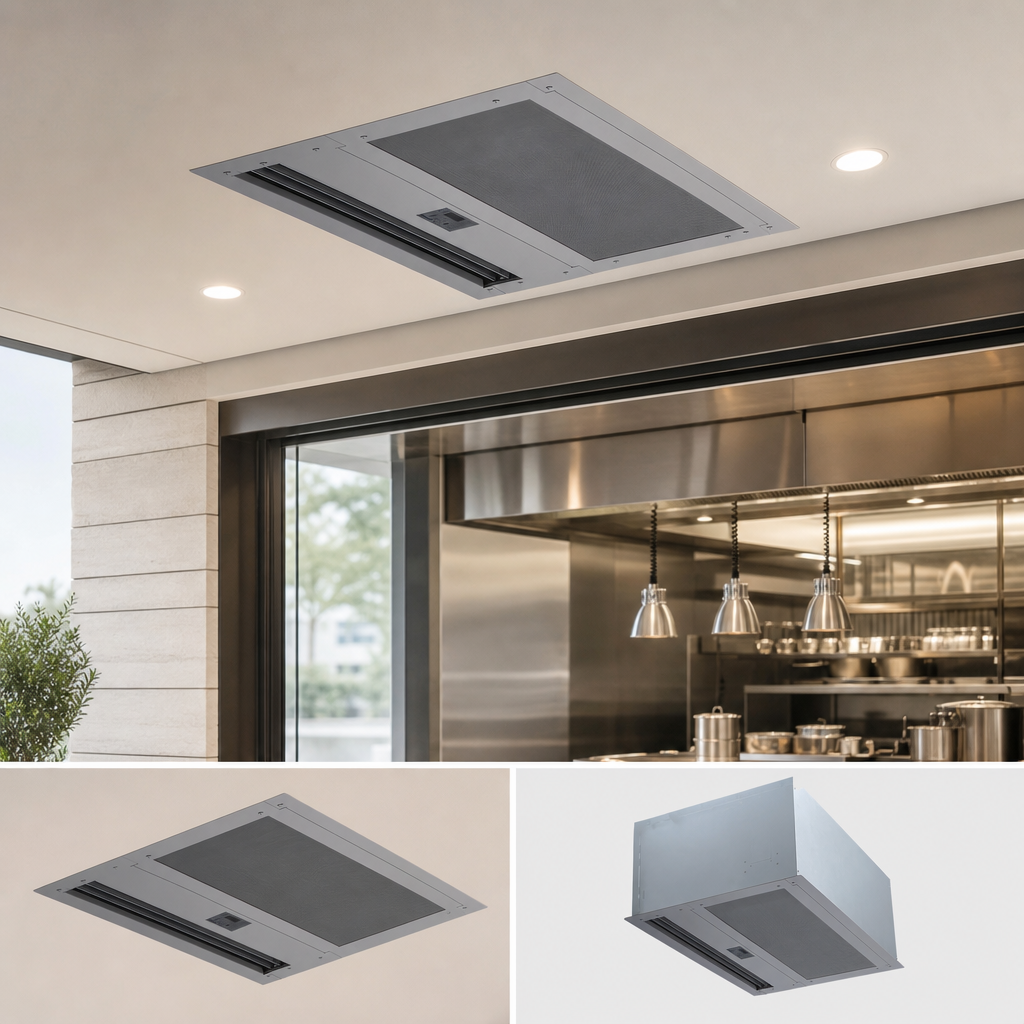

Recessed In-Ceiling Design

Flush-mounts with the ceiling for a clean architectural appearance and top-only mounting.

Recessed In-Ceiling Design

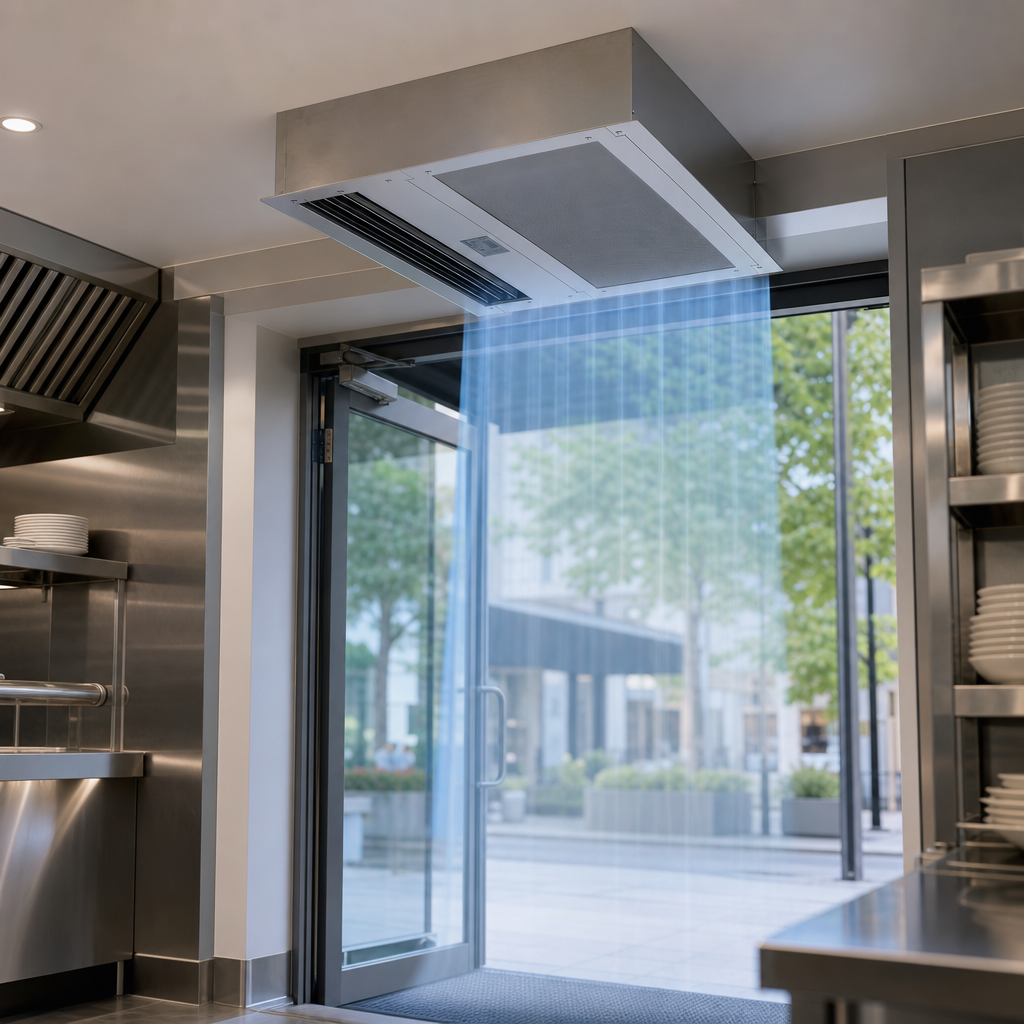

Ambient, Unheated Operation

Creates an air barrier for entrances without introducing heat.

Ambient, Unheated Operation

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface and smart control functions.

1 HP Two-Speed Motor

Single 1 HP AC motor provides two-speed operation for the 42-inch unit.

High-Efficiency Pro-V Nozzle

Low-noise nozzle helps deliver consistent air movement across the opening.

Washable Filter and Hinged Access Panel

Recleanable filter and hinged white aluminum bottom panel make routine service easier.

Recommended for Up to 16-Foot Mounting Heights

Suitable for environmental separation at entrances up to 16 feet high.

Optional Smart Control Add-Ons

Wi-Fi, remote display, and BMS options are available for expanded control.

Type Ambient Air Curtain
Style Recessed
Installation Type Built-In
Phase 3-Phase
Horsepower Per Motor 1 HP
Motor Count 1 Motor
Number Of Speeds 2 Speeds
Maximum Mounting Height 16 Feet
Controls Intelliswitch Digital Touchscreen
Air Volume 2,254 CFM
Maximum Velocity At Nozzle 5,594 FPM
Average Outlet Velocity 2,208 FPM
Outlet Velocity Uniformity 88%
Power Rating 0.96 kW
Material Aluminum
Color White
Finish White Aluminum
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. This is an ambient, unheated air curtain.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with touchscreen interface.
Yes. The unit includes a washable recleanable filter.
Ambient, unheated models are covered by a 5-year limited warranty from the original shipment date.
Yes. Optional cabinet finishes include stainless steel or custom color, and Wi-Fi, remote display, and BMS options are available.
