Berner Architectural Recessed 16 42-Inch Ambient In-Ceiling Air Curtain with Intelliswitch, 1 HP, Single-Phase

Flush-Mount In-Ceiling Design, Unheated, Two-Speed Motor, White Aluminum Finish

A flush-mounted ambient air curtain that helps protect open entrances while preserving a clean architectural ceiling line.

  • Recessed in-ceiling design mounts flush for a clean architectural appearance.
  • Ambient, unheated operation is recommended for openings up to 16 feet high.
  • Factory-installed Intelliswitch touchscreen controller simplifies daily operation.
  • One 1 HP, two-speed motor and Pro-V nozzle deliver efficient airflow with low noise.
  • Washable filter and hinged access panel make routine maintenance easier.
  • Standard white aluminum finish with optional stainless steel or custom color cabinet choices.

Overall Dimensions:

42.0"W x 26.0"D x 15.0"H

Product Weight:

141.0 lb

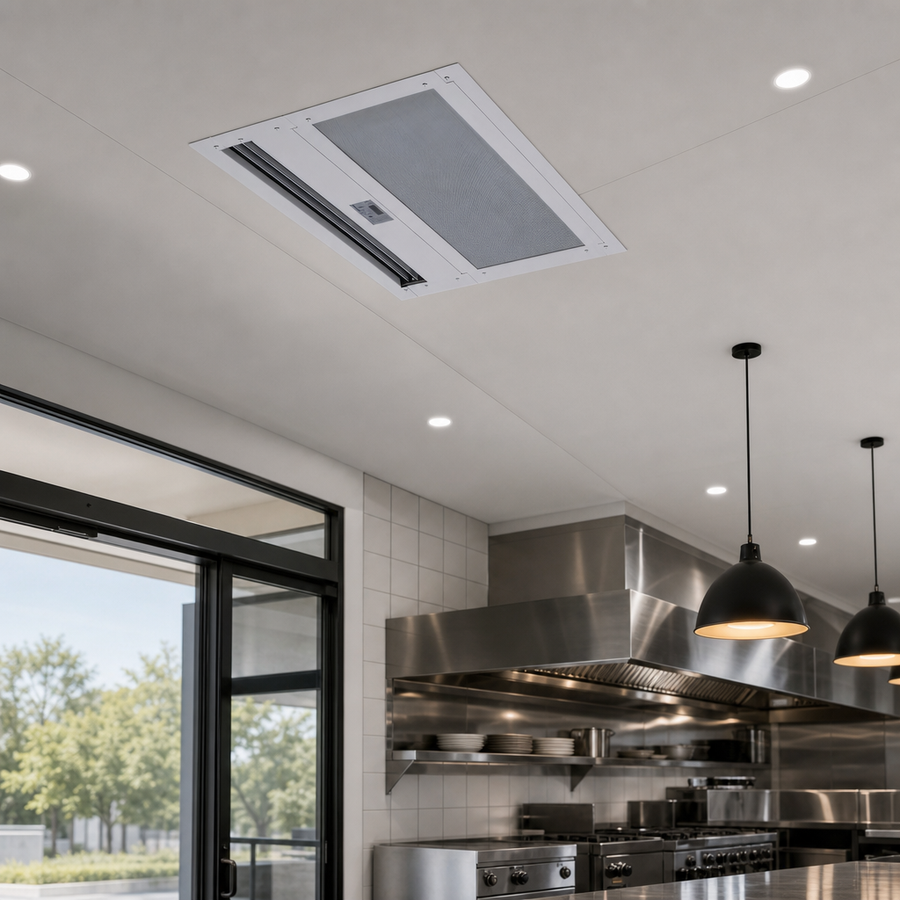

Recessed In-Ceiling Mount

Designed to mount flush with the ceiling using top mounting only for a clean architectural installation.

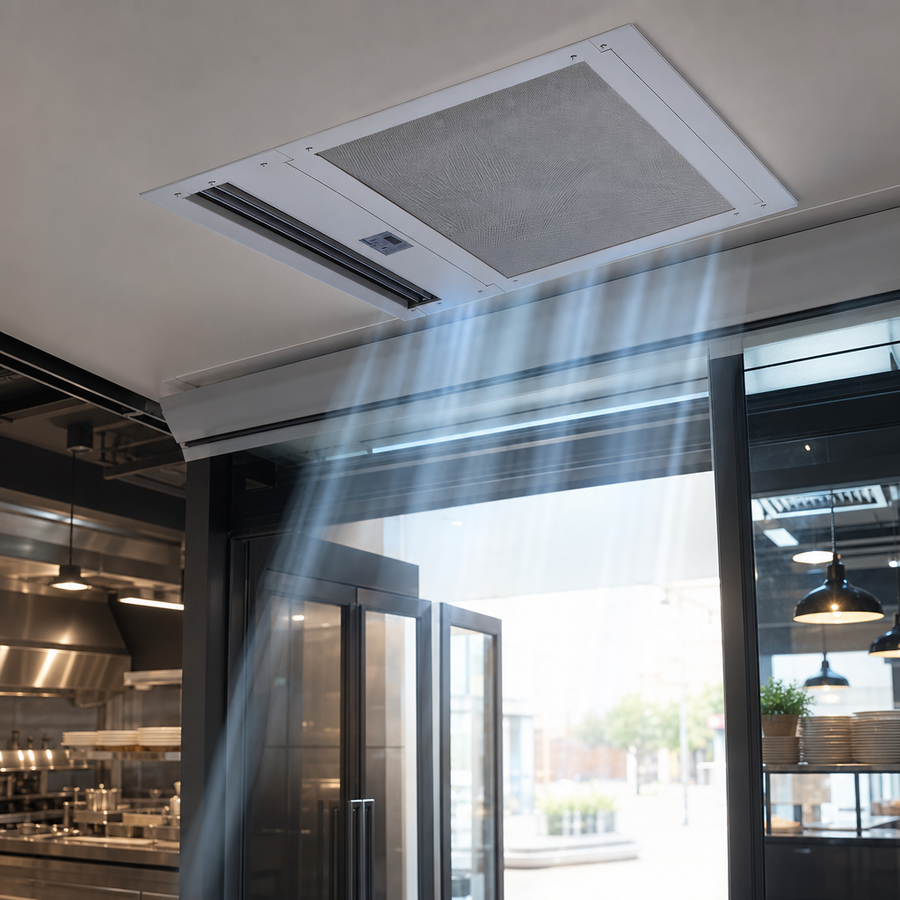

Ambient, Unheated Operation

Provides environmental separation without heat and is recommended for mounting heights up to 16 feet, with insect control up to 14 feet.

1 HP Two-Speed Motor

Uses one 1 HP AC motor with two operating speeds for dependable airflow performance.

Intelliswitch Touchscreen Controller

Factory-installed digital controller includes a touchscreen interface and Berner AIR BASIC smart control.

Washable Filter and Hinged Access Panel

A hinged, removable bottom access panel and recleanable polyester filter simplify service and cleaning.

Low-Noise Pro-V Nozzle

High-efficiency nozzle with adjustable vanes helps direct air across the opening while supporting quieter operation.

Optional Smart Connectivity

Optional Wi-Fi Controller works with the Berner App, and optional BMS integration is available for building management systems.

Type Ambient Air Curtain
Style Architectural Recessed
Installation Type Built-In
Controls Digital Touchscreen
Horsepower Per Motor 1 HP
Motors 1
Phase 1-Phase
Material Aluminum
Finish White Aluminum
Maximum Mounting Height 16 Feet
Air Volume 2,254 CFM
Max Velocity At Nozzle 5,594 FPM
Average Outlet Velocity 2,208 FPM
Outlet Velocity Uniformity 88%
Watts 960 Watts
Shipping Width 42 Inches
Shipping Depth 26 Inches
Shipping Height 15 Inches
Shipping Weight 141 lb.
Country Of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. This model is ambient and unheated.
It is recommended for mounting heights up to 16 feet for environmental separation and up to 14 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface and Berner AIR BASIC smart control.
Yes. It uses a recleanable polyester filter for easier maintenance.
Yes. A Wi-Fi Controller is available for use with the Berner App, and BMS integration is also offered.
