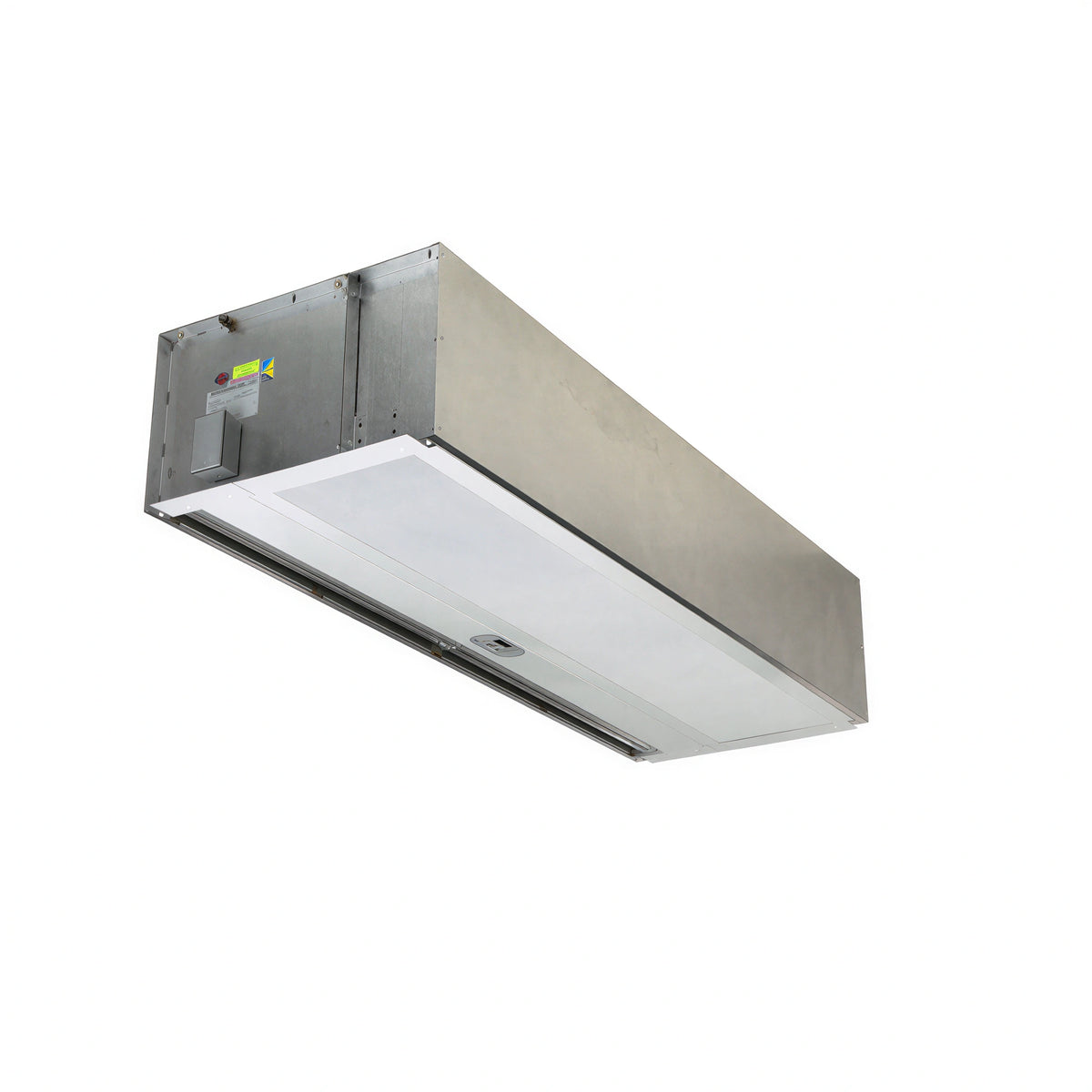

Berner Architectural Recessed 16 Ambient Unheated Air Curtain, 36 Inch, 1 HP, Single Phase

Ceiling-Recessed, White Aluminum, Recommended Mounting Height to 16 Ft

A clean, flush-mounted air curtain that helps maintain indoor comfort and energy savings at open entrances without adding heat.

  • Ambient, unheated air curtain designed for architectural entryways and environmental separation.
  • 36-inch wide unit with a single 1 HP motor and two-speed operation.
  • Factory-installed Intelliswitch digital controller with touchscreen interface.
  • Recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
  • Hinged bottom access panel and washable filter help simplify maintenance.
  • White aluminum construction blends into modern recessed installations.

Overall Dimensions:

36.0"W x 26.0"D x 15.0"H

Product Weight:

134.0 lb

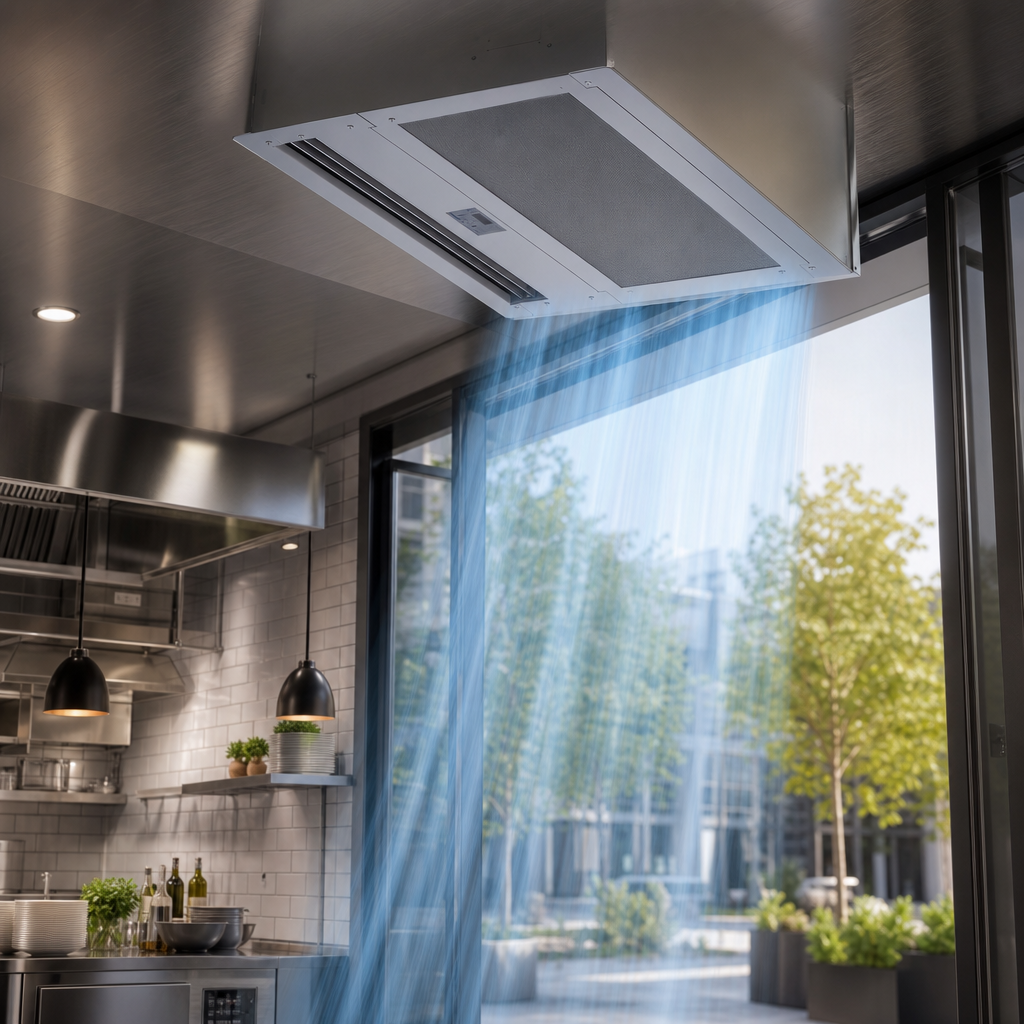

Ambient Unheated Operation

Delivers air separation without adding heat, making it ideal for entrances where temperature control and comfort are the priority.

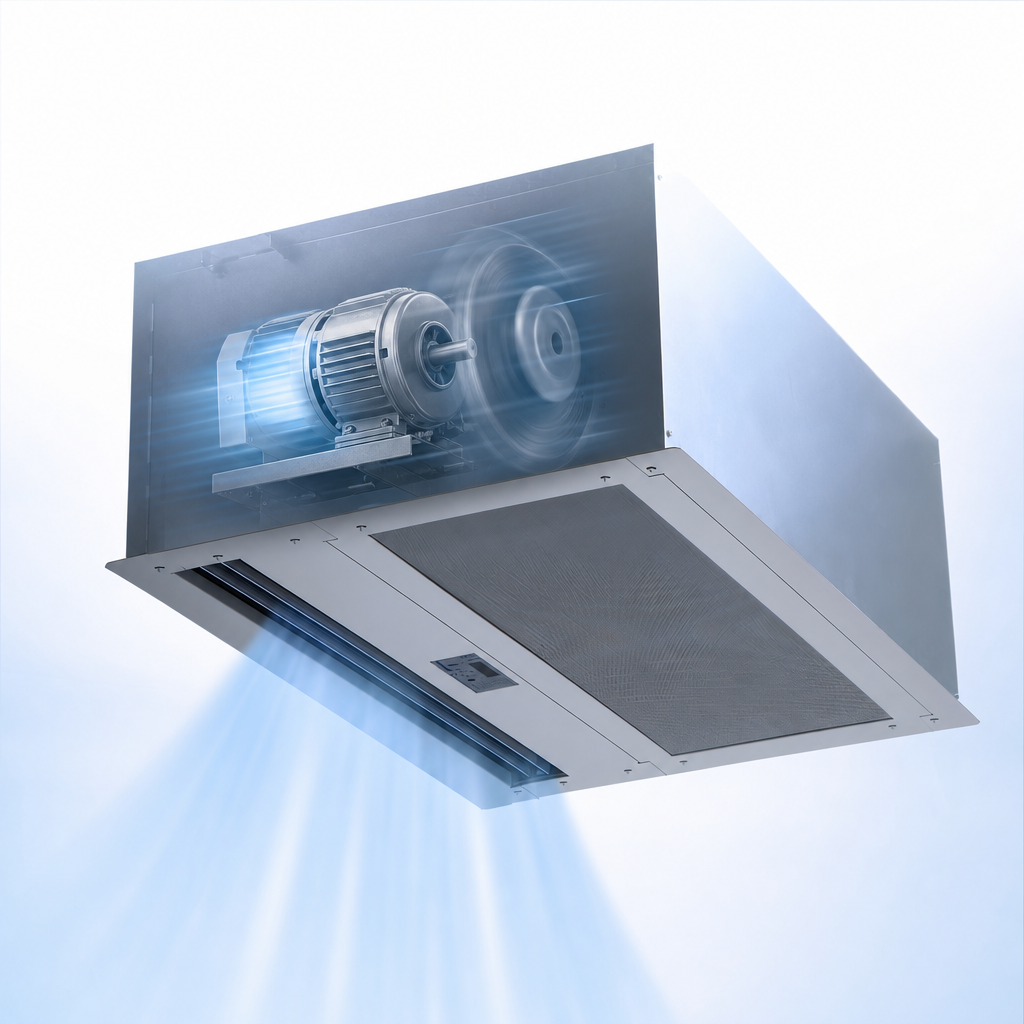

1 HP Two-Speed Motor

Single-motor design provides two operating speeds for flexible performance.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface for straightforward operation.

Recessed Ceiling-Mount Design

Built for top mounting and flush integration into the ceiling for a clean architectural appearance.

Pro-V Nozzle

High-efficiency, low-noise nozzle design helps deliver consistent air movement.

Washable Filter And Hinged Access Panel

The hinged bottom access panel and washable filter make routine cleaning and service easier.

White Aluminum Finish

Standard white aluminum exterior and access panel suit visible front-of-house installations.

Up To 16-Foot Mounting Height

Recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.

Type Ambient Air Curtain
Style Architectural Recessed
Installation Type Built-In
Controls Digital Touchscreen
Horsepower Per Motor 1 HP
Motor Count 1
Speed Count 2
Voltage 120 Volts
Amps 12.6 Amps
Hertz 60 Hz
Phase 1-Phase
Material Aluminum
Color White
Maximum Opening Height 16 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Air curtain flyer PDF Download PDF Terms & conditions PDF Download

Frequently Asked Questions

No. This model is ambient and unheated.
It is recommended for mounting heights up to 16 feet for environmental separation and 14 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface.
The standard configuration is 120 Volts, 1-Phase, 60 Hz.
Yes. It includes a washable filter and a hinged bottom access panel for easier maintenance.
