Berner

Berner Architectural Recessed 12 Series Electric Heated Air Curtain, 144 Inch Wide, 4-Motor, 56 kW

SKU: ARE12-4144E
$8,320.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 12 Series Electric Heated Air Curtain, 144 Inch Wide, 4-Motor, 56 kW

Flush-ceiling built-in design with digital touchscreen control and white aluminum panel

A recessed heated air curtain that helps protect large entrances while preserving a clean architectural look.

  • Flush ceiling-recessed design keeps the unit out of sight and preserves the entryway appearance.
  • Electric heated system is designed for openings up to 12 feet high.
  • Four 1/2 HP motors with ten-speed operation provide strong, adjustable airflow.
  • Factory-installed digital touchscreen controller simplifies operation.
  • Washable filter and hinged access panel make maintenance easier.
  • Standard white aluminum exterior panel; custom color or stainless steel options are available. Made in USA.

Product Weight:

475.0 lb

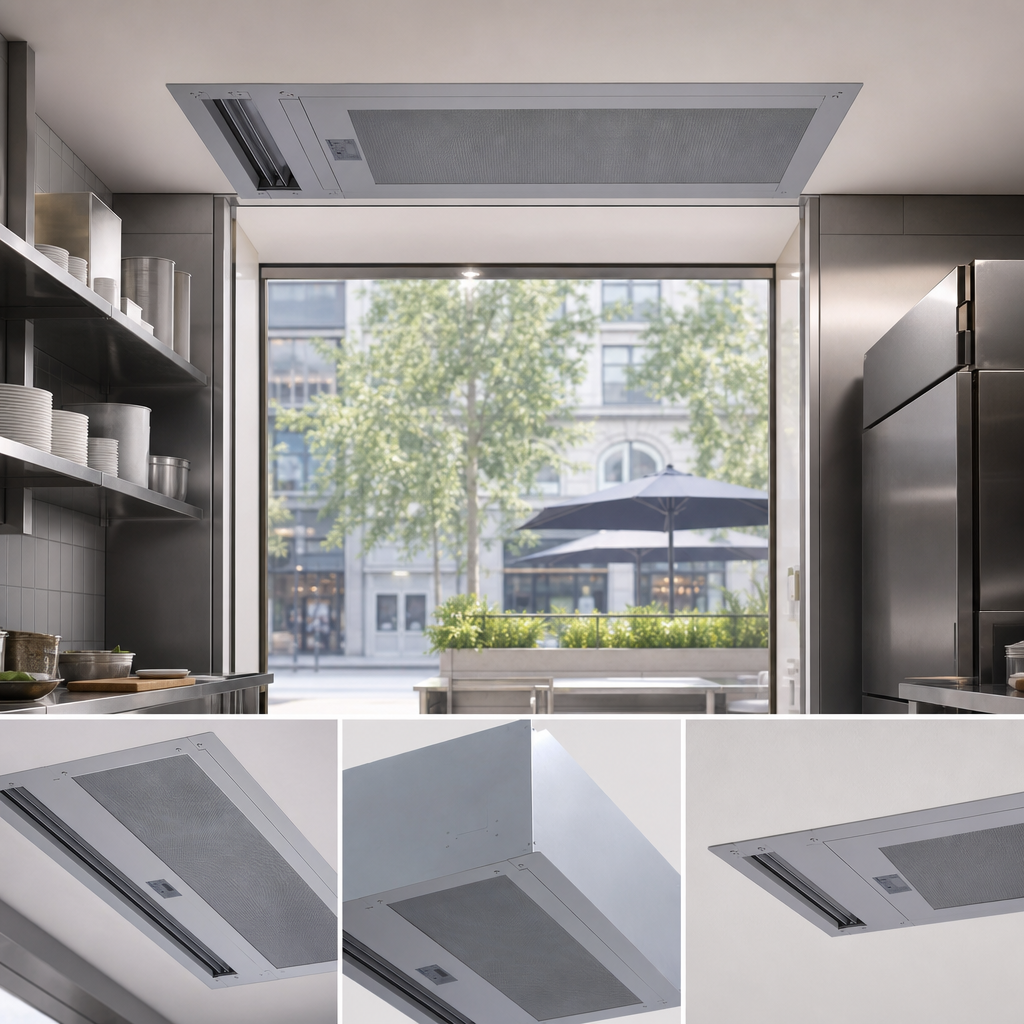

Flush Ceiling-Recessed Design

Top-mount-only construction installs above the opening for a clean architectural appearance.

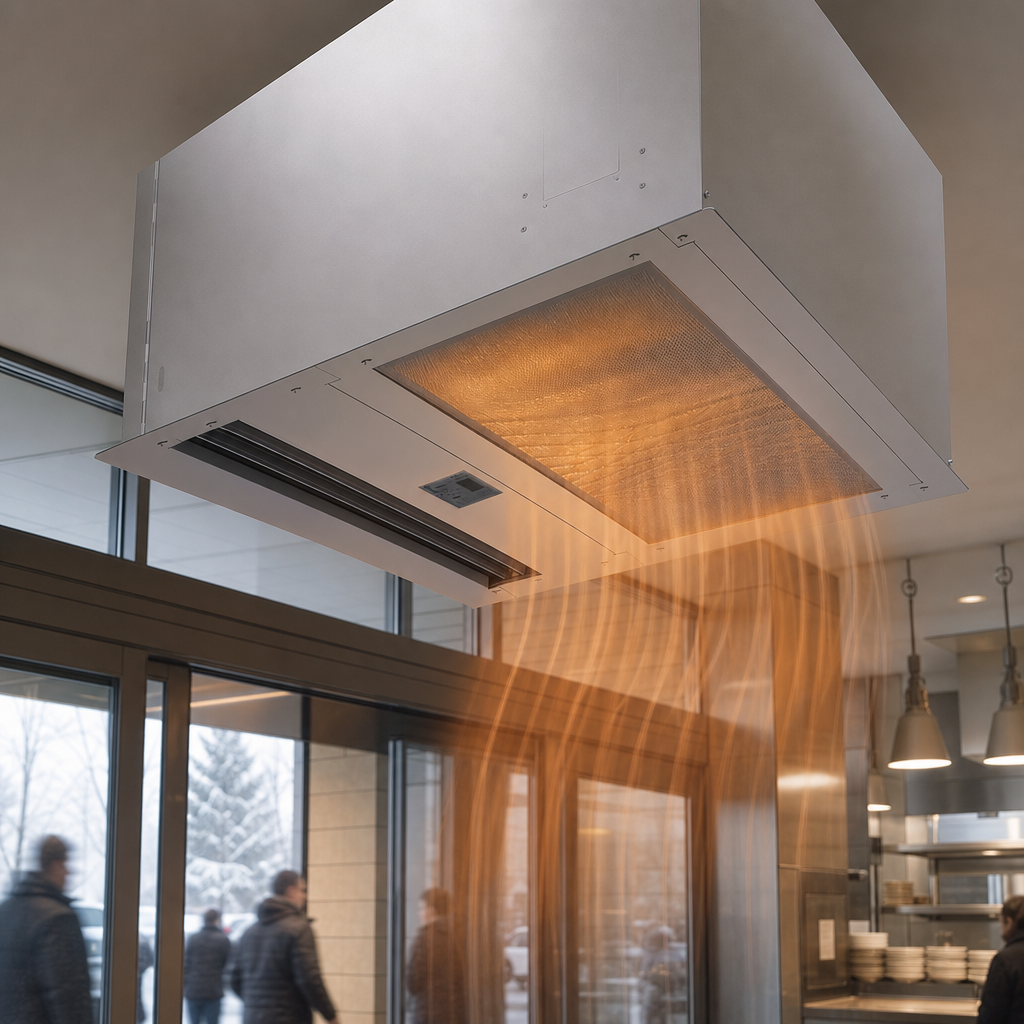

Electric Heated Operation

Provides heated air separation to help maintain comfortable interior conditions at entrances.

Four 1/2 HP Motors

Uses four motors with ten speeds to deliver adjustable airflow for large openings.

Digital Touchscreen Controller

Factory-installed controller provides simple, on-unit operation with a touchscreen interface.

Pro-V Nozzle

High-efficiency, low-noise nozzle helps project air evenly across the opening.

Washable Polyester Filter

Includes a recleanable filter to support easier routine maintenance.

Hinged Access Panel

Removable bottom access panel allows service access to internal components.

White Aluminum Exterior Panel

Standard exterior finish is white aluminum, with custom color or stainless steel options available.

Designed For Up To 12-Foot Mounting Heights

Recommended for environmental separation at openings up to 12 feet high.

Type Air Curtain
Style Architectural Recessed 12
Installation Type Built-In
Heat Type Electric
Controls Digital Touchscreen
Motor Count 4
Horsepower Per Motor 1/2 HP
Speed Settings 10
Maximum Opening Height 12 Feet
Watts 56 kW
Material Aluminum
Color White
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 12 feet.
It includes a factory-installed digital touchscreen controller.
Yes. It includes a washable, recleanable polyester filter with a hinged access panel.
The standard finish is a white aluminum exterior panel, with custom color or stainless steel options available.
The unit requires a minimum of 15 inches of clearance above the ceiling.
