Berner Architectural Recessed 12 Electric Heated Air Curtain, 144-Inch Opening, 3 Motors

Flush-Ceiling Mount, White Aluminum, Intelliswitch Touchscreen Controller

A recessed electric air curtain designed to mount flush with the ceiling and help protect indoor comfort across openings up to 12 feet high.

  • 144-inch electric heated air curtain for environmental separation at main entrances and similar openings.
  • Three 1/2 HP motors provide ten-speed operation and strong air performance.
  • Factory-installed Intelliswitch digital controller with touchscreen display.
  • High-efficiency Pro-V nozzle, washable filter, and hinged bottom access panel simplify operation and service.
  • Standard white aluminum exterior panel with top-mount installation for a clean architectural look.
  • Recommended for mounting heights up to 12 feet; made in USA and cULus listed.

Product Weight:

415.0 lb

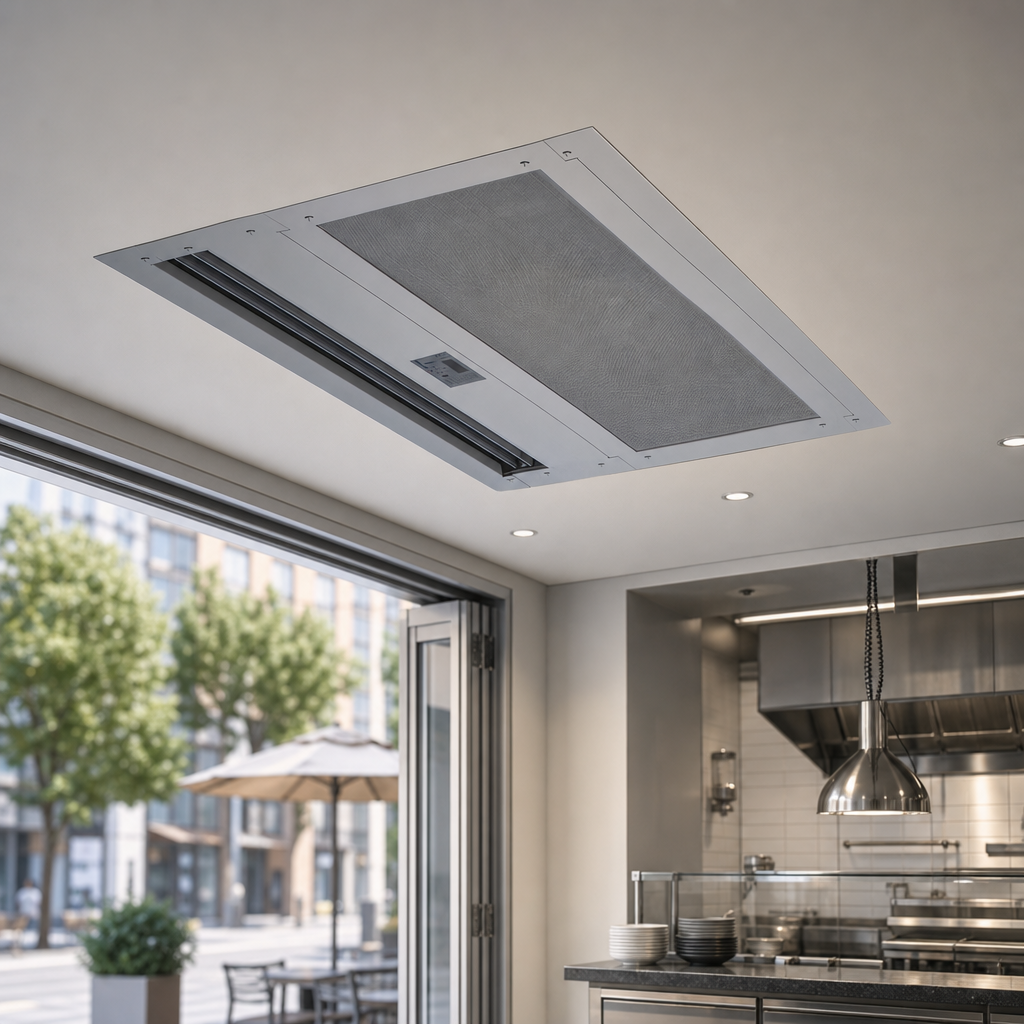

Recessed Architectural Design

Flush ceiling installation helps preserve the look of the space while providing an effective air barrier.

Recessed Architectural Design

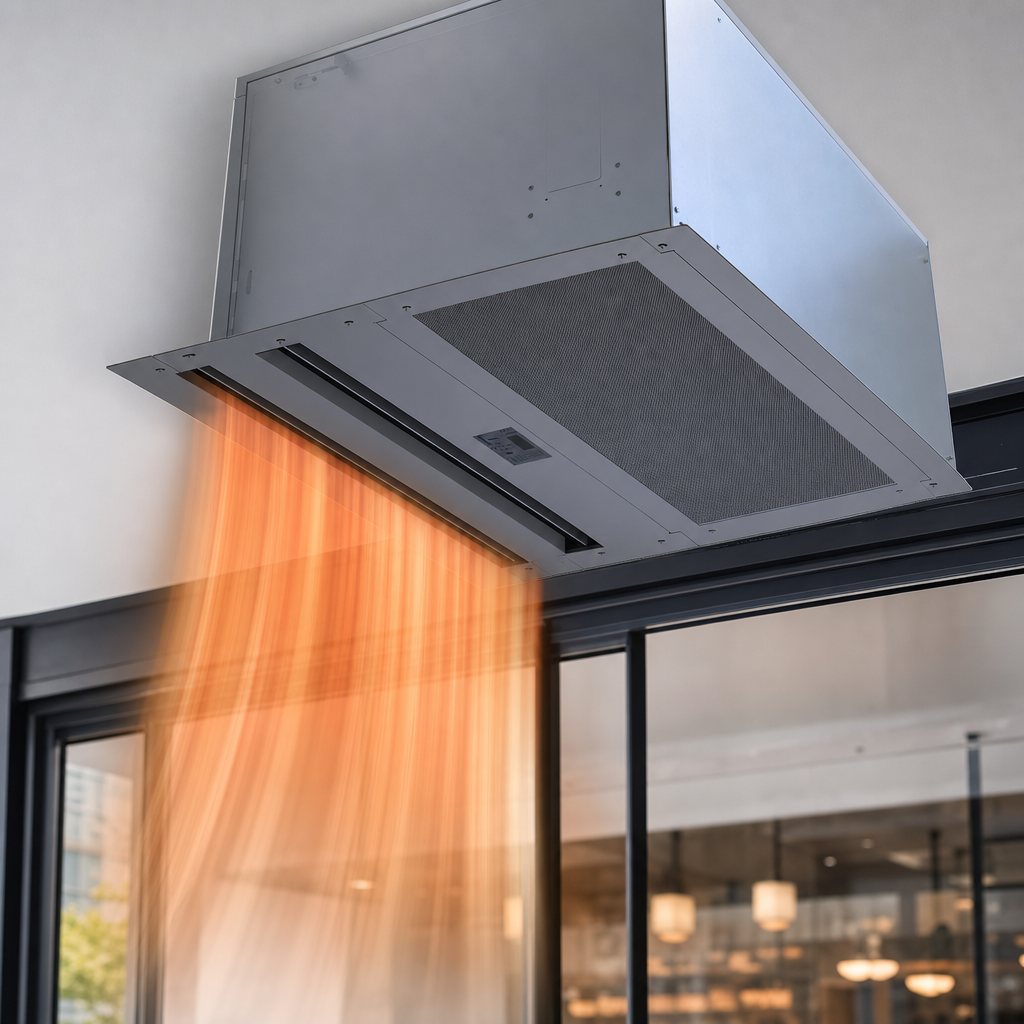

Electric Heated Operation

Designed as an electric heated air curtain for conditioned-air separation at building entrances.

Electric Heated Operation

Three 1/2 HP Motors

Uses three 1/2 horsepower motors with ten-speed operation for adjustable airflow performance.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface for easy operation.

Pro-V Nozzle

High-efficiency, low-noise nozzle design helps deliver smooth air output.

Washable Filter

Recleanable filter helps support routine maintenance and airflow protection.

Hinged Bottom Access Panel

White aluminum bottom access panel is hinged for easier service access.

Top-Mount Construction

Built for top mounting only, with a minimum 15-inch ceiling clearance requirement.

Type Electric Heated Air Curtain
Style Recessed
Installation Type Ceiling Mounted
Opening Width 144 Inches
Maximum Opening Height 12 Feet
Motors 3
Horsepower Per Motor 1/2 HP
Watts 42 kW
Controls Digital Touchscreen
Nozzle Type Pro-V Nozzle
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 415 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 12 feet.
This model is electric heated.
Yes. It includes a factory-installed Intelliswitch digital controller with a touchscreen display.
Yes. The unit includes a washable, recleanable filter.
The standard finish is a white aluminum exterior panel.
