Berner

Berner Architectural Recessed 12 132-Inch Ambient (Unheated) Air Curtain with 3 x 1/2 HP Motors

SKU: ARE12-3132A
$5,530.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Recessed 12 132-Inch Ambient (Unheated) Air Curtain with 3 x 1/2 HP Motors

Flush-Mount Ceiling Installation, Intelliswitch Touchscreen Control, White Aluminum Finish

A discreet recessed air curtain that delivers powerful, low-noise environmental separation for openings up to 12 feet without adding heat.

  • Flush-mounted architectural design keeps the unit recessed and visually clean above the opening.
  • Ambient, unheated airflow is ideal for environmental separation and insect control.
  • Three 1/2 HP motors with ten-speed operation provide flexible performance.
  • Factory-installed Intelliswitch digital controller includes a touchscreen interface.
  • Hinged access panel and recleanable polyester filter make maintenance easier.
  • Standard white aluminum finish and Made in USA construction add value.

Product Weight:

392.0 lb

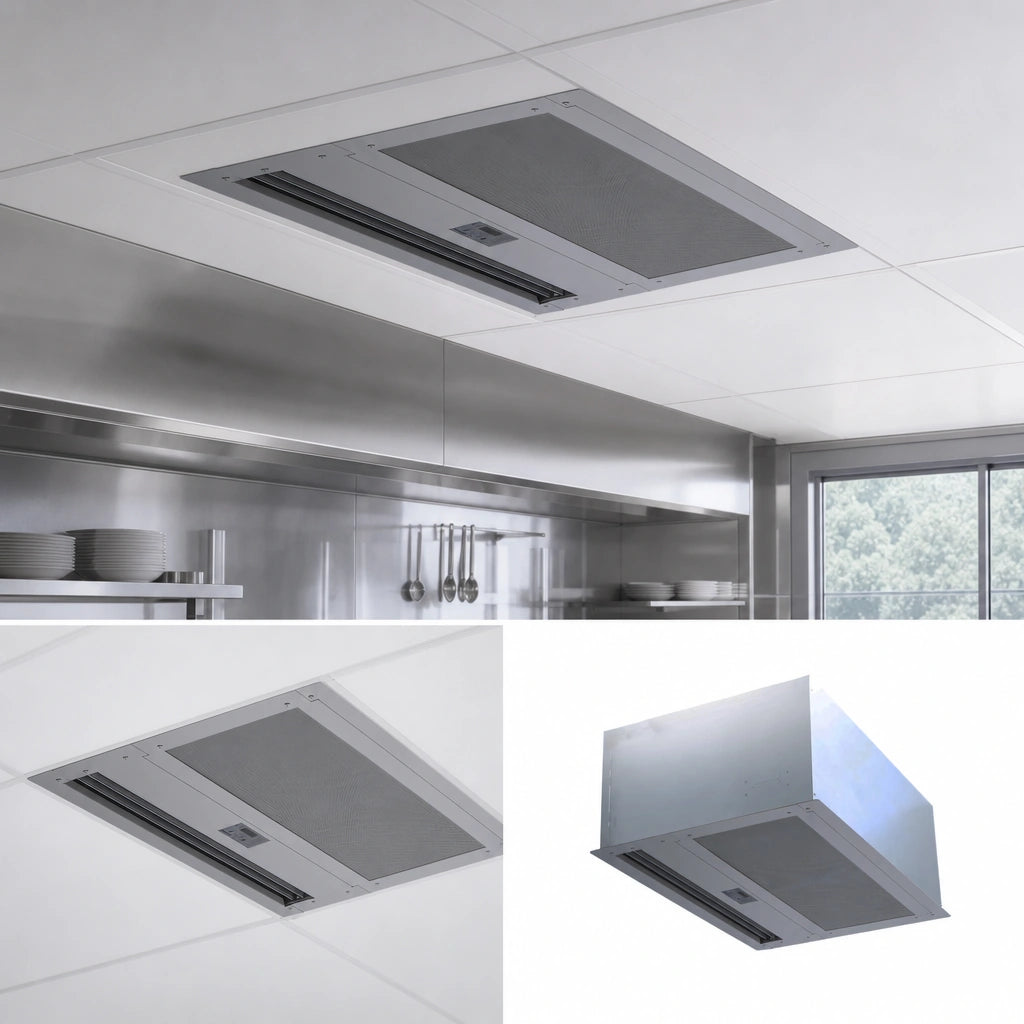

Recessed Ceiling Installation

Designed to mount flush with the ceiling for a clean architectural appearance.

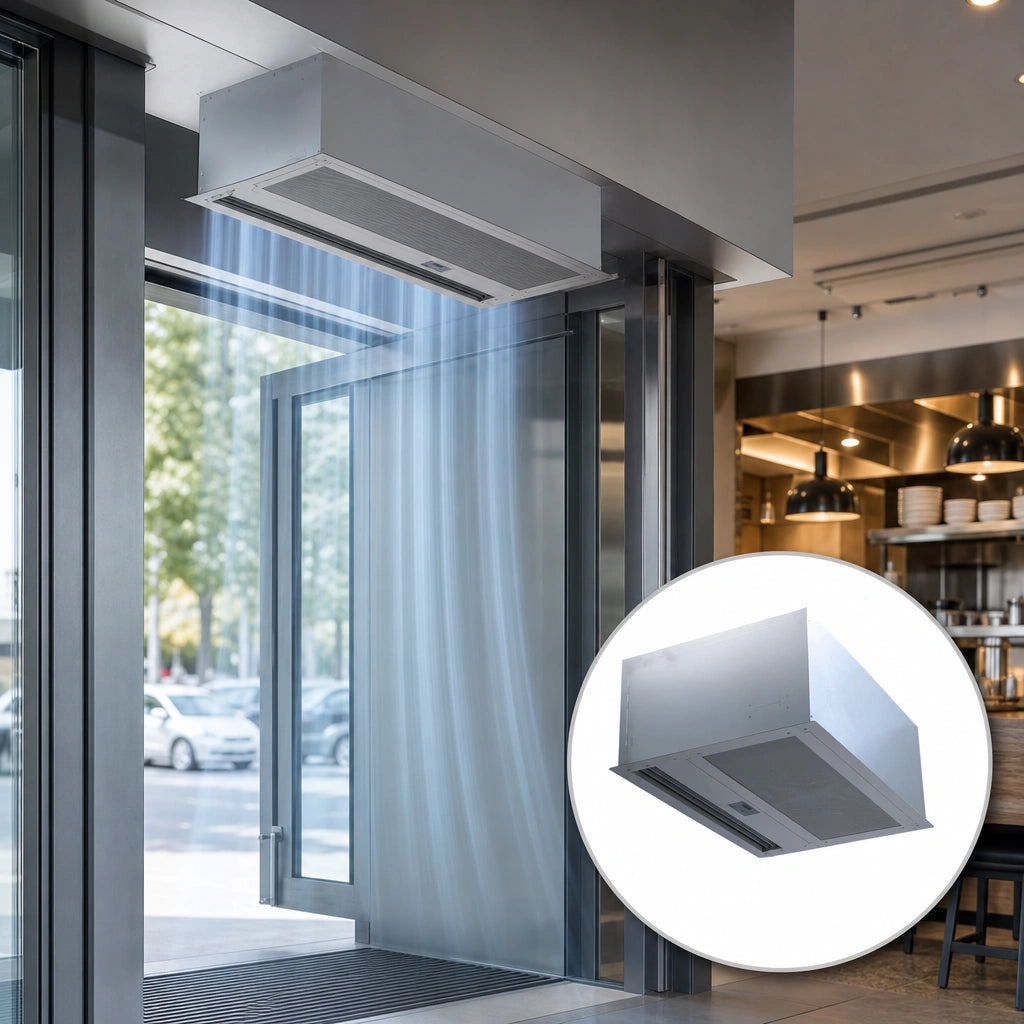

Ambient, Unheated Operation

Provides air separation without heat for entrances and vestibules.

Three 1/2 HP Motors

Uses three AC motors for strong air movement across wider openings.

Ten-Speed Motor Control

Allows airflow to be tuned to the application.

Factory-Installed Intelliswitch Controller

Built-in digital touchscreen controller for convenient adjustment.

Pro-V Nozzle

High-efficiency, low-noise nozzle design helps direct the air stream.

Hinged Access Panel and Washable Filter

Provides easier service access and includes a recleanable polyester filter.

White Aluminum Exterior and Bottom Panel

Standard finish blends into the ceiling line; stainless steel or custom color are optional.

Top Mounting Only

Installs from above the ceiling with threaded top-mounting inserts.

Recommended for 12-Foot Mounting Heights

Sized for environmental separation at openings up to 12 feet high.

Type Ambient Air Curtain
Style Architectural Recessed
Installation Type Built-In
Horsepower Per Motor 1/2 HP
Motors 3
Speed Settings 10
Controls Digital Touchscreen
Material Aluminum
Finish White Aluminum
Maximum Opening Height 12 Feet
Shipping Weight 392 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Installation manual PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download

Frequently Asked Questions

No. This ARE12 model is ambient and unheated.
It is recommended for mounting heights up to 12 feet for environmental separation and 10 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface.
Yes. It includes a hinged removable access panel and a recleanable polyester filter.
White aluminum is standard; stainless steel and custom color finishes are listed as options.
Yes. A Wi-Fi Controller is listed as an optional accessory for Berner App control.
