Berner Architectural Recessed 12 Ambient Unheated Air Curtain, 120-Inch, 3-Motor

Flush-Mount Ceiling Installation, 120V, White Aluminum Finish

This recessed ambient air curtain mounts flush with the ceiling to deliver quiet, adjustable doorway protection without adding heat.

  • Ambient, unheated air curtain for environmental separation at entrances.
  • Recessed, flush-mount design with top mounting only for a clean architectural look.
  • Three 1/2 hp motors with ten-speed operation provide adjustable airflow.
  • Factory-installed Intelliswitch digital touchscreen controller includes Berner AIR BASIC smart control.
  • Recommended for mounting heights up to 12 ft for environmental separation and 10 ft for insect control.
  • Hinged white aluminum access panel and washable filter simplify maintenance.
  • 120V, 1-phase, 60 Hz electrical service; 25.5 amps with a 35 amp breaker.

Product Weight:

347.0 lb

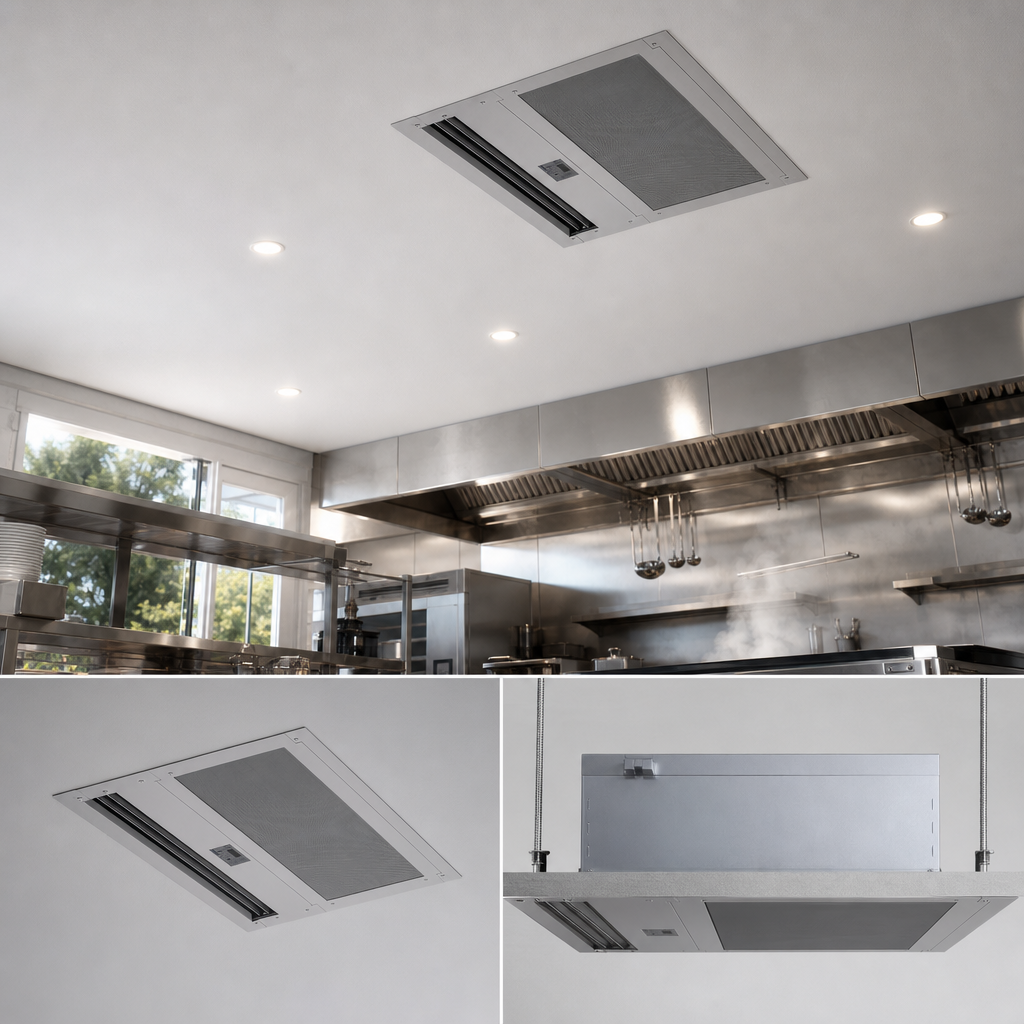

Recessed Ceiling Installation

Mounts flush with the ceiling for a low-profile architectural appearance; top mounting only and requires ceiling clearance for installation.

Recessed Ceiling Installation

Ambient Unheated Operation

Provides air movement for environmental separation without adding heat.

Ambient Unheated Operation

Three 1/2 HP Motors

Three AC motors with ten-speed operation help deliver adjustable airflow for larger openings.

Intelliswitch Touchscreen Controller

Factory-installed digital controller with touchscreen interface and Berner AIR BASIC smart control.

Service-Friendly Access

Hinged removable bottom access panel with a recleanable polyester filter for easier maintenance.

High-Efficiency Pro-V Nozzle

Low-noise nozzle design with adjustable vanes for directed airflow.

Optional Connected Control

Optional Wi-Fi Controller supports Berner App access, and BMS integration is available.

Type Air Curtain
Style Ambient
Installation Type Built-In
Motors 3
Horsepower Per Motor 1/2 HP
Controls Digital Touchscreen
Voltage 120 Volts
Amps 25.5 Amps
Hertz 60 Hz
Phase 1-Phase
Watts 1.44 kW
Breaker Size 35 Amps
Material Aluminum
Finish White Aluminum
Country of Origin USA
Shipping Weight 347 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 12 ft for environmental separation and 10 ft for insect control.
No. This is an ambient, unheated air curtain.
It includes a factory-installed Intelliswitch digital touchscreen controller with Berner AIR BASIC smart control.
The unit operates on 120V, 1-phase, 60 Hz power and draws 25.5 amps with a 35 amp breaker.
Yes. It has a hinged bottom access panel and a washable polyester filter.
Yes. The documentation lists an optional Wi-Fi Controller for Berner App access, plus BMS integration and a remote display option.
