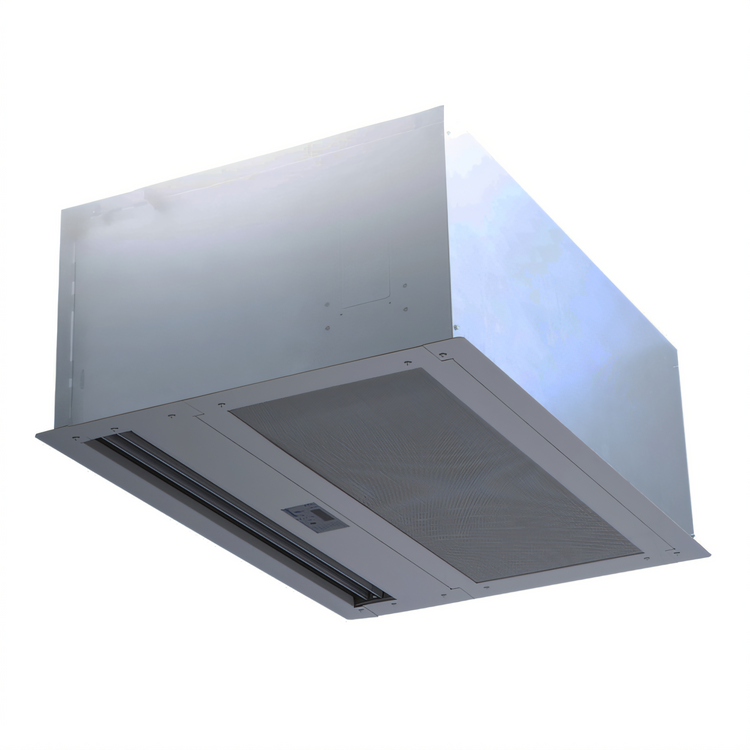

Berner Architectural ARE12-3108E Recessed Electric Heated Air Curtain, 108-Inch Wide, 42 kW, 3-Motor, 12-Ft Opening
- Series
- Architectural Recessed 12
- Heat type
- Electric heated
- Nozzle width
- 108 in
- Motors
- 3
- Horsepower per motor
- 1/2 hp
- Motor speeds
- 10
Specifications
Description
The Berner ARE12-3108E Architectural Recessed 12 electric heated air curtain is designed for mounting heights up to 12 feet for environmental separation. It has a 108-inch nozzle, three 1/2 hp motors, ten speeds, 42 kW maximum electric capacity, and a factory-mounted Intelliswitch digital touchscreen controller.
- Recessed design for flush ceiling installation.
- Top mounting only.
- Hinged white aluminum bottom access panel and washable filter.
- Pro-V nozzle with adjustable nozzle vanes.
- Data sheet performance includes 4,761 cfm air volume, 1,814 fpm average outlet velocity, and 6,500 fpm maximum velocity at the nozzle.
Product Weight:
347.0 lbRecessed installation

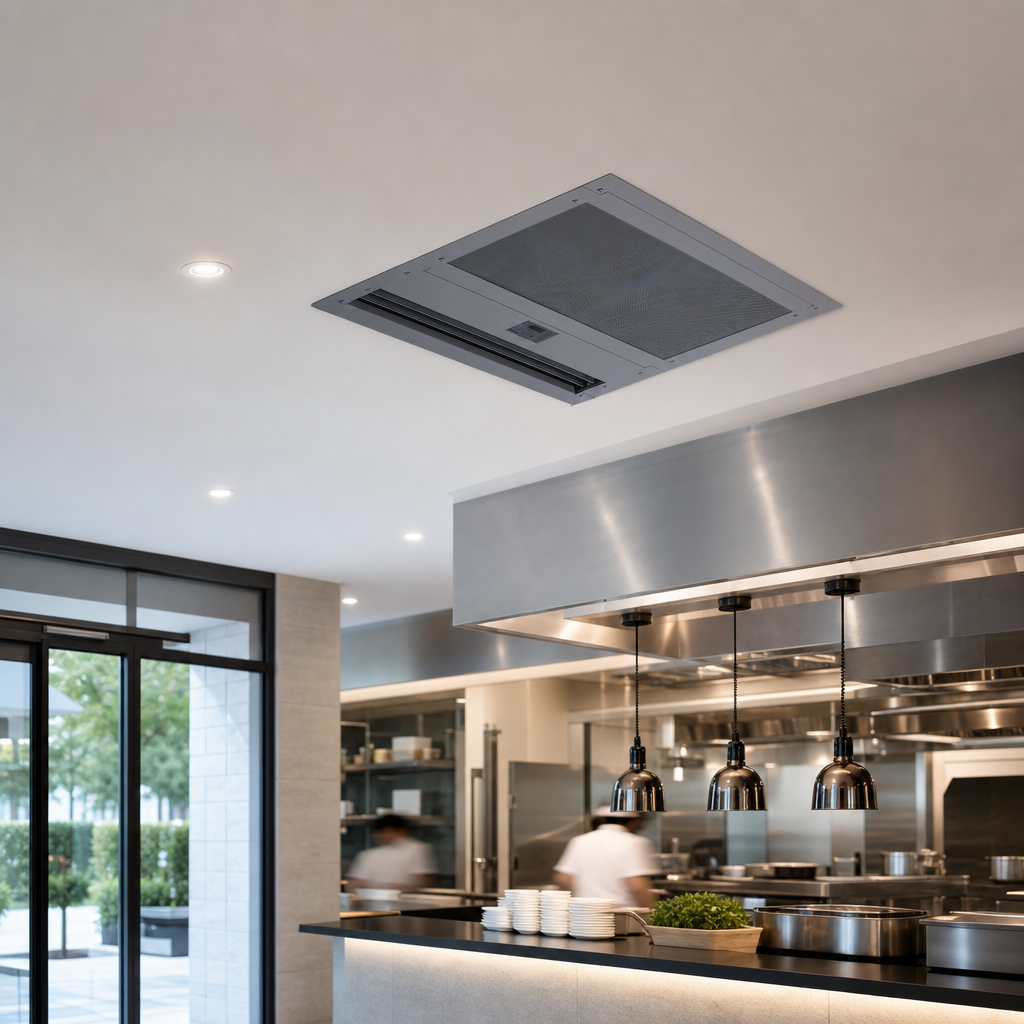

The Architectural Recessed 12 design is intended for flush ceiling installation and has documented standard construction of 15 inches high by 26 inches deep.

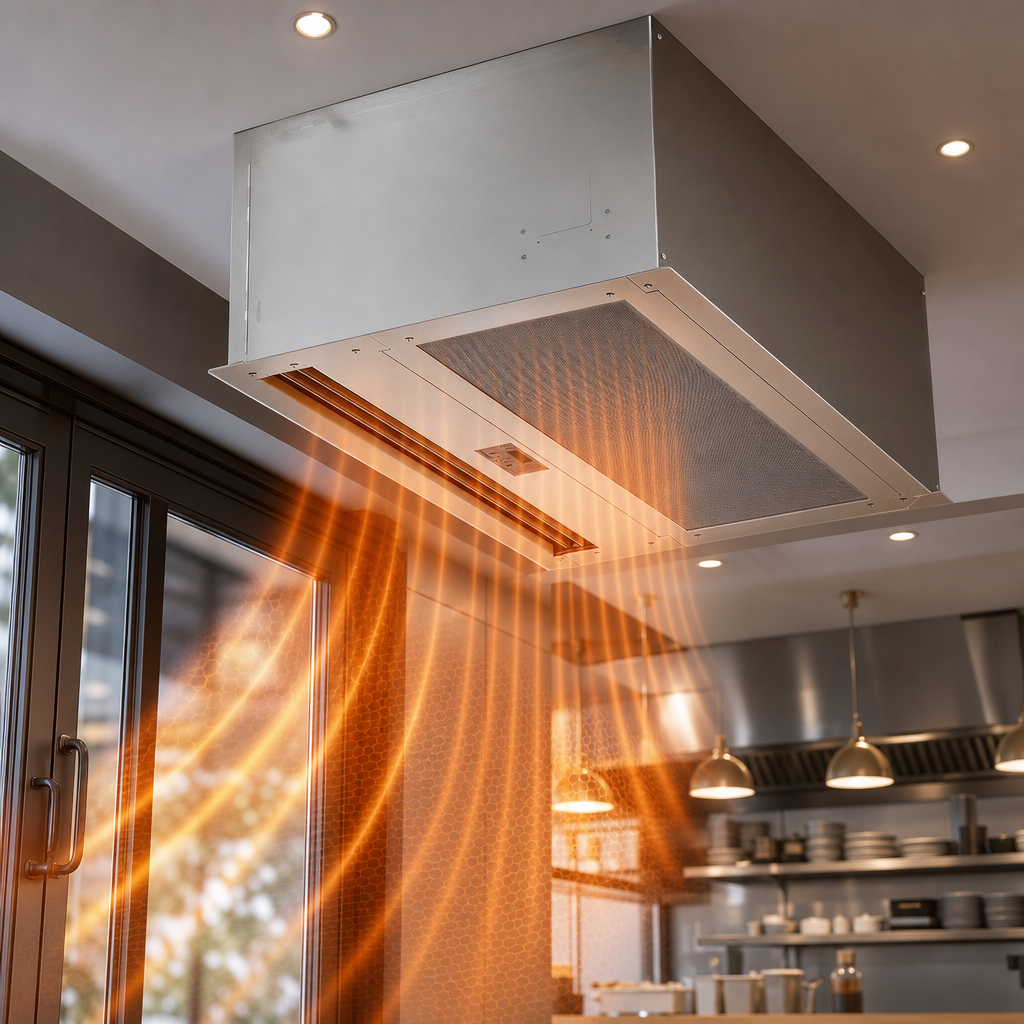

Electric heat
The unit provides 42 kW maximum electric capacity, with listed heater output of 143.3 MBH and a 28°F air temperature rise.
Three-motor drive
Three 1/2 hp AC motors provide ten speed settings.
Intelliswitch touchscreen control
A factory-mounted Intelliswitch digital controller with touchscreen is specified for the unit.
Air delivery
The 108-inch nozzle is rated at 4,761 cfm air volume, 1,814 fpm average outlet velocity, and 6,500 fpm maximum velocity at the nozzle.
Service access
The unit has a hinged white aluminum bottom access panel and a washable filter.
Top mounting
The documented installation method is top mounting only, with recommended mounting heights up to 12 feet for environmental separation.
