Berner Architectural ARE12-3108A 108-Inch Unheated Recessed Air Curtain, 3-Motor, Touchscreen Control
- Phase
- 1-Phase
- Type
- Air Curtain
- Style
- Architectural Recessed
- Installation Type
- Built-In
- Controls
- Touchscreen Digital
- Motors
- 3
Specifications
Description
Berner Architectural Recessed 12 108-Inch Ambient Air Curtain, 3-Motor, Touchscreen Control
Unheated, Ceiling-Recessed, White Aluminum Standard Finish
A sleek recessed air curtain that helps protect conditioned air at open entrances while blending cleanly into the ceiling line.
- Ambient, unheated air curtain designed for environmental separation at openings up to 12 feet.
- 108-inch wide model with 3 x 1/2 HP motors and ten-speed airflow control.
- Factory-installed Intelliswitch digital controller with touchscreen interface.
- Recessed, top-mount construction with hinged bottom access panel for maintenance.
- High-efficiency Pro-V nozzle with adjustable vanes for directed airflow.
- Standard white aluminum paneling with stainless steel and custom color options available in the series.
Product Weight:

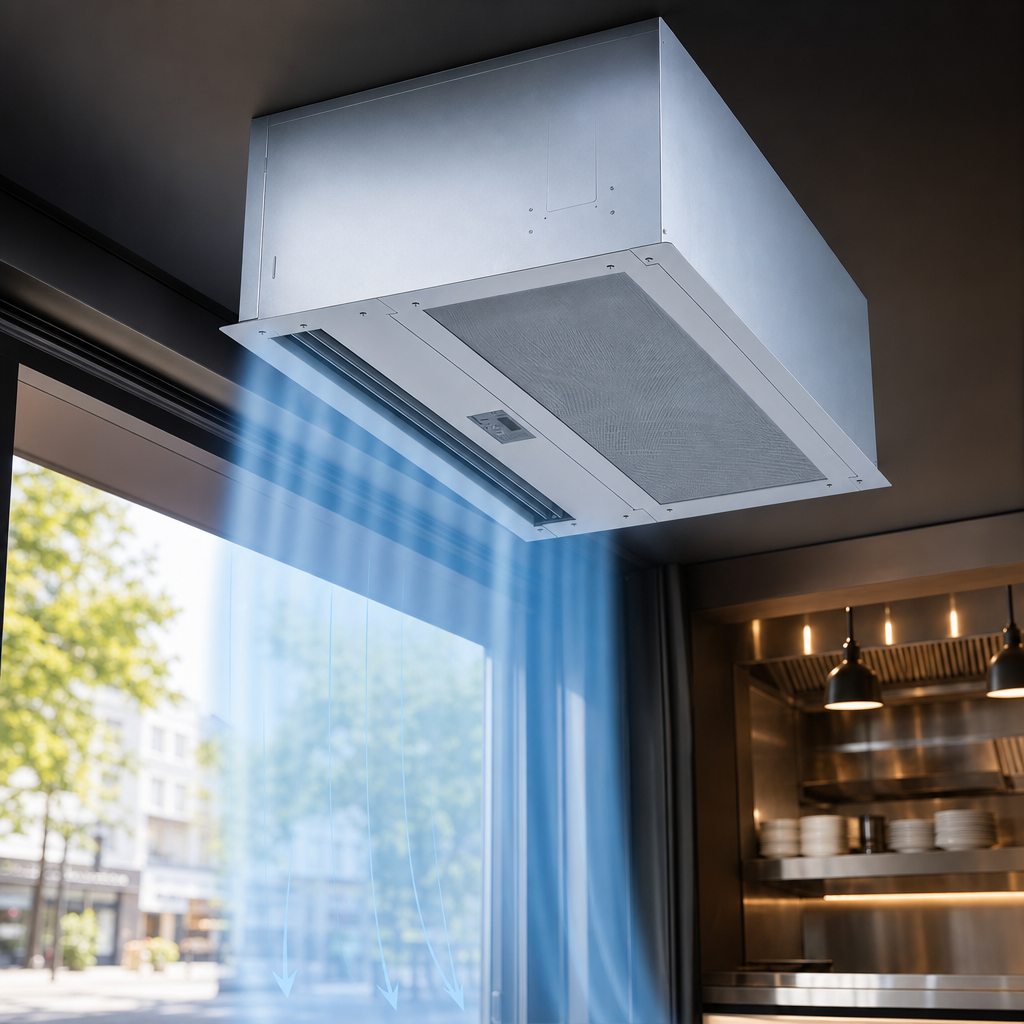

335.0 lbAmbient (Unheated) Operation
Provides a non-heated air barrier for entrance separation without adding heat to the airflow.

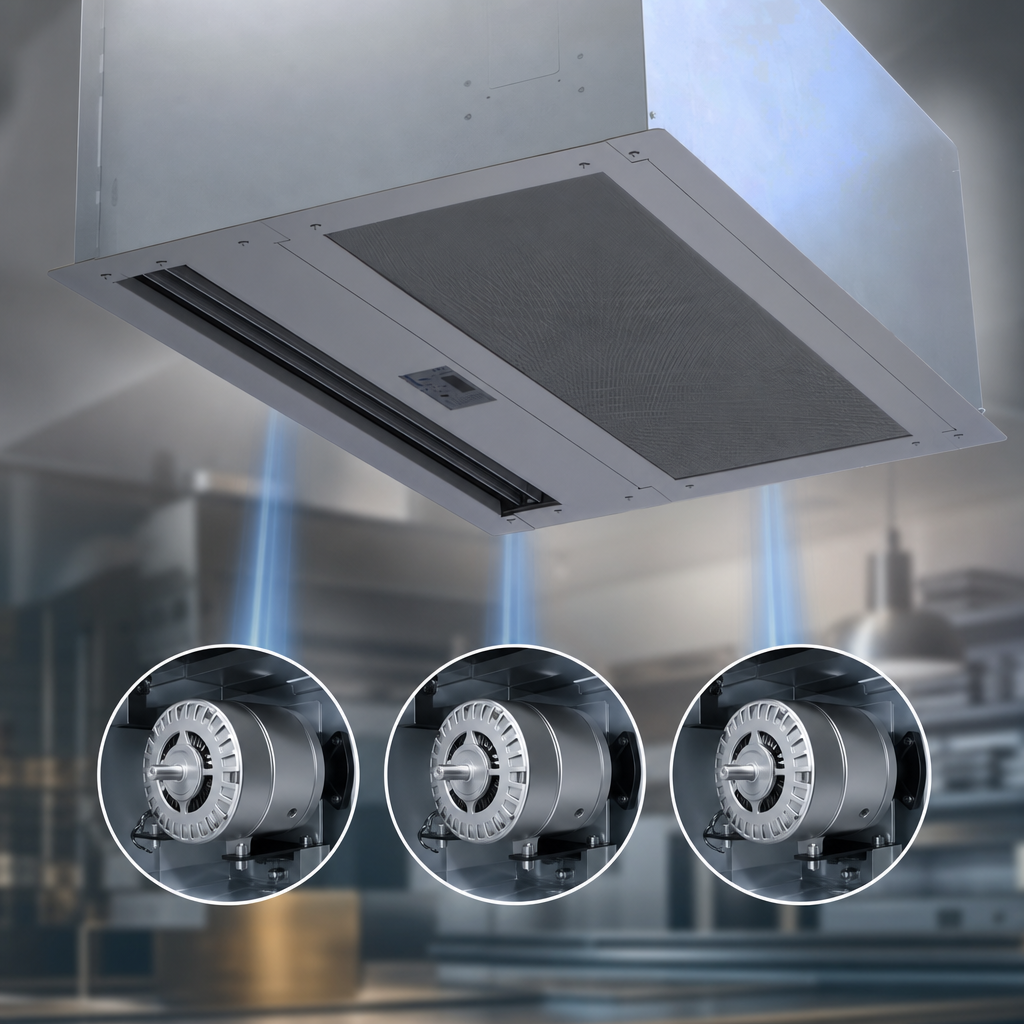

Three 1/2 HP Motors
Uses three AC motors to support the 108-inch model size and airflow performance.
Ten-Speed Control
Allows airflow adjustment across 10 speed settings for different installation needs.
Intelliswitch Touchscreen Controller
Factory-installed digital controller with touchscreen interface for easy operation.
Recessed Top-Mount Design
Flush, ceiling-recessed construction with top mounting only for a clean architectural appearance.
Hinged Access Panel with Washable Filter
Hinged bottom access panel and recleanable polyester filter simplify service and upkeep.
Pro-V Nozzle
High-efficiency, low-noise nozzle design helps direct airflow at the opening.
Recommended for Up to 12-Foot Mounting Heights
Documented for environmental separation at mounting heights up to 12 feet and insect control up to 10 feet.
White Aluminum Standard Finish
Supplied with a white aluminum exterior/bottom panel; stainless steel and custom color finishes are available in the series.
