Berner Architectural ARE12-3096E Recessed Electric Heated Air Curtain, 96-Inch Wide, 3 Motors, 42 kW, Up to 12-Ft Mounting Height
- Series
- Architectural Recessed 12
- Heat type
- Electric heated
- Opening width
- 96 in
- Nozzle width
- 99 in
- Motors
- 3
- Motor horsepower
- 1/2 hp each
Specifications
Description

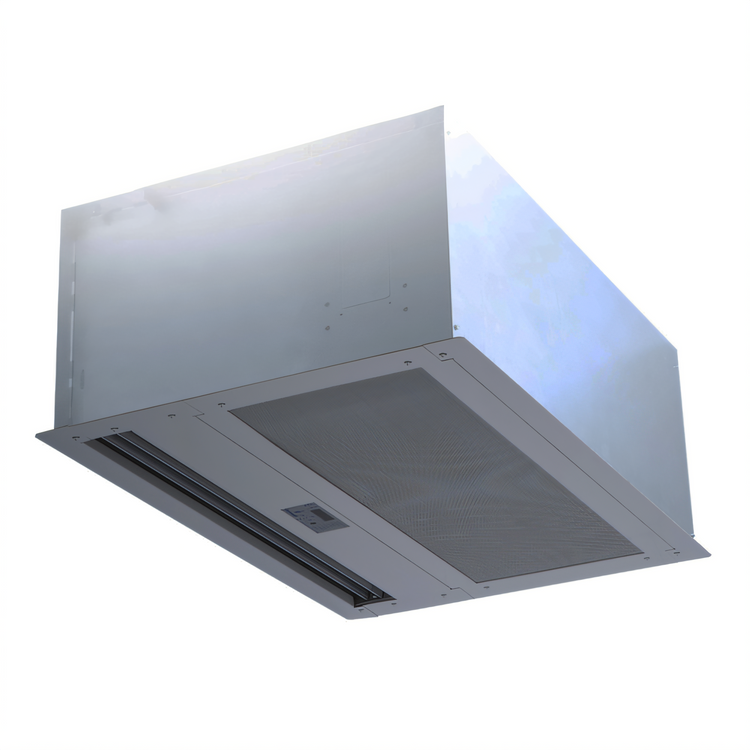

The Berner ARE12-3096E is an Architectural Recessed 12 electric heated air curtain for recommended mounting heights up to 12 ft. It has a 96-inch opening width, three 1/2 hp motors, ten speeds, and 42 kW of electric capacity.
The recessed ceiling-mount design includes a factory-mounted Intelliswitch digital controller with touchscreen, a hinged white aluminum bottom access panel, top-only mounting, and a washable filter.
Product Weight:

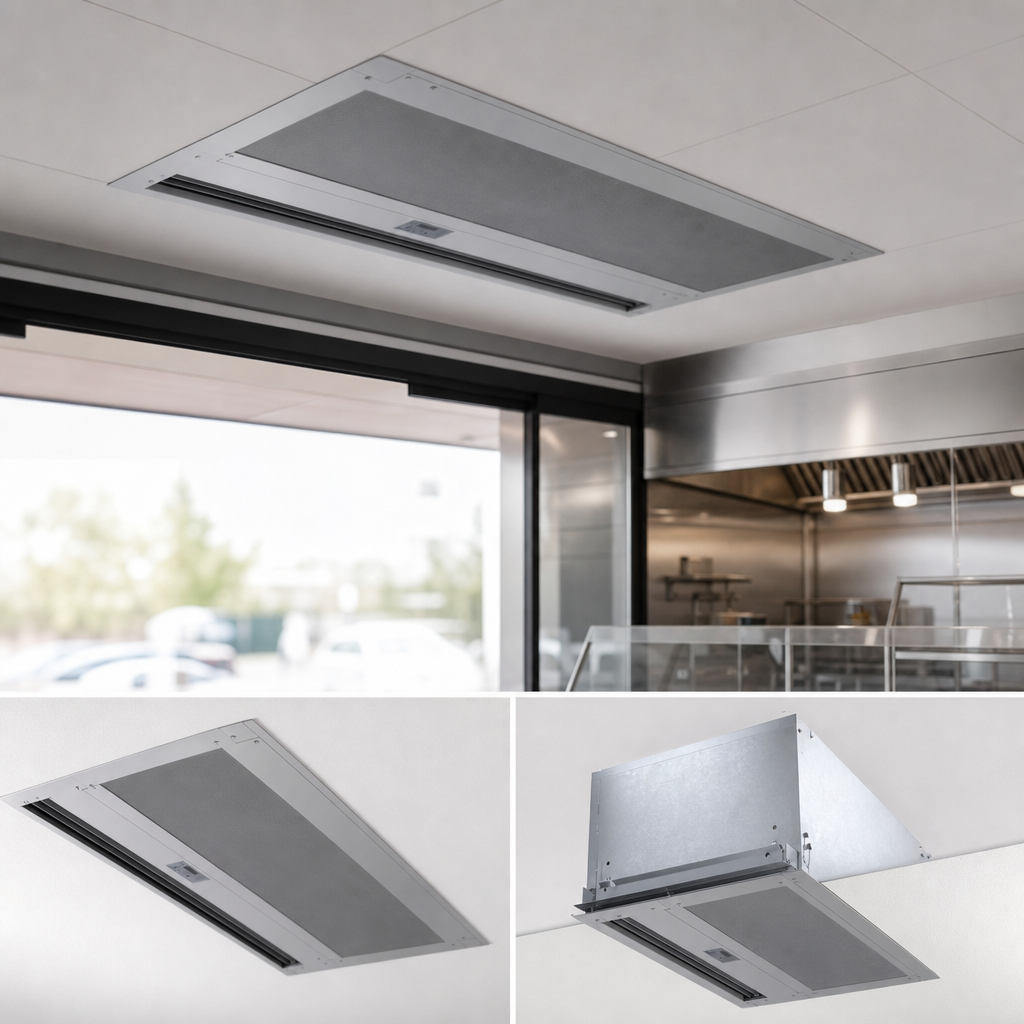

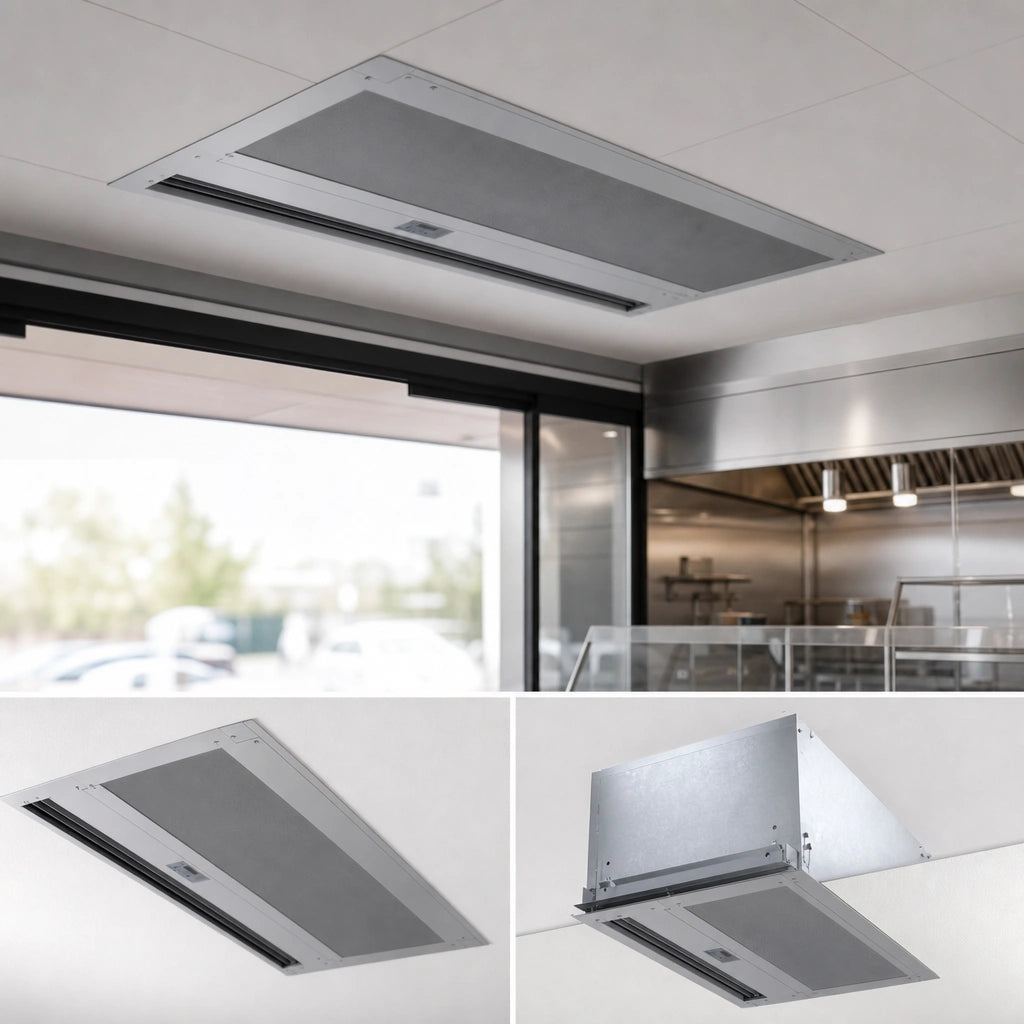

319.0 lbRecessed ceiling-mount design
Designed for recessed installation and flush ceiling mounting; the unit requires a minimum of 15 inches of clearance above the ceiling.
Electric heat
Provides 42.0 kW of maximum electric capacity and 143.3 MBH heater output.
Three-motor configuration
Uses three 1/2 hp AC motors with ten speeds.

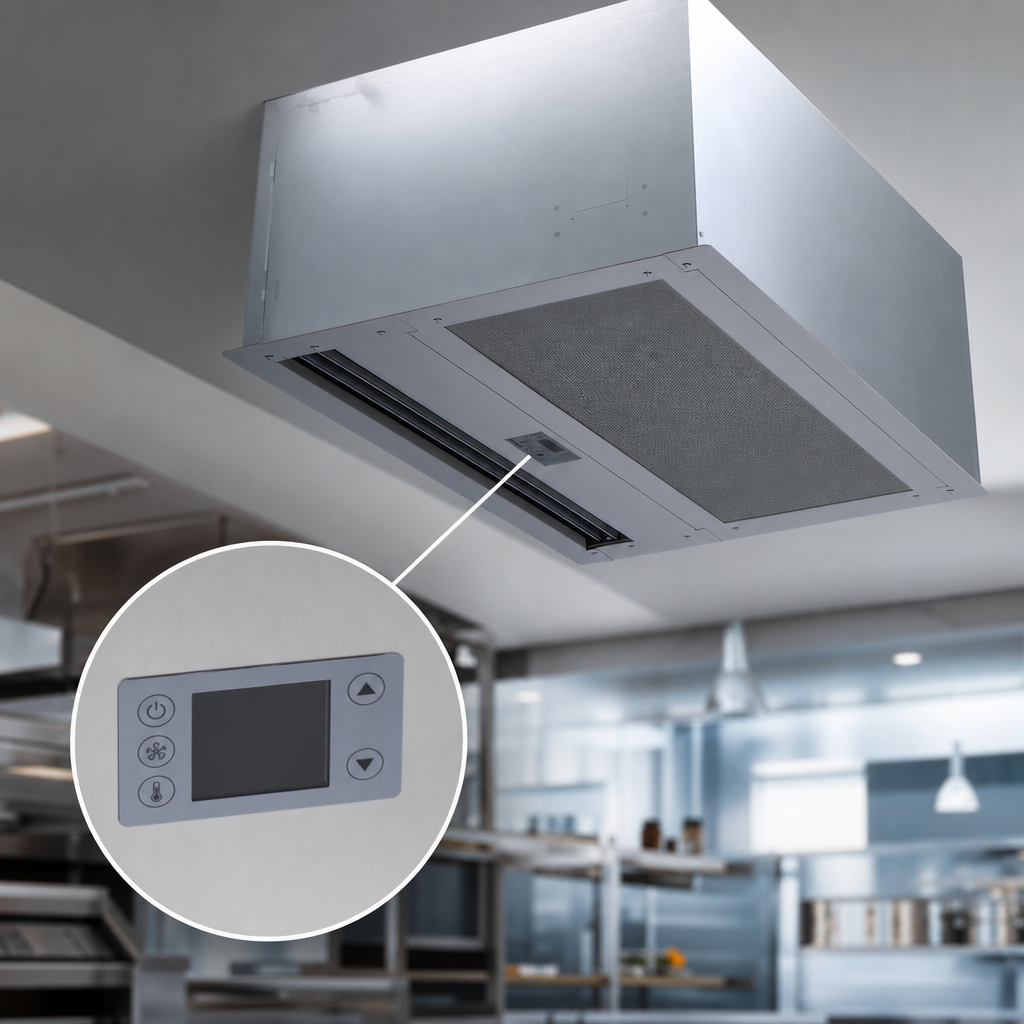

Touchscreen control
Includes a factory-mounted Intelliswitch digital controller with touchscreen interface.
Air performance
The exact model data lists 4,551 cfm air volume, 5,202 fpm maximum nozzle velocity, and 1,891 fpm average outlet velocity.
Service access
A hinged white aluminum bottom access panel provides access to internal components.
Washable filter
Includes a washable filter for service maintenance.
Top mounting
The construction is specified for top mounting only.
