Berner Architectural ARE12-2096E Recessed Electric Heated Air Curtain, 2 x 1/2 HP Motors, 28 kW, Up to 12-Ft Mounting Height
- Series
- Architectural Recessed 12
- Product type
- Electric heated air curtain
- Product width
- 96 in
- Heat type
- Electric
- Heat capacity
- 28 kW
- Motor count
- 2 motors
Specifications
Description
The Berner ARE12-2096E is an Architectural Recessed 12 electric heated air curtain with a 96-inch width, two 1/2 hp motors, and 28 kW heat capacity.

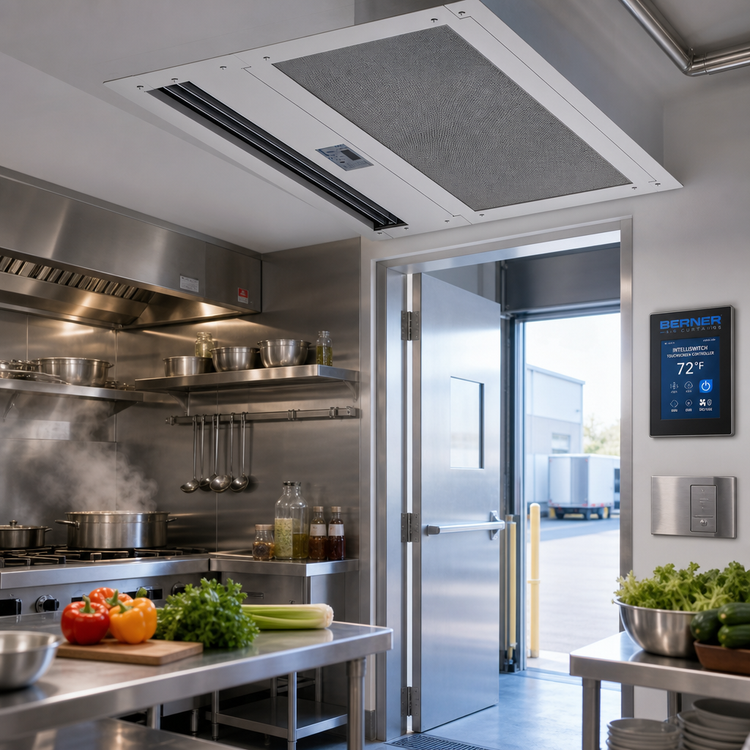

Designed for recessed ceiling installation, it is recommended for mounting heights up to 12 feet for environmental separation. The unit includes a factory-mounted Intelliswitch digital controller with touchscreen control, a hinged white aluminum bottom access panel, and a washable filter.
- Electric heated operation with 28 kW capacity
- Two 1/2 hp motors with ten speeds
- Top-mounting installation
- 15-inch-high by 26-inch-deep construction
- Made in USA and cULus listed
Product Weight:
275.0 lbRecessed ceiling design

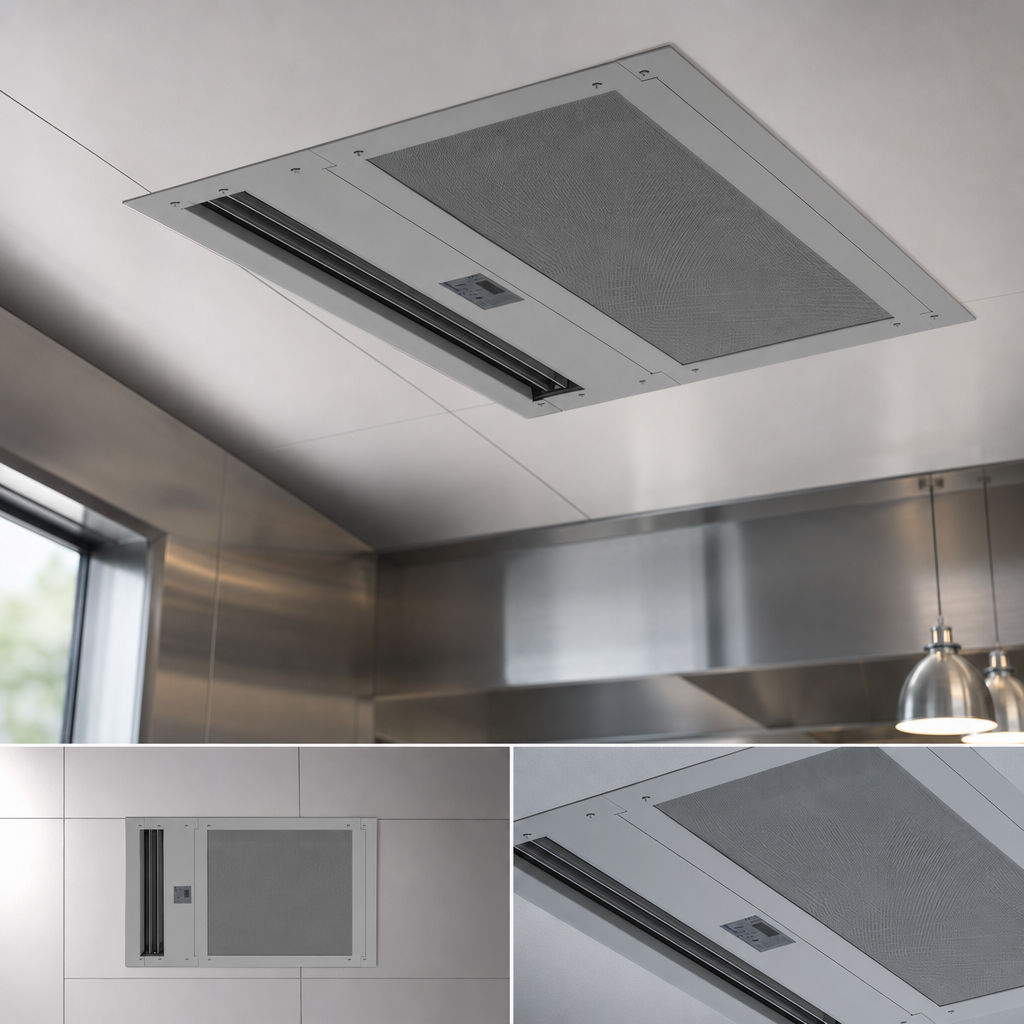

Architectural Recessed 12 construction is designed to mount flush with the ceiling.
Electric heat

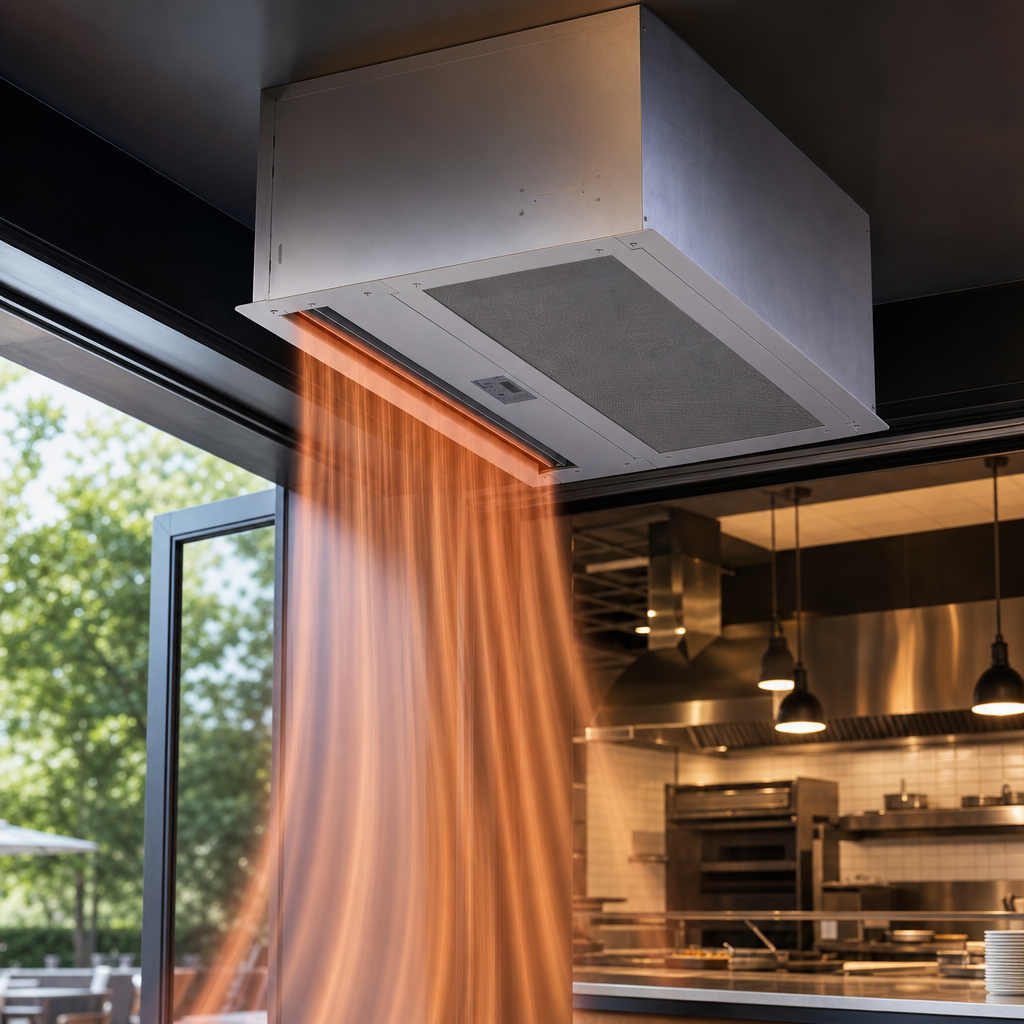

Provides electric heated operation with a 28 kW capacity.
Two-motor airflow
Uses two 1/2 hp motors with ten speed settings.
Intelliswitch touchscreen control
Includes a factory-mounted Intelliswitch digital controller with touchscreen interface.
Hinged access panel
The bottom access panel is hinged and made of white aluminum.
Washable filter
Includes a washable filter for service access.
Pro-V nozzle
Uses a Pro-V nozzle for air delivery.
Top mounting
The unit is specified for top-mounting installation.
