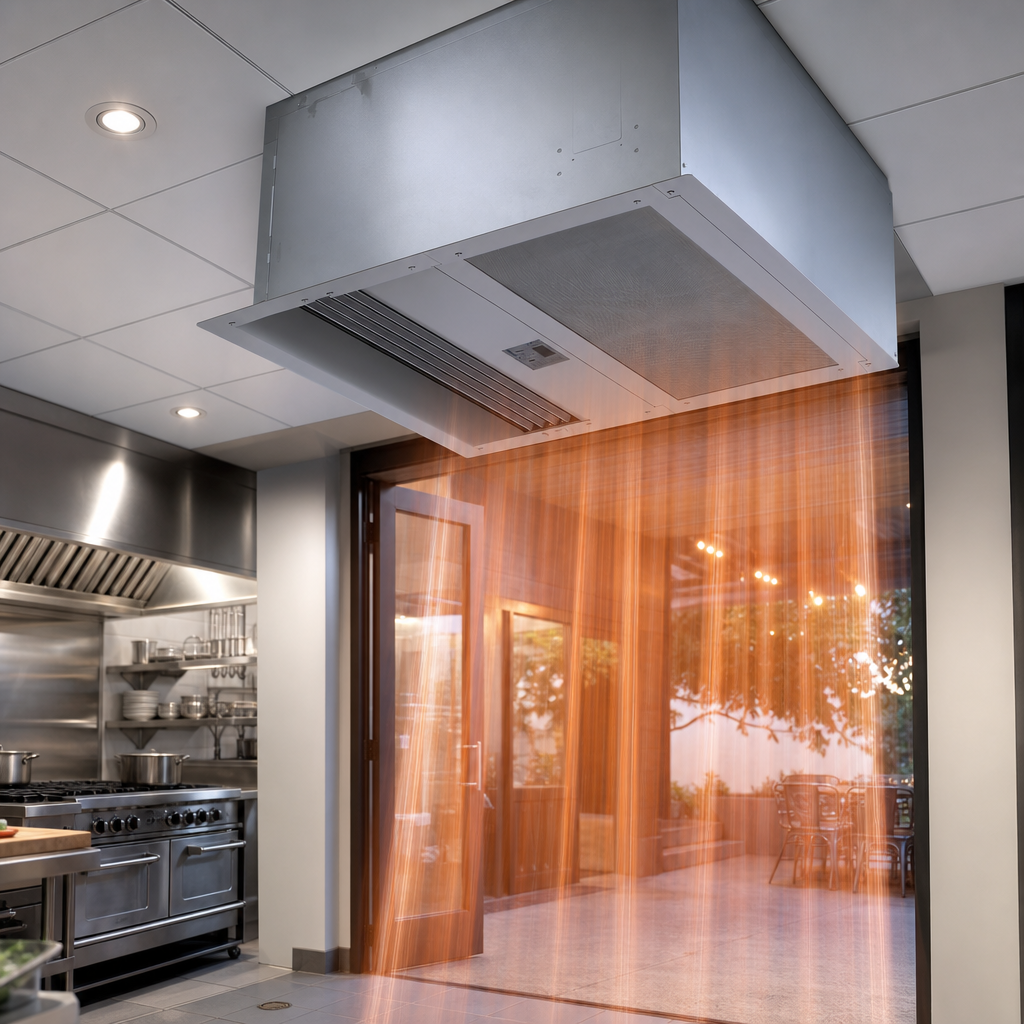

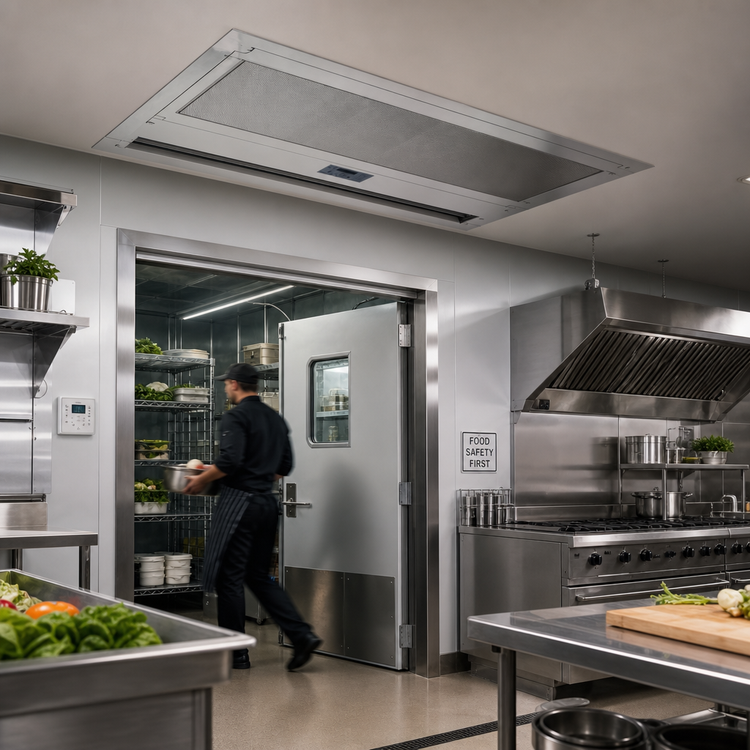

Berner Architectural ARE12-2084E Recessed Electric Heated Air Curtain, 84-Inch, 2-Motor, Up to 12-Ft Mounting Height
- Series
- Architectural Recessed 12
- Type
- Electric heated air curtain
- Heat type
- Electric
- Nozzle width
- 84 in
- Motor count
- 2 motors
- Horsepower per motor
- 1/2 hp
Specifications
Description
The Berner ARE12-2084E is an Architectural Recessed 12 electric heated air curtain with an 84-inch nozzle width and recommended mounting heights up to 12 feet for environmental separation.
- Uses two 1/2 hp motors with ten speeds.
- Includes a factory-mounted Intelliswitch digital controller with touchscreen.
- Provides 28 kW maximum electric capacity and a 27°F air temperature rise.
- Top-mount design with a hinged white aluminum bottom access panel.
- Includes a washable filter and Pro-V nozzle.
Product Weight:
232.0 lbElectric heat
Electric heated configuration with 28 kW maximum electric capacity, 95.6 MBH heater output, and a 27°F air temperature rise.
84-inch nozzle
The exact model has an 84-inch nozzle width.
Two ten-speed motors
Includes two 1/2 hp motors with ten speeds.
Intelliswitch touchscreen controller
Factory-mounted Intelliswitch digital controller with touchscreen.

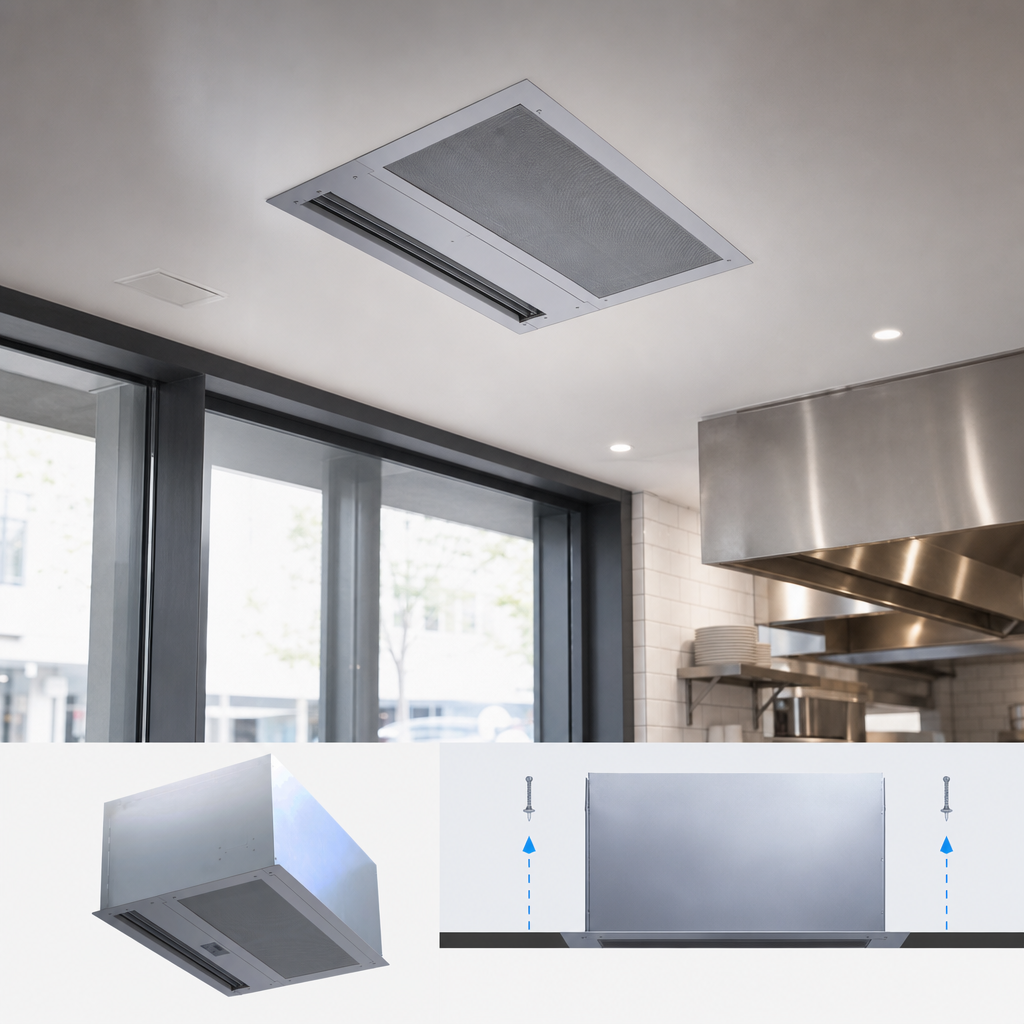

Top mounting
The unit is specified for top mounting only.
Hinged access panel
Includes a hinged white aluminum bottom access panel.
Washable filter
Includes a washable filter.
Pro-V nozzle
Uses a high-efficiency, low-noise Pro-V nozzle.
