Berner Architectural Recessed 12 Ambient Unheated Air Curtain, 84-Inch Opening, 2 x 1/2 HP Motors

Flush ceiling mount with factory-installed Intelliswitch touchscreen control and white aluminum panel

This recessed, unheated air curtain helps protect open entrances while preserving a clean architectural ceiling line.

  • Ambient, unheated air curtain for environmental separation without added heat.
  • Architectural recessed design mounts flush with the ceiling for a low-profile look.
  • Two 1/2 HP motors with ten-speed operation provide flexible airflow control.
  • Factory-installed Intelliswitch digital controller includes a touchscreen interface and Berner AIR BASIC smart control.
  • Washable filter and hinged access panel simplify routine maintenance.
  • Recommended for mounting heights up to 12 feet and requires minimum ceiling clearance above the unit.
  • Optional Wi-Fi and BMS connectivity are available for expanded control integration.

Product Weight:

224.0 lb

Ambient, Unheated Operation

Moves air to help maintain indoor comfort without adding heat.

Ambient, Unheated Operation

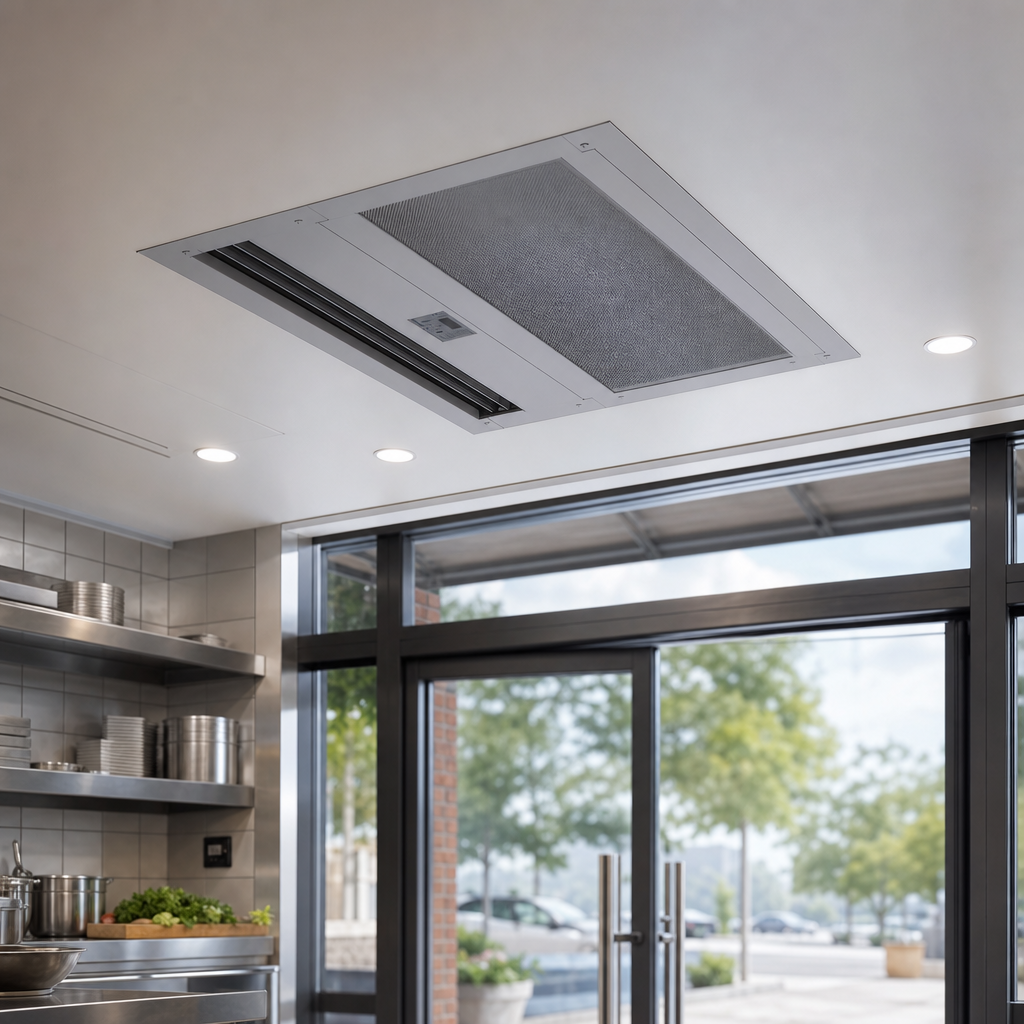

Architectural Recessed Design

Flush-mounted construction keeps the unit visually unobtrusive in ceiling openings.

Architectural Recessed Design

Dual 1/2 HP Motors

Two motors and ten-speed operation provide strong, adjustable airflow for entrance coverage.

Intelliswitch Touchscreen Control

Factory-installed digital controller includes a touchscreen interface and Berner AIR BASIC smart control.

Washable Filter and Access Panel

Hinged bottom access panel and recleanable polyester filter make service and cleaning easier.

Pro-V Nozzle

High-efficiency, low-noise nozzle is designed to deliver a smooth air stream.

Top Mounting Only

Designed for top mounting and recommended for mounting heights up to 12 feet.

No Assembly Required

Arrives ready for installation, helping reduce jobsite setup time.

Type Ambient (Unheated) Air Curtain
Style Architectural Recessed 12
Installation Type Built-In
Opening Width 84 Inches
Motors 2
Horsepower Per Motor 1/2 HP
Controls Digital Touchscreen
Max Opening Height 12 Feet
Material Aluminum
Color White
Shipping Weight 224 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year limited warranty on unheated models

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

No. This model is ambient, or unheated, and uses air movement only.
It is recommended for mounting heights up to 12 feet for environmental separation and 10 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with a touchscreen interface and Berner AIR BASIC smart control.
Yes. It has a hinged removable access panel and a recleanable polyester filter.
Yes. Optional Wi-Fi Controller and BMS integration are available for expanded control capabilities.
The unit requires a minimum of 15 inches of clearance above the ceiling.
