Berner Architectural Recessed 12 Electric Heated Air Curtain, 72 Inch, 2-Motor, Intelliswitch Touchscreen

Flush-Mount Ceiling Installation, White Aluminum Standard, Up to 12 Ft Mounting Height

This recessed 72-inch air curtain helps maintain comfortable interiors at open doorways while keeping the ceiling line clean and architectural.

  • Flush-mount recessed design preserves the look of the entry while conditioning open doorways.
  • 72-inch coverage and recommended mounting heights up to 12 feet suit standard entrances.
  • Two 1/2 HP motors with ten speed settings provide flexible airflow adjustment.
  • Factory-installed Intelliswitch touchscreen controller simplifies operation.
  • 28 kW electric heat, washable filter, and hinged access panel support comfort and service.
  • Standard white aluminum finish with optional stainless steel or custom color upgrades.

Product Weight:

220.0 lb

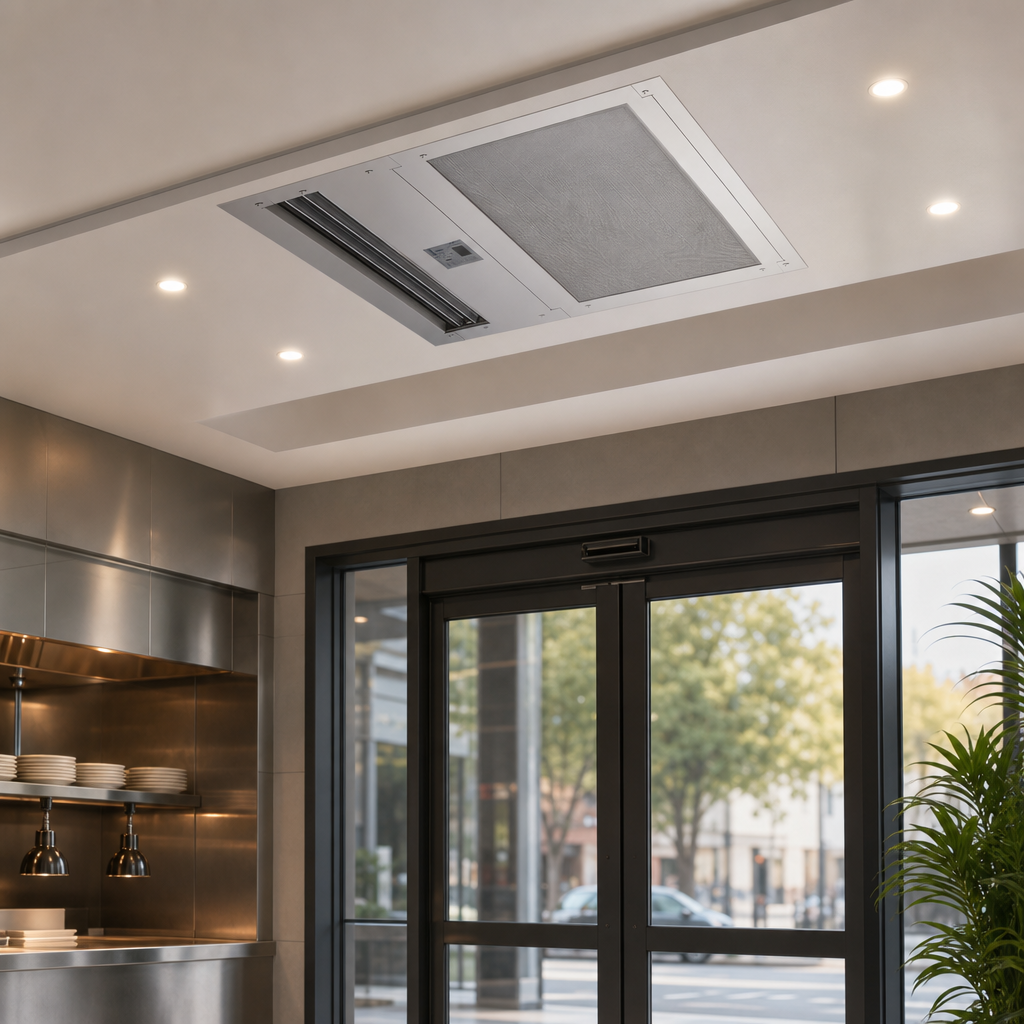

Flush-Mount Recessed Design

Mounts flush with the ceiling for a clean architectural appearance.

Flush-Mount Recessed Design

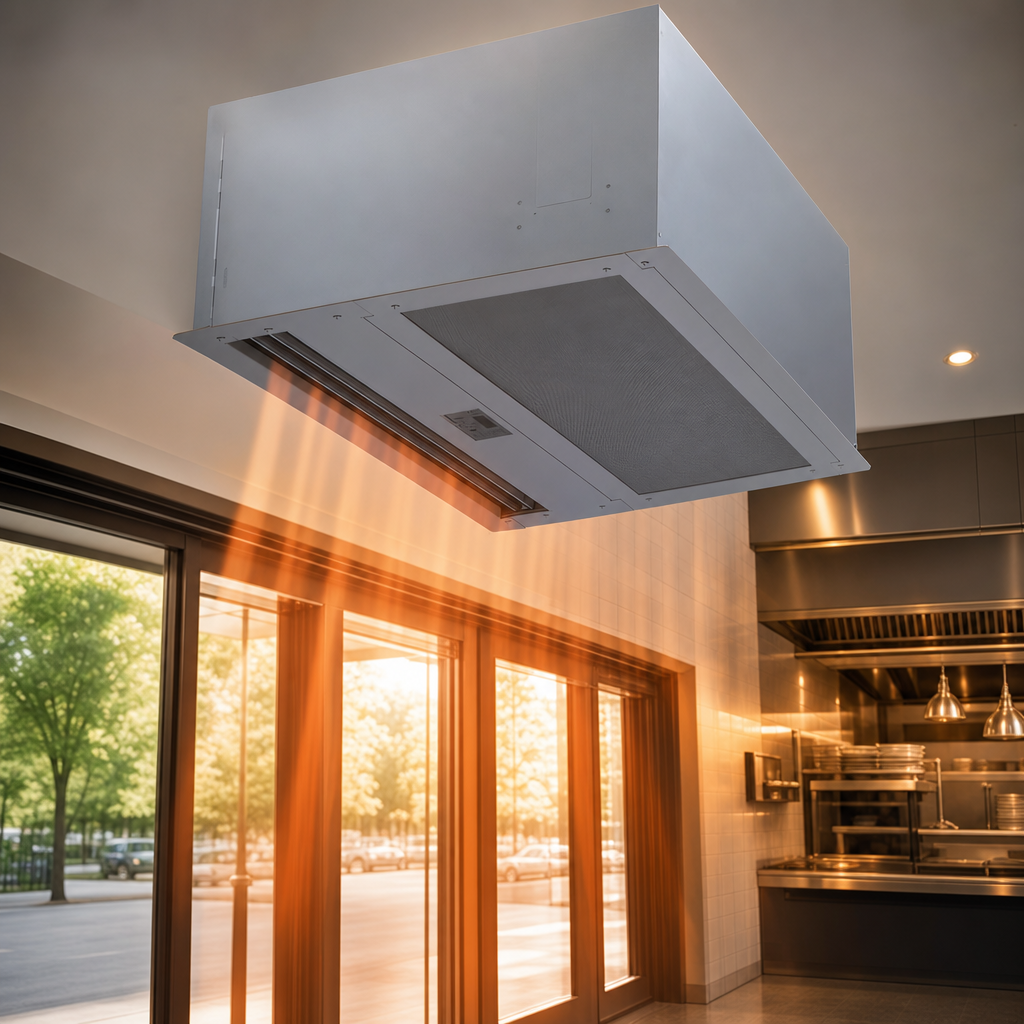

Electric Heat Output

28 kW electric heating helps temper incoming air at the doorway.

Electric Heat Output

Dual 1/2 HP Motors

Two motors and ten speeds deliver adjustable airflow.

Intelliswitch Touchscreen Control

Factory-installed digital controller with touchscreen interface.

Pro-V Nozzle

High-efficiency, low-noise nozzle improves air delivery.

Washable Filter and Hinged Access Panel

Recleanable filter and removable bottom access panel simplify maintenance.

White Aluminum Standard Finish

White aluminum exterior panel; stainless steel or custom color options are available.

Made in USA

Domestic construction.

Type Air Curtain
Heat Type Electric
Style Architectural Recessed
Installation Type Built-In
Nozzle Width 72 Inches
Controls Intelliswitch Touchscreen
Motor Count 2
Horsepower Per Motor 1/2 HP
Speed Settings 10
Maximum Mounting Height 12 Feet
Watts 28 kW
Material Aluminum
Finish White Aluminum
Shipping Weight 220 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Replacement parts diagram PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Installation manual PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 12 feet.
Yes. It includes a factory-installed Intelliswitch digital controller with a touchscreen interface.
This model is electric heated and rated at 28 kW.
It includes a washable filter and a hinged removable bottom access panel for easier service.
The standard finish is white aluminum, with stainless steel or custom color options also available.
The documentation lists 208/1/60, 240/1/60, 220/1/50, 208/3/60, 240/3/60, 480/3/60, 600/3/60, and 380/3/50 options.
