Berner Architectural ARE12-1048E Recessed Electric Heated Air Curtain, 48 in., 14 kW, 1/2 HP Motor, for Openings up to 12 ft
- Product series
- Architectural Recessed 12
- Product type
- Electric heated air curtain
- Heat type
- Electric heated
- Nozzle width
- 48 in.
- Electric heat capacity
- 14 kW
- Motor configuration
- 1 motor, 1/2 hp
Specifications
Description
The Berner Architectural Recessed 12 ARE12-1048E is an electric heated air curtain for recessed installations. It has a 48 in. nozzle, 14 kW electric heat capacity, and one 1/2 hp motor with ten speeds.
A factory-mounted Intelliswitch digital controller with touchscreen provides unit control. The unit has a hinged white aluminum bottom access panel, washable filter, and top-mount-only installation.
- Recommended mounting heights up to 12 ft for environmental separation
- Maximum nozzle velocity of 7,300 fpm and air volume of 1,713 cfm at free delivery
- Made in USA with cULus listing
Product Weight:
148.0 lbElectric heat

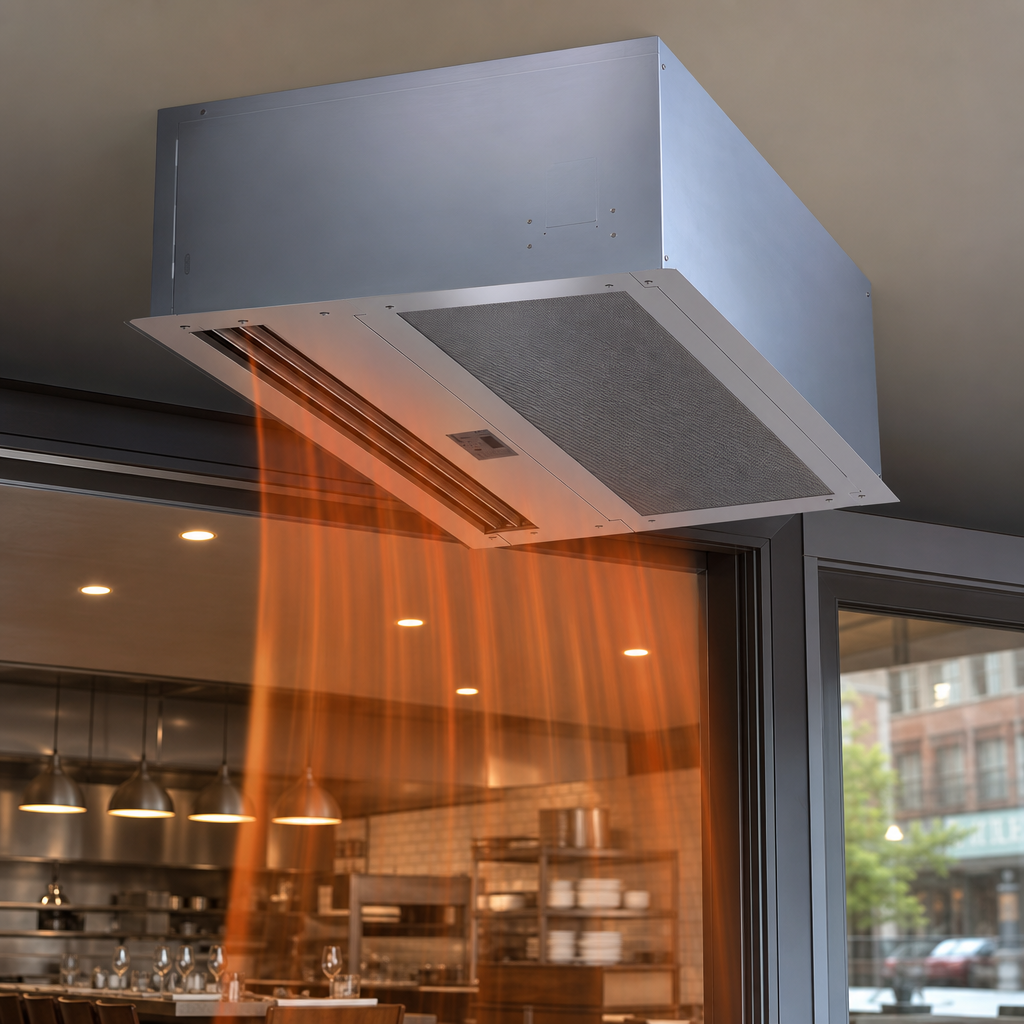

The unit is electric heated with a 14 kW electric capacity.
48 in. nozzle
The exact model has a 48 in. nozzle width.
Motor and speed control
One 1/2 hp motor provides ten speed settings.
Intelliswitch touchscreen controller
A factory-mounted Intelliswitch digital controller with touchscreen is specified.

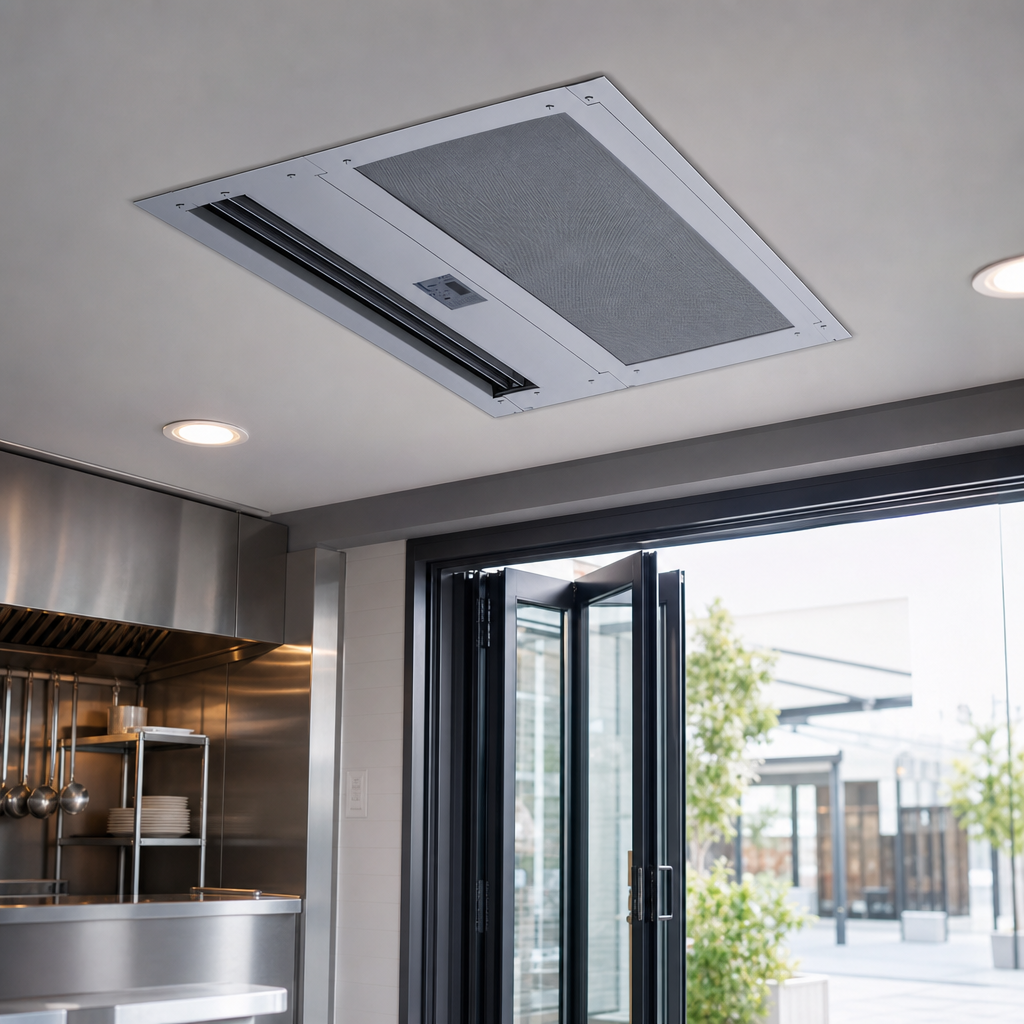

Recessed installation
The Architectural Recessed 12 design is intended for recessed installation with top mounting only.
Air performance
Listed free-delivery performance includes 7,300 fpm maximum nozzle velocity, 1,468 fpm average outlet velocity, 1,713 cfm air volume, and 75% outlet velocity uniformity.
Access panel
The unit has a hinged white aluminum bottom access panel.
Washable filter
A washable filter is specified in the standard construction.
