Berner Architectural Recessed 12 Electric Heated Air Curtain, 42-Inch Opening Width, 1/2 HP, 14 kW

Flush-Mount Ceiling Installation, Intelliswitch Touchscreen, White Aluminum Finish

A concealed electric heated air curtain that helps protect open entrances while preserving a clean architectural ceiling line.

  • Recessed, flush-mount design keeps the unit discreet above the ceiling.
  • Electric heated airflow supports environmental separation at open entrances.
  • 1/2 HP motor with 10 speed settings provides adjustable performance.
  • Factory-mounted digital touchscreen controller simplifies operation.
  • Washable filter and hinged access panel help streamline maintenance.
  • Standard white aluminum finish with stainless steel or custom color options available.
  • Recommended for mounting heights up to 12 feet.

Product Weight:

142.0 lb

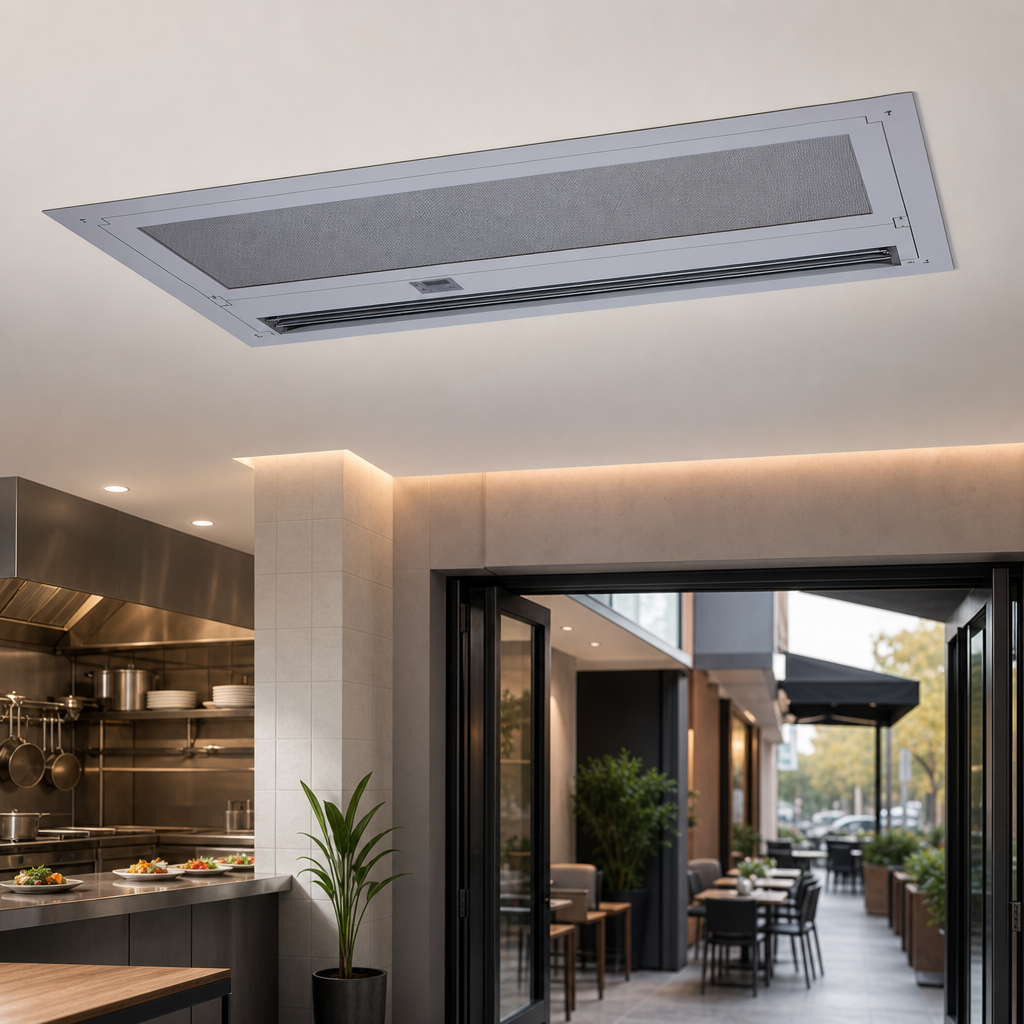

Recessed Ceiling Design

Flush-mounts into the ceiling for an architectural look and uses top-mount installation only.

Recessed Ceiling Design

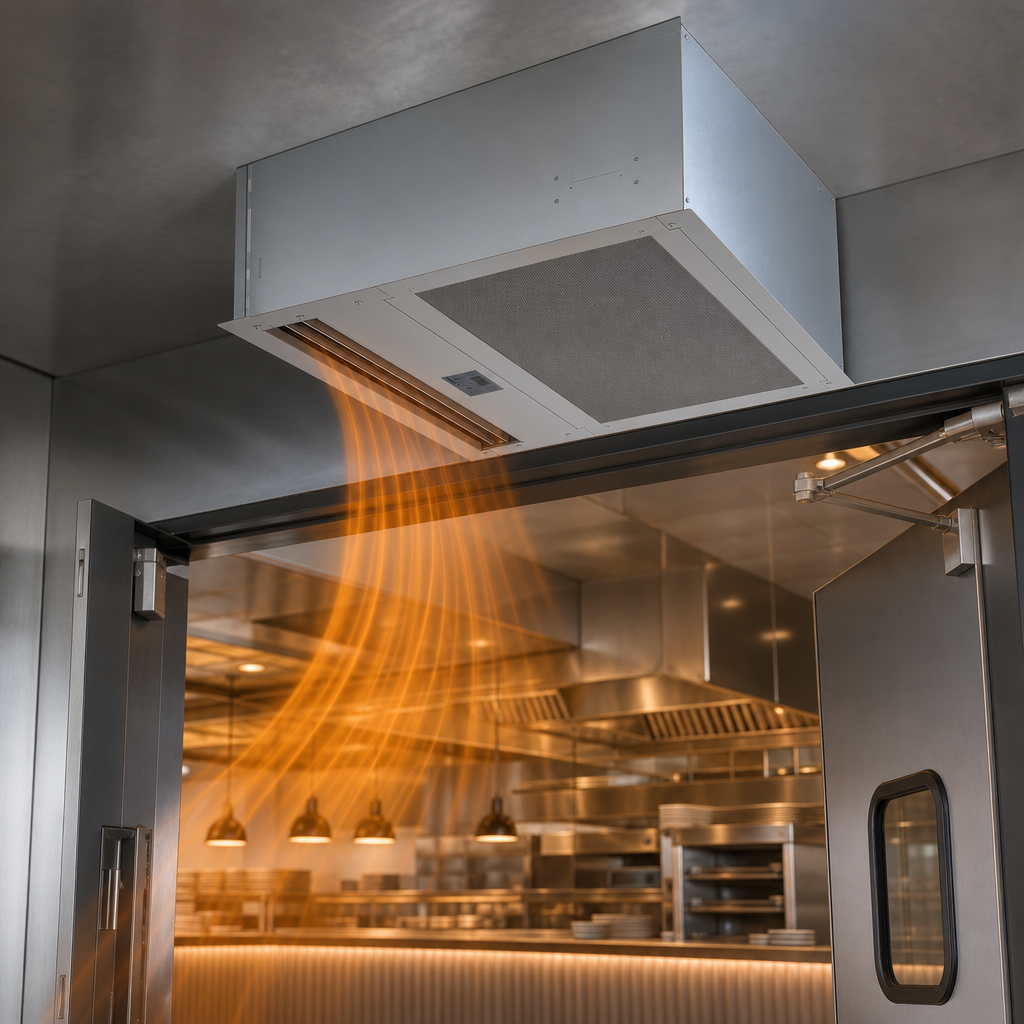

Electric Heated Air Stream

Electric heat helps create environmental separation and comfort at open doorways.

Electric Heated Air Stream

1/2 HP Motor With Ten Speeds

Provides adjustable airflow performance for different entrance conditions.

Factory-Mounted Digital Touchscreen Controller

Built-in digital controller with a touch screen for straightforward operation and adjustment.

Pro-V Nozzle And Venturi Heating Element

High-efficiency, low-noise nozzle design paired with a patented venturi open helical element.

Washable Filter And Hinged Access Panel

Supports routine cleaning and easier access to internal components.

White Aluminum Standard Finish

Ships with a white aluminum exterior panel; custom color and stainless steel options are also available.

Recommended For 12-Foot Mounting Heights

Intended for environmental separation at openings with mounting heights up to 12 feet.

Type Air Curtain
Style Heated
Installation Type Built-In
Opening Width 42 Inches
Recommended Mounting Height Up To 12 Feet
Motor Count 1
Motor Power 1/2 HP
Speed Settings 10
Heater Capacity 14 kW
Air Volume 1,655 CFM
Maximum Air Velocity 7,091 FPM
Temperature Rise 27 Degrees F
Controls Digital Touchscreen
Material Aluminum
Finish White Aluminum
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 142 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty on heated models.

Documents

PDF Cutsheet PDF Download PDF Replacement parts diagram PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Air curtain flyer PDF Download PDF Warranty PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 12 feet.
Yes. It comes with a factory-mounted digital touchscreen controller.
It is a recessed, top-mount unit designed to flush-mount into the ceiling.
The standard finish is white aluminum, with stainless steel and custom color options available.
A washable filter and hinged access panel make routine service easier.
Yes. An optional Wi-Fi Controller works with the Berner App, and a handheld remote is sold separately.
