Berner Architectural Recessed 12 42-Inch Ambient Air Curtain with 1/2 HP Motor

Unheated, 120V, 1-Phase, Recessed Ceiling Mount

A recessed ambient air curtain that blends into the ceiling while helping maintain comfortable interior conditions at entrances up to 12 feet high.

  • Flush-mount architectural design keeps the unit discreet above the entrance.
  • Ambient, unheated operation is ideal for environmental separation without added heat.
  • Factory-installed Intelliswitch touchscreen control simplifies setup and operation.
  • One 1/2 HP motor with ten-speed operation helps match airflow to the opening.
  • Washable filter and hinged access panel make routine maintenance easier.
  • Standard white aluminum construction suits visible front-of-house installations.

Product Weight:

138.0 lb

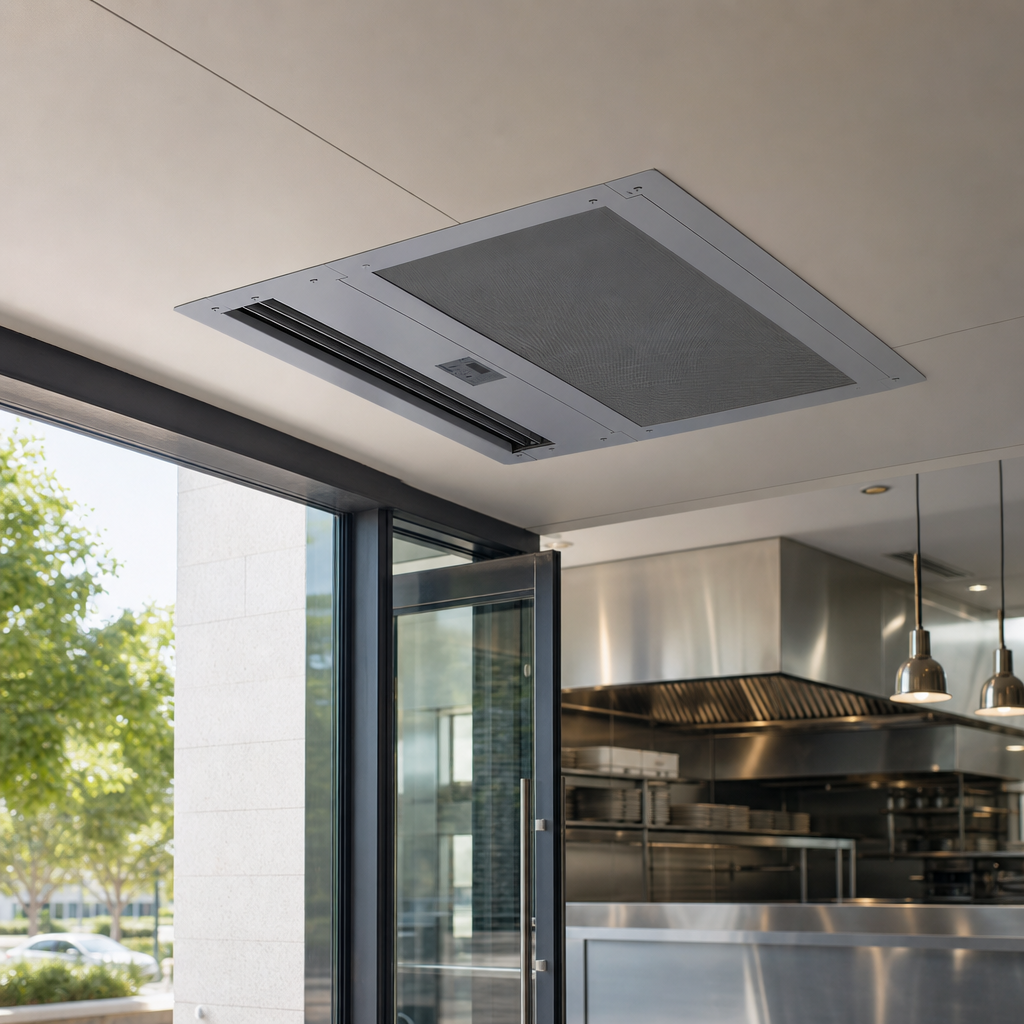

Recessed Architectural Design

Flushes into the ceiling for a clean, low-profile appearance at the entrance.

Recessed Architectural Design

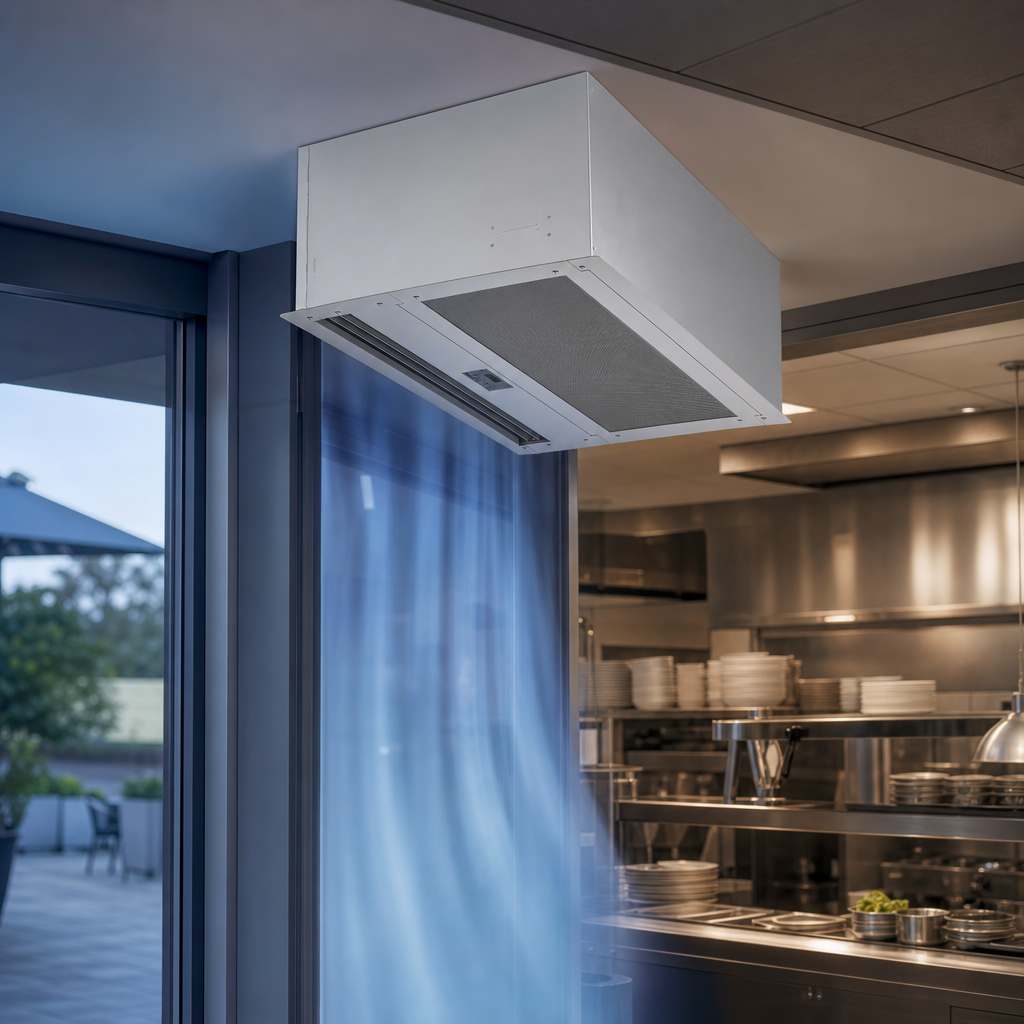

Ambient, Unheated Operation

Provides an air barrier without adding heat, making it suitable for conditioned spaces.

Ambient, Unheated Operation

Recommended For Up To 12-Foot Mounting Heights

Designed for environmental separation at entrances up to 12 feet high and insect control up to 10 feet.

1/2 HP Motor With Ten Speeds

Single-motor design offers adjustable airflow for the installation.

Factory-Installed Intelliswitch Controller

Includes a touchscreen digital controller with Berner AIR BASIC smart control.

Pro-V Nozzle With Adjustable Vanes

High-efficiency, low-noise nozzle design helps direct airflow where it is needed.

Service-Friendly Access Panel

Hinged removable bottom access panel and washable filter simplify cleaning and maintenance.

Standard White Aluminum Construction

Comes with a white aluminum exterior/bottom panel; stainless steel and custom color options are available for the series.

Type Ambient Air Curtain
Style Architectural Recessed
Installation Type Built-In
Voltage 120 Volts
Amps 8.5 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 15 Amps
Horsepower Per Motor 1/2 HP
Motor Count 1
Controls Digital Touchscreen
Recommended Mounting Height Up To 12 Feet
Power Rating 0.49 kW
Air Volume 1,581 CFM
Outlet Velocity Uniformity 85%
Material Aluminum
Color White
Country of Origin USA
Shipping Weight 138 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

5-year limited warranty on ambient/unheated models.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Terms & conditions PDF Download PDF Replacement parts diagram PDF Download PDF Warranty PDF Download PDF Air curtain flyer PDF Download

Frequently Asked Questions

No. ARE12-1042A is an ambient, unheated air curtain.
It is recommended for mounting heights up to 12 feet for environmental separation and 10 feet for insect control.
It includes a factory-installed Intelliswitch digital controller with touchscreen interface and Berner AIR BASIC smart control.
The hinged removable access panel and washable filter make routine service easier.
Yes. The documentation lists optional Wi-Fi Controller and BMS control options for the series.
Ambient and unheated models carry a 5-year limited warranty from the original date of shipment.
