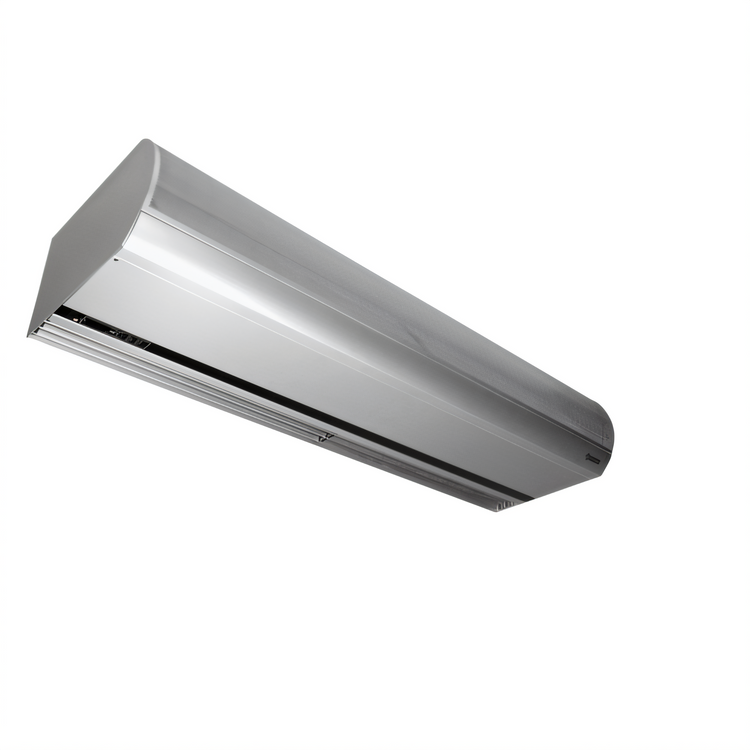

Berner Architectural Icon 10 Electric Heated Air Curtain, 144 Inch Wide

3 Motors, 1/2 HP Per Motor, For Up to 10-Foot Mounting Heights

Designed for busy entrances, this 144-inch heated air curtain helps maintain interior comfort and block insects with quiet, high-volume airflow and easy-touch digital controls.

  • Recommended for environmental separation at mounting heights up to 10 feet and insect control up to 8 feet.
  • Three 1/2 HP motors provide strong coverage across the 144-inch opening.
  • Factory-installed Intelliswitch digital controller includes a touch screen and programmable operation.
  • Clear satin anodized aluminum cabinet and washable filter support durable, low-maintenance use.
  • Wall or top mounting gives you flexibility for a variety of entrance applications.

Overall Dimensions:

146.13"W x 22.0"D x 12.63"H

Product Weight:

429.0 lb

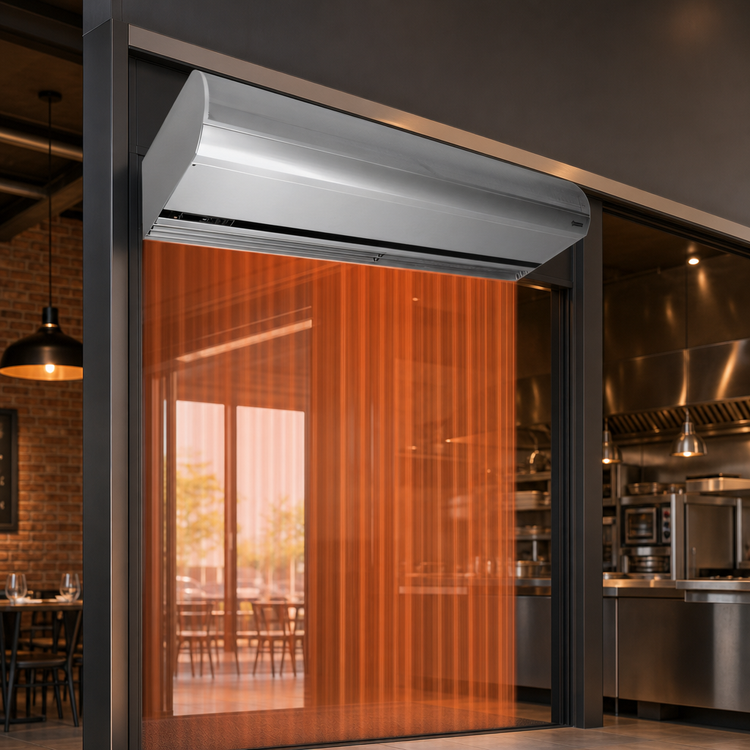

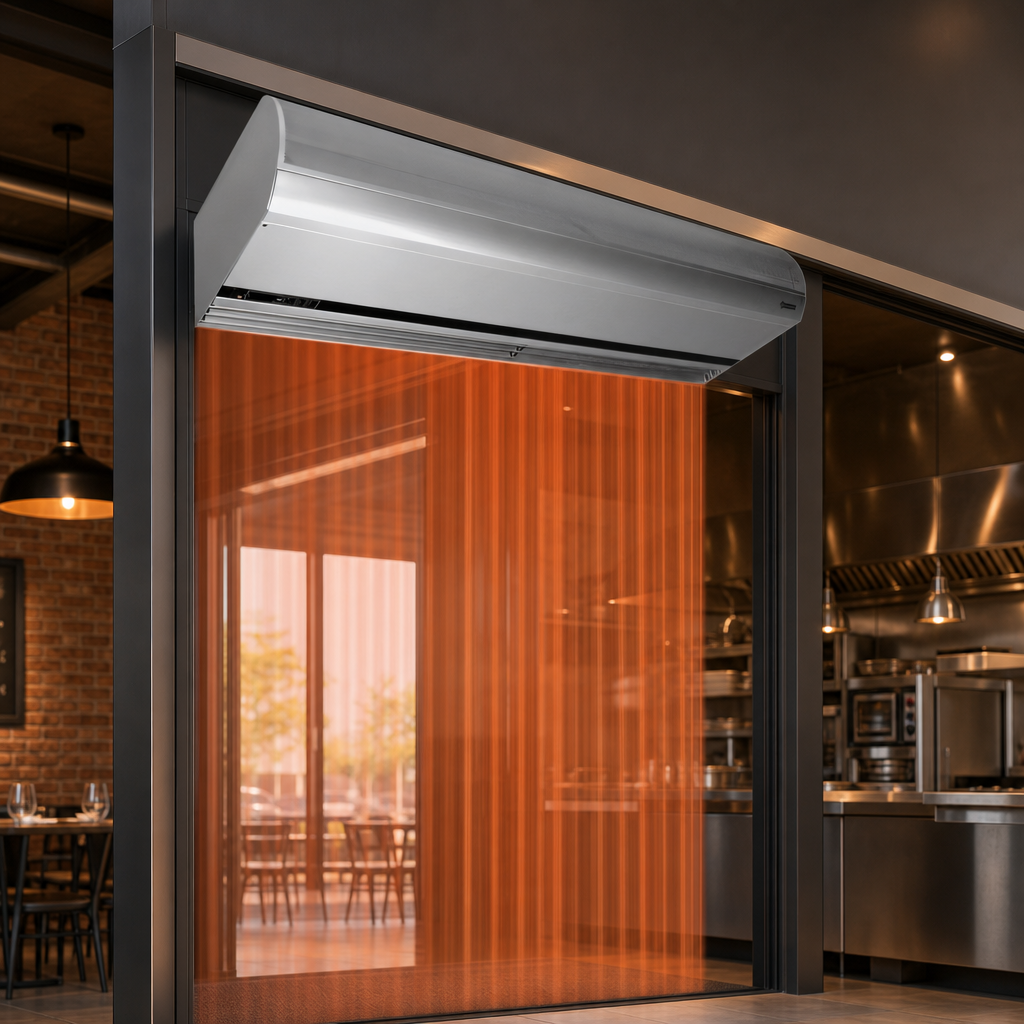

Electric Heated Air Curtain

Provides heated airflow for open-door climate control and comfort retention.

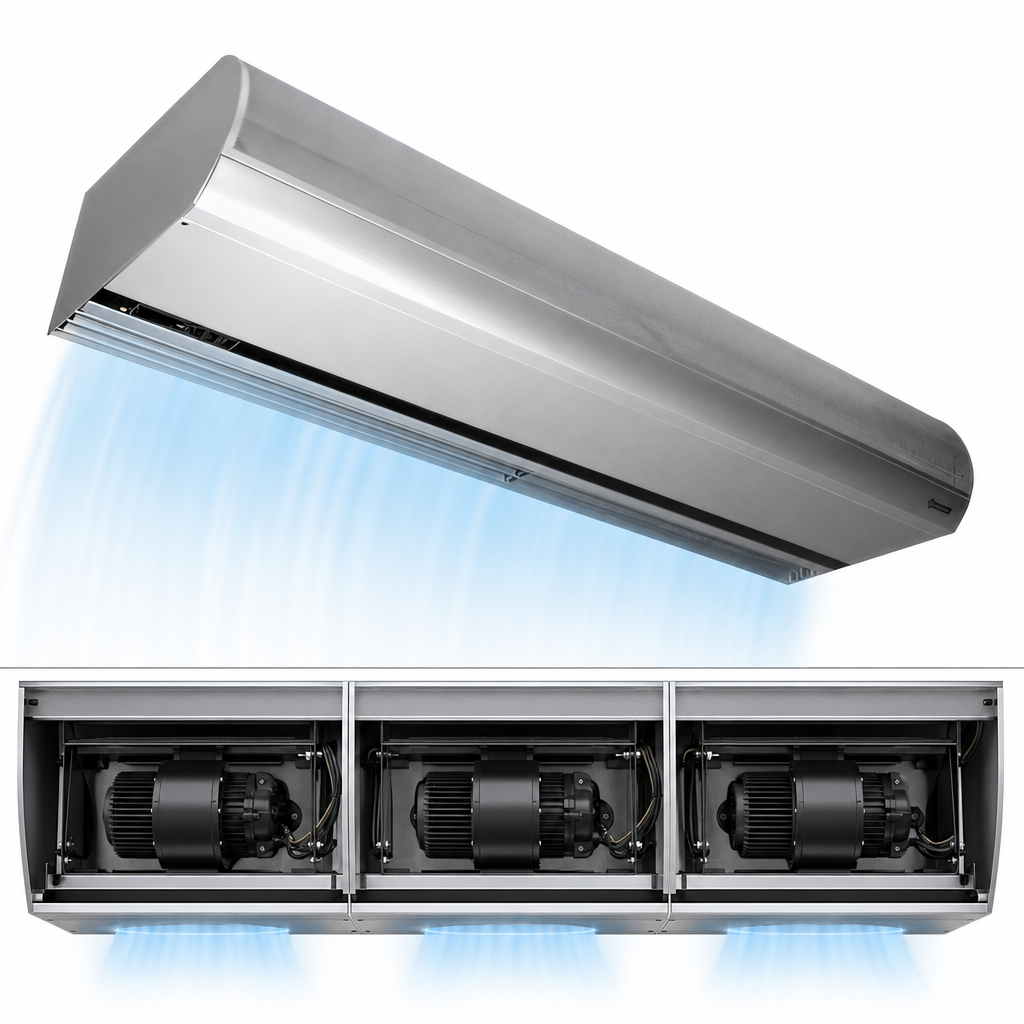

Three 1/2 HP Motors

Three motors help deliver the airflow needed to cover the 144-inch unit width.

Factory-Installed Intelliswitch Controller

Digital programmable controller with touch screen interface for easy operation.

Ten-Speed Operation

Allows airflow to be adjusted for different doorway conditions.

Pro-V Nozzle

Articulating three-vane nozzle designed for efficient, low-noise air delivery.

Patented Electric Heater

Single-stage venturi electric heater with open-element design.

Washable Filter

Reusable filter supports easier cleaning and maintenance.

Anodized Aluminum Cabinet

Clear satin anodized aluminum exterior cabinet gives the unit a clean architectural look.

Wall or Top Mounting

Supports flexible installation above the opening or from the top mount position.

Recommended Mounting Height

Designed for environmental separation up to 10 feet and insect control up to 8 feet.

Type Heated Air Curtain
Style Architectural
Installation Type Wall Mounted
Controls Programmable Digital Touchscreen
Horsepower Per Motor 1/2 HP
Motors 3
Motor Speeds 10 Speeds
Mounting Height 10 Feet
BTU 143,300 BTU/hr
Watts 1.89 kW
Material Aluminum
Finish Clear Satin Anodized Aluminum
Country of Origin USA
Shipping Width 147 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 429 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for environmental separation at mounting heights up to 10 feet and insect control up to 8 feet.
A factory-installed Intelliswitch digital controller with touch screen is included.
Yes. The unit supports wall or top mounting.
Yes. A washable filter is standard.
Optional 1/2 HP EC motors, custom color or stainless finish, a rear cover for top mounting, and Berner AIR smart controller & app are available.
