Berner Architectural Icon 10 Series 144-Inch Unheated Air Curtain, 3 Motors, 1/2 HP, Wall or Top Mount

SKU: AI10-F-3144A
$7,183.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

Berner Architectural Icon 10 Series 144-Inch Unheated Air Curtain, 3 Motors, 1/2 HP, Wall or Top Mount

Clear Satin Anodized Aluminum Cabinet; For Openings Up to 10 Feet High

This unheated architectural air curtain delivers quiet climate control and insect protection for 10-foot entrances with a factory-installed digital controller and service-friendly design.

  • Unheated air curtain for climate control at entrances up to 10 feet high.
  • Provides insect protection for openings up to 8 feet high.
  • Three 1/2 HP motors support airflow across wide 144-inch openings.
  • Factory-installed Intelliswitch controller offers programmable operation with ten speeds.
  • Clear satin anodized aluminum cabinet with low-noise articulating Pro-V nozzle.
  • Washable filter, no assembly required, and wall or top mounting simplify installation and upkeep.

Overall Dimensions:

146.13"W x 22.0"D x 12.63"H

Product Weight:

422.0 lb

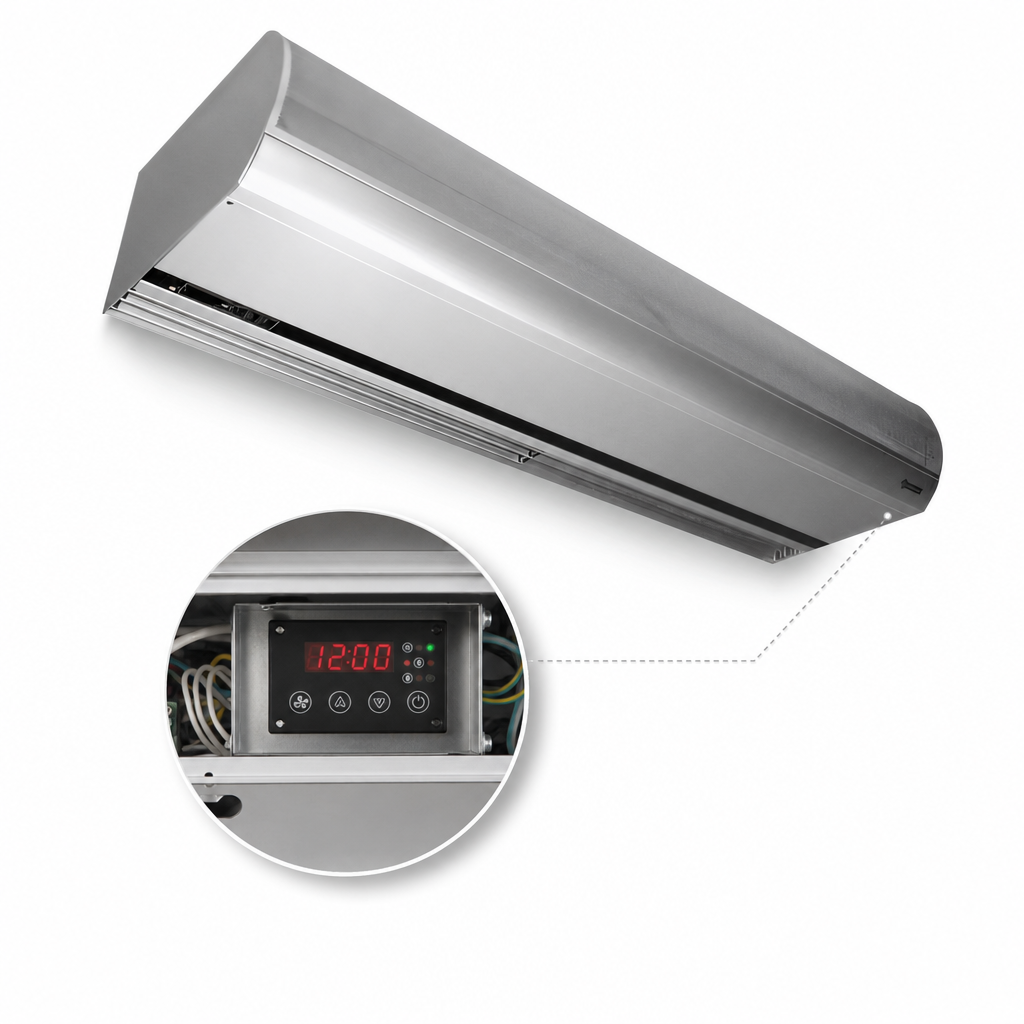

Factory-Installed Intelliswitch Controller

Digital programmable controller with LED clock display, ten speeds, low-voltage activation, external thermostat provision, and Comfort Plus provision.

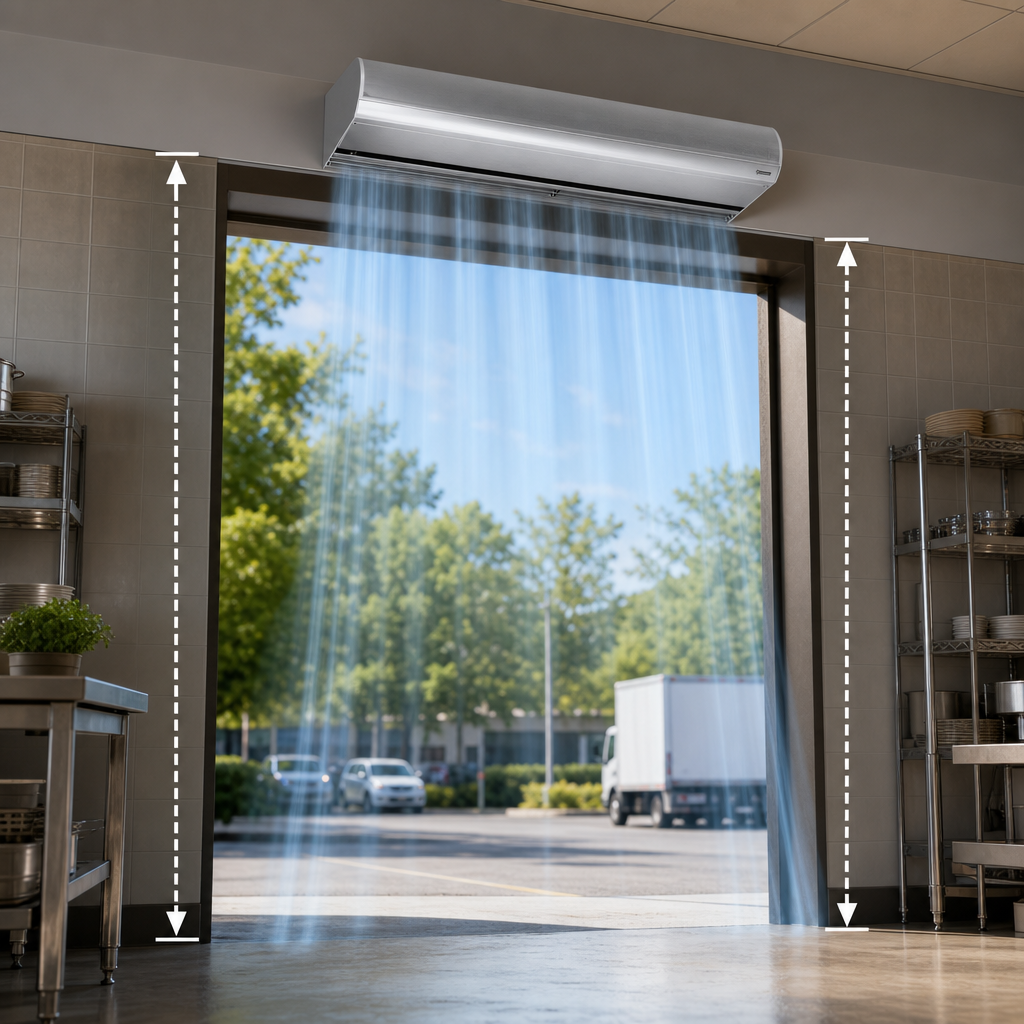

Designed For 10-Foot Openings

Built for climate control at mounting heights up to 10 feet, with insect protection up to 8 feet.

Three 1/2 HP Motors

Three-motor design provides air performance for wide 144-inch entry openings.

Clear Satin Anodized Aluminum Cabinet

Durable architectural cabinet finish suited for visible entrance applications.

High-Efficiency Pro-V Nozzle

Articulating nozzle designed for low-noise operation and effective air delivery.

Washable Filter And Service Access

Includes a washable filter, no-assembly installation, bottom access panel, wall mounting system, and 1/4-inch threaded inserts for top mounting.

Type Unheated Air Curtain
Style Architectural
Installation Type Wall Mounted
Material Aluminum
Finish Clear Satin Anodized
Controls Digital Programmable
Motor Count 3
Motor Horsepower 1/2 HP Per Motor
Maximum Mounting Height 10 Feet
Insect Protection Height 8 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 147 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 422 lb.

Certifications & Compliance

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

No. This AI10 model is unheated, or ambient.
It is designed for climate control at mounting heights up to 10 feet and insect protection up to 8 feet.
It includes a factory-installed Intelliswitch digital programmable controller with an LED clock display and ten speeds.
It supports wall or top mounting. A wall mounting system is included, and top mounting uses 1/4-inch threaded inserts.
The unit includes a washable filter and a bottom access panel for easier service.
Ambient units carry a 5-year parts warranty.
