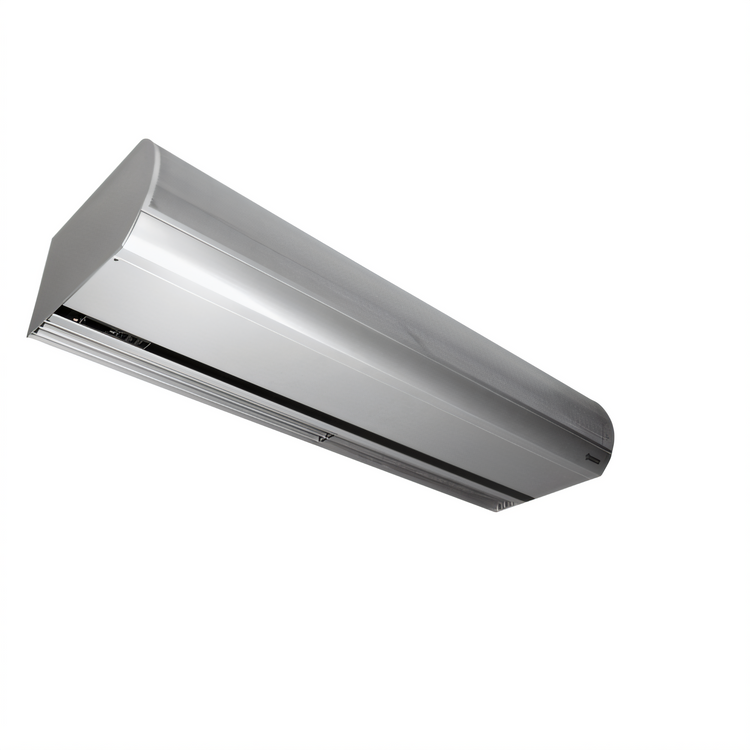

Berner Architectural Icon 10 Series 132-Inch Electric Heated Air Curtain

3 Motors, 1/2 HP Each, For Openings Up to 10 Feet

Built for large entrances, this electric heated air curtain helps maintain indoor comfort and block insects with quiet, programmable performance.

  • Recommended for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
  • 132-inch nozzle width with three 1/2 HP motors and ten-speed operation.
  • Factory-installed Intelliswitch digital controller with touchscreen programming.
  • High-efficiency Pro-V nozzle and washable filter support quiet operation and easier maintenance.
  • Clear satin anodized aluminum cabinet offers a clean architectural look.
  • Wall or top mounting flexibility makes installation easier.
  • Optional EC motors, custom color or stainless cabinet, rear cover, and Berner AIR smart control upgrade are available.

Overall Dimensions:

134.13"W x 22.0"D x 12.63"H

Product Weight:

397.0 lb

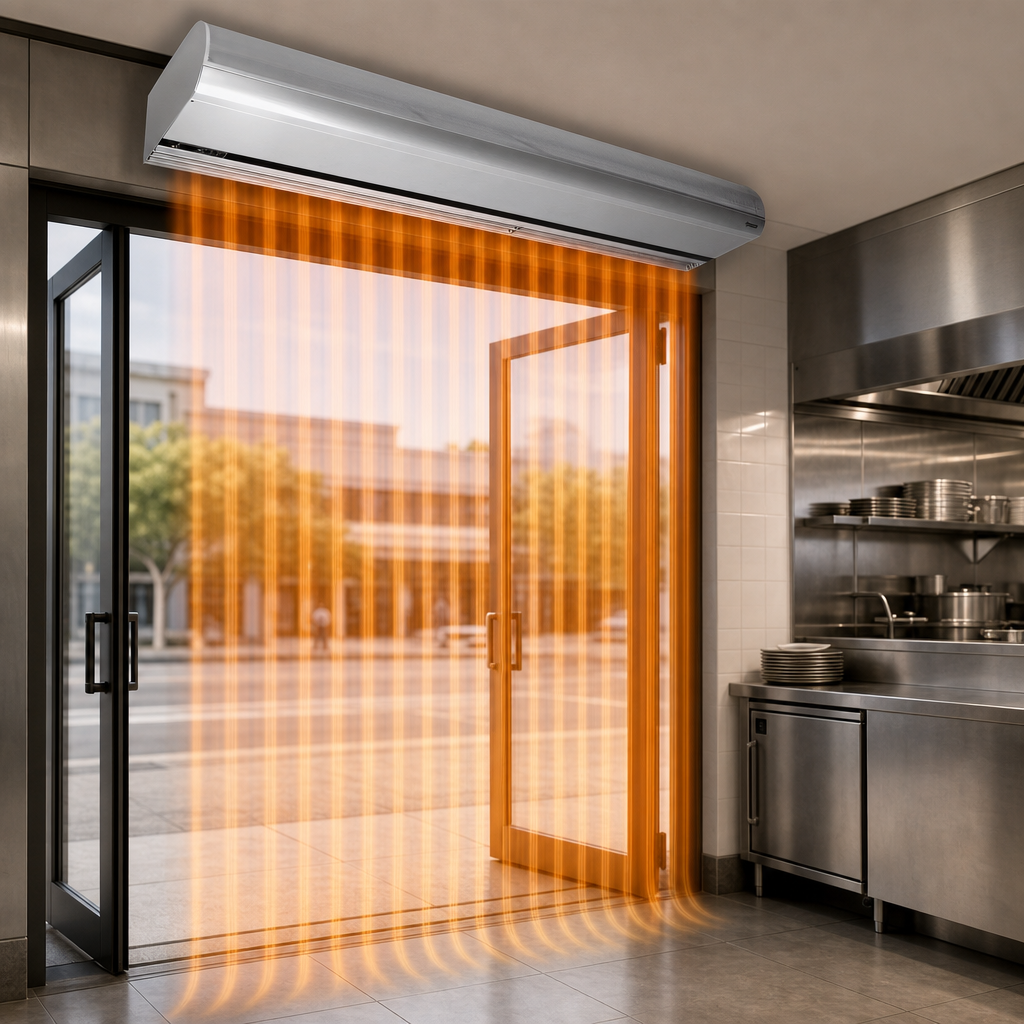

Electric Heated Air Curtain

Provides a heated air barrier for entrances up to 10 feet high and insect control up to 8 feet high.

Electric Heated Air Curtain

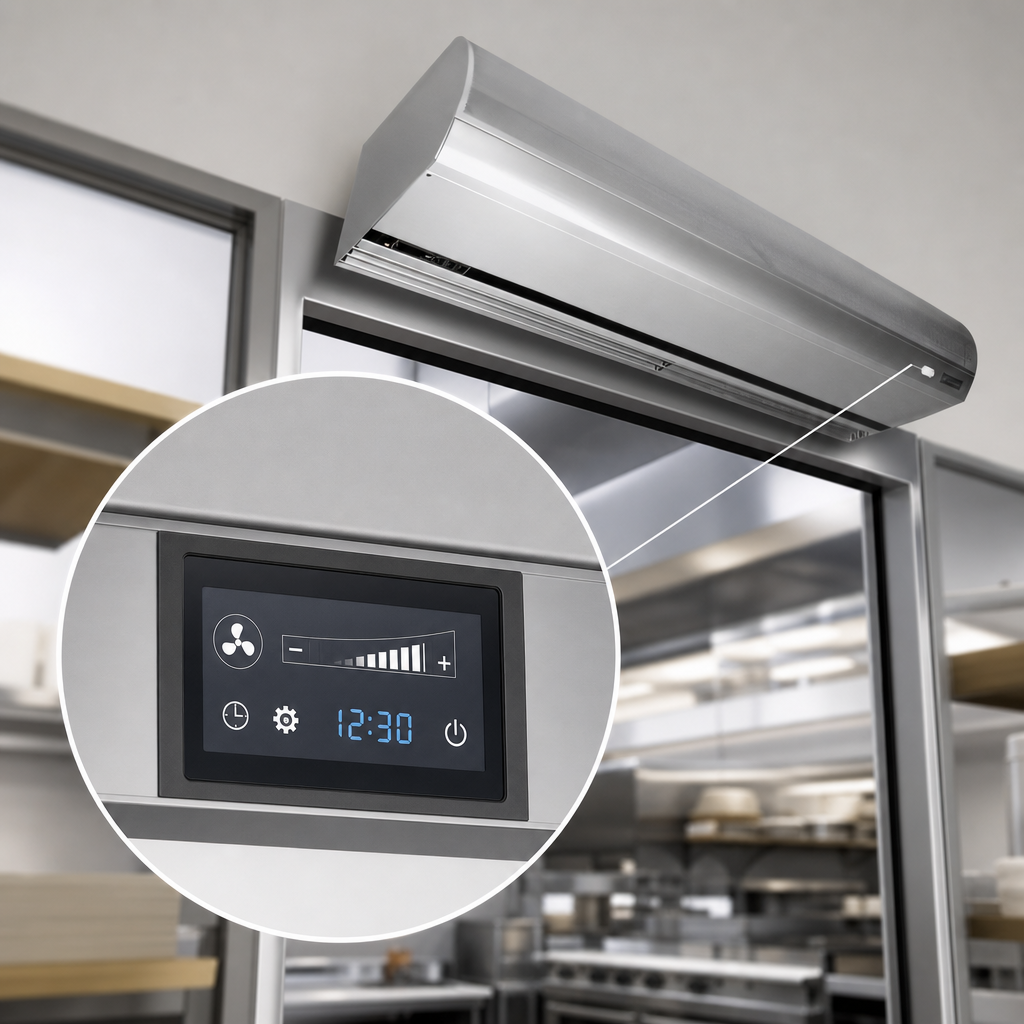

Intelliswitch Digital Controller

Factory-installed touchscreen controller with programmable operation, ten speeds, LED clock display, low-voltage activation, and external thermostat and Comfort Plus provisions.

Intelliswitch Digital Controller

Open-Element Venturi Heater

Patented single-stage electric heater design delivers heated air in a compact open-element format.

High-Efficiency Pro-V Nozzle

Articulating three-vane nozzle is designed for low noise and even air discharge.

Washable Filter

Reusable filter helps simplify maintenance and support ongoing performance.

Clear Satin Anodized Aluminum Cabinet

Durable anodized exterior provides a clean, architectural appearance.

Flexible Mounting

Standard wall mounting system is included, and the unit can also be top mounted.

Three 1/2 HP Motors

Motor package delivers the airflow needed for the 132-inch model.

Optional Upgrades

Optional EC motors, custom color or stainless cabinet finishes, rear cover for top mounting, and Berner AIR smart controller/app are available.

Type Air Curtain
Style Heated
Controls Programmable Digital Touchscreen
Motor Type AC
Mounting Type Wall Or Top Mounting
Material Aluminum
Finish Clear Satin Anodized Aluminum
Nozzle Width 132 Inches
Maximum Mounting Height 10 Feet
Insect Control Height 8 Feet
Motors 3
Horsepower Per Motor 1/2 HP
Motor Speeds 10
Heater Output 143.3 MBH
Maximum Electric Capacity 42 kW
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 135 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 397 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
The unit includes a factory-installed Intelliswitch digital controller with touchscreen programming and ten-speed operation.
It uses a patented single-stage venturi electric heater with open-element construction.
Yes. Wall mounting is included, and top mounting is supported with threaded inserts.
Optional EC motors, custom color or stainless cabinet finishes, a rear cover for top mounting, and the Berner AIR smart controller/app are available.
