Berner

Berner Architectural Icon 10 Series Unheated Air Curtain, 132-Inch Wide, 3 Motors, 1/2 HP Each

SKU: AI10-F-3132A
$6,346.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

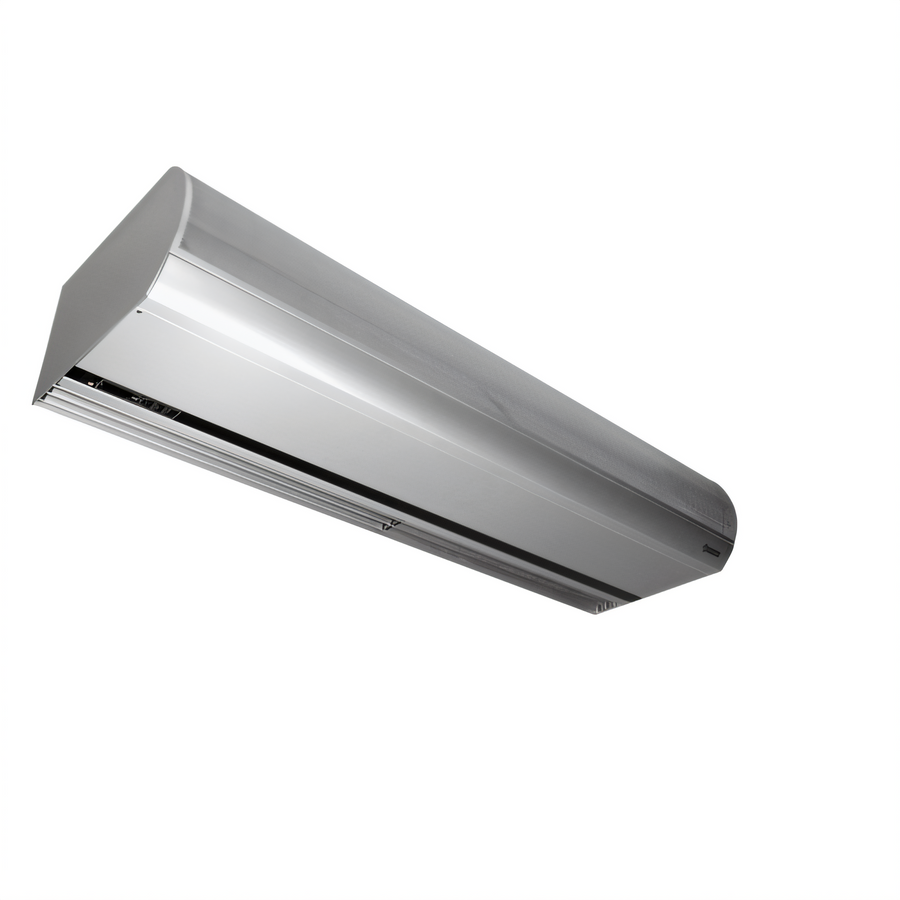

Berner Architectural Icon 10 Series Unheated Air Curtain, 132-Inch Wide, 3 Motors, 1/2 HP Each

For 10-Ft Mounting Height, Wall or Top Mounting, Clear Satin Anodized Aluminum Cabinet

This low-profile unheated air curtain helps maintain comfort and block insects across wide entrances with quiet three-motor performance and a factory-installed digital controller.

  • 132-inch-wide Architectural Icon 10 air curtain designed for large openings.
  • Three 1/2 HP motors provide strong airflow for climate control at up to a 10-foot mounting height.
  • Factory-installed Intelliswitch digital programmable controller includes ten speeds and LED clock display.
  • Wall or top mounting options make installation flexible for a variety of entrances.
  • Washable filter and bottom access panel help simplify routine maintenance.
  • Clear satin anodized aluminum exterior cabinet gives the unit a clean architectural look.
  • Rated for insect protection up to an 8-foot mounting height.

Overall Dimensions:

134.13"W x 22.0"D x 12.63"H

Product Weight:

390.0 lb

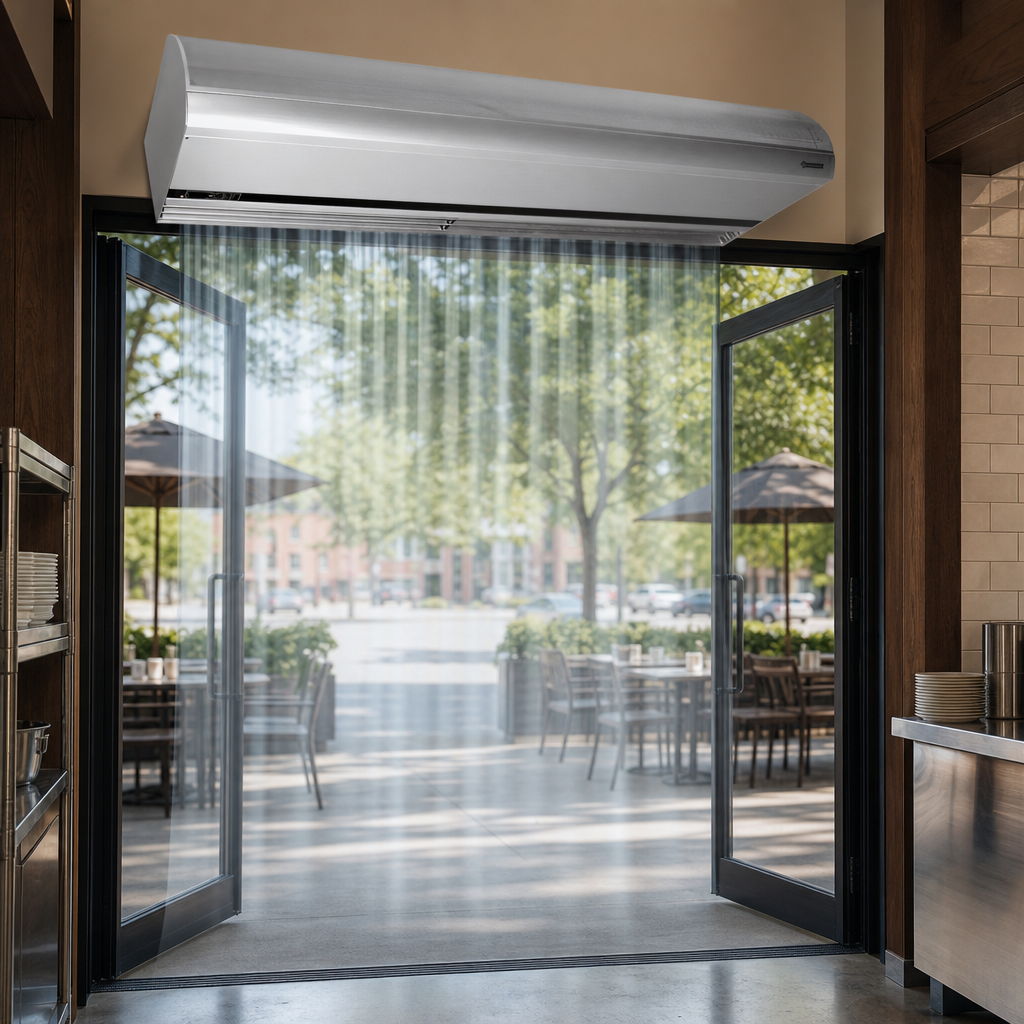

Unheated Air Curtain Design

Ambient, unheated operation helps maintain indoor comfort without adding heat to the entrance.

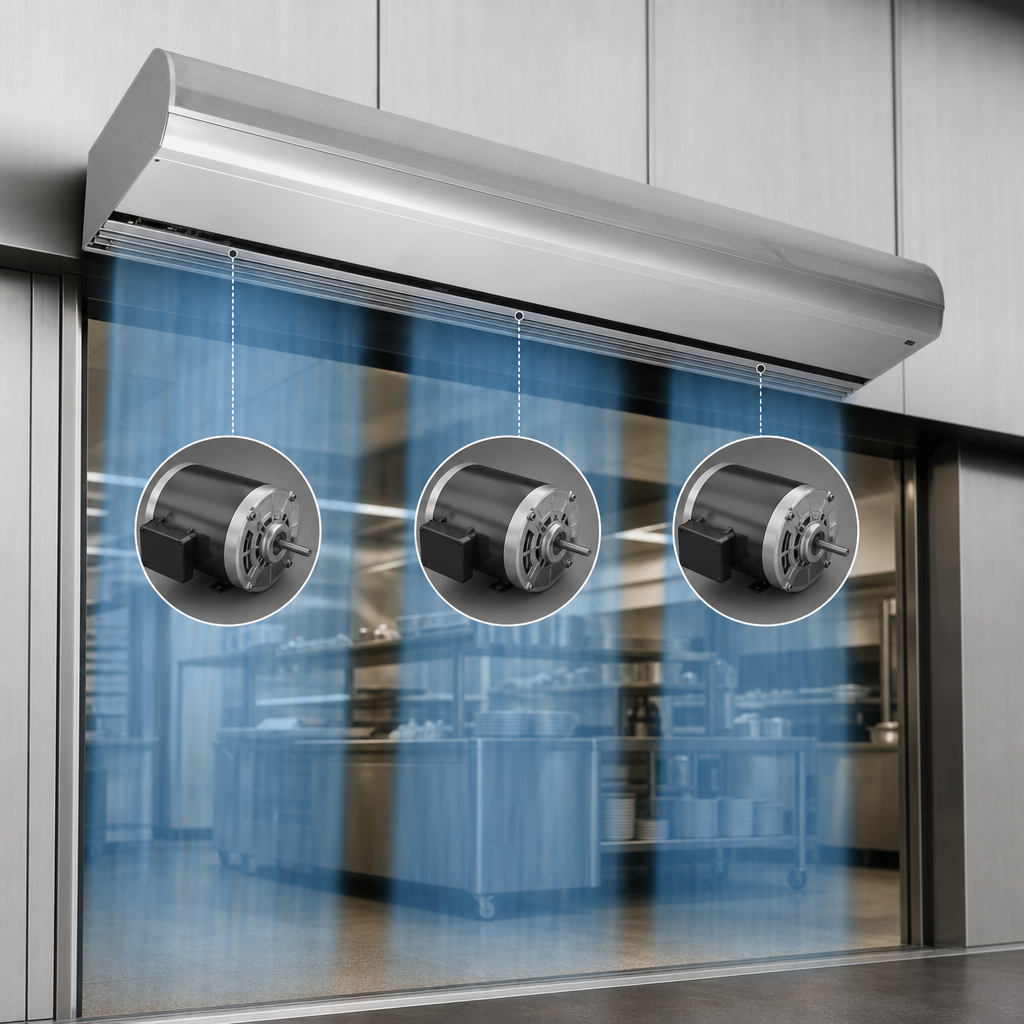

Three 1/2 HP Motors

Three-motor configuration delivers the airflow needed for wide door openings.

Intelliswitch Digital Controller

Factory-installed controller offers ten speeds, LED clock display, low-voltage activation, external thermostat provision, and Comfort Plus provision.

Wall Or Top Mounting

Supports wall or top mounting; wall mounting system is included and top mounting inserts are provided.

Washable Filter

Reusable filter helps protect internal components and simplifies upkeep.

Low-Noise Pro-V Nozzle

Articulating nozzle is designed for efficient air delivery with reduced noise.

Anodized Aluminum Cabinet

Clear satin anodized aluminum exterior provides a durable, professional appearance.

Easy Service Access

Bottom access panel helps technicians reach internal components more easily.

Type Unheated Air Curtain
Style Architectural
Installation Type Wall Mounted
Material Aluminum
Finish Clear Satin Anodized Aluminum
Controls Digital Programmable
Motor Count 3
Horsepower Per Motor 1/2 HP
Maximum Opening Height 10 Feet
Insect Protection Height 8 Feet
Shipping Width 135 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 390 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

No. This model is the unheated, ambient version of the Architectural Icon 10 series.
It is designed for climate control at up to a 10-foot mounting height and insect protection up to an 8-foot mounting height.
A factory-installed Intelliswitch digital programmable controller is included, with ten speeds and an LED clock display.
It supports wall or top mounting, and the wall mounting system is included.
Ambient, unheated units carry a 5-year parts warranty.
