Berner

Berner Architectural Icon 10 Electric Heated Air Curtain, 108-Inch Wide, 2 Motors, 1/2 HP Per Motor

SKU: AI10-F-2108E
$8,009.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Berner Best Sellers Equipment Facility Equipment Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment

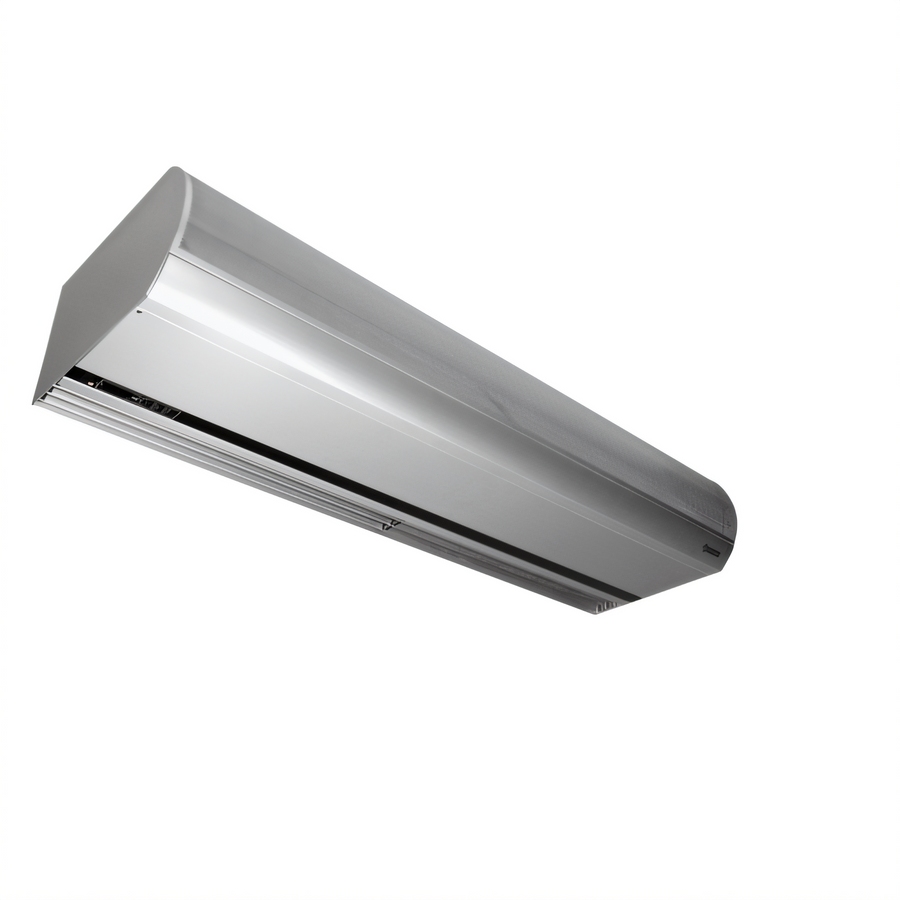

Berner Architectural Icon 10 Electric Heated Air Curtain, 108-Inch Wide, 2 Motors, 1/2 HP Per Motor

For 10-Foot Openings; Wall or Top Mount

Built for wide entrances, this electric heated air curtain helps hold conditioned air in place while providing insect protection and easy touchscreen control.

  • Recommended for mounting heights up to 10 feet for environmental separation and 8 feet for insect control.
  • Two 1/2 HP motors and ten-speed operation help move air effectively across wide openings.
  • Factory-installed Intelliswitch digital programmable touchscreen controller simplifies setup and daily use.
  • Clear satin anodized aluminum cabinet gives the unit a clean architectural appearance.
  • Washable filter helps reduce maintenance and supports long-term performance.
  • Wall or top mounting provides flexible installation at entrances and vestibules.
  • Made in the USA for commercial entrance applications.

Overall Dimensions:

110.13"W x 22.0"D x 12.63"H

Product Weight:

297.0 lb

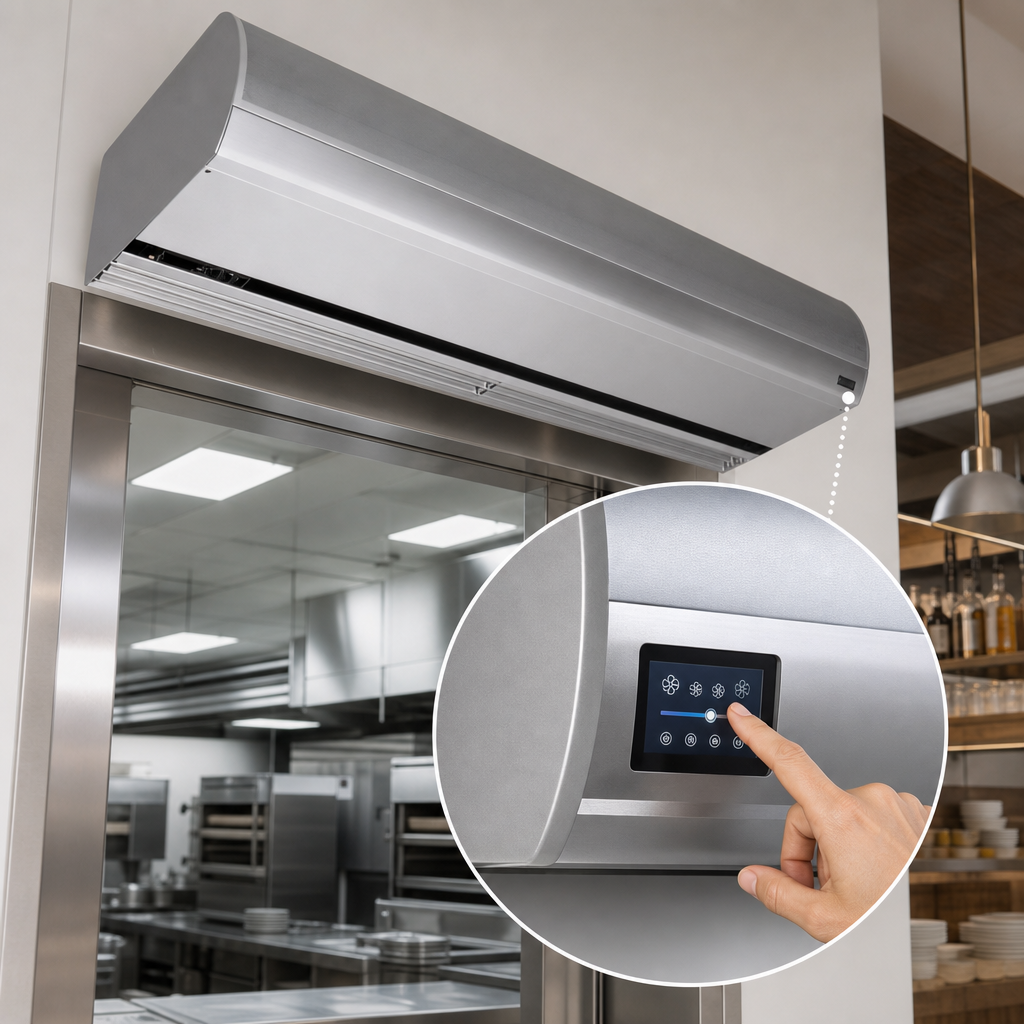

Factory-Installed Intelliswitch Controller

Digital programmable touchscreen controller for quick setup, speed selection, and day-to-day operation.

Factory-Installed Intelliswitch Controller

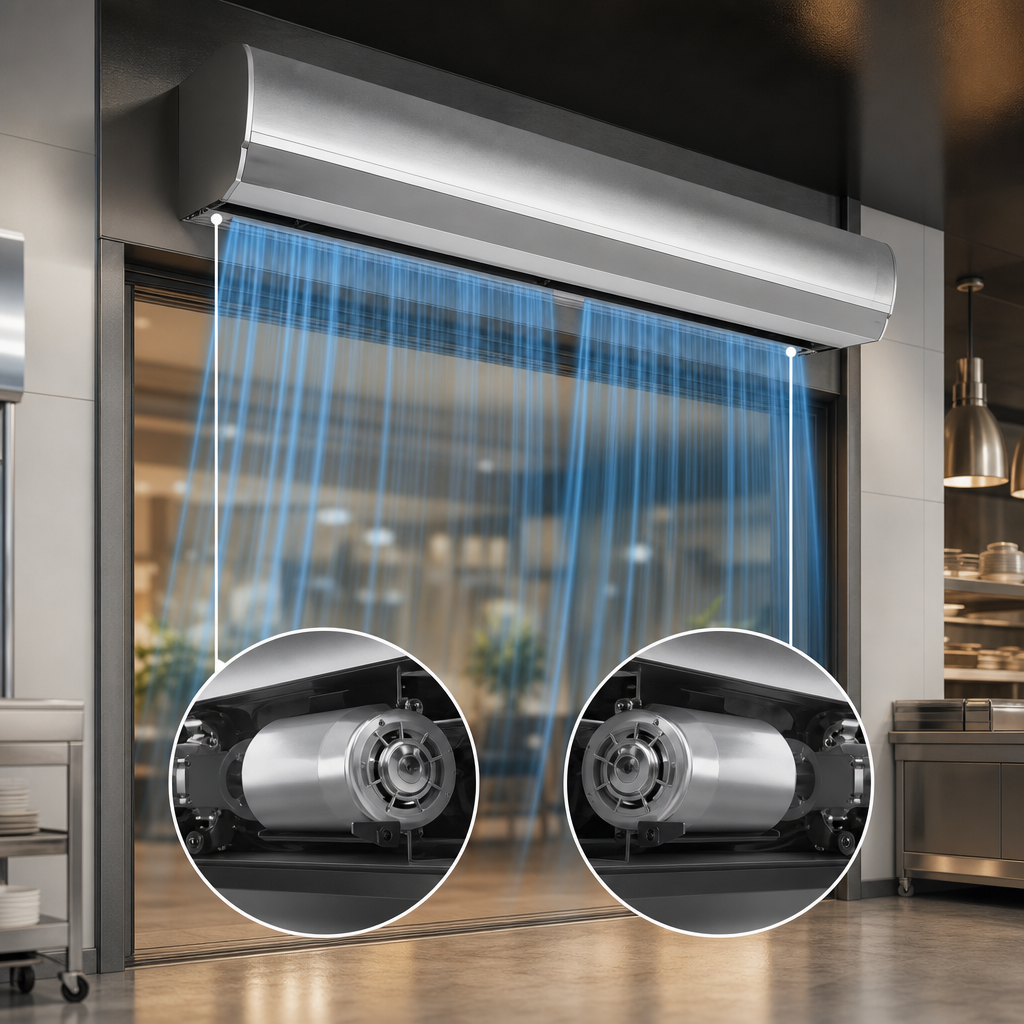

Dual 1/2 HP Motors

Two motors deliver the airflow needed for wide 108-inch openings.

Dual 1/2 HP Motors

Ten-Speed Operation

Allows the airflow to be adjusted for different entrance conditions.

Electric Heated Design

Patented single-stage venturi electric heater adds heat while the door is open.

Recommended Mounting Heights

Designed for environmental separation up to 10 feet and insect control up to 8 feet.

Washable Filter

Reusable filter helps reduce maintenance and supports long-term performance.

Clear Satin Anodized Aluminum Cabinet

Architectural exterior finish provides a clean look and durable construction.

Wall or Top Mounting

Flexible mounting options help the unit fit different entrance layouts.

Pro-V Nozzle

Articulating three-vane nozzle helps direct airflow efficiently and quietly.

Type Air Curtain
Style Electric Heated
Installation Type Wall Mounted
Controls Digital Programmable Touchscreen
Speed Settings 10
Nozzle Width 108 Inches
Horsepower Per Motor 1/2 HP
Motor Count 2
Maximum Mounting Height 10 Feet (Environmental Separation), 8 Feet (Insect Control)
Nozzle Type Articulating Three-Vane Pro-V Nozzle
Filter Type Washable
Material Aluminum
Finish Clear Satin Anodized
Power Rating 1.22 kW
Max Electric Capacity 28 kW
Air Volume 3,562 CFM
Heater Output 95.6 MBH
Max Nozzle Velocity 4,087 FPM
Average Outlet Velocity 1,727 FPM
Outlet Velocity Uniformity 86%
Air Temperature Rise 25 Degrees F
Shipping Width 111 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 297 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

2-year limited parts warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for mounting heights up to 10 feet for environmental separation and up to 8 feet for insect control.
Yes. It uses a patented single-stage venturi electric heater.
Yes. It comes with a factory-installed Intelliswitch digital programmable controller with a touch screen.
Yes. The unit is designed for wall or top mounting.
Yes. A washable filter is included for easier maintenance.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
