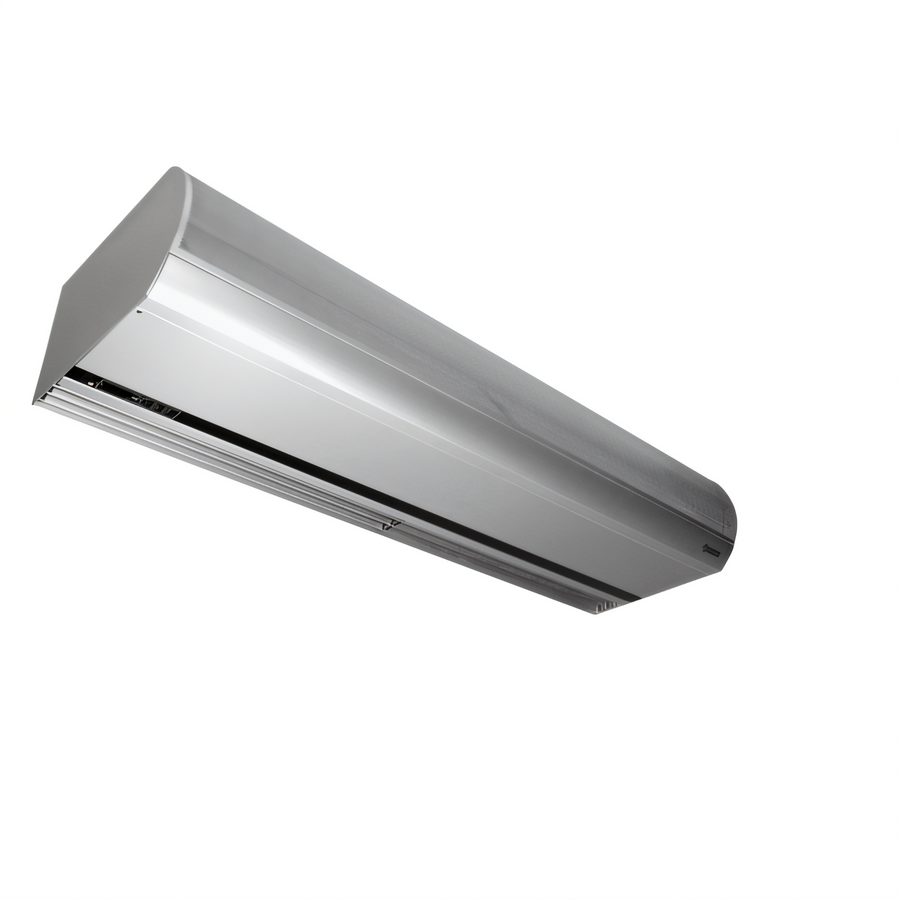

Berner Architectural Icon 10 Series 84-Inch Electric Heated Air Curtain, 2 Motors, Intelliswitch Controller

Wall or Top Mount, Recommended for Openings Up to 10 Feet

A sleek 84-inch electric heated air curtain that helps maintain comfort and block insects at open doors with quiet, programmable airflow.

  • 84-inch electric heated air curtain for environmental separation and insect control.
  • Recommended for mounting heights up to 10 feet, with insect protection up to 8 feet.
  • Two 1/2 HP motors with ten-speed operation deliver strong, consistent airflow.
  • Factory-installed Intelliswitch touchscreen controller with washable filter and low-noise Pro-V nozzle.
  • Wall or top mounting flexibility with a clear satin anodized aluminum cabinet.
  • AMCA certified, cULus listed, made in the USA, and backed by a 2-year limited warranty for heated units.

Overall Dimensions:

86.13"W x 22.0"D x 12.63"H

Product Weight:

245.0 lb

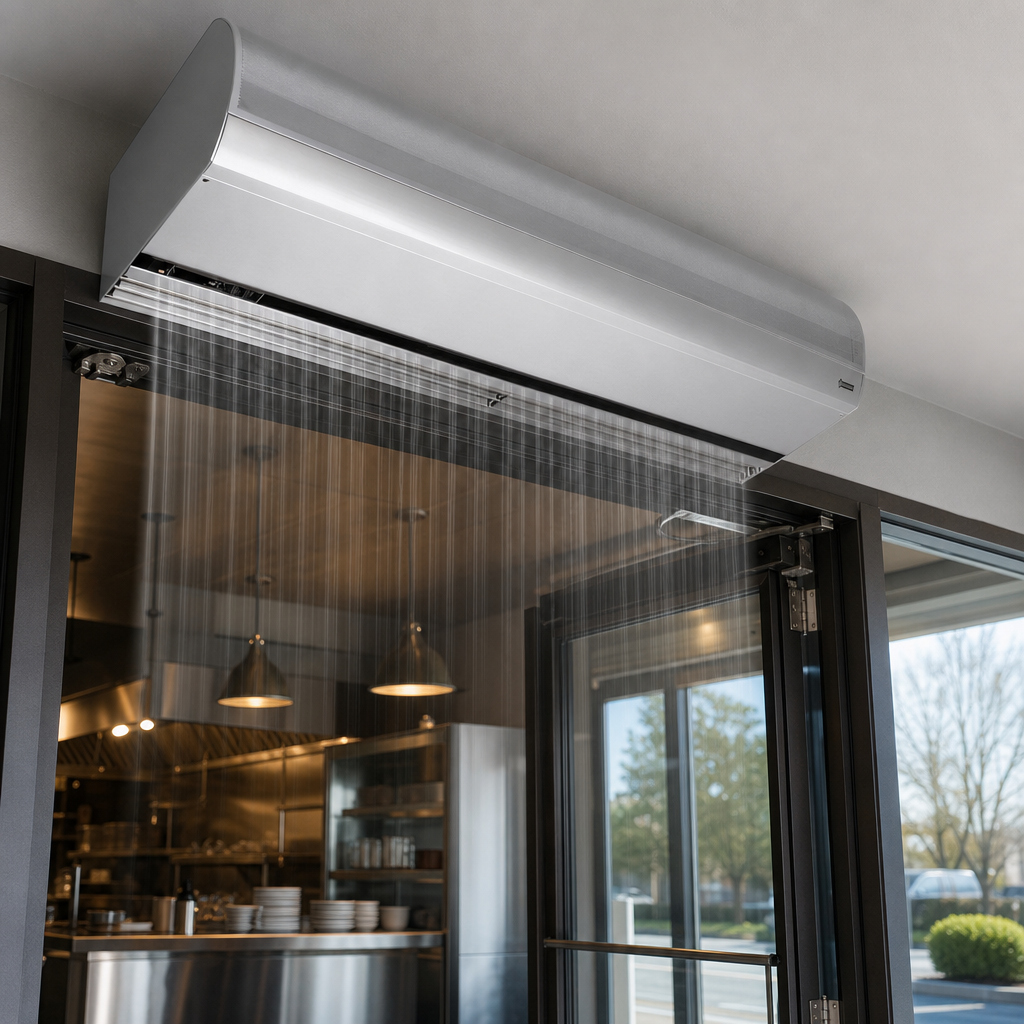

Electric Heated Air Curtain

Designed for climate control at open doors, with performance suited to environmental separation and insect control applications.

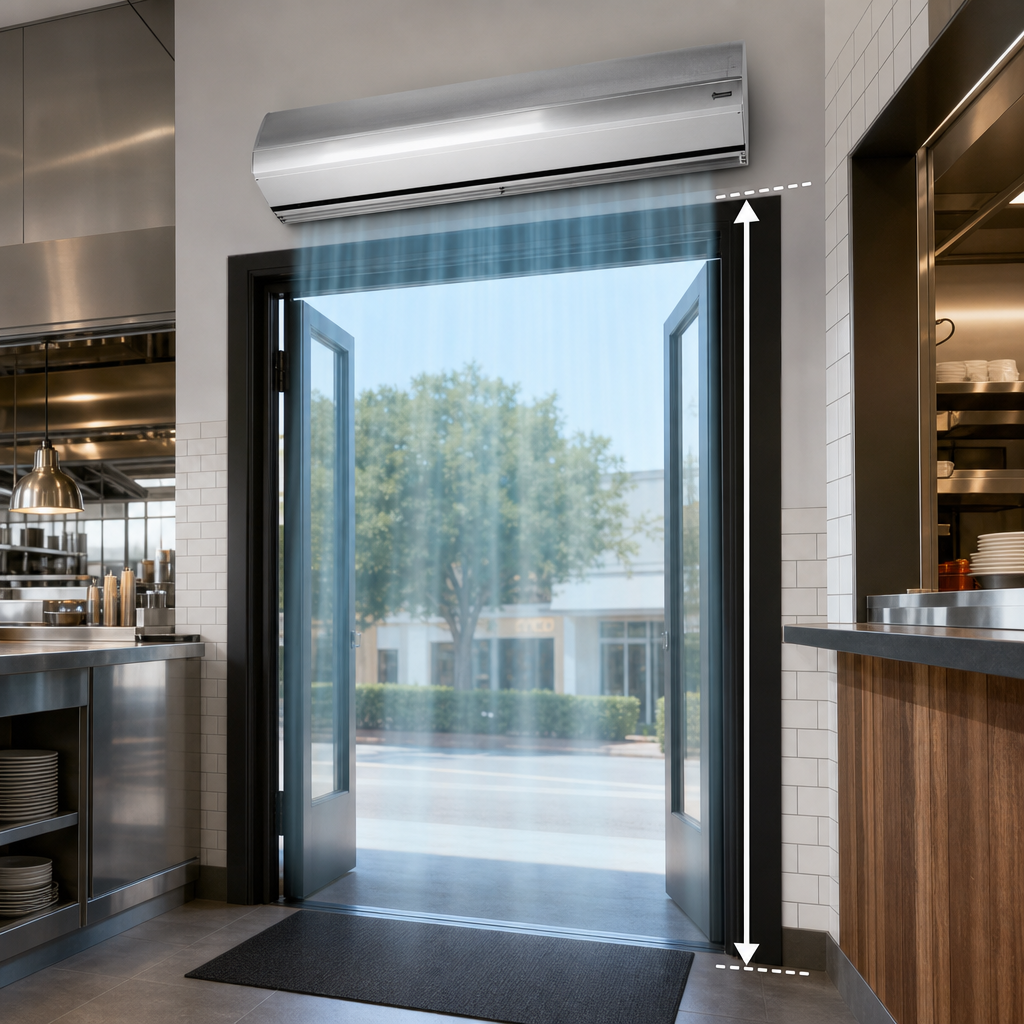

Recommended Mounting Height

Suitable for environmental separation up to 10 feet and insect control up to 8 feet.

Two 1/2 HP Motors

This 84-inch model uses two 1/2 HP motors and offers ten-speed operation for adjustable airflow performance.

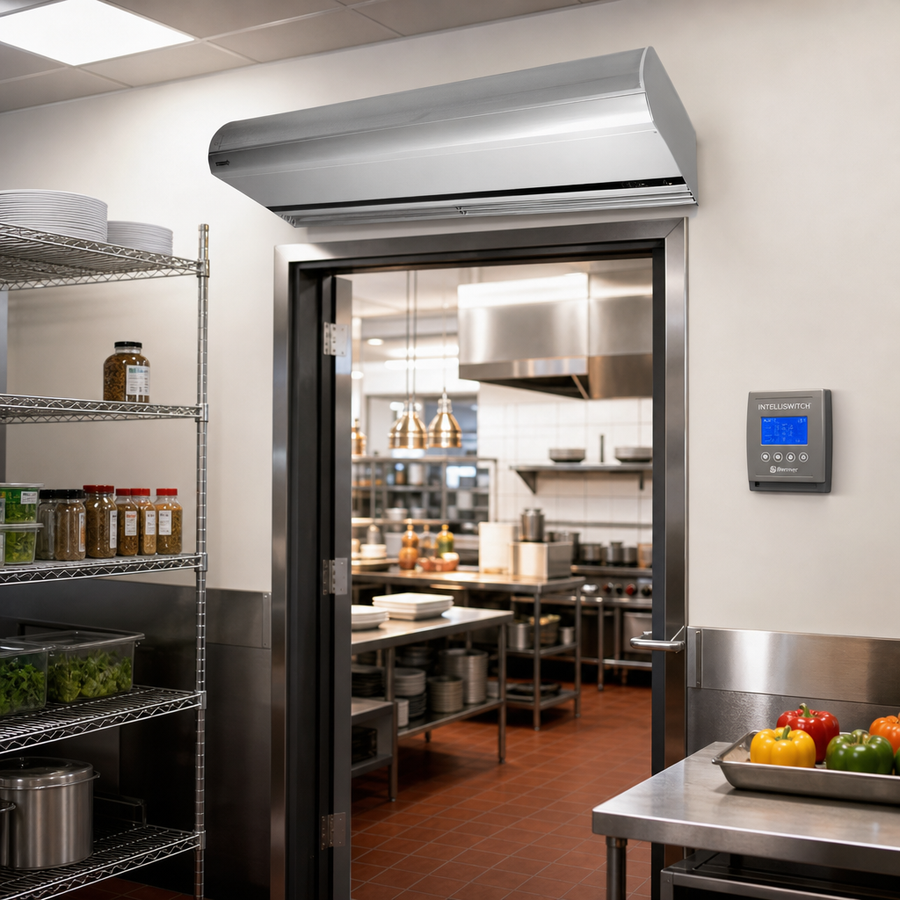

Intelliswitch Digital Controller

Factory-installed digital controller with touchscreen, LED clock display, low-voltage unit activation, external thermostat provision, Comfort Plus provision, and temperature probe.

Pro-V Nozzle

High-efficiency, low-noise articulating three-vane nozzle designed to project air effectively across the opening.

Washable Filter

Includes a washable filter for easier maintenance and long-term serviceability.

Clear Satin Anodized Aluminum Cabinet

Durable anodized aluminum exterior cabinet with optional custom color or stainless finish available.

Mounting Flexibility

Supports wall or top mounting; wall mounting system is included and top-mount inserts are provided.

Type Heated
Style Architectural Icon 10 Series
Installation Type Wall Mounted
Controls Digital Programmable Touchscreen
Material Aluminum
Finish Clear Satin Anodized Aluminum
Motor Count 2
Horsepower Per Motor 1/2 HP
Motor Speed Count 10 Speeds
Nozzle Width 84 Inches
Recommended Mounting Height 10 Feet
Insect Control Height 8 Feet
Power Rating 0.94 kW
Maximum Electric Capacity 28 kW
Heater Output 95.6 MBH
Air Volume 2,844 CFM
Max Outlet Velocity 3,543 FPM
Average Outlet Velocity 1,773 FPM
Outlet Velocity Uniformity 82%
Temperature Rise 31 Degrees F
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 87 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 245 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty for heated units.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for environmental separation up to 10 feet and insect control up to 8 feet.
It includes a factory-installed Intelliswitch digital controller with touchscreen operation, an LED clock display, low-voltage activation, external thermostat provision, Comfort Plus provision, and a temperature probe.
Yes. It supports wall or top mounting, with the wall mounting system included and top-mount inserts provided.
Yes. The unit includes a washable filter.
Heated units include a 2-year limited warranty.
