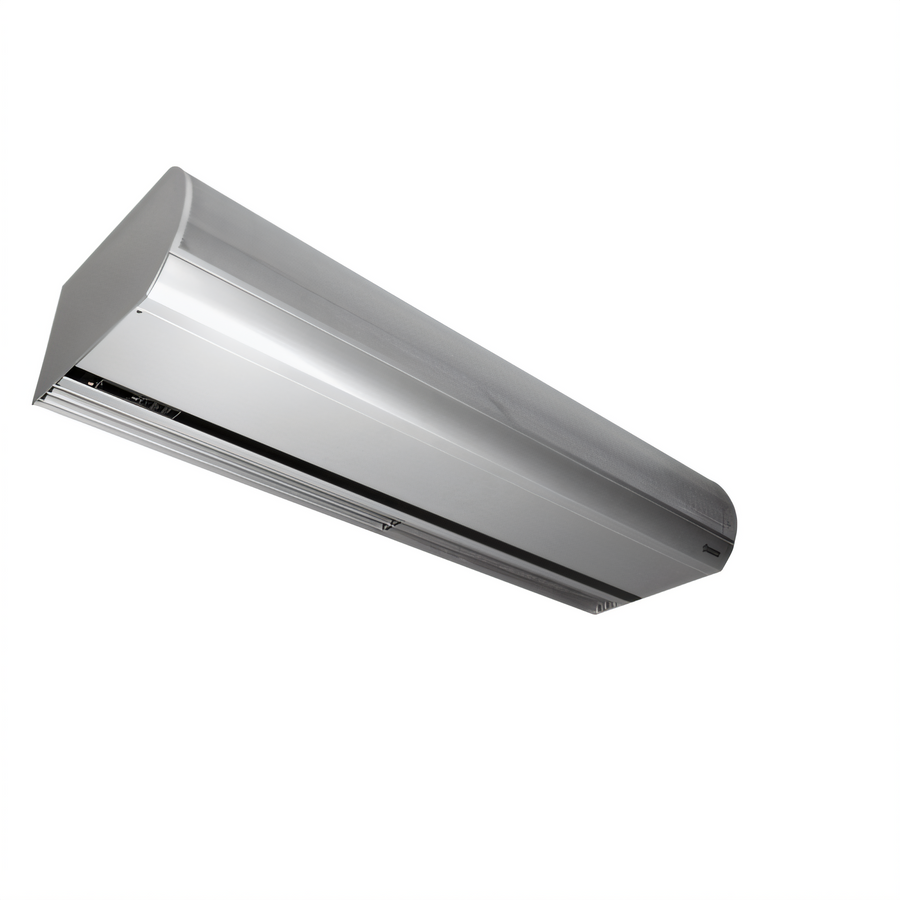

Berner Architectural Icon 10 72-Inch Dual-Motor Electric Heated Air Curtain

Recommended up to 10 Ft Mounting Height; Wall or Top Mount

A sleek heated air curtain that helps maintain comfort and block insects at commercial entrances up to 10 feet high.

  • 72-inch-wide architectural air curtain for commercial entrance applications.
  • Electric heated design is recommended for environmental separation up to 10 ft and insect control up to 8 ft.
  • Dual 1/2 HP motors provide strong airflow across wider openings.
  • Factory-installed Intelliswitch digital programmable controller simplifies operation.
  • Wall or top mounting, washable filter, and anodized aluminum cabinet support flexible installation and low maintenance.
  • Patented open-element electric heater and Pro-V nozzle are designed for efficient, low-noise performance.

Overall Dimensions:

74.13"W x 22.0"D x 12.63"H

Product Weight:

222.0 lb

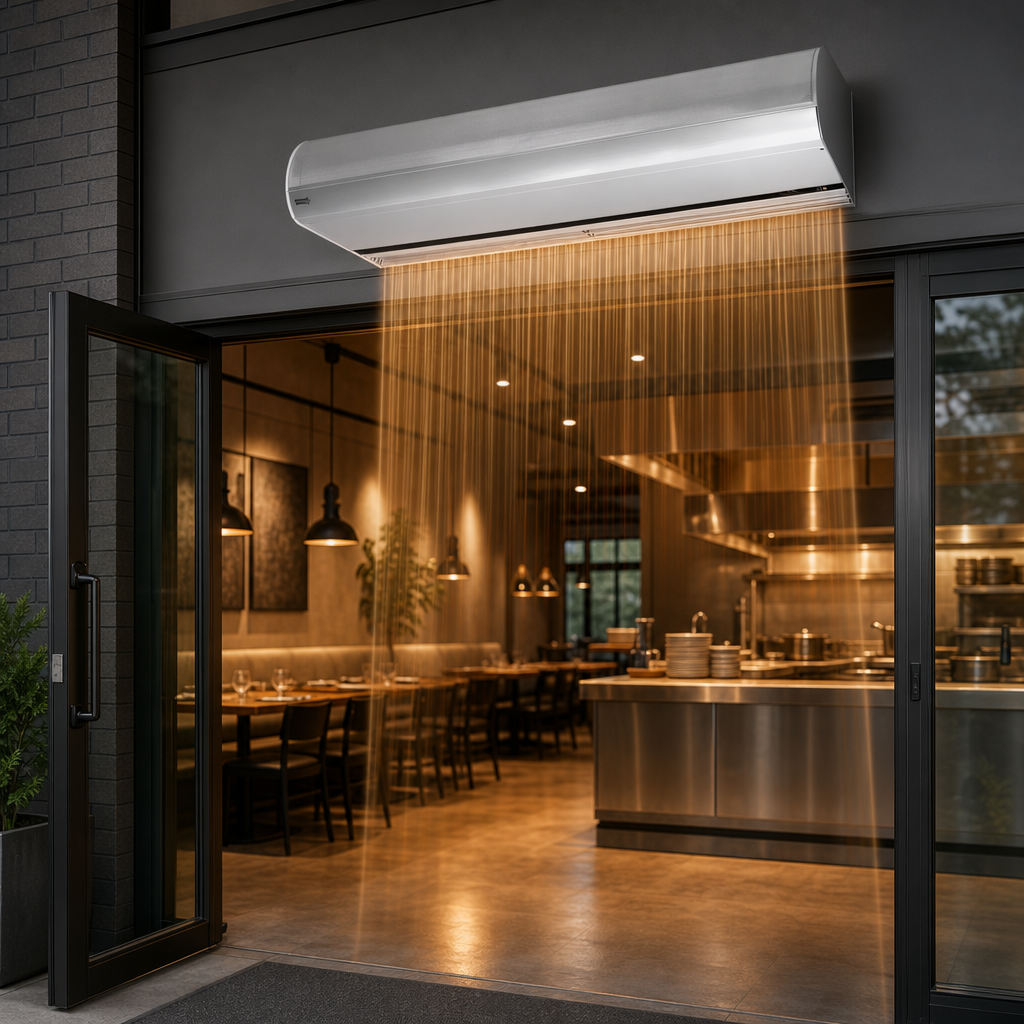

Electric Heated Air Curtain

Designed for climate control at entrances, this unit uses electric heat to help create an effective air barrier.

Electric Heated Air Curtain

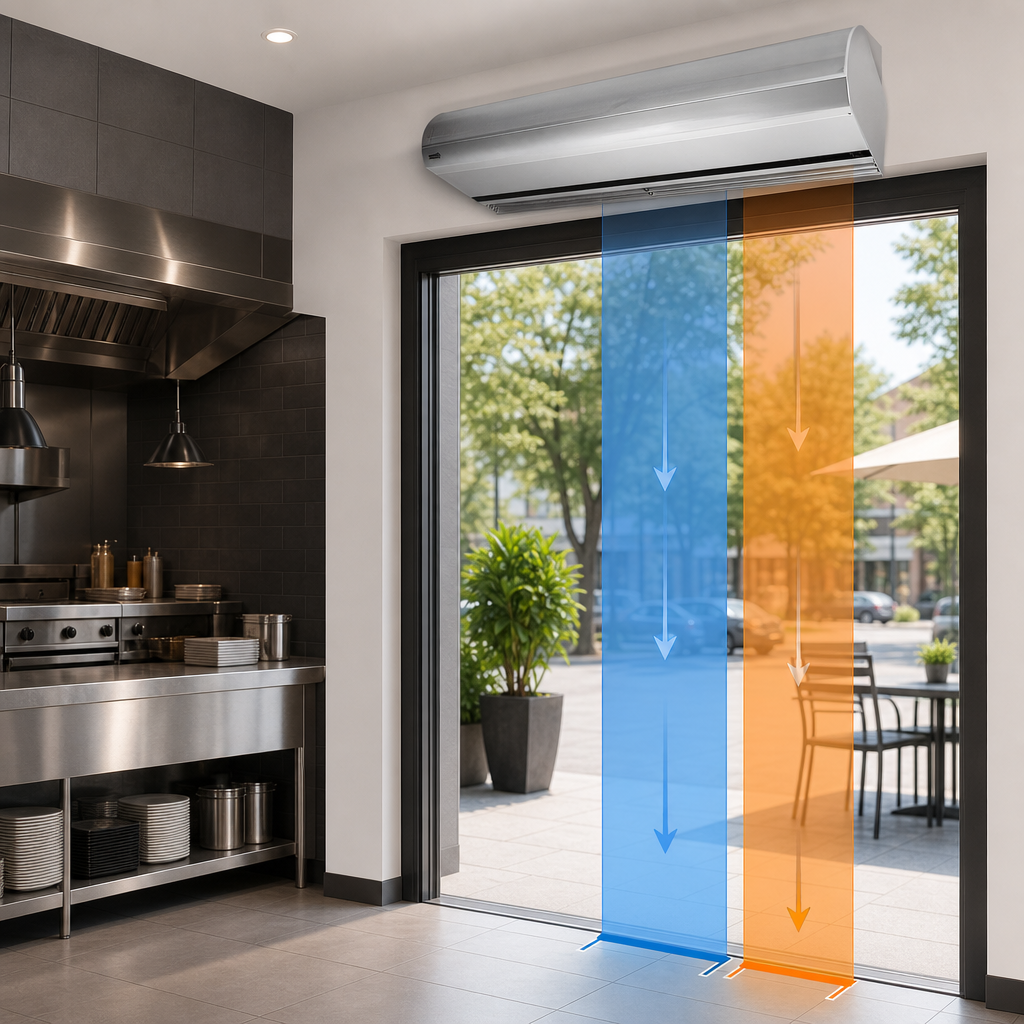

Recommended Mounting Heights

Suitable for environmental separation at openings up to 10 ft high and insect control up to 8 ft high.

Recommended Mounting Heights

Dual 1/2 HP Motors

Two motors help deliver airflow across the 72-inch opening width.

Factory-Installed Intelliswitch Controller

Includes a digital programmable controller for straightforward setup and operation.

Patented Venturi Electric Heater

Uses a single-stage open-element electric heater to warm the air stream.

Wall or Top Mounting

Can be installed with either wall mounting or top mounting to suit the entrance layout.

Clear Satin Anodized Aluminum Cabinet

A durable aluminum exterior cabinet with a clean architectural finish.

Washable Filter

Reusable filter helps simplify maintenance and support ongoing performance.

Pro-V Nozzle

High-efficiency, low-noise articulating three-vane nozzle helps distribute air evenly.

Type Electric Heated Air Curtain
Style Architectural
Installation Type Wall Mounted
Controls Programmable Digital
Material Aluminum
Finish Clear Satin Anodized Aluminum
Horsepower Per Motor 1/2 HP
Motors 2
Max Opening Height 10 Feet
Insect Control Height 8 Feet
Watts 0.90 kW
Max Electric Capacity 28 kW
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 75 Inches
Shipping Depth 22 Inches
Shipping Height 13 Inches
Shipping Weight 222 lb.

Certifications & Compliance

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download

Frequently Asked Questions

It is recommended for environmental separation at mounting heights up to 10 ft and for insect control up to 8 ft.
Yes. The unit supports both wall mounting and top mounting.
It includes a factory-installed Intelliswitch digital controller with programmable operation.
Yes. The unit includes a washable filter.
Heated models are covered by a 2-year limited warranty.
